Product Overview

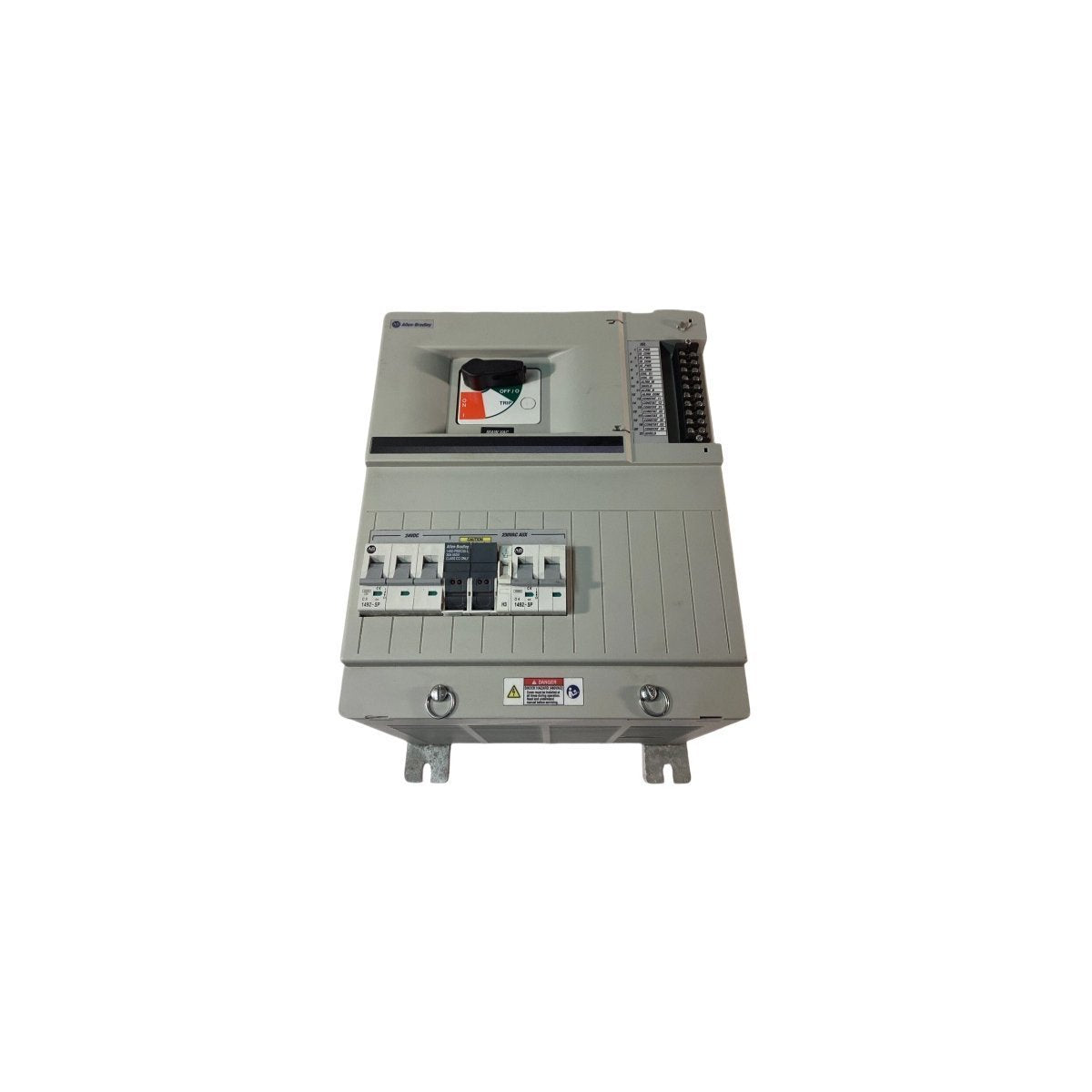

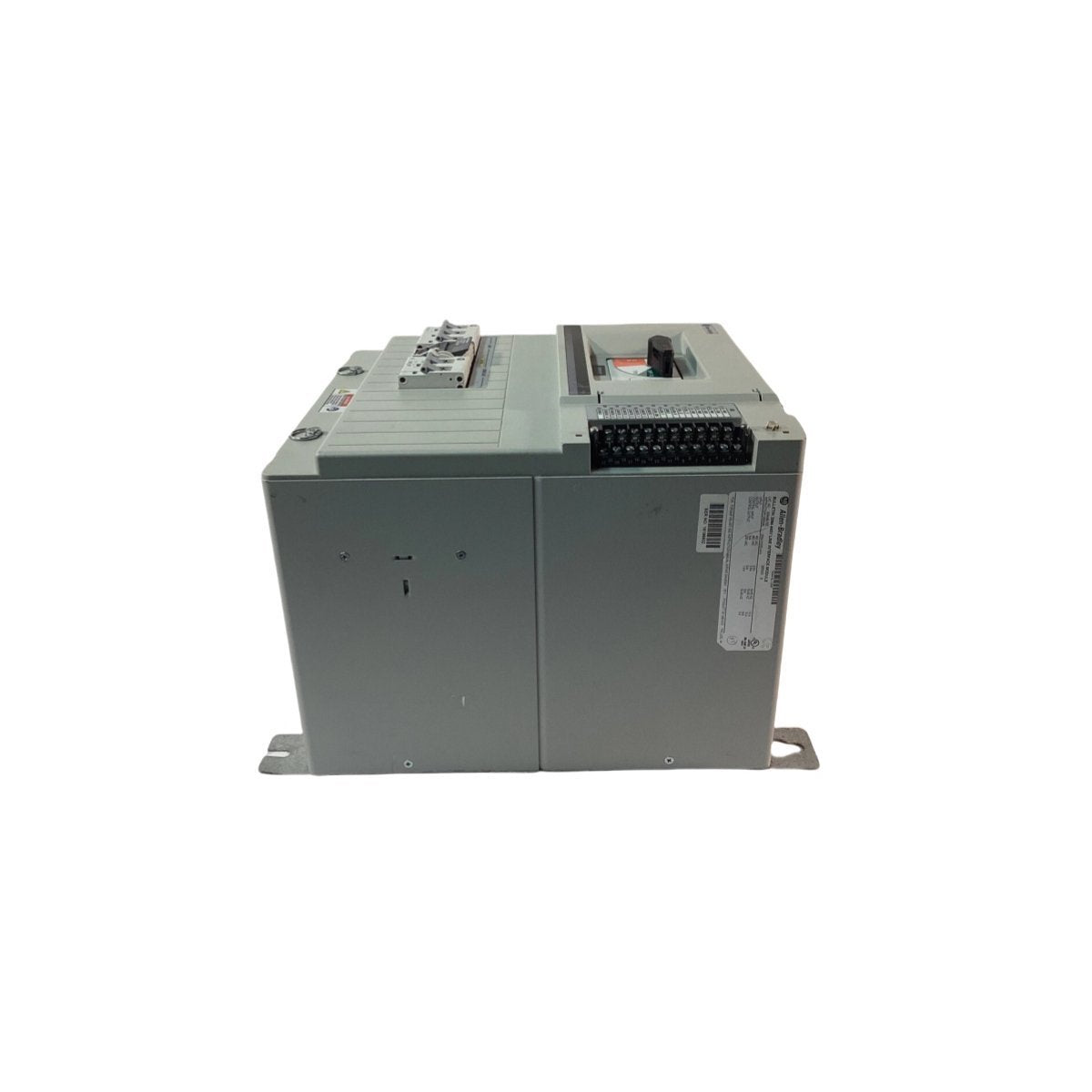

The Allen-Bradley 2094-BL10S is a comprehensive Line Interface Module (LIM) designed to centralize and simplify the power distribution for Kinetix 6000 and 7000 multi-axis servo drive systems. This module serves as an all-in-one input power solution, integrating several discrete components—including a circuit breaker, contactor, and EMI filter—into a single industrial housing. By consolidating these elements, the 2094-BL10S reduces panel space requirements by up to 50% and significantly decreases wiring complexity for high-performance motion control systems.

As a critical interface between the factory power grid and the servo hardware, the LIM provides essential electrical protection and noise suppression. It is specifically engineered to handle the high inrush currents typical of servo systems while ensuring the downstream Integrated Axis Modules (IAM) receive clean, filtered power, thereby extending the life of the drives and motors.

Technical Characteristics

• Input Voltage: 460V AC, Three-Phase (optimized for 400V-class power systems).

• Power Rating: Supports up to 10 kW of continuous output power.

• Integrated Safety: Features an internal 24V DC control power supply and safety-rated input contactor.

• Circuit Protection: Built-in branch circuit breaker provides overload and short-circuit protection.

• Noise Mitigation: Integrated electromagnetic interference (EMI) filter ensures compliance with industrial EMC standards.

• System Connectivity: Designed for seamless physical and electrical alignment with Bulletin 2094 IAM modules.

• Output Voltages: Provides Main AC power to drives and 24V DC control power for the Logic/Safety circuits.

• Operating Temperature: 0°C to 50°C (32°F to 122°F).

• Enclosure Type: IP20 rated open-style design for cabinet mounting.

• Dimensions: 29.5 x 23 x 11.5 cm.

• Weight: 2.1 kg (Module weight; shipping weight may vary).

Power Distribution and Cabinet Efficiency

The 2094-BL10S is an essential component for high-precision robotics, high-speed packaging, and automated assembly lines. Traditionally, a multi-axis system would require manual assembly of various breakers, filters, and isolation transformers. The LIM eliminates this by providing a pre-engineered, factory-tested power stage that reduces the risk of wiring errors and simplifies the troubleshooting process.

By centralizing the "Safe-Off" control and power filtering, the module provides a deterministic power-up sequence for the entire Kinetix rack. Its compact footprint is ideal for space-constrained machine layouts, while its robust construction withstands the electrical transients and mechanical vibrations common in manufacturing environments. The 2094-BL10S ensures that the servo system remains compliant with global safety and electrical standards without the need for extensive external component sourcing.
