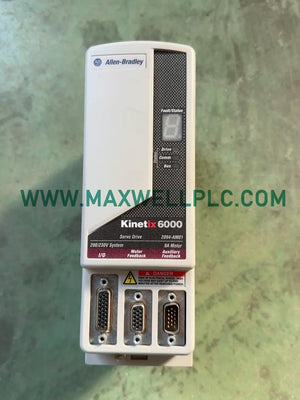

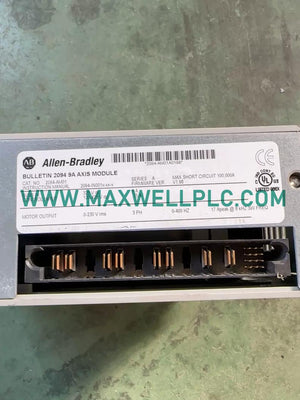

Configured for multi-axis motion control in automated platforms, the Allen-Bradley 2094-AM01 (2094-AM01 Axis Module) provides direct physical/electrical execution. This Kinetix 6000 series inverter module operates on a 200/230 VAC input to deliver 1.9 kW of power at 9 A output. The module functions as a drive axis within the integrated Kinetix 6000 motion control system, facilitating high-speed motor commutation without the safe torque-off (STO) feature.

Hardware Specifications

Control Network Communication

The 2094-AM01 is designed to operate within the Kinetix 6000 power rail, utilizing the internal backplane bus to maintain high-speed communication with the axis control module. The drive firmware supports deterministic feedback loops, ensuring accurate position and velocity tracking. Firmware flash compatibility is supported, allowing for updates to motion control parameters. Users must ensure that I/O density scaling on the host controller is properly configured to support the specific current rating of this 9 A inverter module within the drive train.

Ordering Info

• 1 2094-AM01 Axis Module

• 1 Installation and maintenance documentation set

Field Installation Guidelines

• Mounting

• Mount the axis module onto the Kinetix 6000 power rail, ensuring the power and signal connectors are fully seated.

• Secure the module using the integrated captive screws to ensure a proper chassis ground connection.

• Wiring

• Connect the motor power leads and feedback cables to the designated front-facing terminals.

• Route motor power cables away from signal and feedback cabling to prevent induced noise and potential commutation errors.

• Verify that the input voltage matches the 200/230 VAC rating before energizing the bus.

Frequently Asked Questions

• Does this module include safe torque-off (STO)?

  No, the 2094-AM01 does not include the STO feature; appropriate external hardware must be used for safety-rated stop requirements.

• Is the 2094-AM01 hot-swappable?

  No, this module must be removed and installed only when the system power is completely de-energized to prevent electrical damage to the power rail connectors.

• What happens if the module is installed on an incompatible rail?

  Mechanical keys and electrical interlocks are designed to prevent the module from mating with incompatible rail segments; do not force the installation.

• How is the module status monitored?

  Status is indicated by the LEDs on the faceplate, which provide diagnostics for communication status, fault conditions, and power presence.

• Can this module be used with different Kinetix series?

  No, the 2094-AM01 is specifically engineered for the Kinetix 6000 multi-axis system and is not cross-compatible with Kinetix 5000 or 7000 series drives.

• What is the required bus voltage?

  The module requires a 200/230 VAC input from the shared power bus; verify the bus supply capacity meets the total load requirements of all installed axes.

• How are firmware updates managed?

  Firmware is managed via the motion control software through the communication interface of the Kinetix 6000 axis control module.

• What is the consequence of failing to tighten mounting screws?

  Poor mechanical contact will prevent the module from achieving a proper ground connection, leading to intermittent communication faults and increased electromagnetic interference.
