Product Overview

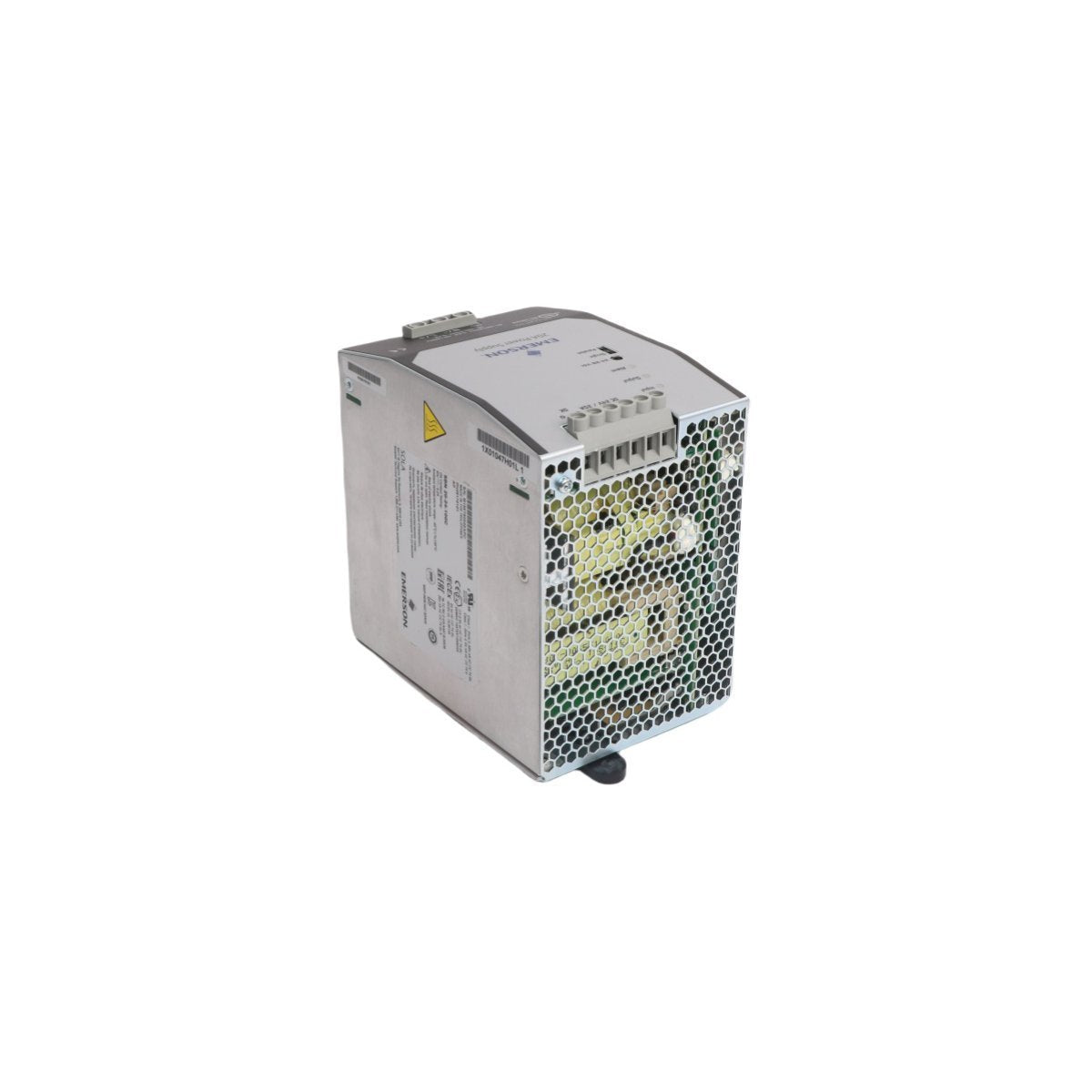

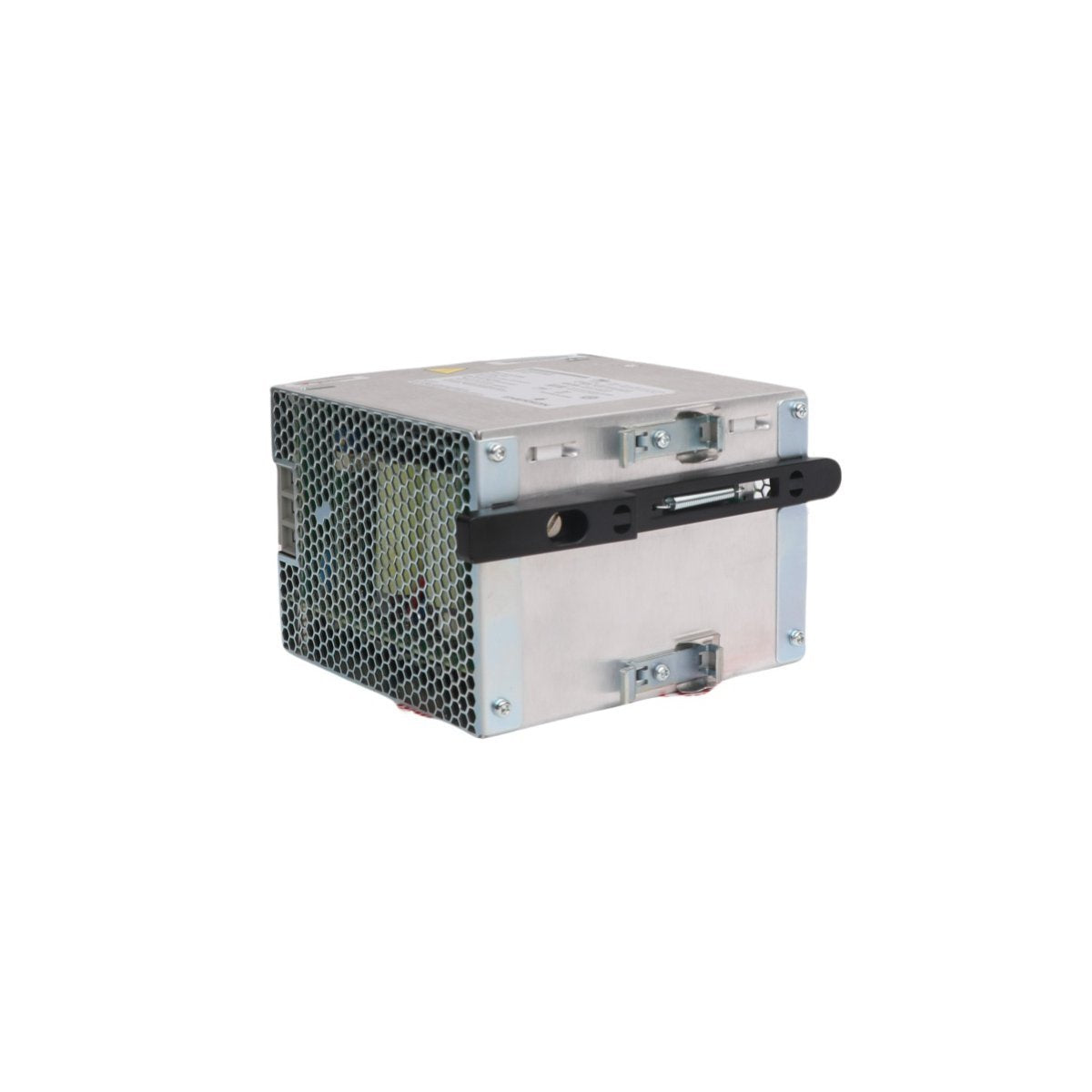

The Emerson 1X01047H01L1 is a high-density power conversion module engineered specifically for the Ovation™ Distributed Control System (DCS). This industrial-grade power supply serves as a foundational component for control cabinet infrastructure, transforming raw AC utility power into the highly regulated 24V DC required by sensitive I/O modules, controllers, and field transmitters.

Engineered for the rigorous uptime requirements of the power generation and water treatment industries, the 1X01047H01L1 ensures system stability by providing a clean, low-noise DC bus. Its design emphasizes energy efficiency and thermal management, allowing it to maintain peak performance within the dense, high-temperature environments of integrated control cabinets.

Key Technical Characteristics and Performance

The 1X01047H01L1 is defined by its superior regulation capabilities and robust protection circuitry.

• High-Efficiency Conversion: Achieves over 92% efficiency at 230V AC, minimizing heat dissipation and extending the operational lifespan of the module and surrounding electronics.

• Stable DC Output: Delivers a consistent 24V DC with stringent line regulation (±0.5%) and load regulation (±1.0%), ensuring that voltage drops do not occur during high-demand process cycles.

• Clean Power Delivery: Features specialized filtering that keeps ripple and noise below 100 mVpp, protecting sensitive digital electronics from electromagnetic interference.

• Dynamic Load Support: Provides a continuous 10A output with a peak capacity of 12A to accommodate the high inrush currents often associated with starting field actuators or inductive loads.

• Fault Ride-Through Capability: Maintains output stability for over 20ms during brief AC power interruptions, allowing the DCS to bridge minor grid fluctuations without triggering a system reset.

• Inrush Current Limitation: Active circuitry limits initial surge current to under 25A, preventing the nuisance tripping of upstream circuit breakers during system startup.

Technical Specifications

• Manufacturer: Emerson (Ovation Division)

• Model Number: 1X01047H01L1

• Product Series: Ovation™ DCS

• Input Voltage Range: 85–264V AC (Universal Input)

• Input Frequency: 47–63 Hz

• Nominal Output: 24V DC

• Output Current: 10A (Continuous) / 12A (Peak)

• Total Power Output: 240W

• Physical Dimensions: 12.1 x 5.2 x 16.6 cm

• Unit Weight: 0.34 kg

• Country of Origin: USA

Industrial Applications

The Emerson 1X01047H01L1 is a critical asset for infrastructure where power reliability is non-negotiable:

• Power Plant Control: Supplying 24V DC power to turbine control systems and boiler feedwater logic.

• Utility Management: Powering remote telemetry units and localized DCS nodes in water distribution networks.

• Heavy Industrial Automation: Serving as the primary DC source for high-density I/O racks in chemical and manufacturing plants.

• Redundant Power Systems: Ideal for use in N+1 redundant power configurations to ensure maximum fault tolerance.
