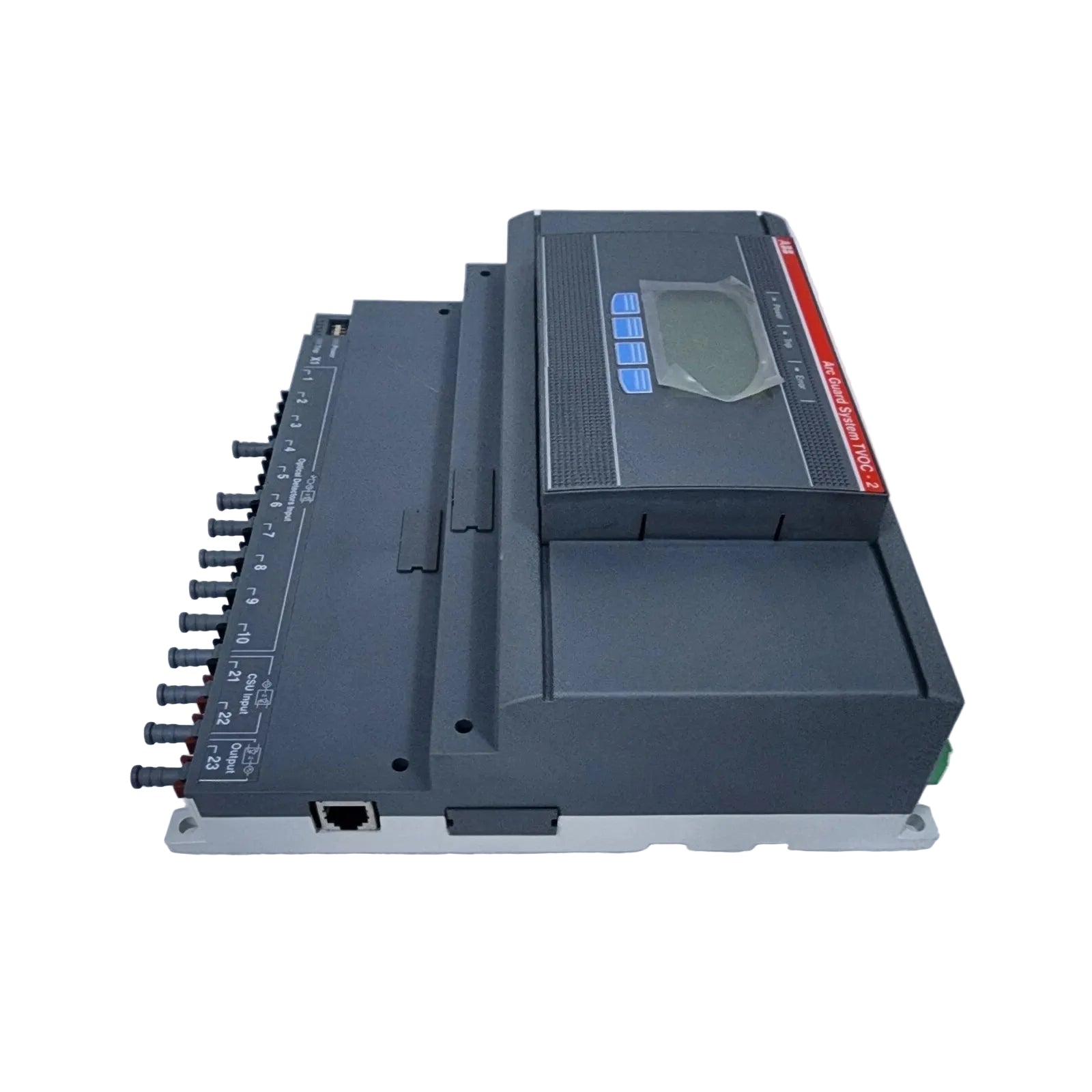

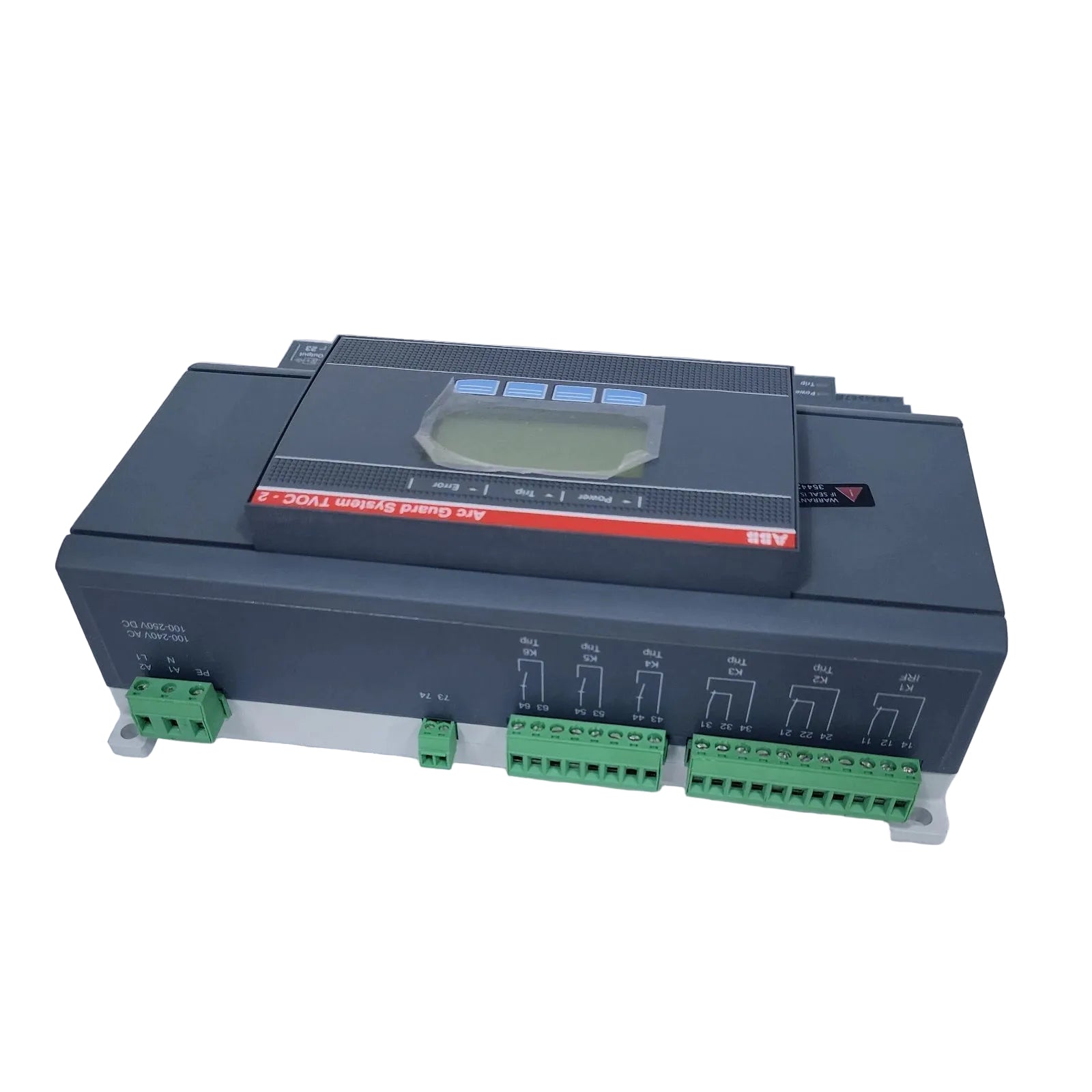

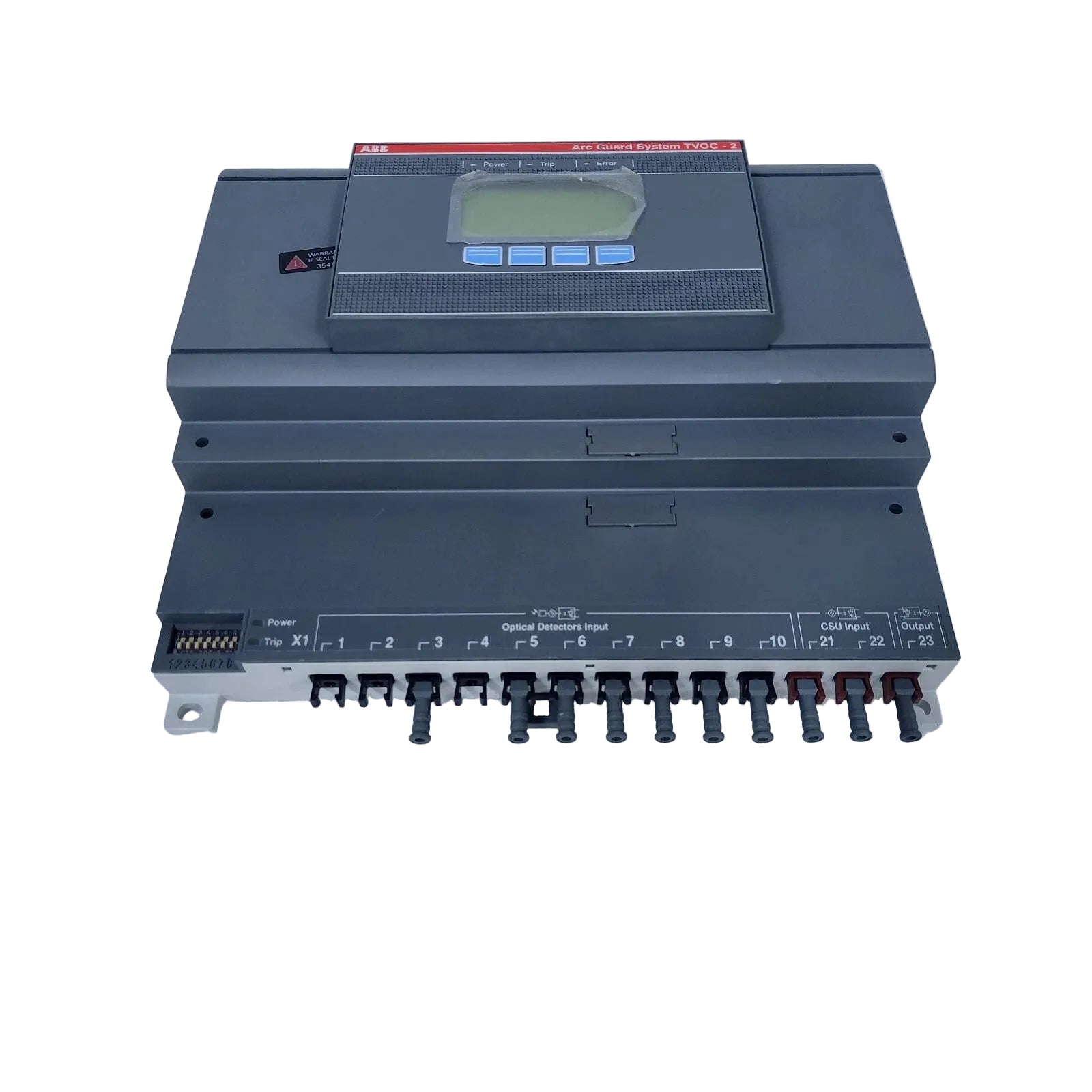

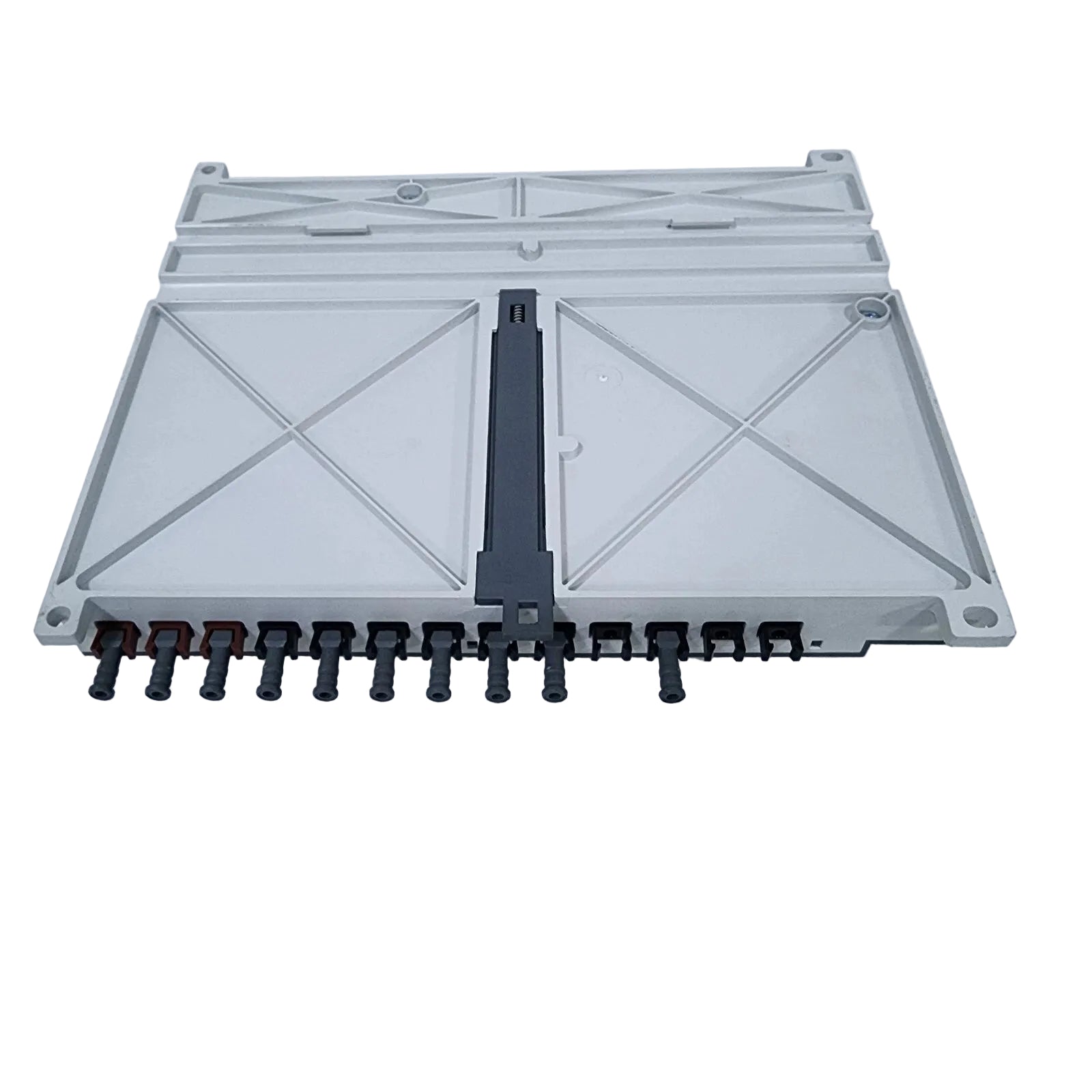

Configured for Ultra-Fast Arc Fault Detection & Response in low- and medium-voltage switchgears, the ABB 1SFA664001R1001 (TVOC-2-240 Arc Monitor) provides direct physical/electrical execution. The hardware processes light detection signals from optical fiber sensors and sends an electrical trip command via fast IGBT contacts within 1 ms to an associated circuit breaker, interrupting short-circuit arc faults before structural damage occurs.

Physical and Electrical Parameters

Deterministic Subsystem and Functional Safety Compliance

The hardware maps optical sensor positions to separate output relay assignments through physical DIP-switches mounted on the chassis enclosure. Safety functions are exclusively handled by dedicated hardware circuits to ensure instant fault clearing, while a secondary microprocessor subframe tracks internal log registers and handles external human-machine interface (HMI) screen communications. The system configuration supports uniform I/O density scaling via expansion ports, allowing real-time multi-zone selective tripping without altering backplane bus communication velocity channels or introducing software processing lags into the critical trip loop.

Optical Fiber Sensor Setup and Routing

• Cable Integrity Constraints: Do not cut or shorten the pre-terminated fiber optic cables under any circumstances. Modifying the physical cable length alters the optical attenuation calibration profiles.

• Bending Radius Tolerances: Excess optical cable must be neatly coiled into a structural ring with a minimum internal diameter of 100 mm. Maintain a static bending radius of 20 mm to 50 mm for glass fiber conductors or 10 mm to 45 mm for plastic fiber variants to prevent optical path leakage.

• Detector Position Parameters: Position each optical sensor tip such that it maintains unobstructed line-of-sight across the designated target zone. Each sensor defines a 3 m radius measurement sphere covering a 180 deg collection angle.

• Energy Storage Profile: The primary chassis retains internal capacitive charge sufficient to maintain standalone operation for up to 0.2 s during complete auxiliary power failures, providing continuous trip circuit drive during a direct dead short circuit.

Technical Engineering FAQ

Q: What happens to the IGBT tripping outputs if a firmware mismatch occurs during an HMI replacement?

A: The critical safety functions and IGBT trip loops are hardwired and operate independently of software registers. A firmware flash compatibility mismatch or an HMI disconnection will generate a system warning log but will not block the 1 ms hardware arc fault trip loop.

Q: How does the TVOC-2 module execute zone-selective tripping across multiple circuit breakers?

A: Internal zone routing is configured using physical DIP-switches on the main unit faceplate. When a specific optical channel triggers, the hardware decodes the position map and fires only the designated IGBT output contacts assigned to that fault zone, leaving unaffected breakers closed.

Q: Is hot-swapping of optical sensor extensions permitted while the monitor is powered?

A: No. Connecting or disconnecting expansion units or altering DIP-switch states while the 100-240 V supply rail is active can cause configuration errors or unintentional tripping. De-energize the unit completely before changing the detector configuration profile.
