Product Overview

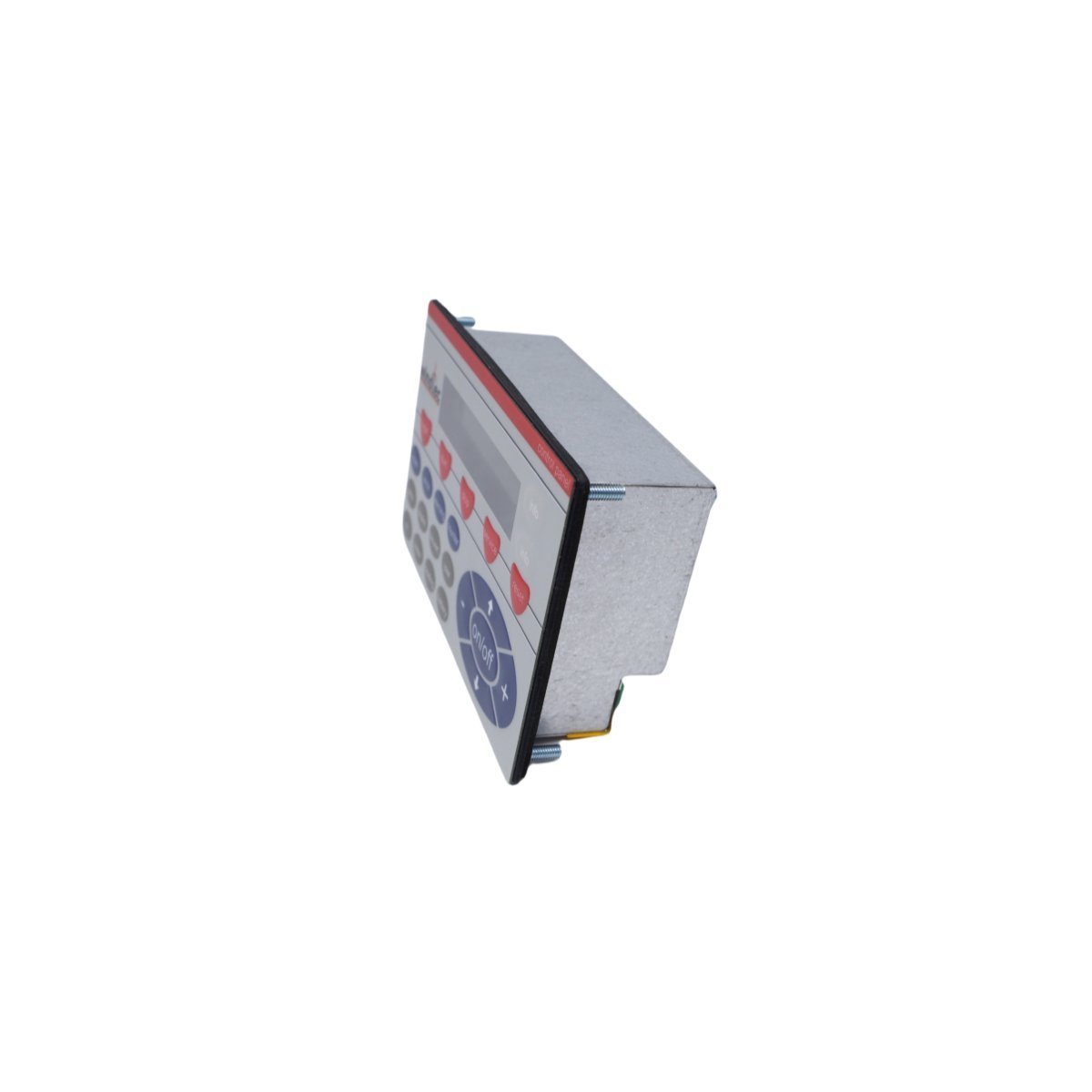

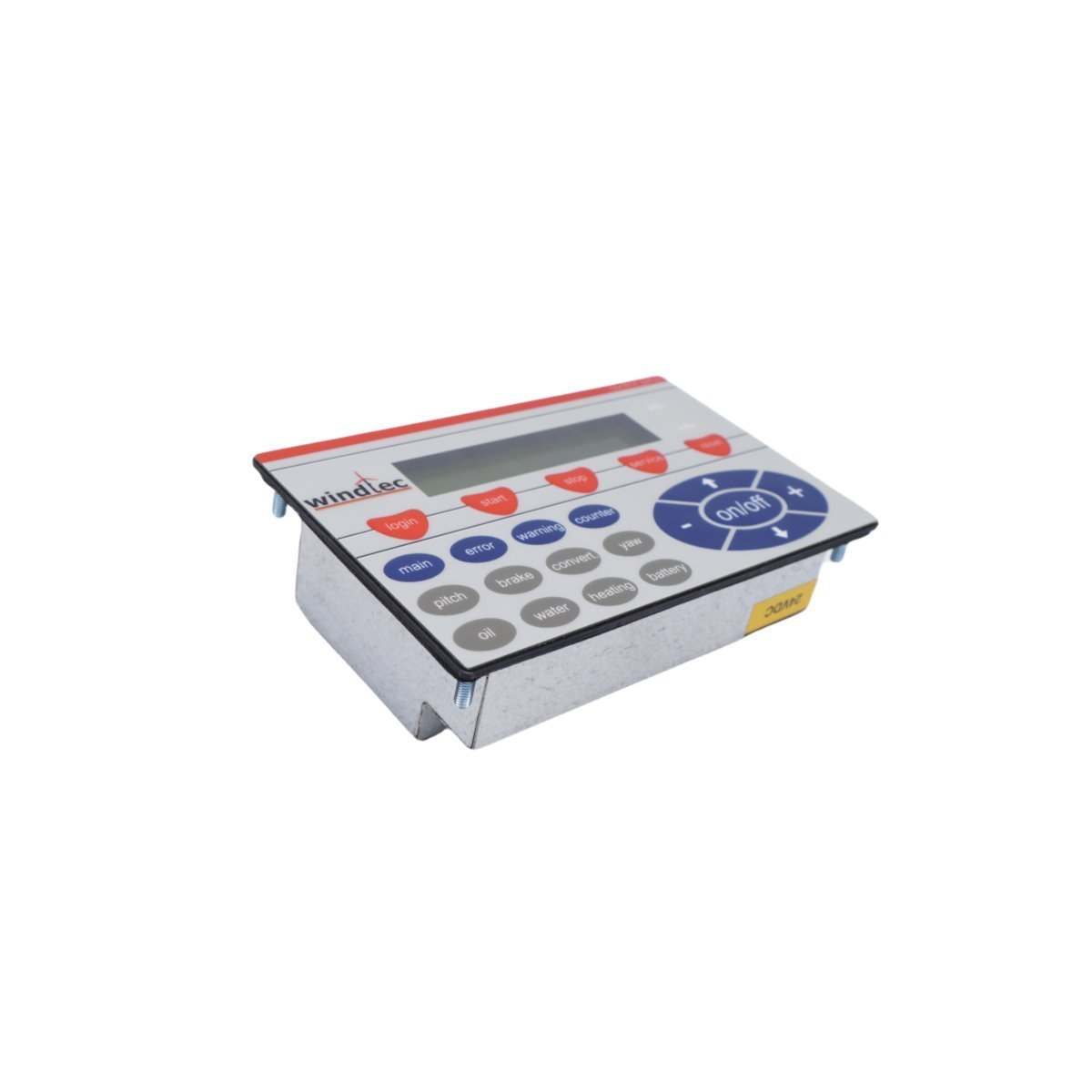

The CP502, identified by the ordering code 1SBP260190R1001-A, is a high-performance Human-Machine Interface (HMI) designed for the ABB AC500 PLC platform and broader Distributed Control System (DCS) architectures. This control panel module serves as the primary visualization and interaction point for operators, converting complex process data into intuitive graphical displays. Engineered for seamless integration with the CP500 series, the CP502 allows for real-time monitoring of variables, alarm management, and manual setpoint adjustments. Its robust design is specifically tailored for the rigors of industrial floor environments, providing a centralized node for local machinery control and plant-wide status oversight.

Hardware Specifications and System Architecture

The CP502 is built with a focus on tactile durability and visual clarity, ensuring reliable operation in high-traffic control environments.

• Model Number CP502

• Order Reference 1SBP260190R1001-A

• Interface Series CP500 HMI Family

• Display Technology High-contrast liquid crystal display optimized for industrial visibility

• Connectivity Integrated Ethernet and Serial ports for multi-device data exchange

• Communication Protocols Supports Modbus RTU/TCP and proprietary ABB automation protocols

• Physical Weight 2.16 kg

• Casing Dimensions 28.6 x 23.1 x 5.5 cm

• Operating Voltage 24V DC nominal supply

• Environmental Protection Front panel rated for high ingress protection against dust and moisture

• Manufacturing Site Sweden

• Export Classification HS Code 8537101190

Industrial Deployment and Operational Roles

As a versatile operator terminal, the CP502 is implemented across diverse sectors requiring stable and responsive local control interfaces.

• Wind Power Generation Serving as the primary Nacelle or base-tower interface for turbine status monitoring, pitch control, and error logging.

• Factory Automation Acts as the localized HMI for discrete manufacturing cells, allowing operators to trigger batch cycles and monitor line speed.

• Process Infrastructure Used in chemical and water treatment facilities to provide real-time trending of pressure, flow, and temperature variables.

• System Diagnostics Provides a portable or panel-mounted gateway for maintenance teams to perform onsite PLC troubleshooting and I/O status checks.

• DCS Network Node Operates as a remote visualization station linked via Ethernet to a central control room, providing localized access to plant-wide data.
