Product Overview

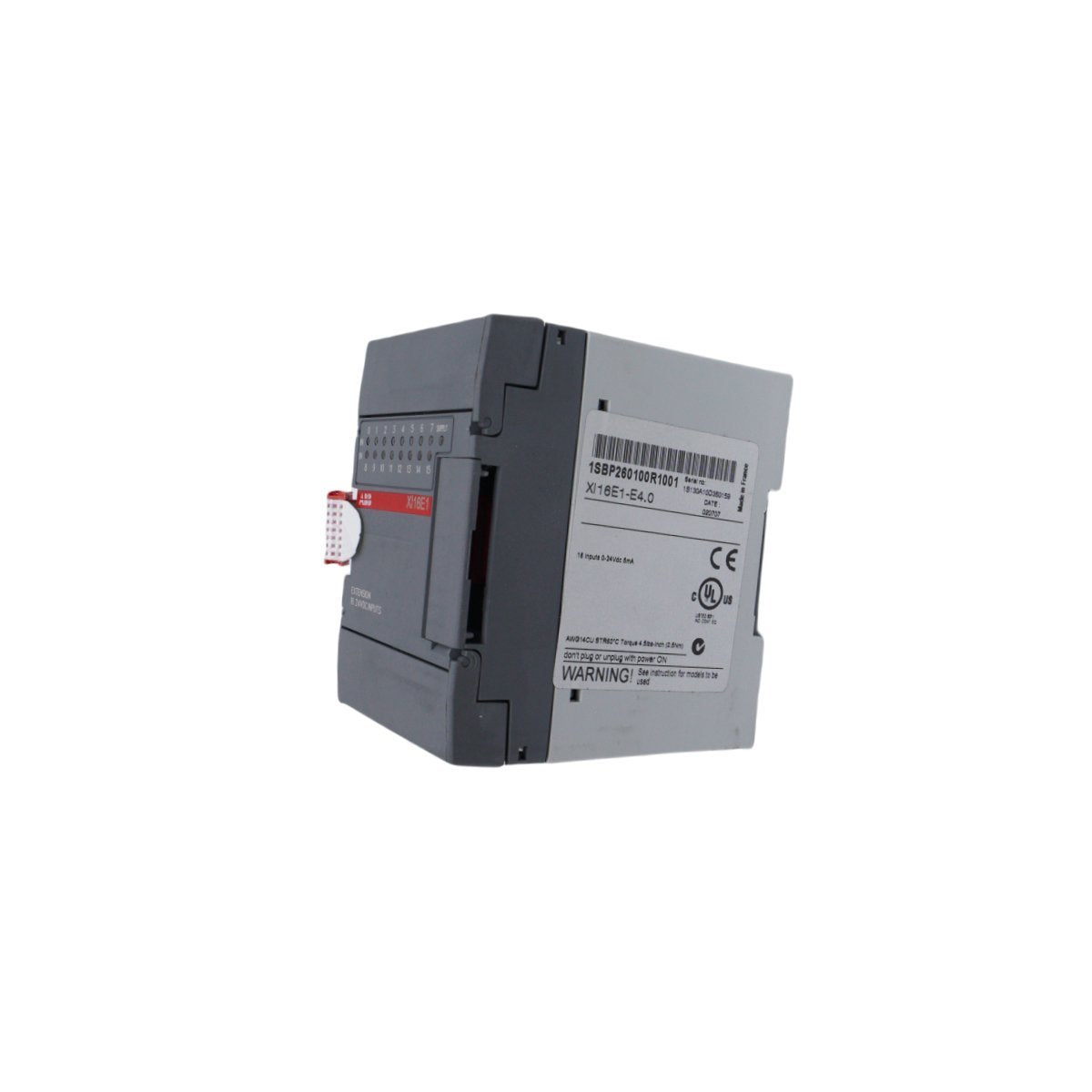

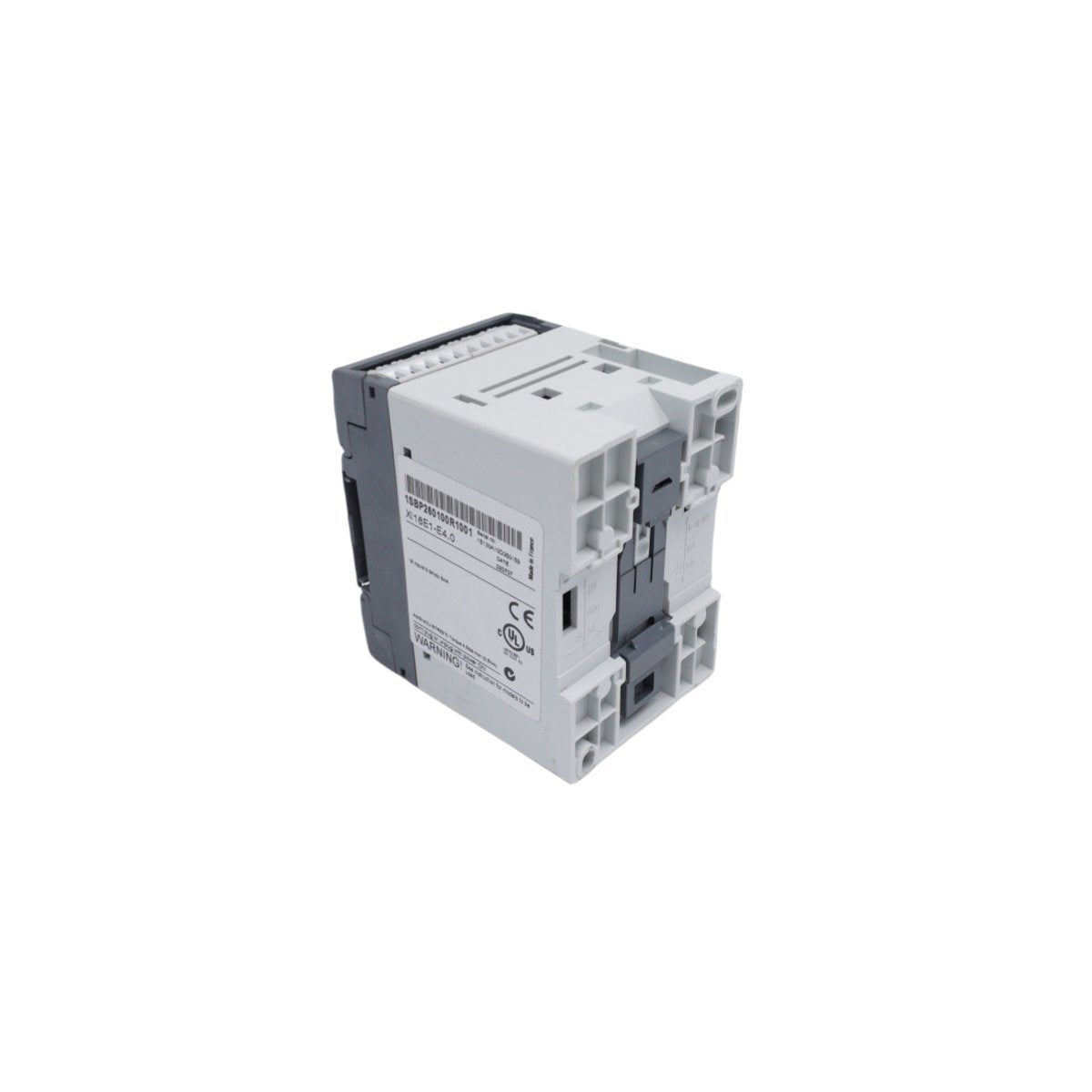

The ABB XI16E1, identified by the order code 1SBP260100R1001, is a high-density digital input expansion unit engineered for the Procontic CS31 fieldbus system. This extensible remote unit provides 16 discrete input channels, acting as a decentralized data acquisition node that bridges field-level signals to the Advant OCS or DCS central processing environment. Designed for high-speed signal processing, the XI16E1 ensures that binary states from sensors, switches, and interlocks are captured with high temporal resolution. Its modular architecture is specifically intended for system designers who require scalable I/O solutions that can be distributed across an industrial facility to minimize localized wiring complexity.

Technical Hardware Profiles and Physical Metrics

• Model NumberXI16E1

• Order Reference1SBP260100R1001

• Channel Density16 Digital Inputs

• Total Net Weight0.2 kg

• Casing Dimensions10.2 x 7.6 x 10.2 cm

• System Bus ProtocolCS31 Fieldbus

• Communication InterfaceCompatible with Ethernet router gateways

• Production OriginSweden

• Tariff Code (HS)8537101190

• Mounting StandardDIN Rail / Integrated Mounting

The XI16E1 features a lightweight 0.2 kg chassis that facilitates rapid installation in space-constrained junction boxes. The internal circuitry is optimized for low power consumption and high noise immunity, ensuring that the 16 digital channels remain stable even in environments with significant electromagnetic interference from nearby heavy machinery.

Industrial Deployment Scenarios

The 1SBP260100R1001 XI16E1 is widely utilized in sectors where decentralized signal monitoring is essential for operational safety and efficiency. Primary applications include:

• Factory Automation Lines: Capturing real-time feedback from limit switches and proximity sensors on high-speed packaging and assembly machinery.

• Process Plant Monitoring: Serving as a remote extension for Advant OCS systems to monitor the status of valves and pumps in chemical or water treatment facilities.

• Building Utility Management: Coordinating digital status signals for HVAC dampers, fire alarms, and security access points across large infrastructures.

• Distributed Power Control: Managing auxiliary status inputs in electrical switchgear cabinets, where the CS31 bus allows for efficient long-distance data transmission.

FAQ

Q: What is the primary function of the "Extensible" designation for the XI16E1?

A: The extensible design allows the unit to act as a modular building block within the CS31 bus architecture, enabling engineers to add blocks of 16 digital inputs to the system as site requirements expand without replacing the master controller.

Q: Is the XI16E1 compatible with different input voltage levels?

A: Yes, the XI16E1 is designed to support standard industrial digital voltage levels (typically 24V DC), though it is recommended to verify the specific signal threshold in the Procontic CS31 hardware manual for your specific wiring configuration.

Q: How does the module communicate with an Advant OCS controller?

A: The module connects via the CS31 fieldbus. For modern integration into wider plant networks, it can interface with an Ethernet router gateway to provide data visibility to higher-level DCS centers.

Q: Does the module require specialized software for configuration?

A: Configuration is typically handled through the standard ABB programming environment used for CS31 or Advant systems, where the module is assigned a specific address on the fieldbus.

Q: What is the benefit of the Swedish manufacturing origin for this unit?

A: ABB’s Sweden-based production adheres to rigorous European industrial standards, ensuring high build quality, long-term reliability, and precise adherence to safety certifications like CE and UL.
