Product Overview

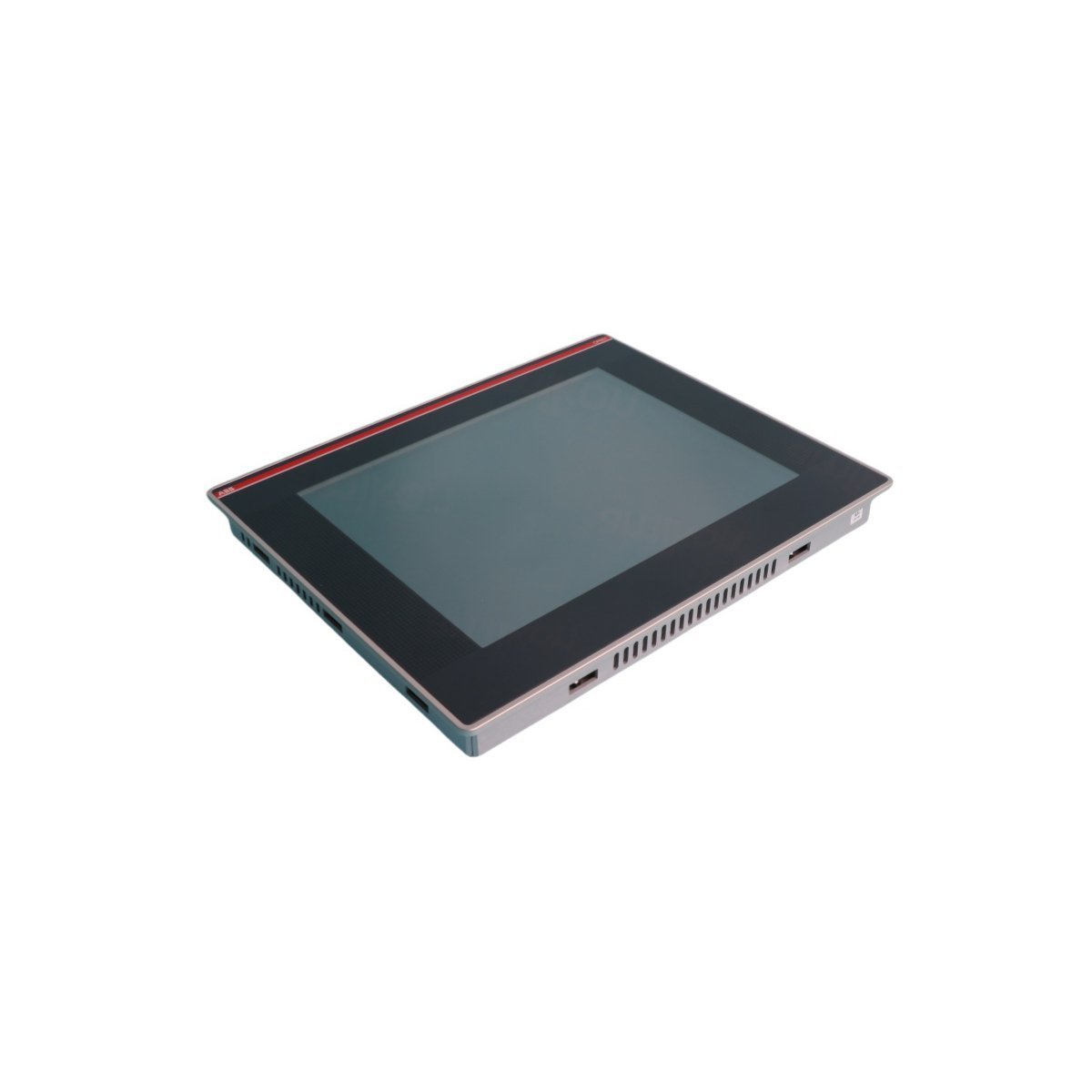

The ABB CP651-WEB, identified by order code 1SAP551200R0001, is a high-performance Human-Machine Interface (HMI) engineered for advanced visualization in distributed control environments. Featuring a 10.4-inch TFT SVGA display, this unit provides a high-resolution (800 x 600) graphical interface capable of rendering 64,000 colors. It is specifically optimized for web-based automation, utilizing a built-in microbrowser to interface seamlessly with PLC web servers (V2.3), particularly within the AC500 and CP600-series ecosystems.

Designed to bridge the gap between field operations and high-level monitoring, the CP651-WEB facilitates real-time data visualization and touch-based process control. Its internal architecture, featuring 256 MB of DDR RAM and 256 MB of Flash storage, ensures rapid screen transitions and stable execution of complex user programs and data logging tasks.

Industrial Hardware and Connectivity

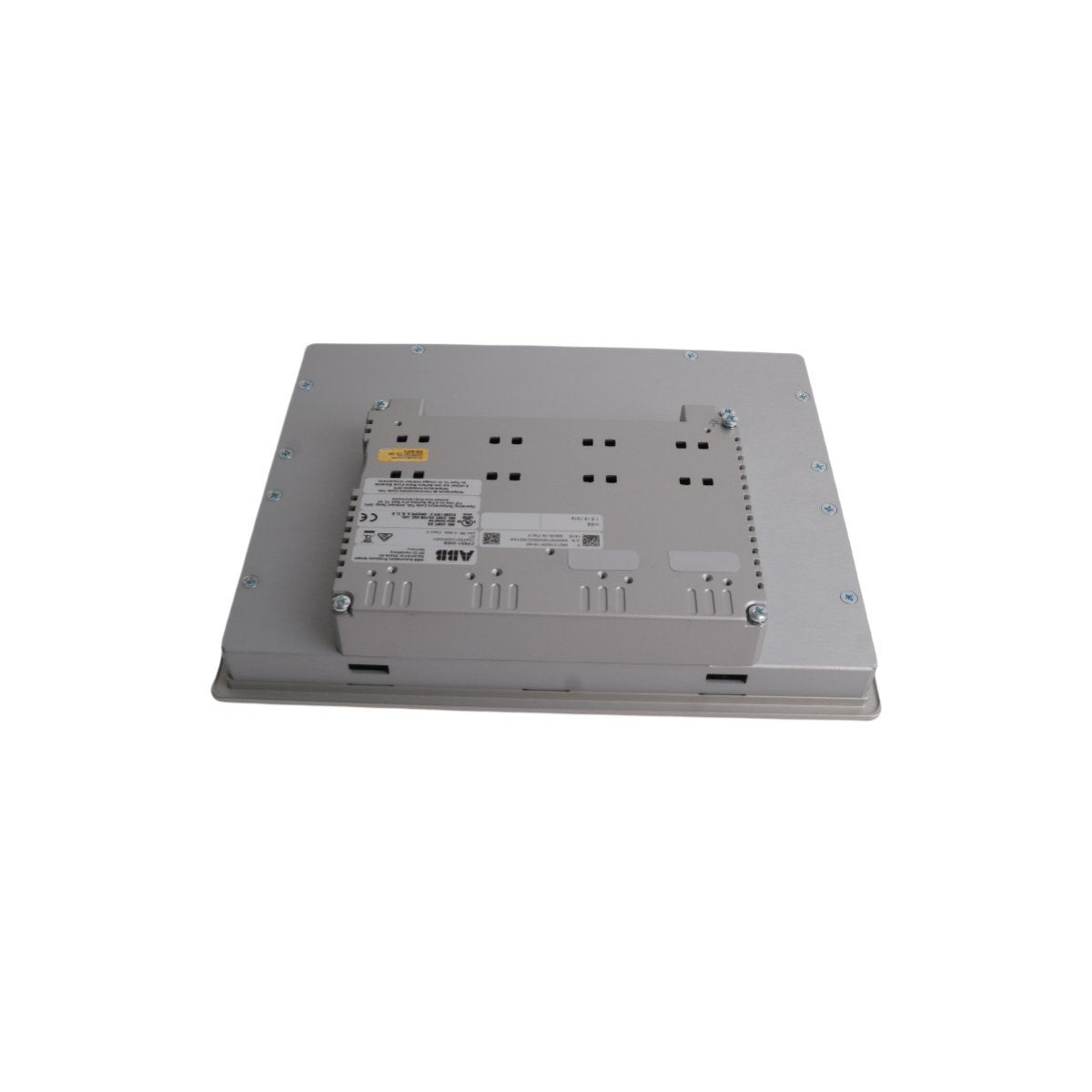

The CP651-WEB is built for longevity in demanding industrial climates. The front face is protected by an IP66-rated seal, making it impervious to high-pressure water jets and dust, while the chassis is encased in a rugged aluminum housing for superior heat dissipation and mechanical protection. This hardware profile allows the panel to operate reliably in ambient temperatures up to +50°C, typical of factory floors and processing plants.

Connectivity is a core strength of the 1SAP551200R0001. It serves as a communication hub with dual Ethernet ports (10/100 Mbit) for network redundancy or daisy-chaining, alongside versatile serial interfaces (RS-232, RS-422, and RS-485). Additional expansion is provided via two USB 2.0 host ports and an integrated SD-card slot, supporting easy firmware updates, project transfers, and external data storage.

Technical Specifications

• Model Identifier: CP651-WEB

• Order Number: 1SAP551200R0001

• Display Type: 10.4" TFT Graphical Color Touch Screen

• Resolution: 800 x 600 pixels (SVGA)

• Storage/Memory: 256 MB Flash / 256 MB DDR RAM

• Interface Protocol: Microbrowser for V2.3 Web Server applications

• Network Ports: 2 x Ethernet (10/100 Mbps)

• Serial Ports: 1 x RS-232 / RS-422 / RS-485 (Sub-D 9-pole)

• Expansion: 2 x USB 2.0, 1 x SD Card Slot

• Protection Class: IP66 (Front), IP20 (Rear)

• Housing Material: Die-cast Aluminum

• Input Voltage: 24V DC (18–30V DC)

• Weight: 3.48 kg

• Dimentions:33.5x27.5x8cm

• Operating Temperature: 0°C to +50°C

Key Operational Benefits

• Web-Based Flexibility: Native microbrowser support allows for direct visualization of web-enabled PLC projects without specialized HMI software.

• Ruggedized Reliability: Aluminum construction and IP66 protection ensure performance in oil, dust, and wash-down environments.

• Superior Interoperability: Dual Ethernet and multi-standard serial ports enable simultaneous connection to multiple PLC brands and DCS layers.

• User-Friendly Maintenance: SD card and USB support allow for rapid field-side project deployment and backups.
