Product Overview

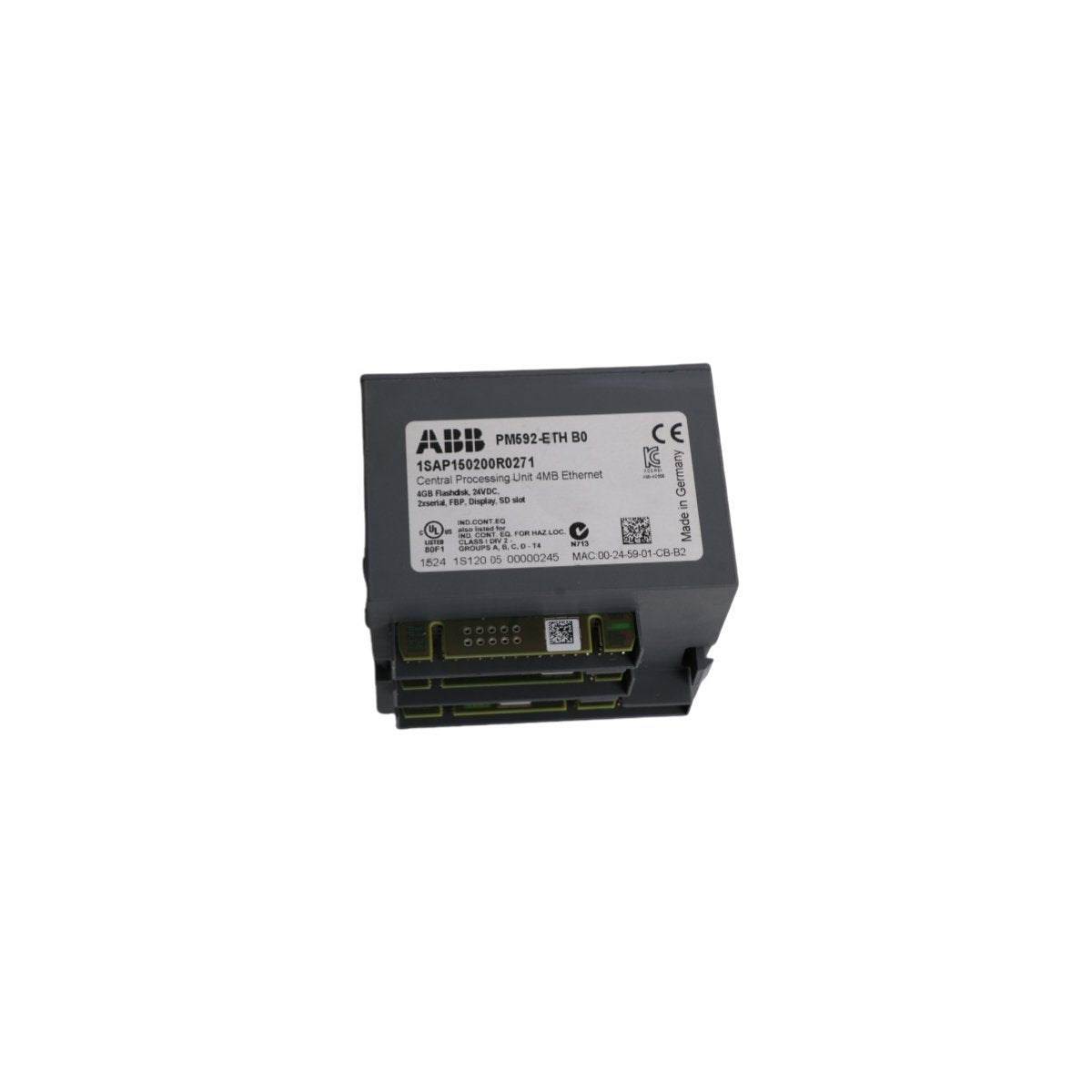

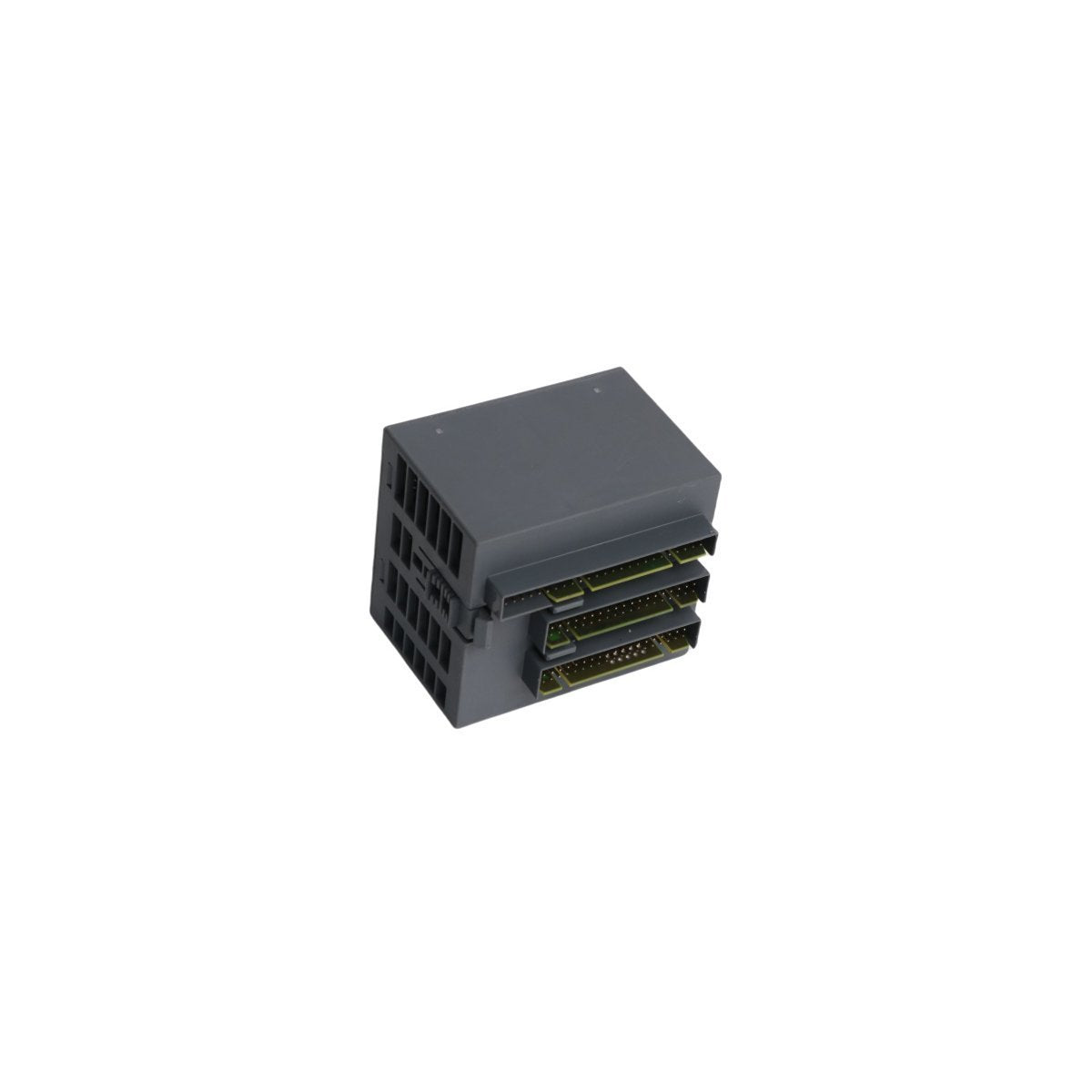

The ABB PM592-ETH, identified by the order code 1SAP150200R0271, is a high-capacity CPU module belonging to the flagship AC500 Programmable Logic Controller (PLC) range. Engineered for computationally intensive tasks, this processor features an 800 MHz clock speed to handle complex control logic, high-speed motion, and extensive data management. The module is equipped with an integrated Ethernet interface, facilitating native support for modern industrial networking and remote diagnostics. By combining significant memory resources with a robust communication backbone, the PM592-ETH acts as the primary intelligence for decentralized automation architectures and high-performance machine control.

Advanced Computational and Hardware Parameters

• Processor Performance: 800 MHz clock speed for rapid cycle times

• Memory Capacity: 4 MB User Memory / 4 MB Internal Flash

• Physical Mass: 0.177 kg

• Module Dimensions: 8.4 x 7.2 x 7.1 cm

• Operating Temperature: Extended range from -20°C to +70°C

• Hazardous Area Rating: Class 1, Division 2 certified for volatile environments

• Networking Interface: 1x RJ45 Ethernet port (10/100 Mbit/s)

• On-board Storage: Support for SD cards to facilitate data logging and project backup

• Origin: Manufactured in Sweden

• Customs Code: 8537101190

Industrial Deployment Environments

The PM592-ETH is specifically tailored for sectors requiring high scalability and environmental resilience. Its primary applications include:

• Complex Machine Control: Coordinating multi-axis motion drives and high-speed synchronized production equipment.

• Energy Management: Serving as a primary controller in renewable energy plants and substation automation.

• Infrastructure and Tunneling: Operating in wide-temperature environments for ventilation and traffic management systems.

• Hazardous Process Industries: Implementing control logic in oil, gas, or chemical plants where Class 1 Div 2 safety standards are mandatory.

FAQ

Q: What is the maximum user memory available on the PM592-ETH?

A: This module provides 4 MB of user program memory and 4 MB of internal flash, offering substantial space for complex algorithms and extensive local data storage.

Q: Can the PM592-ETH be utilized in sub-zero industrial conditions?

A: Yes, the hardware is rated for operation in temperatures as low as -20°C, making it suitable for unheated outdoor cabinets or cold storage facilities.

Q: Does the 1SAP150200R0271 support standard industrial Ethernet protocols?

A: Absolutely, the integrated Ethernet port supports various protocols including TCP/IP, UDP, and Modbus TCP, ensuring seamless integration with existing plant networks.

Q: Is a separate terminal base required for this processor module?

A: Yes, the PM592-ETH must be mounted on a compatible AC500 terminal base (such as the TB511, TB521, or TB541) to provide the necessary power and I/O connections.

Q: How does the PM592-ETH handle software updates?

A: The modular design allows for firmware and software updates via the Ethernet port or through a standard SD card, minimizing physical maintenance time.
