Product Overview

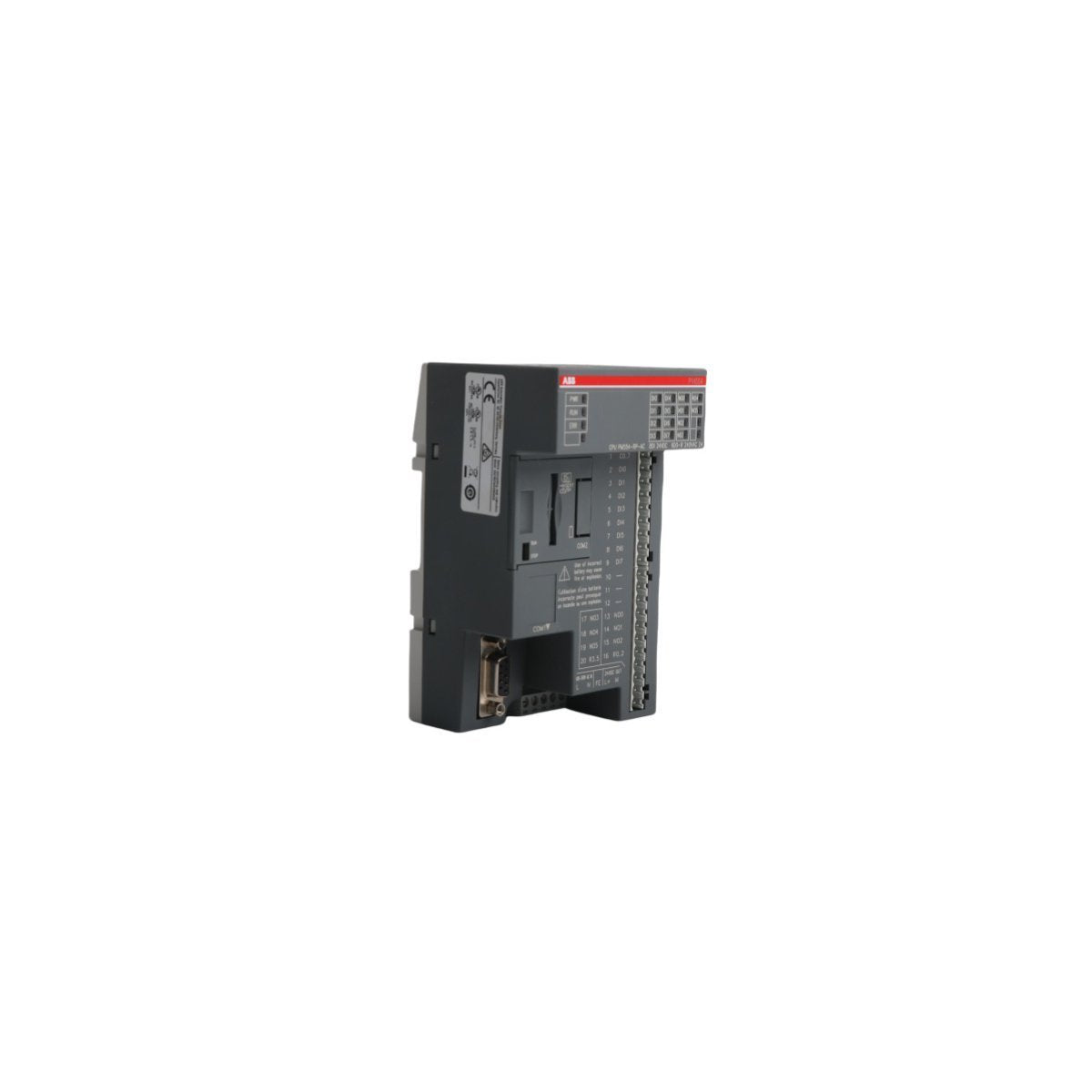

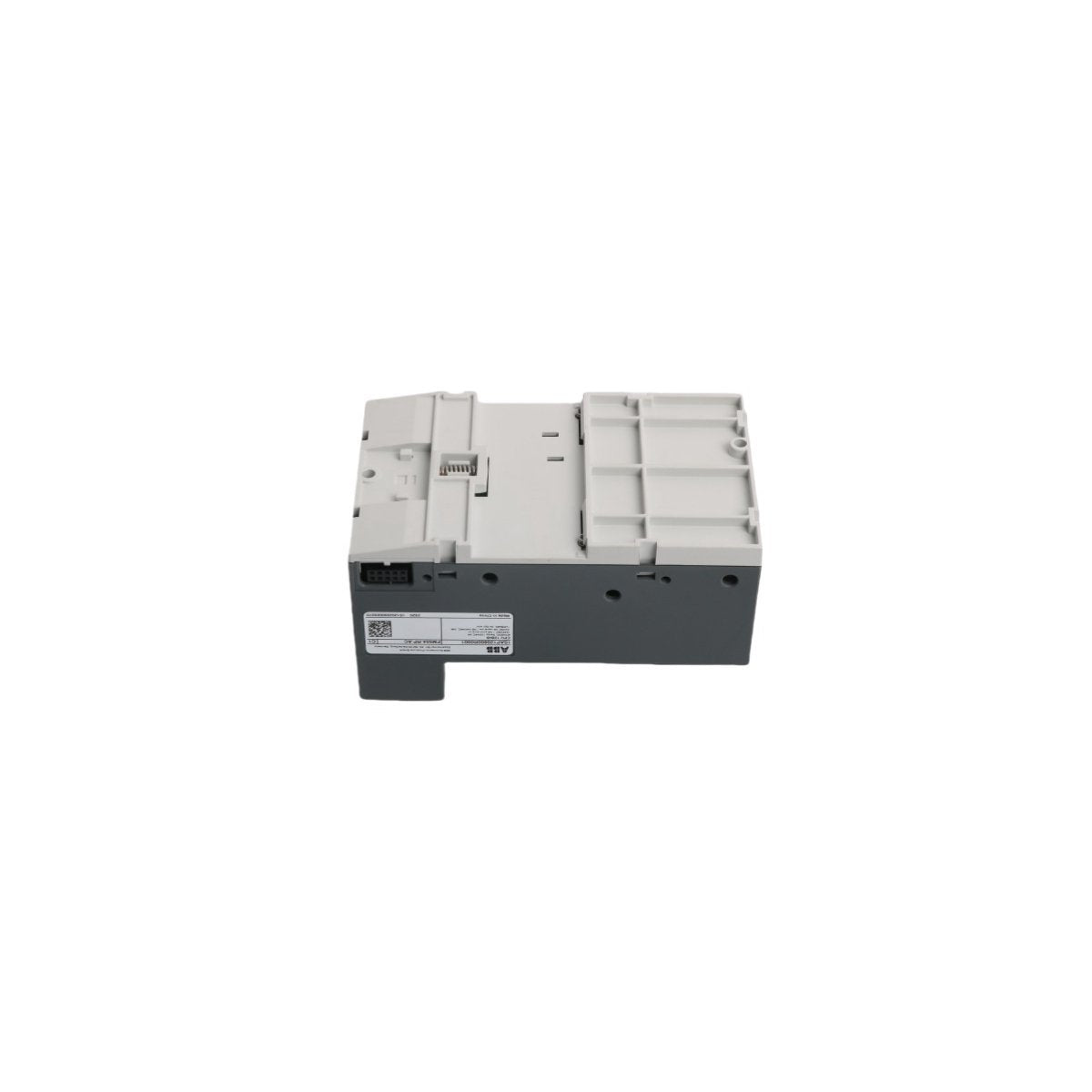

The PM554-RP-AC, identified by order code 1SAP120800R0001, is a high-efficiency Programmable Logic Controller (PLC) within the ABB AC500-eCo range. Designed as a compact yet sophisticated Central Processing Unit, this module is specifically tailored for entry-level and mid-range industrial automation tasks that require a small physical footprint without sacrificing computational power. The unit features integrated digital and analog I/O capabilities, allowing it to handle diverse logic requirements directly. As an active component in the AC500 family, it supports standard industrial communication protocols, ensuring it can function either as a standalone controller or as a distributed node within a larger DCS (Distributed Control System) network.

Hardware Configuration and Capabilities

• Controller Designation: PM554-RP-AC

• Manufacturer Part Number: 1SAP120800R0001

• Input Voltage: 100V - 240V AC Power Supply

• Integrated I/O Architecture: 8 Digital Inputs / 6 Relay Outputs

• Analog Interface: 2 Analog Inputs / 1 Analog Output built-in

• Program Memory: 128 kB for user application logic

• Communication Interface: RS-485 serial port (supports Modbus RTU)

• Mounting Method: DIN rail or screw mounting

• Physical Weight: 0.34kg

• Form Factor Dimensions: 13.4 x 8.1 x 7.3 cm

• Manufacturing Origin: Sweden

Strategic Implementation Areas

The PM554-RP-AC logic controller is optimized for decentralized automation and machine-level control across various sectors:

• Building Automation: Managing HVAC systems, lighting control, and access management in smart commercial infrastructures.

• Small-Scale Machinery: Serving as the primary brain for packaging machines, pumping stations, and conveyor systems.

• Water & Wastewater: Providing reliable logic for chemical dosing, filtration timing, and level monitoring in treatment facilities.

• Renewable Energy: Controlling solar tracking mechanisms and basic wind turbine pitch adjustments where compact AC-powered control is preferred.

• Material Handling: Regulating palletizers and lifting equipment through precise relay output switching and analog sensor feedback.
