Product Overview

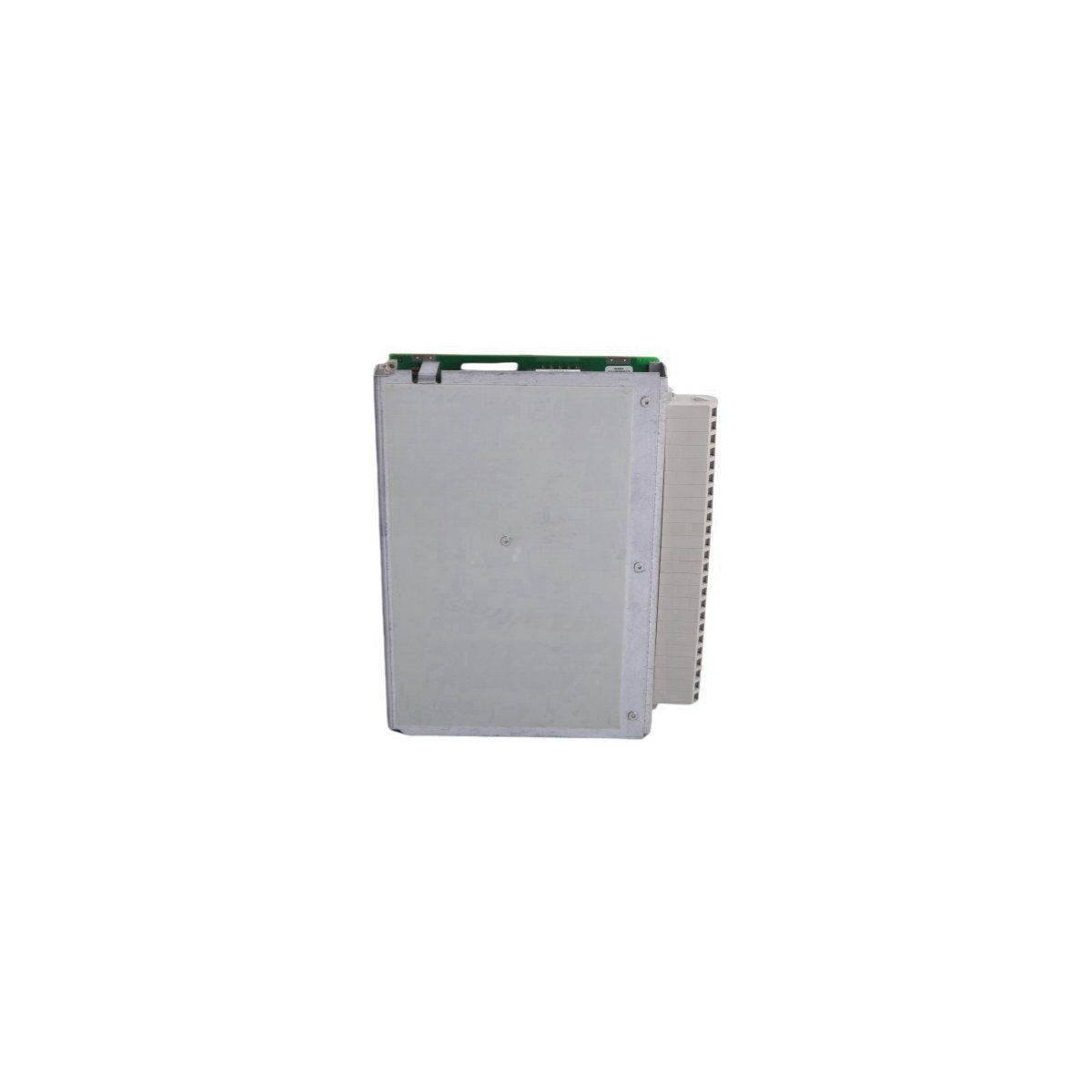

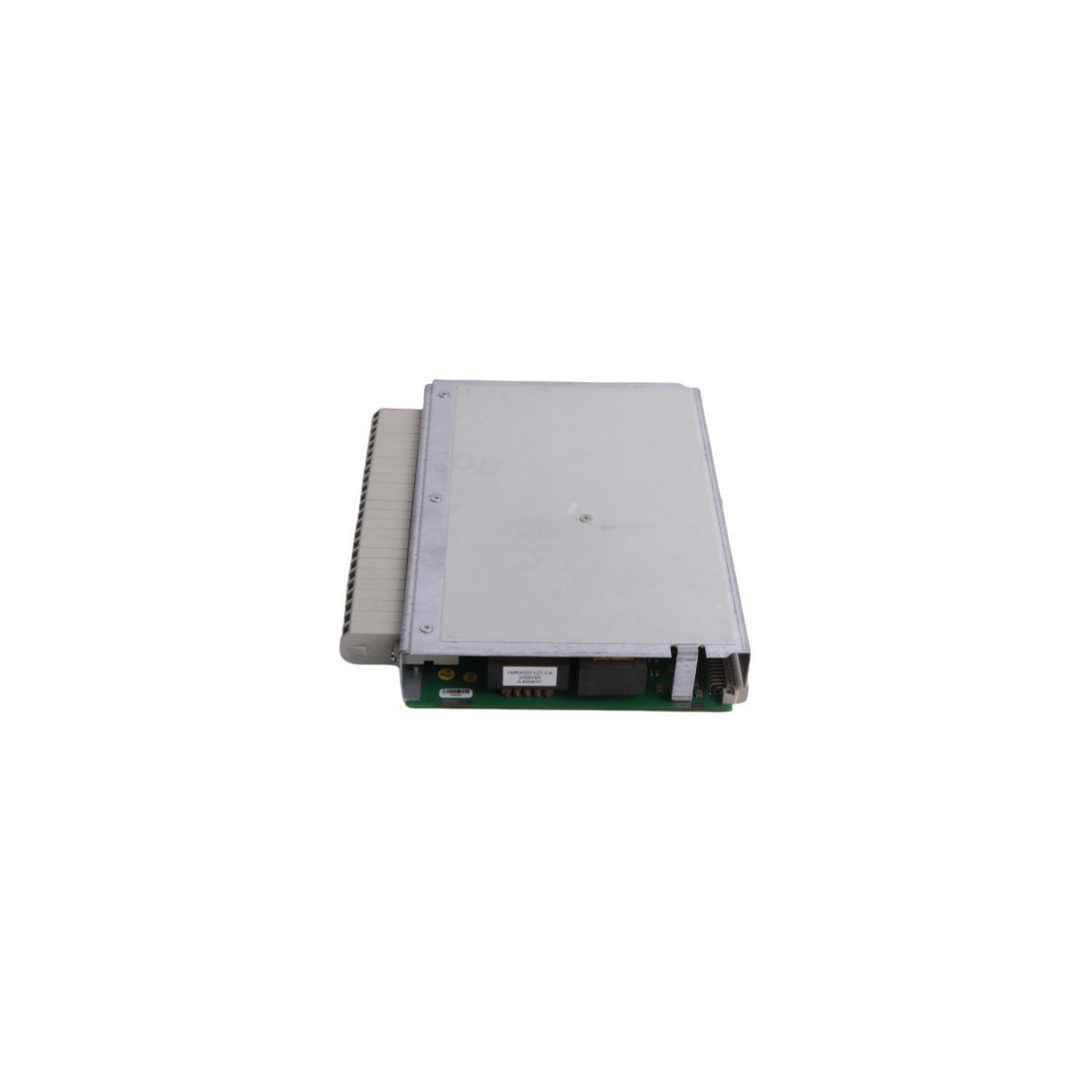

The ABB 1MRK002247-BHR00 is a sophisticated Drive Control Board engineered specifically for the Bay Control System and substation automation frameworks. This module serves as a primary intelligence layer, bridging the gap between high-level Distributed Control Systems (DCS) and field-level drive mechanics. Designed to facilitate precise command execution, the board manages complex signal processing and interlocking logic required for secure power distribution and industrial motor control. Its architecture is hardened against electromagnetic interference (EMI), ensuring that critical control signals remain uncorrupted in high-voltage environments.

Technical Performance Parameters

The following specifications detail the robust physical and electrical design of this control unit:

• Model Number: 1MRK002247-BHR00

• Module Function: Industrial Drive & Bay Control

• Protection Circuitry: Integrated surge suppression and overcurrent shielding

• Network Compatibility: Supports Ethernet-based routing and DCS integration

• Manufacturing Standards: Compliant with international IEC/IEEE quality protocols

• Physical Scale: 23.2cm x 19.7cm x 4cm

• Unit Weight: 2.8kg

• Origin of Production: Sweden

• Operational Status: Active lifecycle support

Deployment Scenarios and Utility

The 1MRK002247-BHR00 is a versatile component utilized across various high-stakes automation sectors:

Substation Automation: Acting as a core logic controller within Bay Control Systems to manage switchgear operations and circuit breaker monitoring.

Industrial Drive Management: Providing the necessary computational power for variable speed drive (VSD) synchronization and machine automation.

Precision Data Acquisition: Capturing real-time telemetry from field devices to provide the DCS with accurate operational status for predictive maintenance.

Grid Infrastructure: Implementing complex interlocking and protection schemes to prevent equipment damage during voltage fluctuations or fault conditions.
