Product Overview

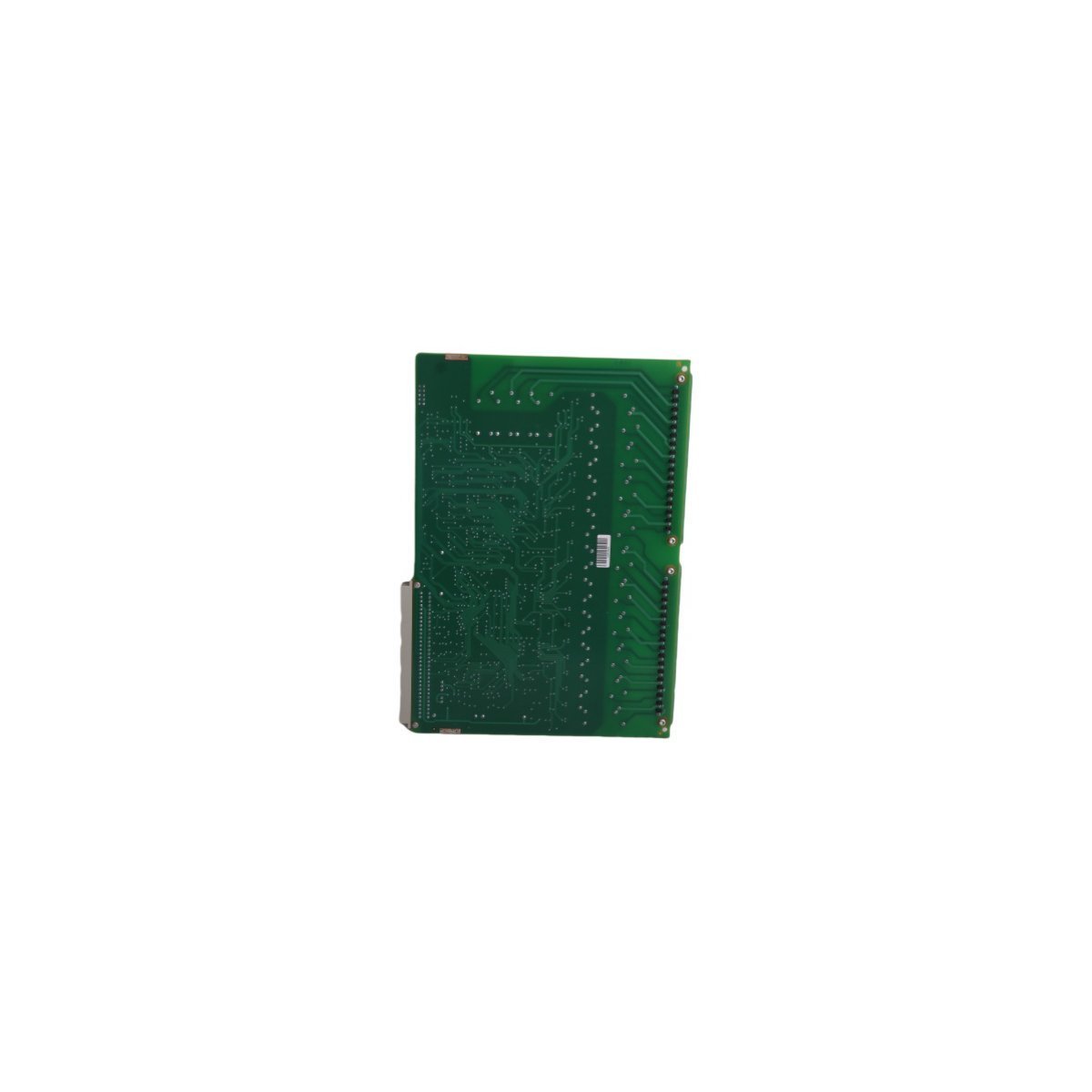

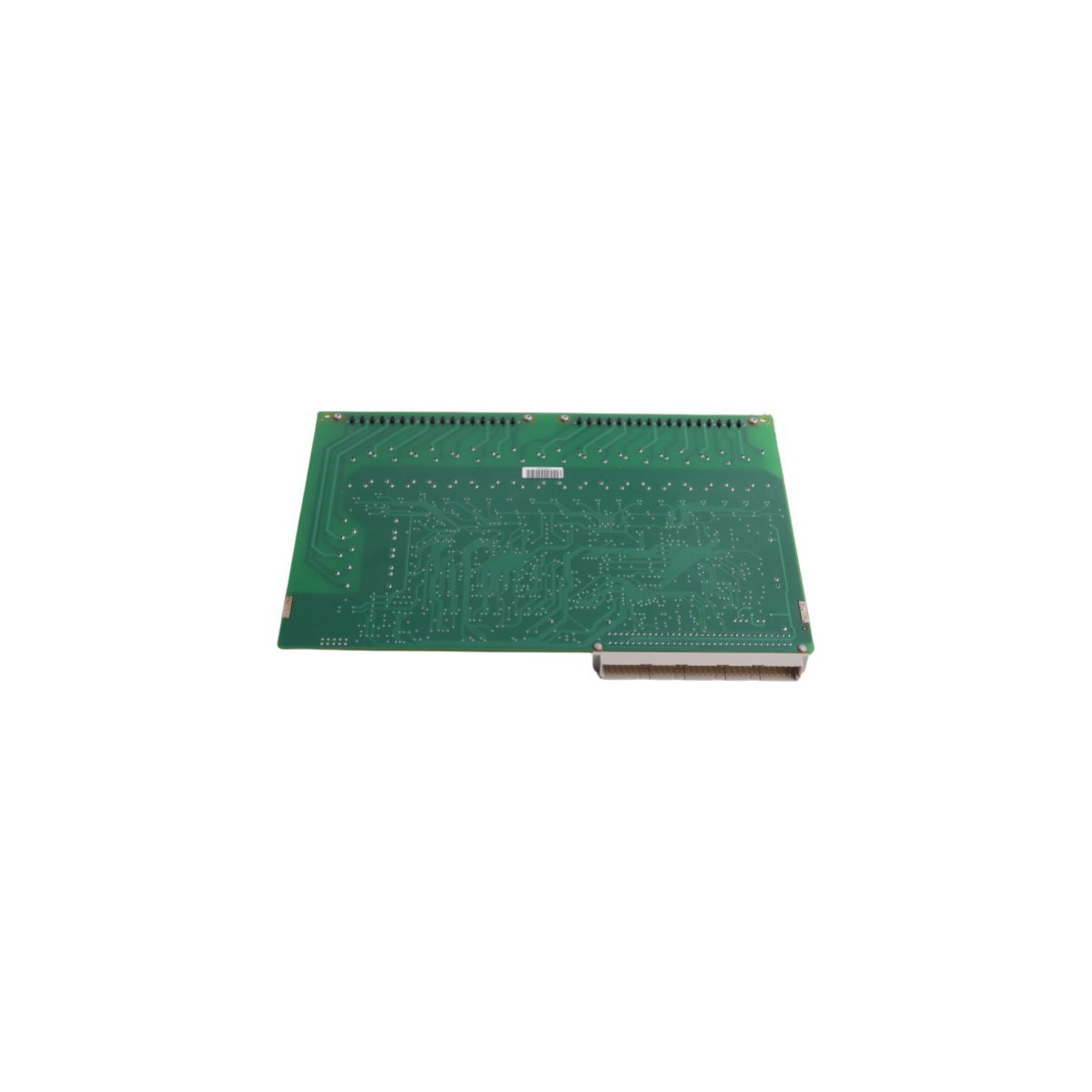

The ABB 1MRK000614-ABR00 is a specialized digital output component engineered for the Bay Control System and wider Distributed Control System (DCS) architectures. This module acts as the executive interface for protective relaying and substation automation, converting digital logic commands into physical output actions to trigger circuit breakers, isolators, and signaling equipment. Designed for high-speed switching and deterministic performance, the 1MRK000614-ABR00 ensures that critical protection schemes are executed within milliseconds. Its Swedish-built circuitry is optimized for the electromagnetic rigors of high-voltage environments, providing a reliable bridge between the control software and the primary plant hardware.

Hardware Configuration and Technical Indices

The 1MRK000614-ABR00 is defined by high efficiency and a slim physical profile to maximize cabinet density:

• Module Weight: 0.38 kg

• Form Factor Dimensions: 23.2 x 17 x 1.7 cm

• Operating Power Draw: Highly efficient at ≤1.5W

• Temperature Resilience: Fully functional from -20°C to +70°C

• Network Interfacing: Compatible with Modbus RTU and Ethernet/IP protocols

• Protection Class: Industrial grade for diverse climate conditions

• Execution Logic: Fast-response binary output for critical interlocking

• System Integration: Designed for direct rack mounting within Bay Control units

• Country of Origin: Sweden

• Tariff Identification: 8537101190

Strategic Industrial Implementations

This output module is a core component in several high-demand automation sectors:

• Substation Bay Control: Executing the opening and closing commands for circuit breakers based on protection relay logic.

• Complex Industrial Interlocking: Managing safety-critical sequences in heavy manufacturing where digital outputs must be perfectly synchronized.

• Energy Distribution Networks: Providing the hardware interface for remote tele-control and grid automation via Ethernet or Modbus gateways.

• DCS Expansion: Serving as a reliable digital actuator point for expanding existing control frameworks in refineries and power plants.

FAQ

Q: What is the primary function of the 1MRK000614-ABR00 in a Bay Control System?

A: This module serves as the binary output interface, allowing the central control logic to switch external electrical devices, such as relays and breakers, in a precise and timed sequence.

Q: Does this module support modern Ethernet communication?

A: Yes, the 1MRK000614-ABR00 is designed to integrate into modern industrial networks through Ethernet/IP and Modbus RTU, facilitating easier connectivity with centralized DCS controllers.

Q: How does the power consumption of this module affect system heat?

A: With a low power draw of ≤1.5W, the module generates very little heat, which is critical for maintaining stable internal cabinet temperatures when multiple modules are installed in a single rack.

Q: Is the 1MRK000614-ABR00 rated for use in extreme climates?

A: Absolutely. It is rated to operate reliably between -20°C and +70°C, making it suitable for both cold northern installations and hot industrial environments near heavy machinery.

Q: Can this module be hot-swapped during maintenance?

A: Hot-swapping capabilities depend on the specific Bay Control rack configuration being used; however, its modular design and standard dimensions (1.7 cm width) are optimized for rapid replacement.
