Product Overview

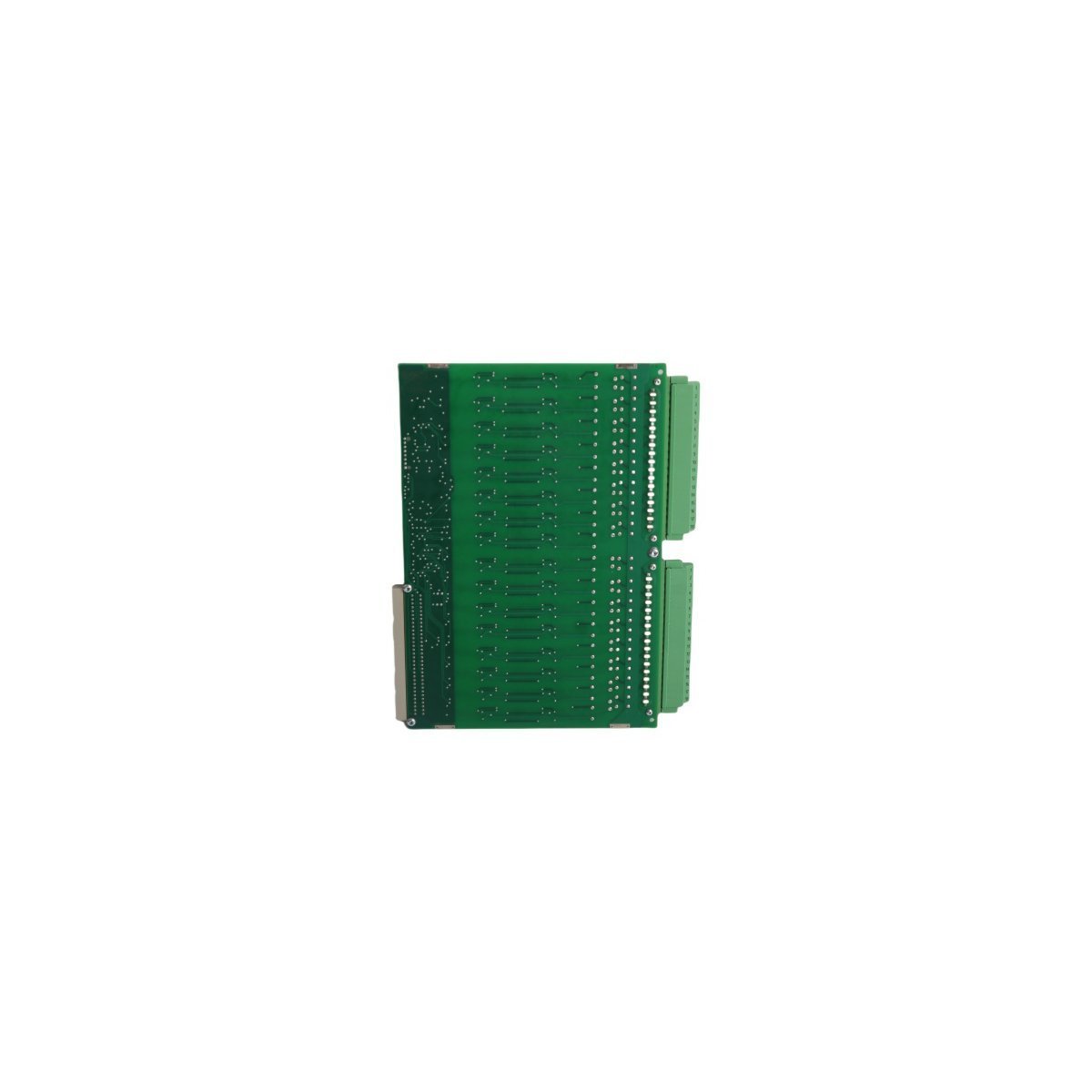

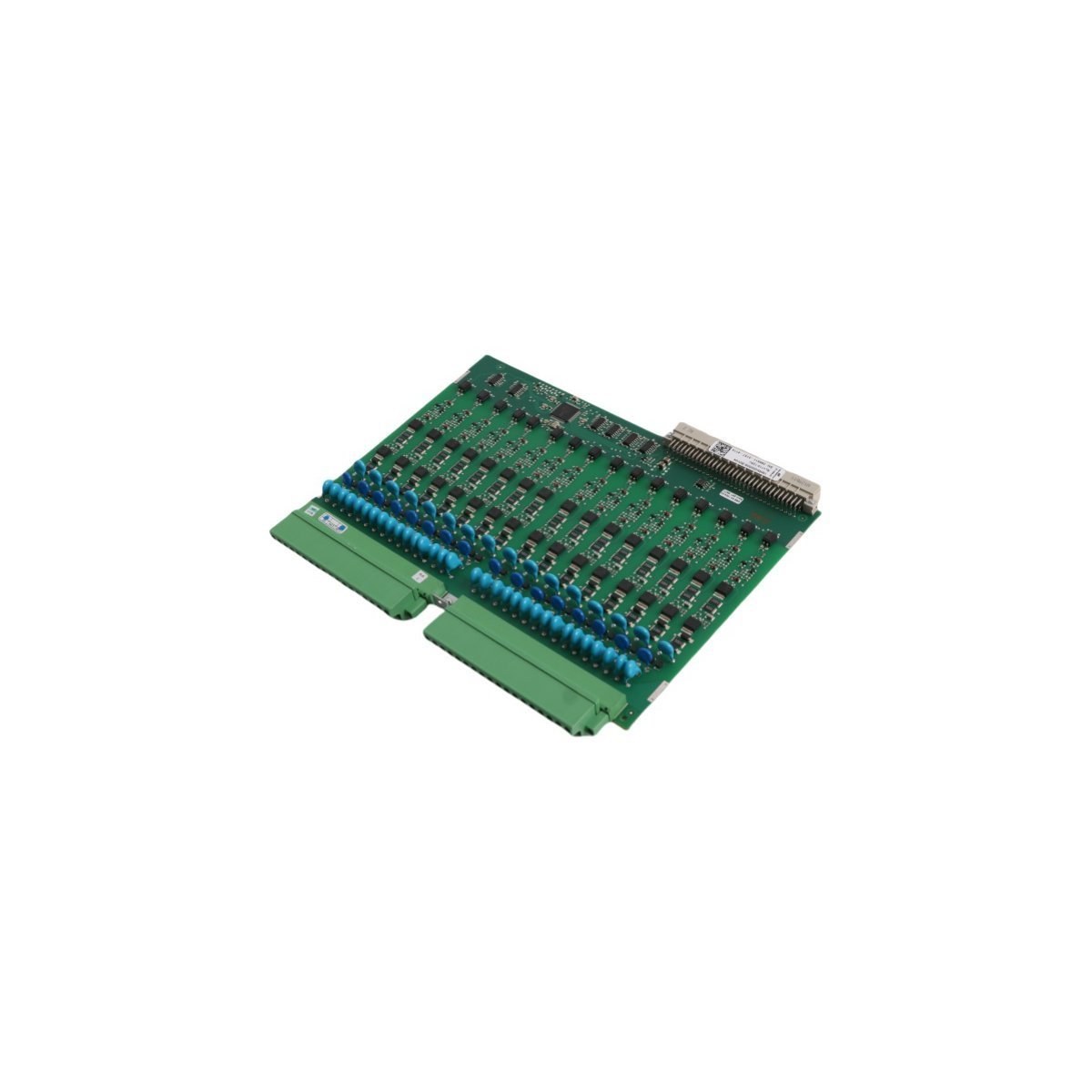

The 1MRK000508-BDR04 is a sophisticated Advanced PC Board and Binary Input Module engineered by ABB for high-tier Bay Control Systems. Specifically designed to interface between field-level digital devices and the central control processor, this module provides high-density signal acquisition by processing up to 32 independent binary inputs. Operating as a critical node within Distributed Control Systems (DCS), the board translates physical switch and relay states into digital data with microsecond precision. Its Swedish engineering ensures that logic transitions are captured reliably even in electrically noisy substation or factory floor environments.

Technical Performance Metrics

• Primary Model: 1MRK000508-BDR04

• Alternative Identifier: 1MRK000007-21

• Input Density: 32-Channel Digital/Binary Input

• Logic Voltage Range: 12V to 24V DC compatible

• Processing Latency: Sub-1ms response time for real-time monitoring

• Thermal Tolerance: Rated for operation from -25°C to +60°C

• Physical Profile: 23.2 x 18.8 x 2 cm

• Unit Mass: 0.46kg

• Energy Efficiency: Maximum power draw of 1.5W

• Chassis Composition: Heavy-duty aluminum for EMI shielding and heat management

Deployment Environments and Utility

This binary input interface is an essential asset for infrastructure-scale automation where signal integrity is non-negotiable:

• Grid Protection and Control: Captures status signals from high-voltage circuit breakers and isolators within Bay Control units.

• Energy Generation: Monitors safety interlocks and valve positions in power plant DCS frameworks.

• Industrial Manufacturing: Serves as a high-density feedback interface for complex assembly lines requiring rapid logic execution.

• Network Infrastructure: Integrates with Ethernet routing services to provide remote diagnostics and binary status updates over long-distance telemetry.
