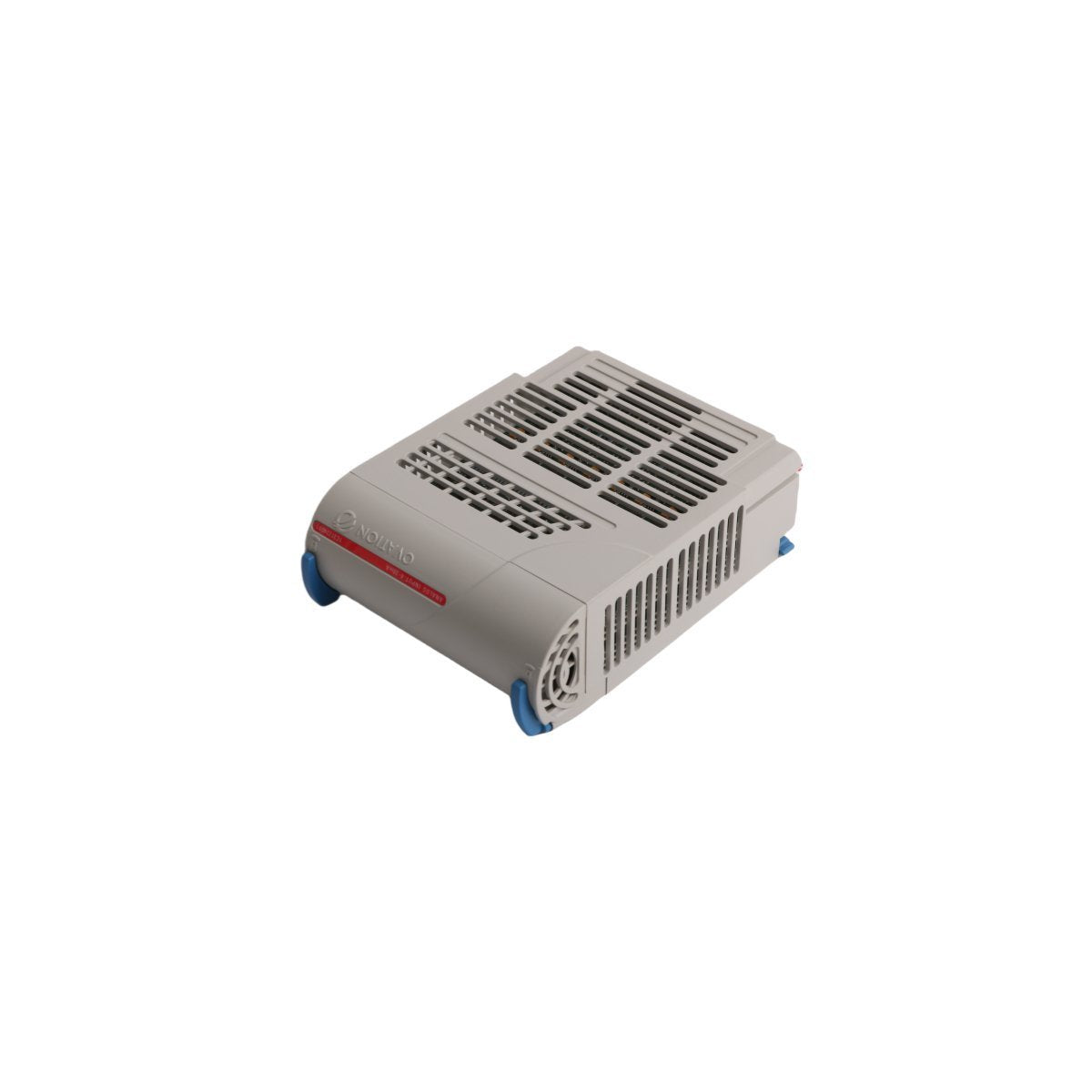

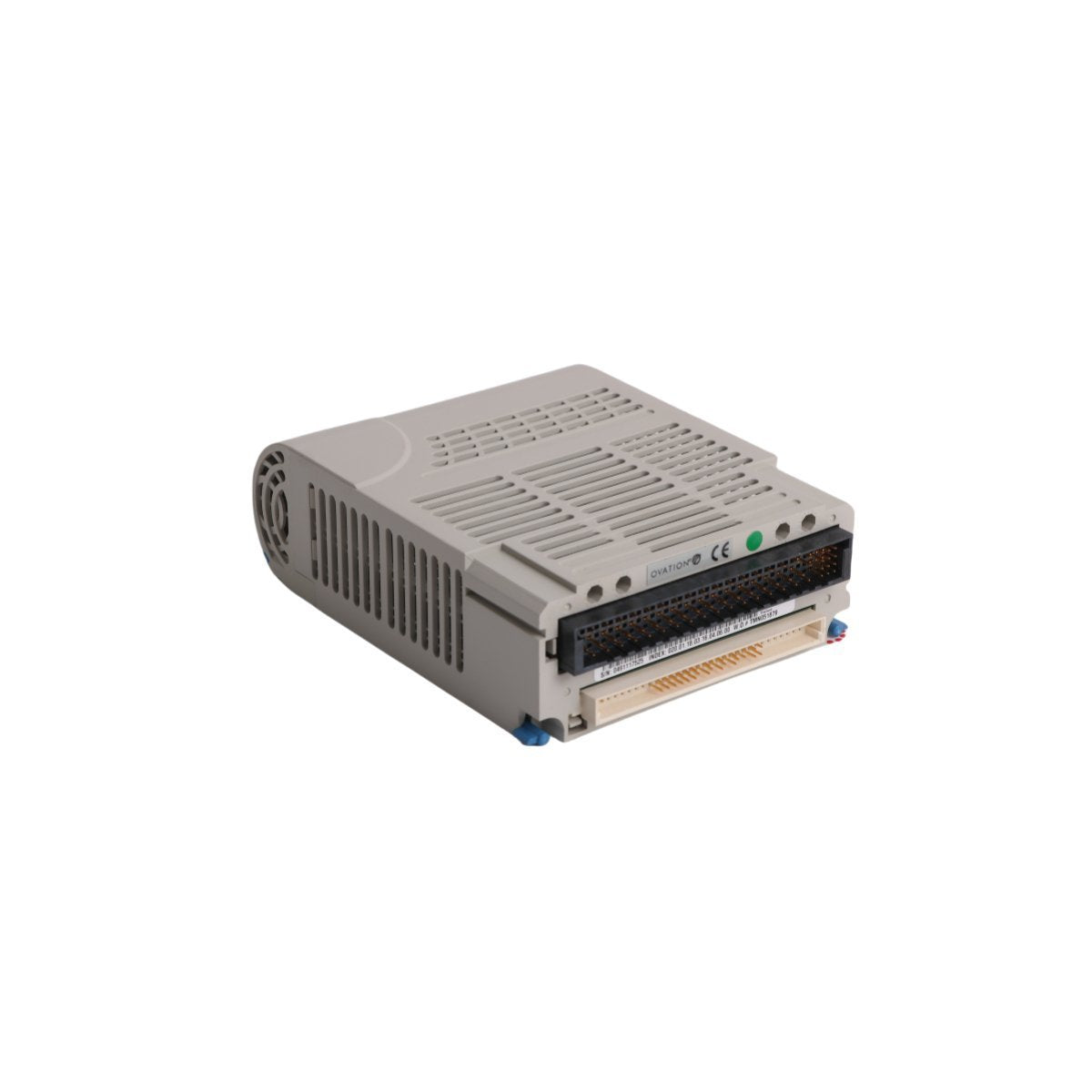

Ovation™ 8-Channel Analog Input Module 1C31224G01 Emerson DCS Interface

Product Overview

The Emerson 1C31224G01 is a high-density Analog Input Module engineered for the Ovation™ Distributed Control System (DCS) and compatible with DeltaV SIS™ environments. This 8-channel interface serves as a critical data acquisition bridge, converting continuous analog signals from field transmitters into precise digital values for process logic execution. By providing a high-resolution window into plant variables such as pressure, temperature, and flow, the 1C31224G01 ensures that the control system operates with the granular data required for complex industrial automation. Although this specific hardware revision was officially transitioned to legacy status in late 2018, it remains a vital component for maintaining the integrity and safety of existing mission-critical control infrastructures.

Technical Characteristics

The 1C31224G01 is defined by its industrial-grade signal conditioning and high-availability architecture:

High-Resolution 8-Channel ProcessingThe module features eight independent channels designed to handle standard industrial analog signals. Each channel undergoes rigorous signal conditioning to eliminate electromagnetic interference (EMI) and common-mode noise, ensuring that the control system receives a pure and accurate representation of field conditions.

Advanced System Health Diagnostics Equipped with proactive monitoring capabilities, the 1C31224G01 continuously performs self-checks and field-circuit supervision. It can detect and flag abnormalities such as sensor failure or out-of-range signals, allowing operators to intervene before a process excursion occurs, thereby minimizing unplanned downtime.

Seamless Network Integration As a native Ovation™ series component, the module integrates directly with the system backplane, facilitating high-speed communication with the controller. This non-intrusive design allows for the live replacement of modules (Hot-Swapping) without disrupting the power or data flow of adjacent cards in the I/O rack.

Ruggedized Environmental DesignBuilt to operate in the demanding conditions of power generation and chemical processing, the module is constructed with high-durability components that resist thermal stress and humidity. Its robust architecture ensures long-term stability and reduces the risk of signal drift over the lifecycle of the plant.

Technical Specifications

• Manufacturer: Emerson

• Model Number: 1C31224G01

• Product Type: 8-Channel Analog Input Module

• System Family: Ovation™ / DeltaV SIS™

• Input Signal Support: Standard Analog (4-20mA, 0-10V, etc.)

• Mounting: Standard DCS I/O Baseplate/Carrier

• Weight: 0.32 kg

• Dimensions: 12.2 x 5.0 x 16.5 cm

• HS Code: 8537101190

• Origin: USA

Application Areas

The 1C31224G01 is a standard component for precision data acquisition in:

• Power Utilities: Real-time monitoring of boiler pressure and turbine temperature loops.

• Chemical Processing: Managing sensitive flow and level control for hazardous chemical storage.

• Water & Wastewater: Integrating distributed field sensors for municipal treatment facility oversight.

• Refining: High-fidelity data capture for safety instrumented systems and emergency shutdown logic.
