Product Overview

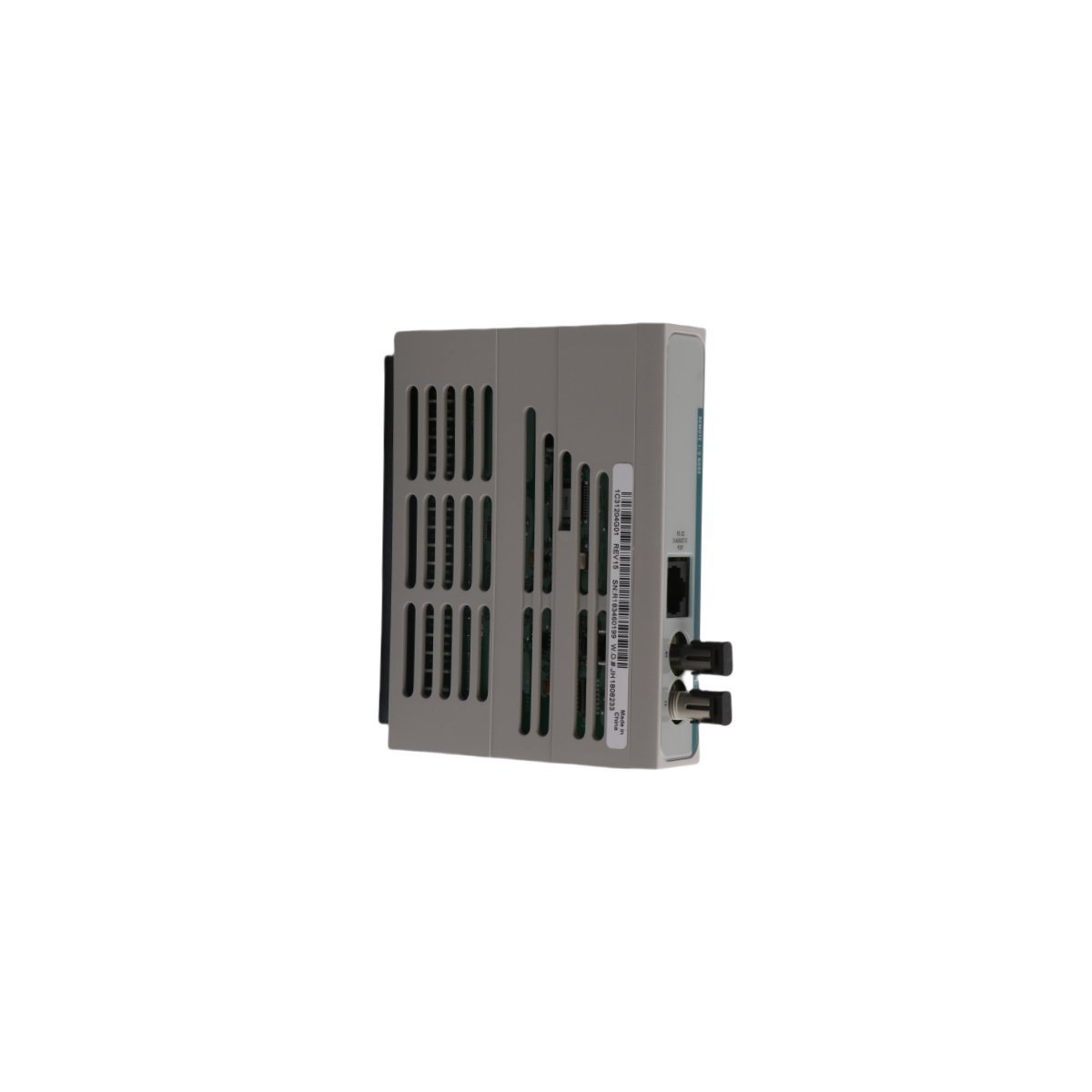

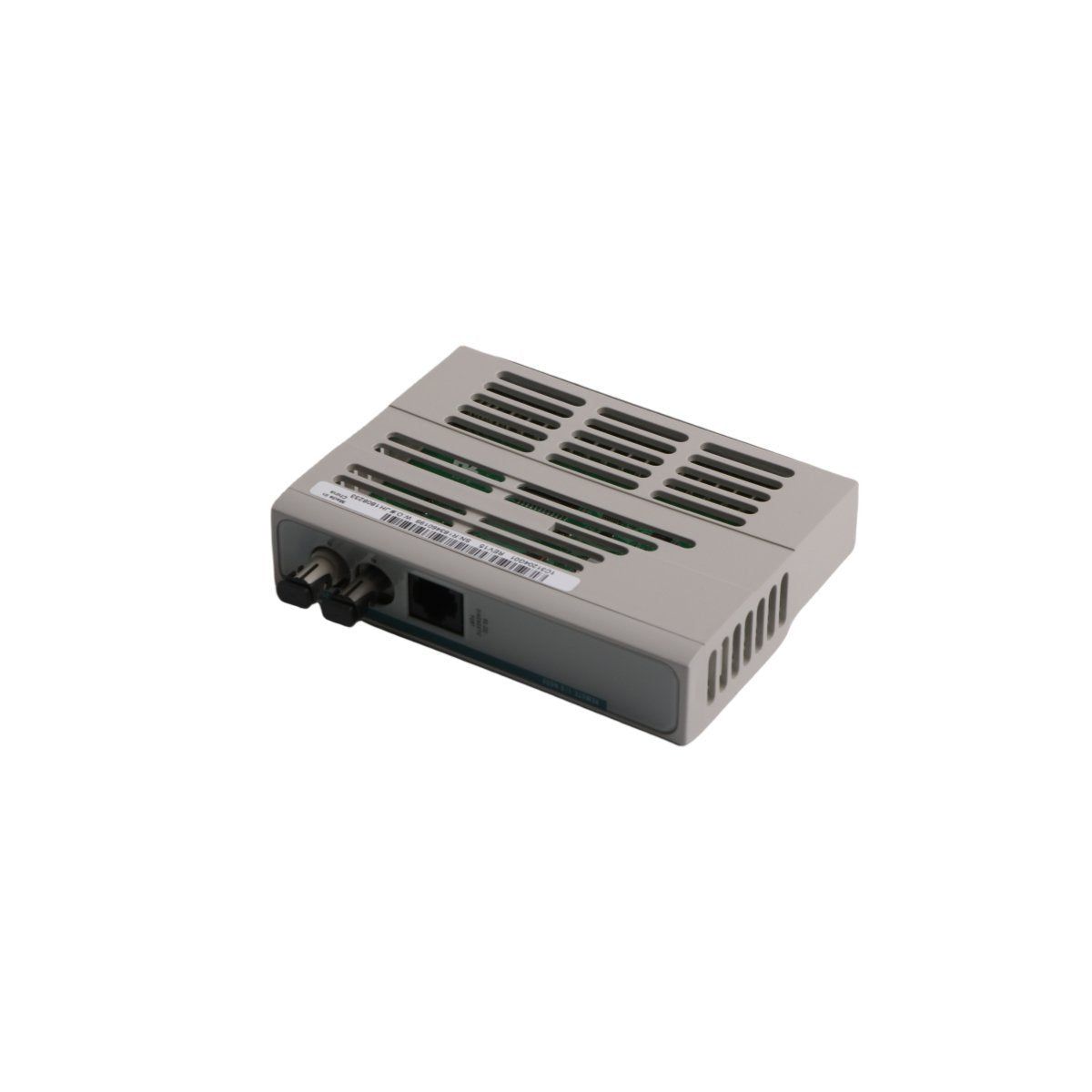

The Emerson 1C31204G01 is a specialized Output Node Personality Module (PMOD) designed for the Ovation™ Distributed Control System (DCS). This hardware interface facilitates the critical communication link between the remote node electronics and the physical I/O output channels. It acts as the "personality" for a remote node, defining the signal characteristics and handling the distribution of control commands from the main controller to the field-side actuators, valves, and motor starters.

Engineered for high-integrity environments, the 1C31204G01 ensures that digital or analog command signals are transmitted with minimal latency and high electrical isolation. By utilizing fiber-optic or high-speed copper interconnects, this personality module allows the I/O subsystem to be geographically distributed across a plant while maintaining the same real-time performance as locally mounted hardware.

Key Technical Characteristics and Functionality

The 1C31204G01 is built to support mission-critical control strategies with a focus on signal transparency and hardware resilience.

• Remote Node Signal Interfacing: Provides the necessary electronic pathways to route output data from the remote node controller to the specific I/O base assemblies.

• Galvanic Isolation: Features integrated electrical isolation to protect the remote node logic from field-side voltage spikes, ground loops, and transient noise.

• High-Speed Data Throughput: Optimized for the Ovation Localbus, ensuring that process changes and emergency trip signals are executed within strict millisecond timeframes.

• Fiber-Optic Connectivity Support: Designed to work within fiber-enabled remote nodes to provide immunity against electromagnetic interference (EMI) over long distances.

• Hot-Swappable Architecture: Supports maintenance-under-power, allowing modules to be replaced without shutting down the entire remote node or interrupting adjacent process loops.

• Intelligent Diagnostics: Monitors its own health status and signal integrity, reporting hardware faults or communication errors directly to the Ovation operator workstation.

Technical Specifications

• Manufacturer: Emerson (Ovation Division)

• Model Number: 1C31204G01

• Module Type: Output Node Personality Module (PMOD)

• System Platform: Ovation™ DCS / DeltaV SIS™

• Dimensions: 6.0 x 12.5 x 6.3 cm

• Unit Weight: 0.9 kg

• HS Code: 8537101190

• Product Origin: USA

• Environmental Rating: Standard Industrial (G3 Conformal Coating typically available)

Industrial Applications

The Emerson 1C31204G01 is a vital component in sectors requiring robust distributed I/O control:

• Power Generation: Coordinating output signals for boiler feedwater pumps and steam turbine auxiliary systems.

• Water & Wastewater: Controlling remote valve actuators and chemical dosing pumps in geographically dispersed treatment plants.

• Petrochemical & Refining: Interfacing with Safety Instrumented Systems (SIS) for emergency shutdown (ESD) valve control.

• Mining & Metals: Managing high-capacity conveyor drive outputs and material handling logic in remote substations.
