Product Overview

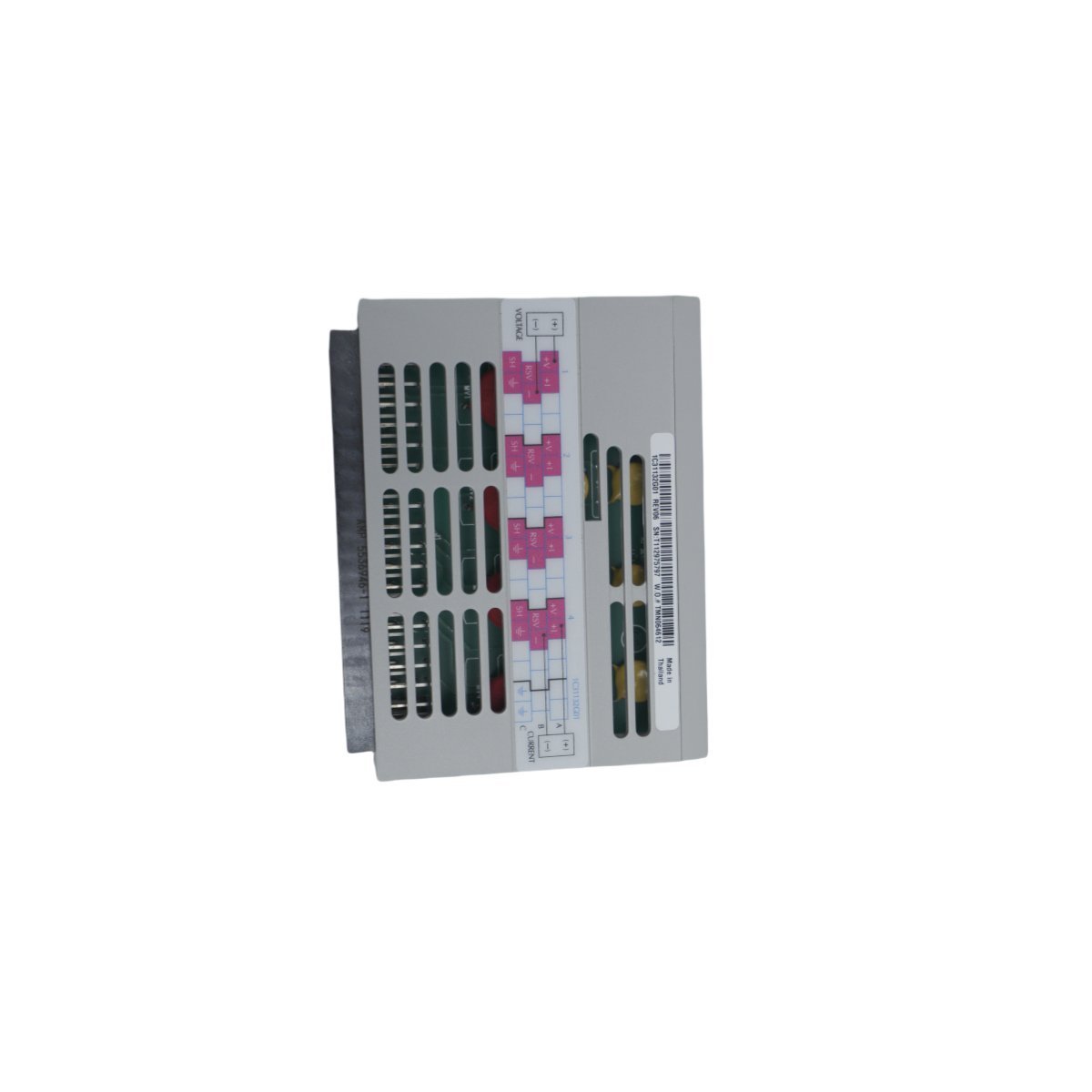

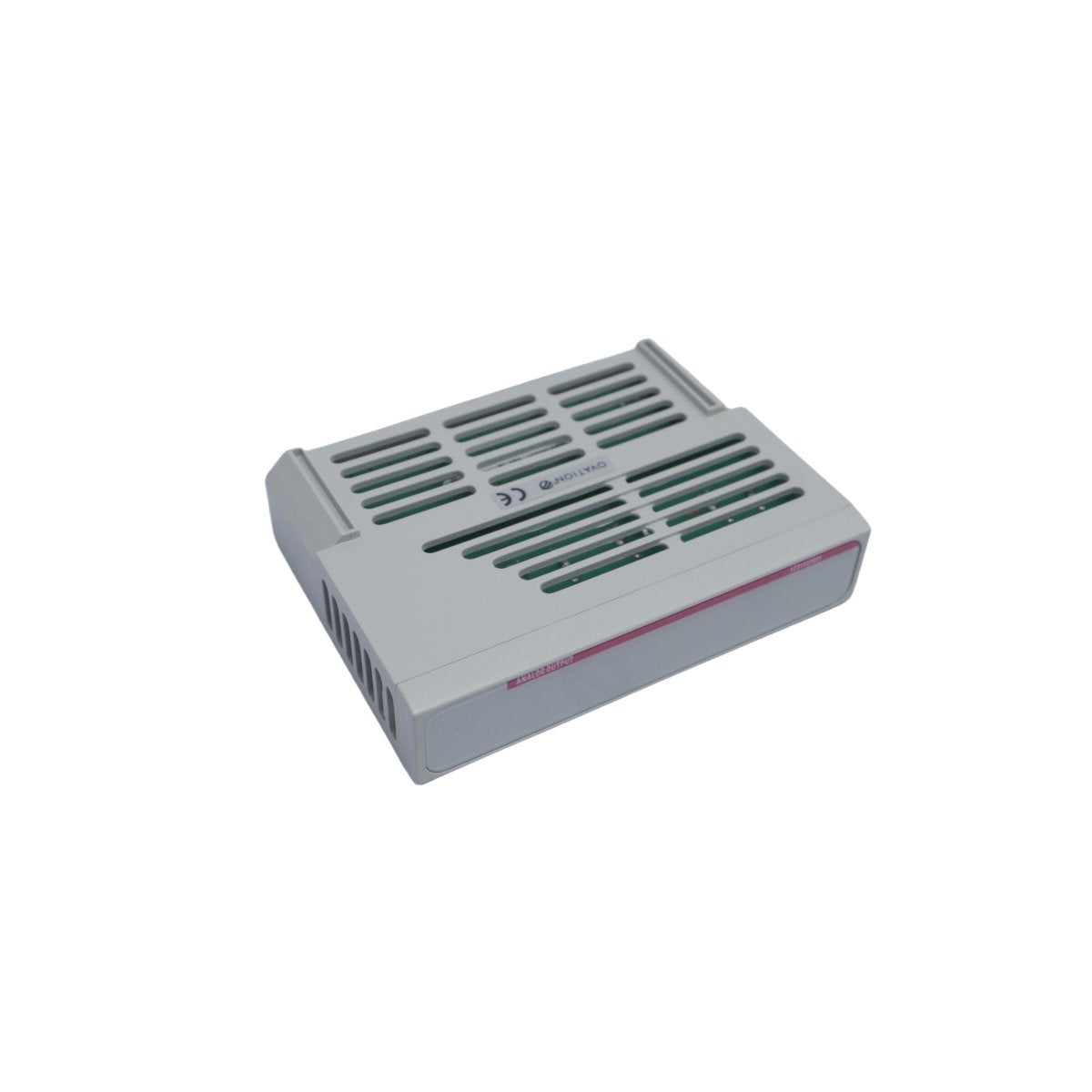

The Emerson 1C31132G01 is a high-integrity Analog Output (AO) module specifically engineered for the DeltaV SIS™ (Safety Instrumented System). This component is designed to drive field devices—such as control valves, actuators, and positioners—with precise current signals while maintaining the strict safety standards required for Safety Instrumented Functions (SIF). Unlike standard process control modules, the 1C31132G01 incorporates advanced hardware redundancy and internal voting logic to ensure that critical safety loops remain operational and fail-safe, preventing hazardous process upsets in high-risk industrial environments.

Technical Hardware Parameters

• Module Function: Safety-rated Analog Output (AO) for 4-20 mA loop control.

• System Series: DeltaV SIS Process Safety System.

• Redundancy Support: Full support for redundant architectures to maximize system availability.

• Diagnostic Capabilities: Integrated HART pass-through and continuous loop integrity monitoring for fault detection.

• Resolution: High-resolution digital-to-analog conversion for fine-tuned actuator positioning.

• Environmental Tolerance: Designed for G3 harsh environment rating to resist chemical corrosion.

• Physical Weight: 0.6 kg.

• Dimensions: 12.1 cm x 2.5 cm x 7.0 cm.

• Mounting: Horizontal or vertical carrier mounting within the DeltaV safety subsystem.

Industrial Applications

The 1C31132G01 module is a cornerstone of Safety Instrumented Systems in the Oil and Gas, Petrochemical, and Power Generation sectors. It is primarily utilized in Emergency Shutdown (ESD) applications where the precise throttling of safety valves is necessary for controlled depressurization or isolating hazardous fuel lines. In Chemical Processing, it facilitates high-integrity pressure protection and serves as a reliable interface for Burner Management Systems (BMS). Its ability to provide accurate, verified output signals ensures that mission-critical infrastructure meets the rigorous Safety Integrity Level (SIL) requirements demanded by global regulatory standards.
