Product Overview

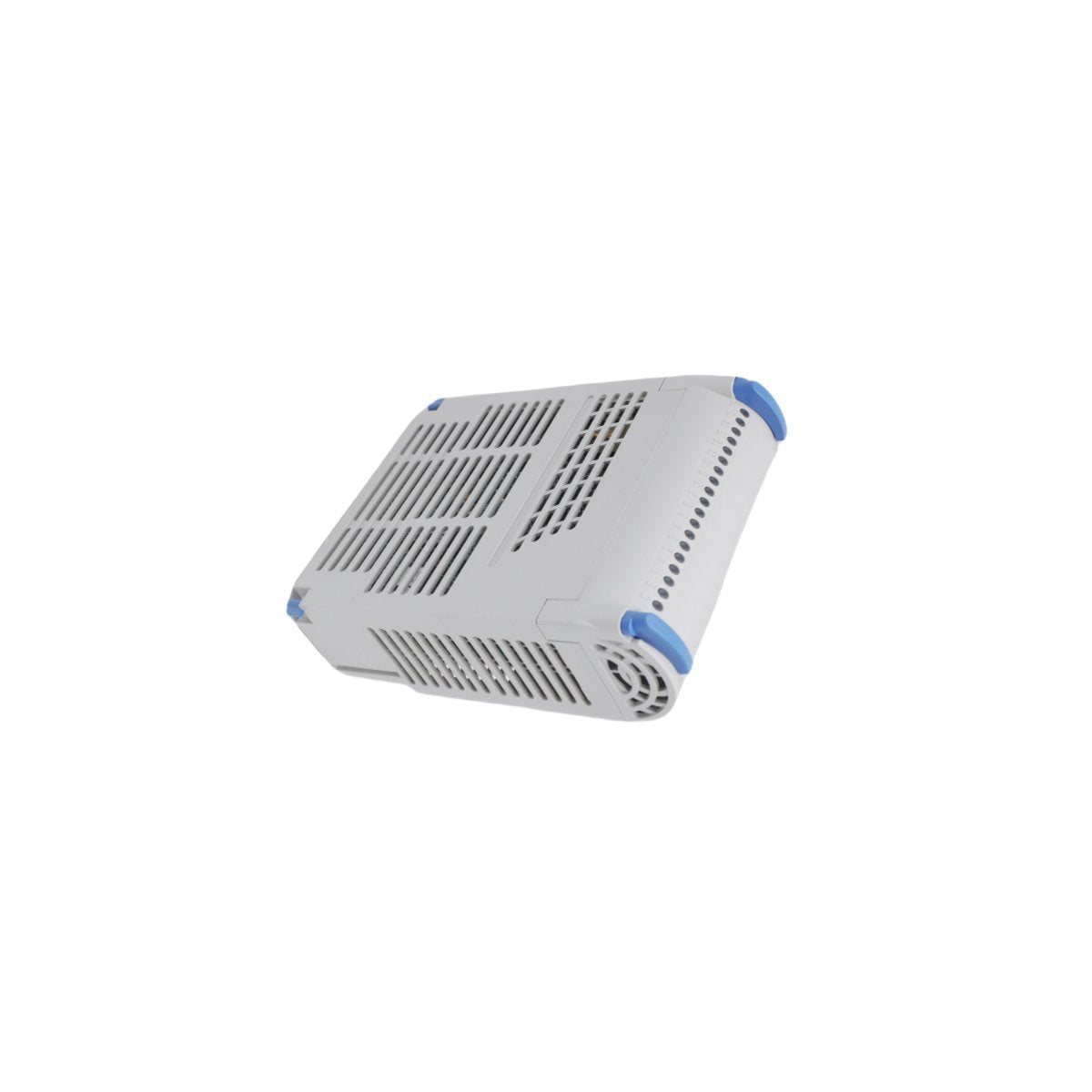

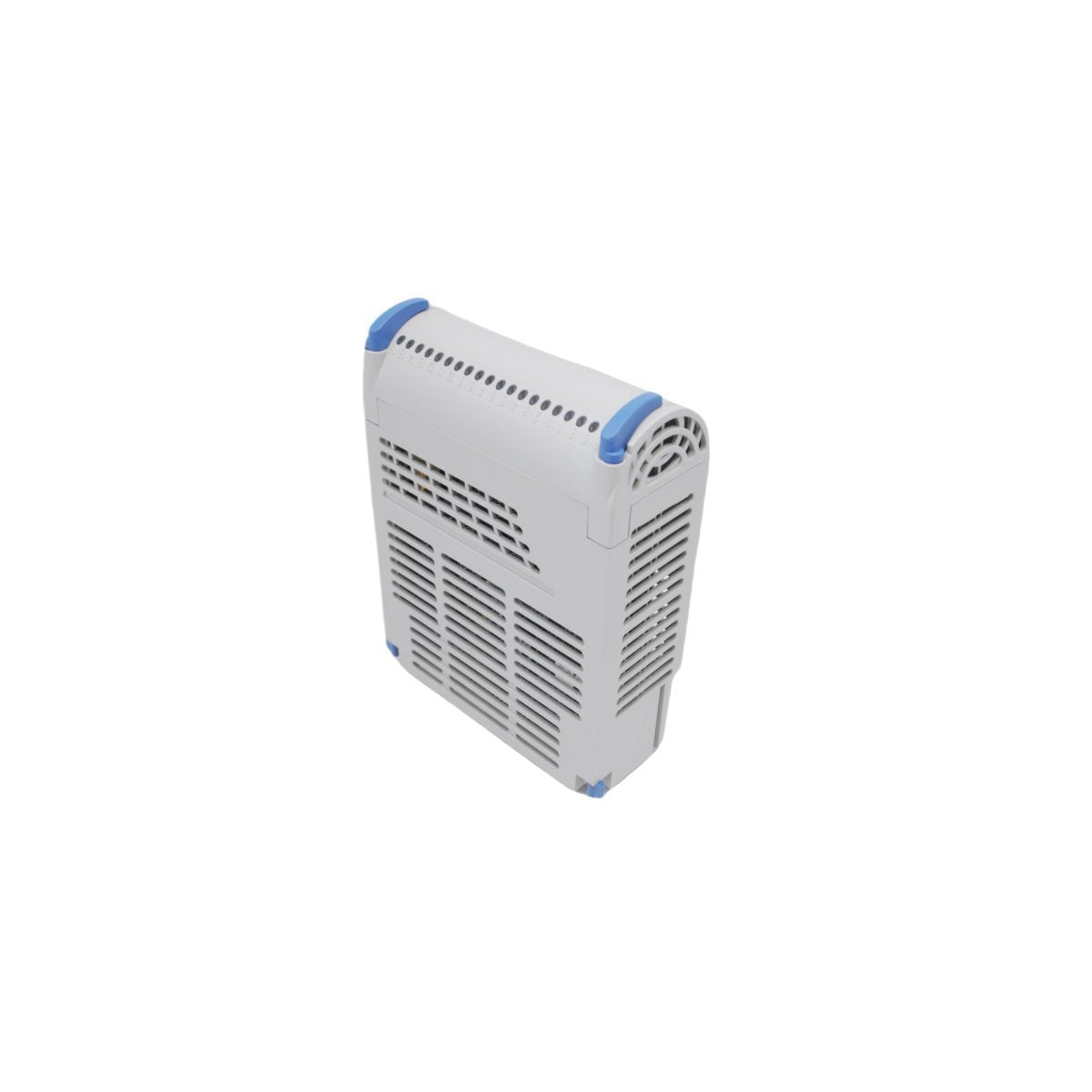

The Emerson 1C31122G01 is a high-density Digital Output (DO) card engineered specifically for the Ovation™ Distributed Control System (DCS). This 16-channel module serves as the critical command interface between the control logic and field-side equipment. It is designed to drive discrete devices such as solenoid valves, motor starters, indicators, and interposing relays with high precision and electrical reliability.

Integrated within the Ovation hardware architecture, the 1C31122G01 converts low-level digital signals from the controller into robust switching actions. This module is vital for maintaining process stability in high-stakes environments, including thermal power generation, water treatment, and chemical manufacturing. Its design prioritizes fail-safe operation and rapid response times, ensuring that safety-critical commands are executed immediately upon processor request.

Key Technical Characteristics and Functionality

The 1C31122G01 is defined by its industrial-grade isolation and advanced diagnostic capabilities.

• 16 Independent Channels: Provides high-density discrete control, allowing for the management of 16 separate field devices from a single subrack slot to optimize cabinet space.

• Galvanic Isolation: Features robust electrical isolation between the internal system logic and the field-side wiring, protecting the DCS processor from voltage surges and ground loops.

• Real-Time Diagnostics: Continuously monitors the health of the output electronics and communication bus, providing instant feedback to the operator station in the event of a module hardware fault.

• Hot-Swappable Design: Supports maintenance-under-power, enabling users to replace the module without disrupting the operation of adjacent I/O cards or the main controller.

• High-Speed Switching: Optimized for low latency, ensuring that time-critical interlocks and sequence-of-events (SOE) triggers are met within millisecond requirements.

• Industrial Resilience: Built with high-quality components that meet stringent G3 conformal coating standards (where applicable) to resist corrosion in harsh chemical or humid atmospheres.

Technical Specifications

• Manufacturer: Emerson (Ovation Division)

• Model Number: 1C31122G01

• Module Type: 16-Channel Digital Output (DO) Card

• System Environment: Ovation™ DCS / DeltaV SIS™

• Dimensions: 12.1 x 2.5 x 7.0 cm

• Net Weight: 0.6 kg

• HS Code: 8537101190

• Country of Origin: USA

• Condition: Brand New

Industrial Applications

The 1C31122G01 is a staple component in heavy industries requiring reliable discrete control:

• Energy Management: Actuating solenoid valves for steam line control and boiler feedwater bypass systems.

• Chemical Processing: Coordinating the sequence of pumps and mixers within batch reactor systems.

• Oil & Gas: Interfacing with emergency shutdown (ESD) systems to trigger safety-critical valve closures.

• Water Utilities: Controlling automated gate valves and high-capacity motor starters in filtration plants.
