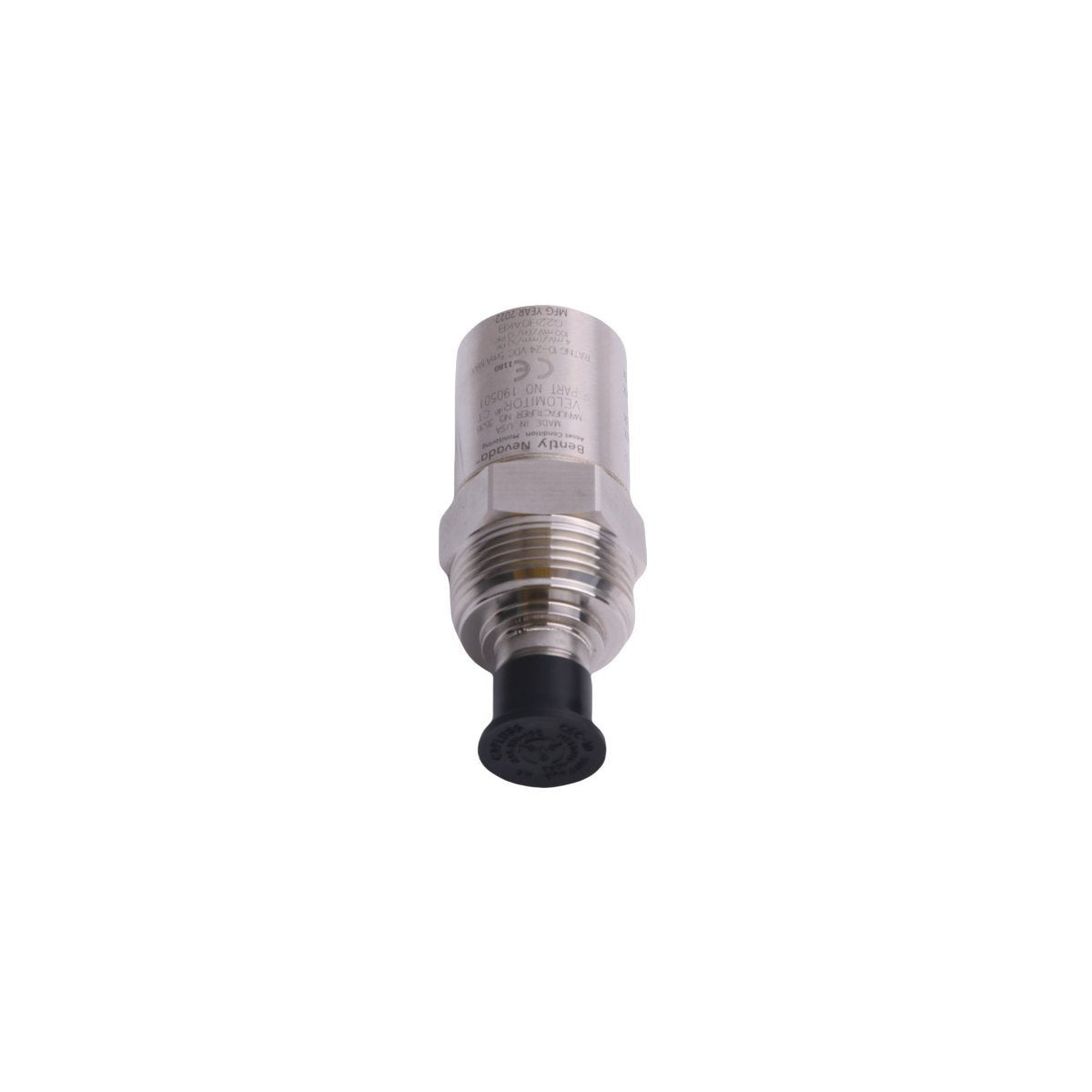

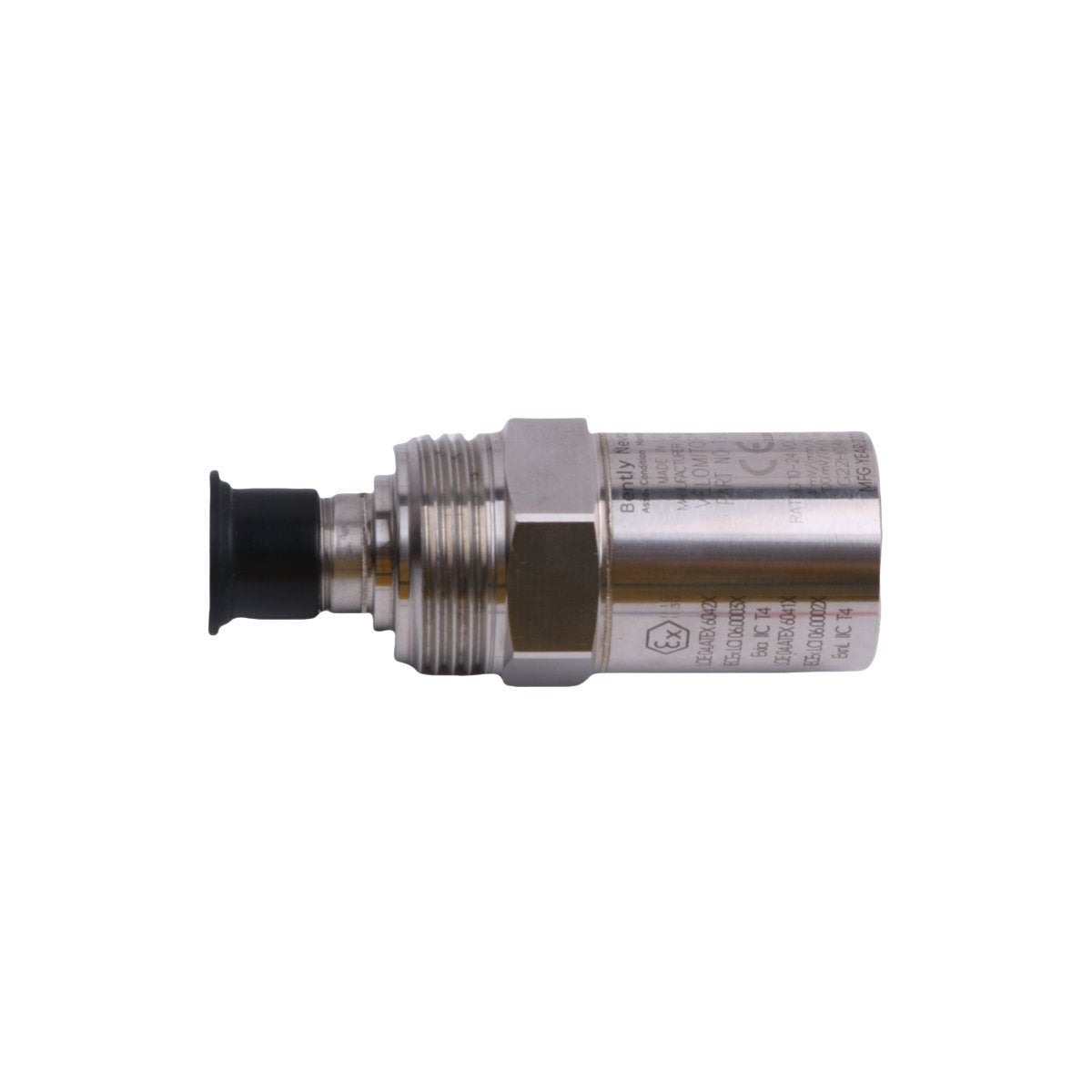

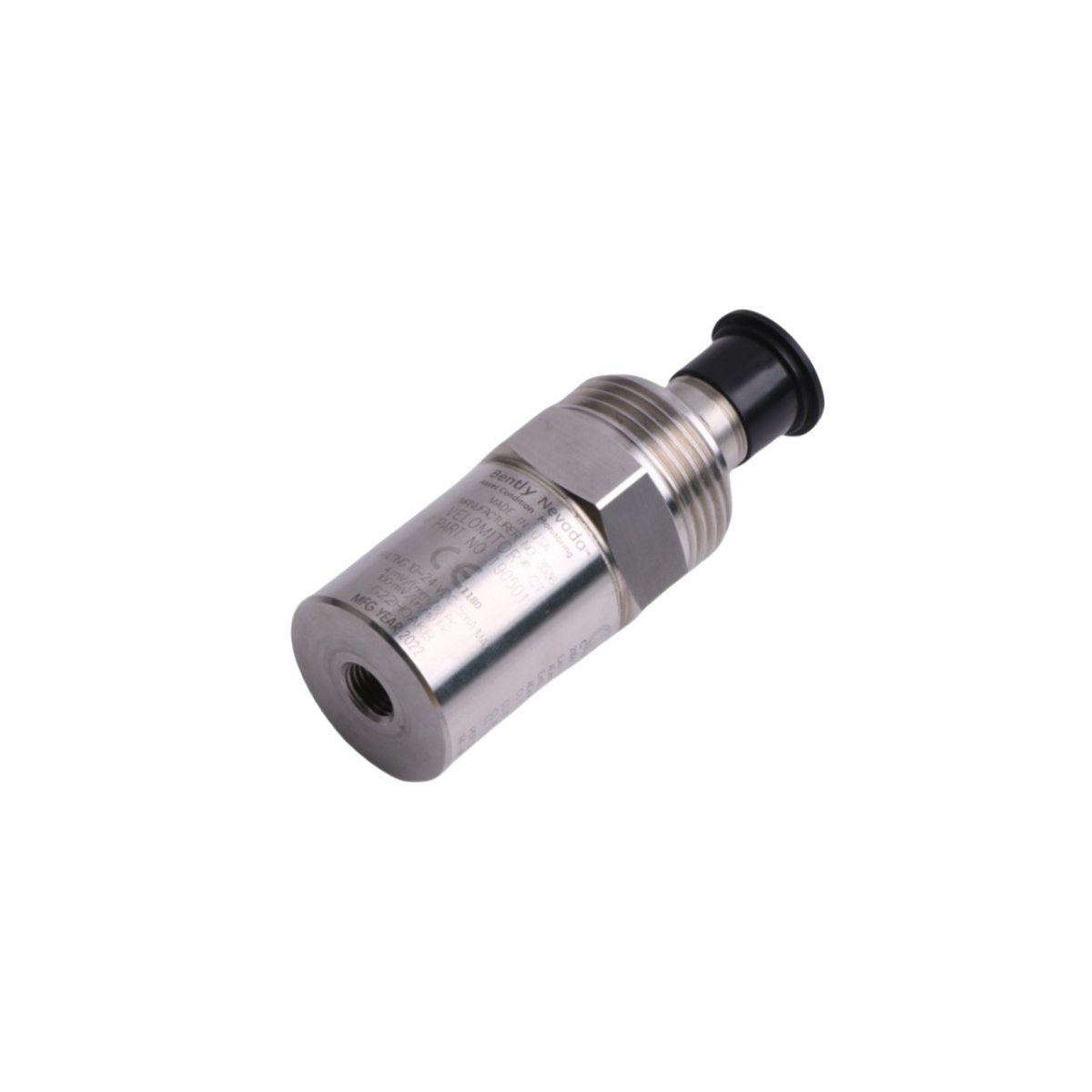

Configured for absolute casing vibration tracking in machinery protection systems, the Bently Nevada 190501-01-00-04 (190501 Velocity Transducer) provides direct physical/electrical execution. The hardware component integrates an internal solid-state piezoelectric crystal and an embedded charge-amplifier loop to measure casing velocity parameters, outputting a continuous analog signal directly proportional to the structural velocity vector of the monitored machine.

Hardware Options Matrix

• 190501: Velomitor CT (Cooling Tower) Velocity Transducer base model.

• -01: Mounting thread option specifying a 1/2-20 UNF stud fitting.

• -00: Connection option designating standard top-exit 2-pin MIL-C-5015 hermetic connector interface.

• -04: Agency approval option specifying multiple global safety parameters, including ATEX/IECEx Zone 2 and North American Class I, Division 2 hazardous area classifications.

Technical Performance Parameters

Rotor Dynamics Integration and Signal Validation Stability

The 190501-01-00-04 balances machinery protection loops by logging absolute casing structural vibration rather than relative shaft movement calibrated via eddy-current probe scaling. To maintain field accuracy during high-vibration events, the embedded amplification circuitry utilizes a standardized internal bias voltage verification matrix (-10 VDC targets). Monitoring this continuous DC bias line allows the matching instrumentation rack to instantly detect sensor fault loops, isolating real mechanical defects driven by asymmetric rotor dynamics from electrical anomalies, while preserving cross-talk suppression between close-proximity cabling runs.

Supply Kit Manifest

• One (1) Bently Nevada 190501-01-00-04 Velomitor CT transducer body

• One (1) 1/2-20 UNF mounting stud assembly

• One (1) Fluid-impermeable specialized interface seal ring

• Individual factory calibration document showing precise frequency baseline verification

Mechanical Installation and Grounding Requirements

• Ensure the target machine casing mounting surface is machined flat to a surface tolerance profile of 0.03 mm or better.

• Prepare a clean perpendicular bore matching the 1/2-20 UNF stud thread dimension parameters.

• Apply a nominal layer of silicone tracking grease to the mechanical interface base to optimize high-frequency kinetic transfer loops.

• Tighten the primary outer hex body flat sections with a torque wrench to a final specification of 9.0 N-m.

• Pull the field cable assembly through flexible conduit runs, terminating the outer shield line exclusively at the main monitoring rack instrumentation ground point to avoid circulating ground currents.

Logistics Dispatch Framework

Delivery time: 3-5 days when payment finish through regional express cargo channels managed by DHL, FEDEX, or UPS. The velocity transducers are enclosed in heat-sealed vapor-barrier anti-static industrial packaging blocks to eliminate contamination of the hermetic 2-pin MIL pins. Master shipping containers utilize multi-layered high-density cross-linked polyethylene padding elements to isolate the internal pre-calibrated crystal structures from transport kinetic shock loops.

Technical Engineering FAQ

Q: How is a sensor loop fault displayed on the monitor rack if the field cable runs encounter an open-circuit fault?

A: An open-circuit failure drops the loop excitation current to 0 mA, causing the monitor to read 0 VDC. The downstream instrumentation identifies this drift outside the standard -10 VDC nominal bias window and asserts a "Not OK" signal status, safely blocking downstream protection trip actions.

Q: Can this specific cooling tower velomitor module be submersed continuously in water loops?

A: No. While the 190501-01-00-04 has a hermetically sealed stainless steel housing, the 2-pin MIL-C-5015 connector interface is only rated for spray or high humidity when mated with the correct boot. For continuous immersion loops, a specialized molded splash-proof cable option must be deployed.

Q: What defines the structural difference between this Velomitor CT model and a standard 330500 Velomitor?

A: The Velomitor CT features a lower low-frequency cut-off design parameters (1.5 Hz versus 4.5 Hz on standard units). This allows the 190501 series to track very slow rotational mechanical velocities, such as those generated by large cooling tower fan assemblies.
