Product Overview

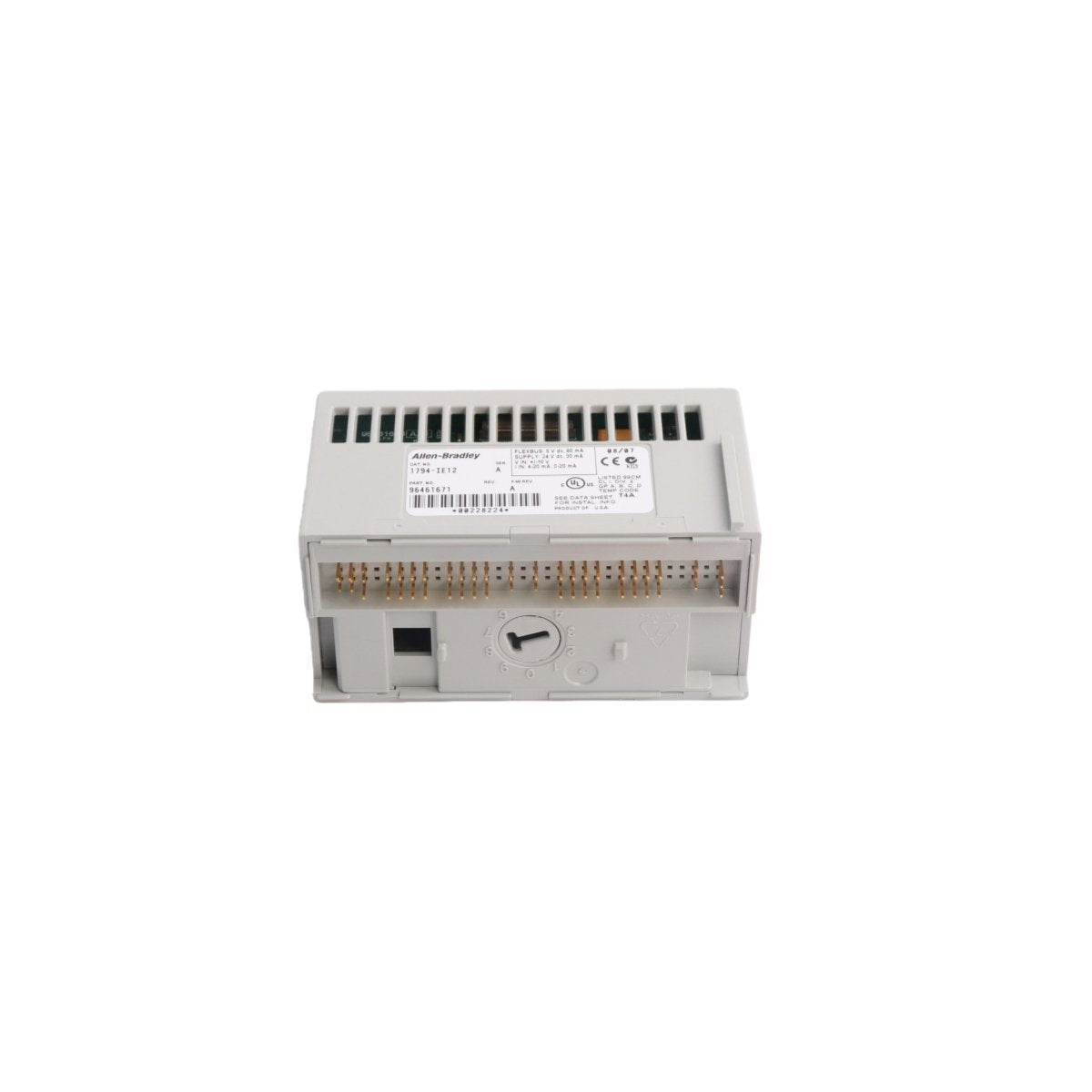

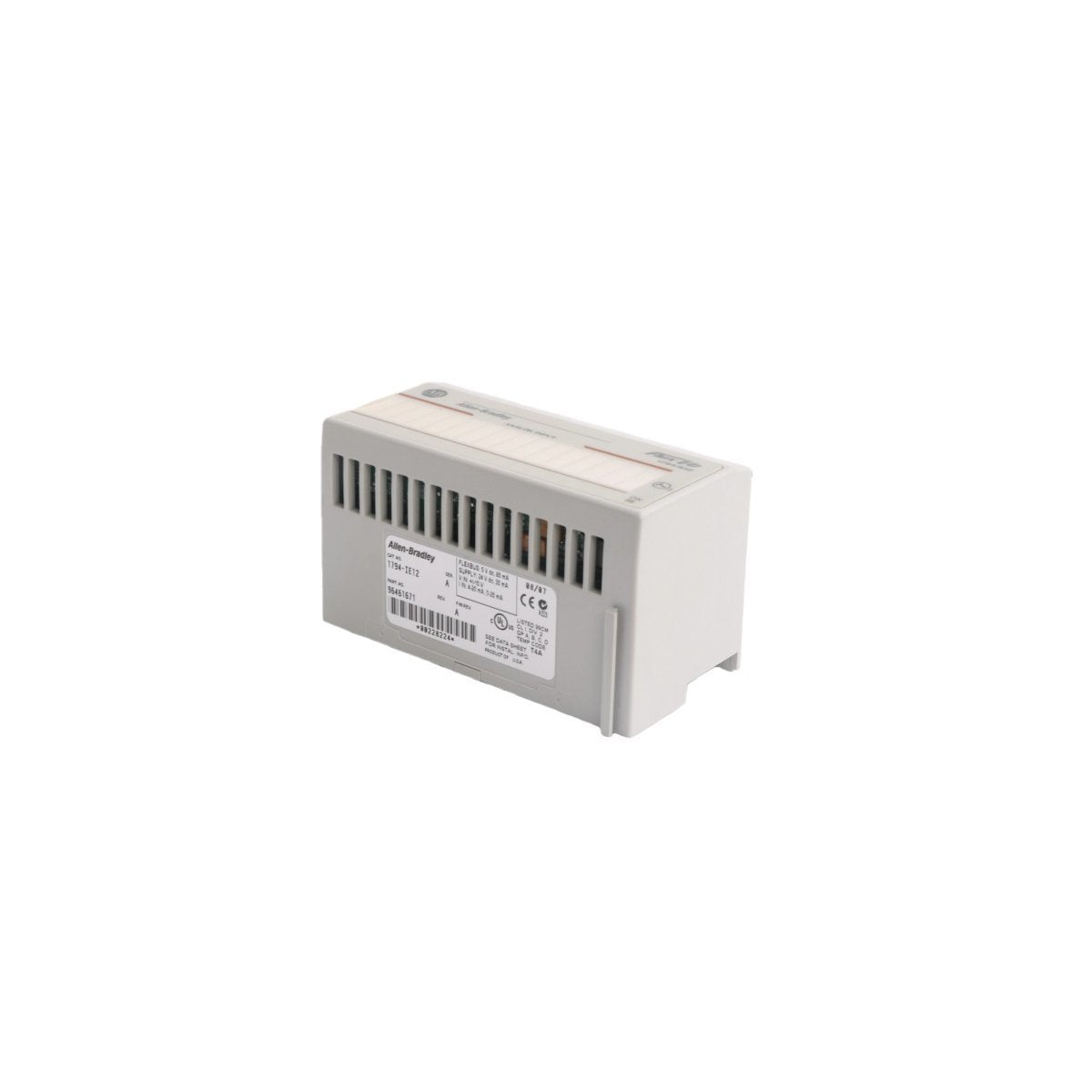

The Allen-Bradley 1794-IE12 is a high-density analog input expansion module engineered for the FLEX™ I/O platform. It provides twelve non-isolated input channels, allowing for the simultaneous monitoring of multiple process variables within a single, space-saving footprint. This module is designed to bridge field sensors and programmable controllers, converting diverse signal types—including 4-20mA current loops and ±10V DC voltage inputs—into 16-bit digital values for high-precision control.

Designed for distributed I/O architectures, the 1794-IE12 mounts onto a standard terminal base, which facilitates "Removal and Insertion Under Power" (RIUP). This capability allows maintenance teams to replace the module without disconnecting field wiring or shutting down the entire system, ensuring maximum process uptime. The module’s high channel count makes it an ideal choice for data-intensive applications such as environmental monitoring, chemical processing, and complex assembly lines.

Signal Processing and Precision

The 1794-IE12 utilizes advanced Successive Approximation (SAR) technology to deliver superior signal fidelity.

• 16-Bit Resolution: Offers granular data capture with a resolution of 320 μV per count for voltage signals and 0.641 μA per count for current measurements.

• Independently Configurable Channels: Each of the 12 ports can be tailored to match the specific requirements of the connected field device, supporting 0-20mA, 4-20mA, and ±10V DC ranges.

• High-Speed Conversion: Features a standard conversion rate of 8.0 ms for all channels, with an optimized Quick Step mode for faster response in dynamic monitoring scenarios.

• Exceptional Accuracy: Maintains a 0.1% full-scale accuracy at 25°C, providing the reliability required for critical process loops.

• Rugged Protection: Built-in circuitry protects against continuous input overloads up to 30V, safeguarding the internal electronics from field wiring errors.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 1794-IE12

• Number of Inputs: 12 Channels (Single-ended, non-isolated)

• Input Ranges: 4–20 mA, 0–20 mA, ±10V DC, 0–10V DC

• Resolution: 16 Bits

• Backplane Current: 20mA @ 5V DC

• External DC Power: 24V DC nominal (Range 10.5–31.2V DC)

• Input Impedance: 238 ohms (Current), 100k ohms (Voltage)

• Operating Temperature: -20°C to 60°C (-4°F to 140°F)

• Mechanical Rating: 30g Operational Shock; 5g Vibration (10–500 Hz)

• Dimensions: 3.5 x 13.0 x 14.5 cm (Logic Component)

• Weight: 0.9 kg (Approx. 1.98 lbs)

Installation and System Compatibility

The 1794-IE12 integrates seamlessly into the Rockwell Automation ecosystem via various FLEX I/O adapters, supporting EtherNet/IP, ControlNet, and DeviceNet communication protocols. It requires a compatible terminal base, such as the 1794-TB3G or 1794-TB3GS, which uses a specific Position 3 keyswitch alignment to ensure correct mechanical seating.

Due to its high-density design and robust environmental ratings, the module is widely utilized in the oil and gas sector, water treatment facilities, and power generation plants where reliable analog data acquisition is mandatory in harsh conditions.
