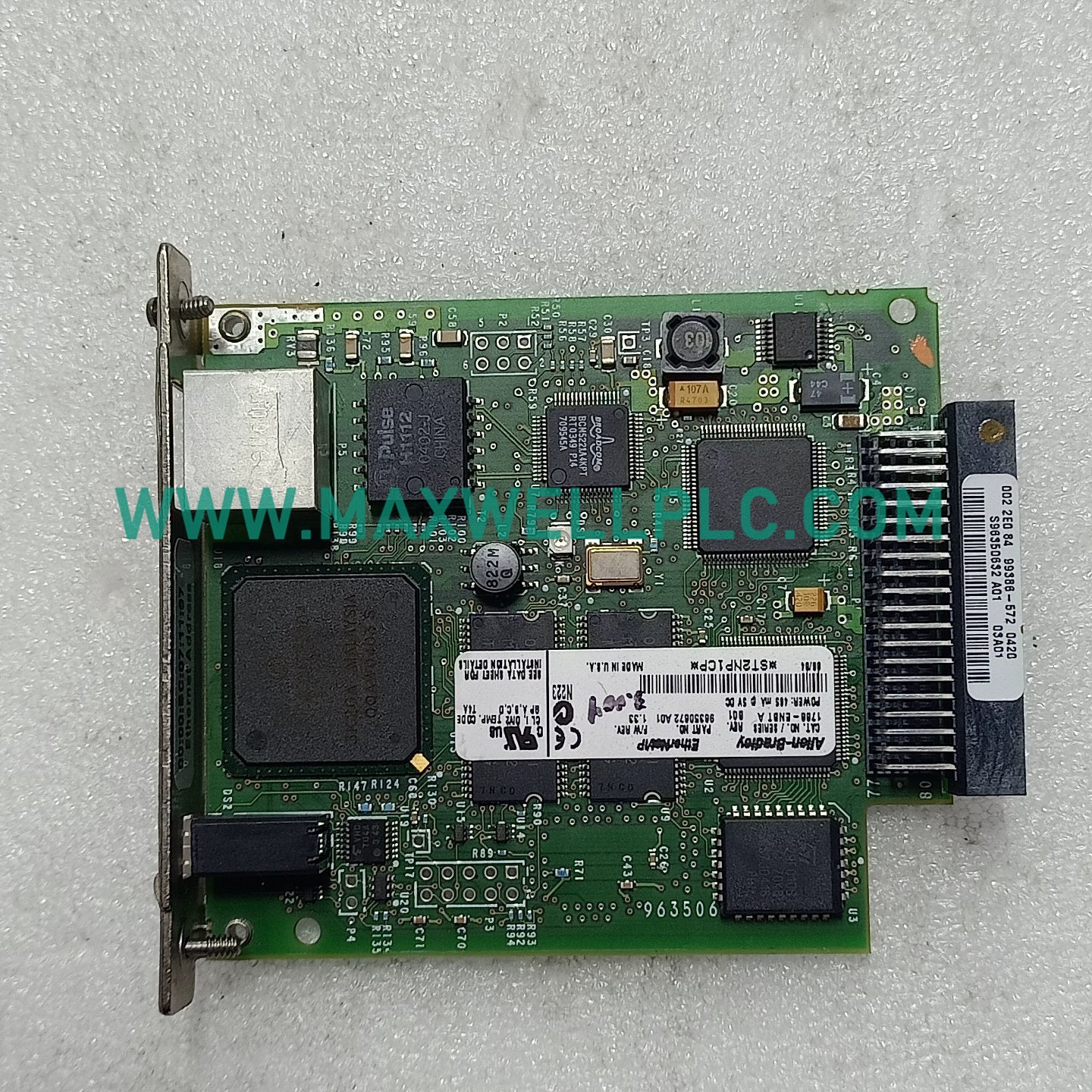

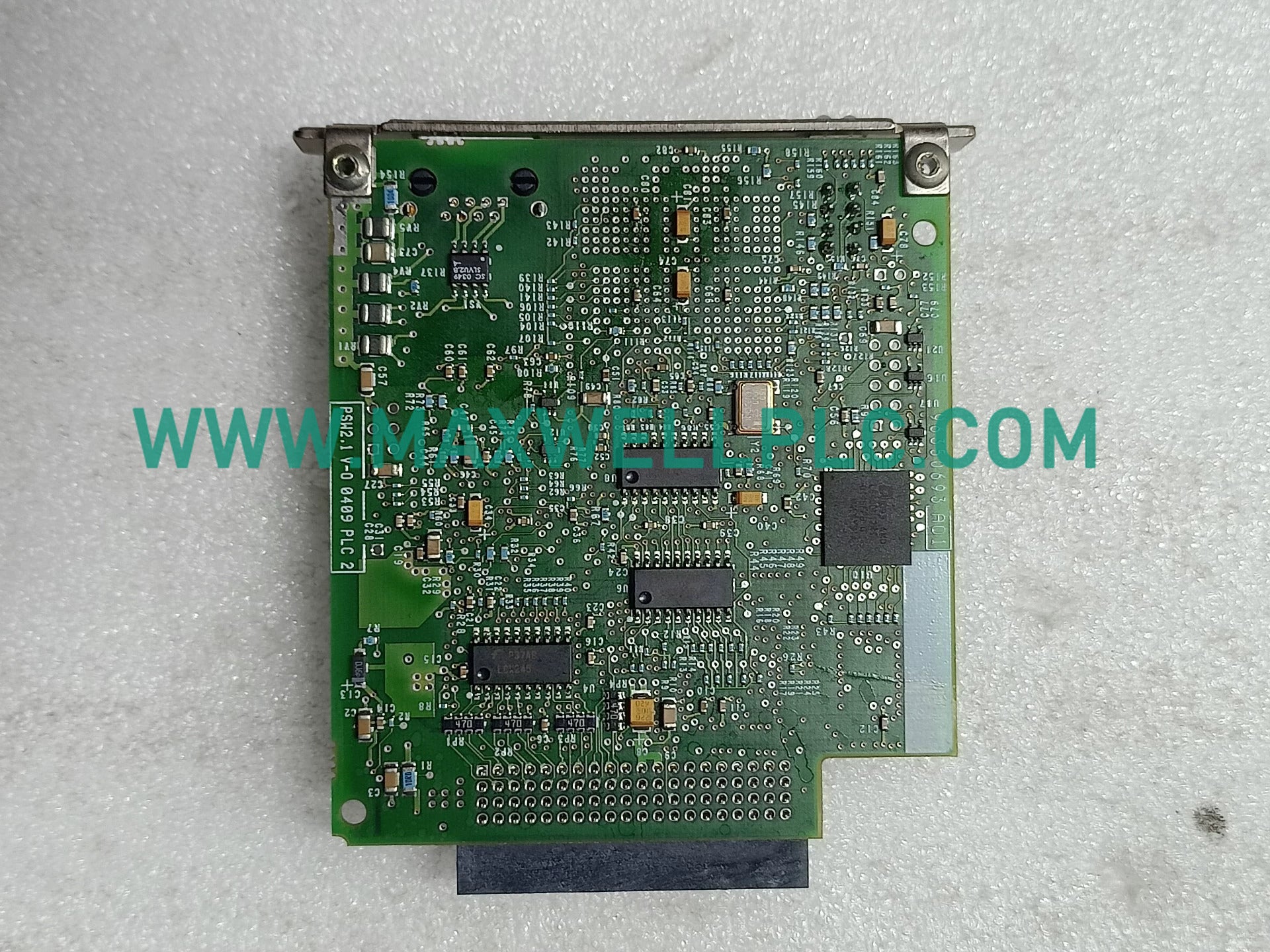

Configured for Ethernet/IP network communication in FlexLogix and DriveLogix control platforms, the Allen-Bradley 1788-ENBT (1788-ENBT Ethernet/IP Daughter Card) provides direct data communication execution through an RJ45 unshielded twisted pair network interface.

Model Identification & Communication Configuration

The 1788-ENBT is an Ethernet/IP daughter card designed for integration with Allen-Bradley FlexLogix and DriveLogix controllers. The module provides Ethernet/IP connectivity through an RJ45 unshielded twisted pair connection for industrial network communication.

The card functions as an embedded communication interface, enabling controller data exchange across EtherNet/IP deterministic networks. The design supports integration into distributed control architectures requiring network communication between controllers, drives, and I/O devices.

Hardware Specifications

EtherNet/IP Network Characteristics

The 1788-ENBT applies Allen-Bradley industrial communication technology for controller networking through EtherNet/IP deterministic networks. The daughter card provides a communication path between FlexLogix or DriveLogix processors and Ethernet-connected devices.

The module design supports industrial network expansion where communication performance depends on the overall Ethernet topology, controller configuration, and connected device requirements. Proper firmware flash compatibility should be verified when integrating the card into existing control platforms.

Ordering Information

The standard shipment configuration includes:

• 1 x Allen-Bradley 1788-ENBT Ethernet/IP Daughter Card
• 1 x Factory product identification label
• 1 x Original hardware assembly

Additional components such as Ethernet cables, mounting accessories, and controller interface hardware depend on the installed FlexLogix or DriveLogix system configuration.

Field Installation Guidelines

Network Connection

• Use suitable Ethernet twisted pair cable according to the system network design.
• Verify RJ45 connector condition before installation.
• Maintain separation between communication cables and high-voltage power wiring.

Controller Integration

• Confirm controller compatibility before installing the daughter card.
• Verify firmware revision compatibility between the communication card and host platform.
• Check network addressing parameters before connecting to the EtherNet/IP system.

Environmental Installation

• Install the module within the specified operating temperature range.
• Avoid locations with excessive moisture, conductive contamination, or mechanical shock.
• Ensure proper enclosure protection for industrial environments.

Frequently Asked Questions

• What is the main function of the 1788-ENBT?

  The 1788-ENBT is an Ethernet/IP daughter card that provides network communication capability for FlexLogix and DriveLogix controller platforms.

• Which communication interface does this module use?

  The module uses an Ethernet/IP communication interface with an RJ45 connector and unshielded twisted pair cable connection.

• Is the 1788-ENBT a standalone Ethernet module?

  No. The module is designed as a daughter card for compatible Allen-Bradley FlexLogix and DriveLogix systems.

• What operating temperature range does the module support?

  The specified operating temperature range is 0 deg C to 60 deg C for normal installed operation.

• Can shielded Ethernet cable be used with this module?

  The available specification identifies unshielded twisted pair connection. Cable selection should follow the system network design.

• Does the module provide analog or digital I/O functions?

  No. The 1788-ENBT is a communication interface and does not provide field signal input or output channels.

• What environmental conditions should be considered during installation?

  Installation should consider temperature, humidity, vibration, grounding, and cable routing requirements for industrial communication systems.

• Is firmware compatibility required for operation?

  Yes. The communication card firmware should be compatible with the host controller platform and installed network configuration.
