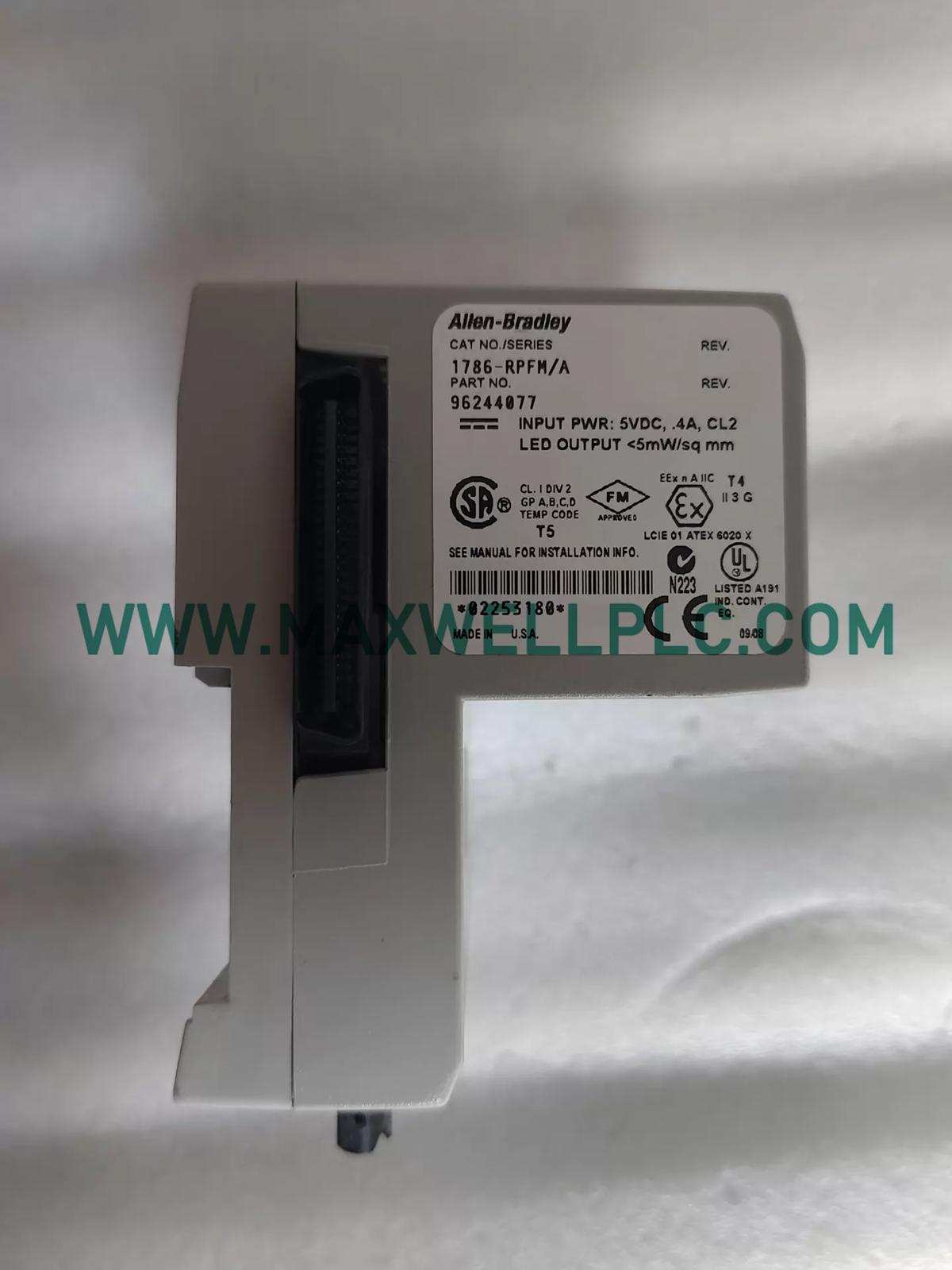

1786-RPFM Allen-Bradley FLEX I/O Series ControlNet Fiber Ring Medium Repeater
Allen-Bradley

1786-RPFM Allen-Bradley FLEX I/O Series ControlNet Fiber Ring Medium Repeater

SKU: 1786-RPFM
Categories : All Products
In Stock
  • Dimensions: 11 x 10.7 x 7 cm
  • Country of origin: USA
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Configured for optical signal regeneration in ControlNet fiber ring networks, the Allen-Bradley 1786-RPFM (1786-RPFM ControlNet Fiber Ring Medium Repeater) provides direct physical/electrical execution for dual fiber communication extension.

Model Configuration Summary

The 1786-RPFM is a ControlNet fiber optic repeater module designed for converting and extending ControlNet network communication through dual fiber optic channels. The module supports 62.5/125 um multi-mode fiber and provides fiber transmission distances up to 3 km under specified network conditions.

Configuration Details

Model Element Specification
Product Series FLEX I/O ControlNet Communication
Model 1786-RPFM
Spare Models 1786-RPFM, 1786-RPFM/A
Module Type ControlNet Fiber Ring Medium Repeater
Fiber Interface Dual Fiber Optic Channel
Fiber Type 62.5/125 um Multi-mode Fiber
Mounting Type DIN Rail Mounting
Communication Protocol ControlNet
Typical Repeater Distance 0-3 km

Hardware Specifications

Parameter Specification
Model 1786-RPFM
Brand Allen-Bradley
Origin USA
Weight 0.15 kg
Shipping Dimensions 11 x 10.7 x 7 cm
Operating Temp Not specified
Power Consumption Backplane power input, 5 V DC
Backplane Current Draw 400 mA @ 5 V DC max
Fiber Operating Wavelength 1300 nm
Fiber Attenuation Level 13.3 dB
Supported Fiber Type 62.5/125 um Multi-mode
Supported Network Topology Fiber Ring
Communication Ports Dual fiber optic channels
Product Function ControlNet fiber signal repeater

ControlNet Network Extension Characteristics

The 1786-RPFM performs physical layer signal regeneration for ControlNet networks by using fiber optic transmission paths. The module supports fiber ring architectures where optical channels are used to extend communication distance and provide alternative network routing paths.

The module operates with deterministic ControlNet communication timing and maintains network data transfer through optical conversion. Fiber media removes electrical interference effects commonly associated with long copper communication segments.

The module integrates with Allen-Bradley ControlNet infrastructure and supports network configurations requiring fiber media conversion, extended distance communication, and ring-based layouts.

Ordering Information

  • 1 x Allen-Bradley 1786-RPFM ControlNet Fiber Ring Medium Repeater module
  • 1 x Fiber optic communication interface assembly
  • 1 x DIN rail mounting mechanism
  • 1 x Hardware identification label
  • 1 x Technical product documentation

Field Installation Guidelines

Mounting

  • Install the module on a standard DIN rail with adequate mechanical support.
  • Maintain sufficient cabinet clearance for fiber cable routing and connector access.
  • Verify module placement according to ControlNet network layout requirements.

Fiber Connection

  • Use 62.5/125 um multi-mode fiber optic cable as specified.
  • Keep fiber connectors clean and protected from contamination during installation.
  • Avoid sharp bending of fiber cables to prevent optical signal loss.

Power Connection

  • Connect the module through the ControlNet system backplane power interface.
  • Verify the 5 V DC backplane supply condition before installation.
  • Confirm current loading remains within the available backplane capacity.

Network Wiring

  • Separate fiber cables from high-voltage power conductors where possible.
  • Confirm optical channel orientation before commissioning.
  • Validate communication status after fiber link connection.

Frequently Asked Questions

  • What communication protocol does the 1786-RPFM support?

    The module supports Allen-Bradley ControlNet communication networks and functions as a fiber optic repeater for ControlNet physical layer extension.

  • What fiber type is compatible with this repeater?

    The 1786-RPFM is specified for 62.5/125 um multi-mode fiber optic cable used in ControlNet fiber applications.

  • What is the maximum typical repeater distance?

    The module supports typical fiber repeater distances from 0 to 3 km depending on cable conditions and network design.

  • What is the operating wavelength of the fiber interface?

    The fiber optic interface operates at 1300 nm wavelength for multi-mode optical communication.

  • Does the module require external input power?

    The module uses a 5 V DC backplane power connection within the ControlNet communication system.

  • How much backplane current does the module consume?

    The specified backplane current draw is 400 mA maximum at 5 V DC.

  • Can the module be installed on a DIN rail?

    Yes. The 1786-RPFM is designed for DIN rail mounting inside industrial control cabinets.

  • What installation consideration applies to fiber connections?

    Fiber connectors must remain clean, properly aligned, and protected from excessive bending or mechanical stress.
