Product Overview

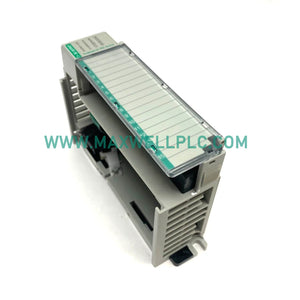

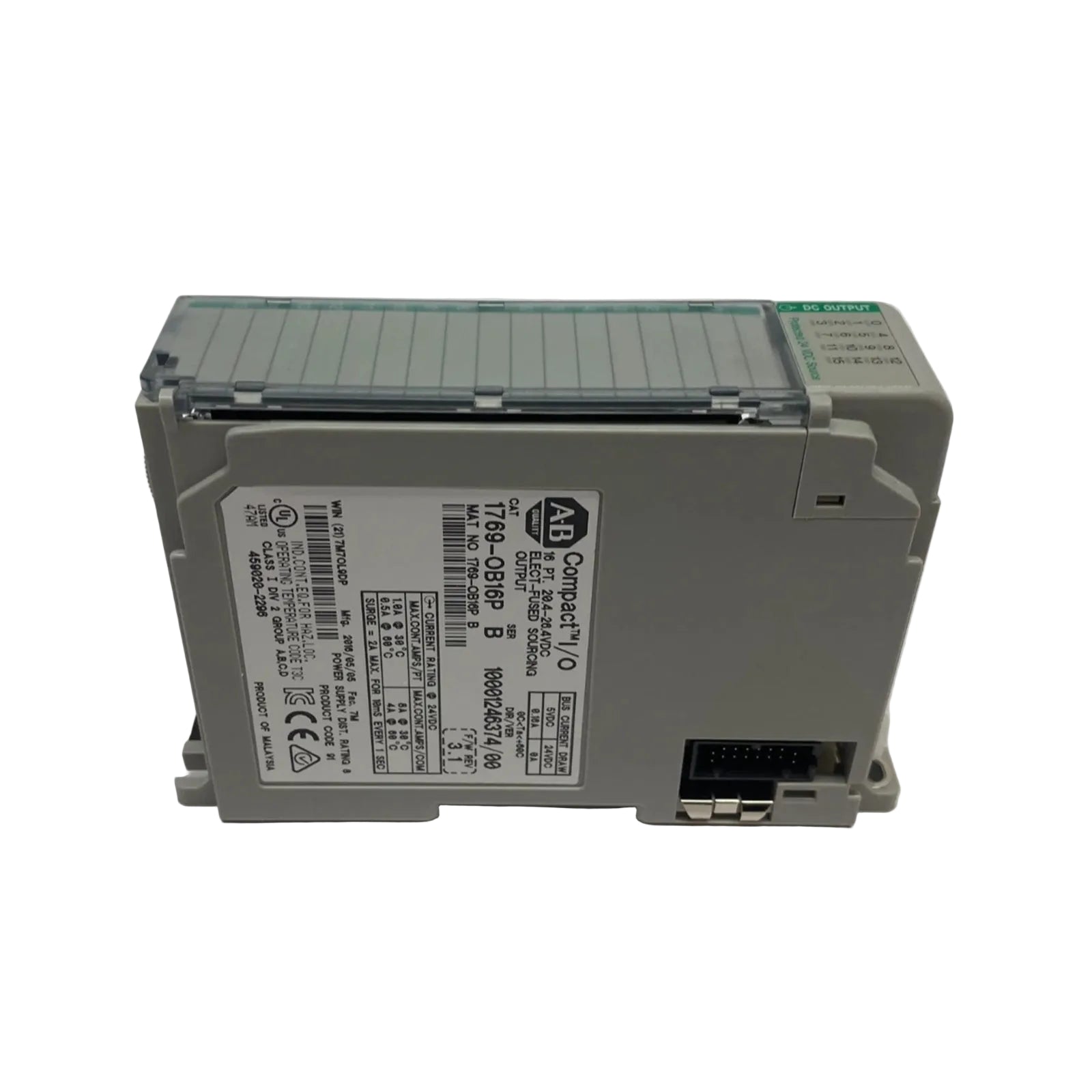

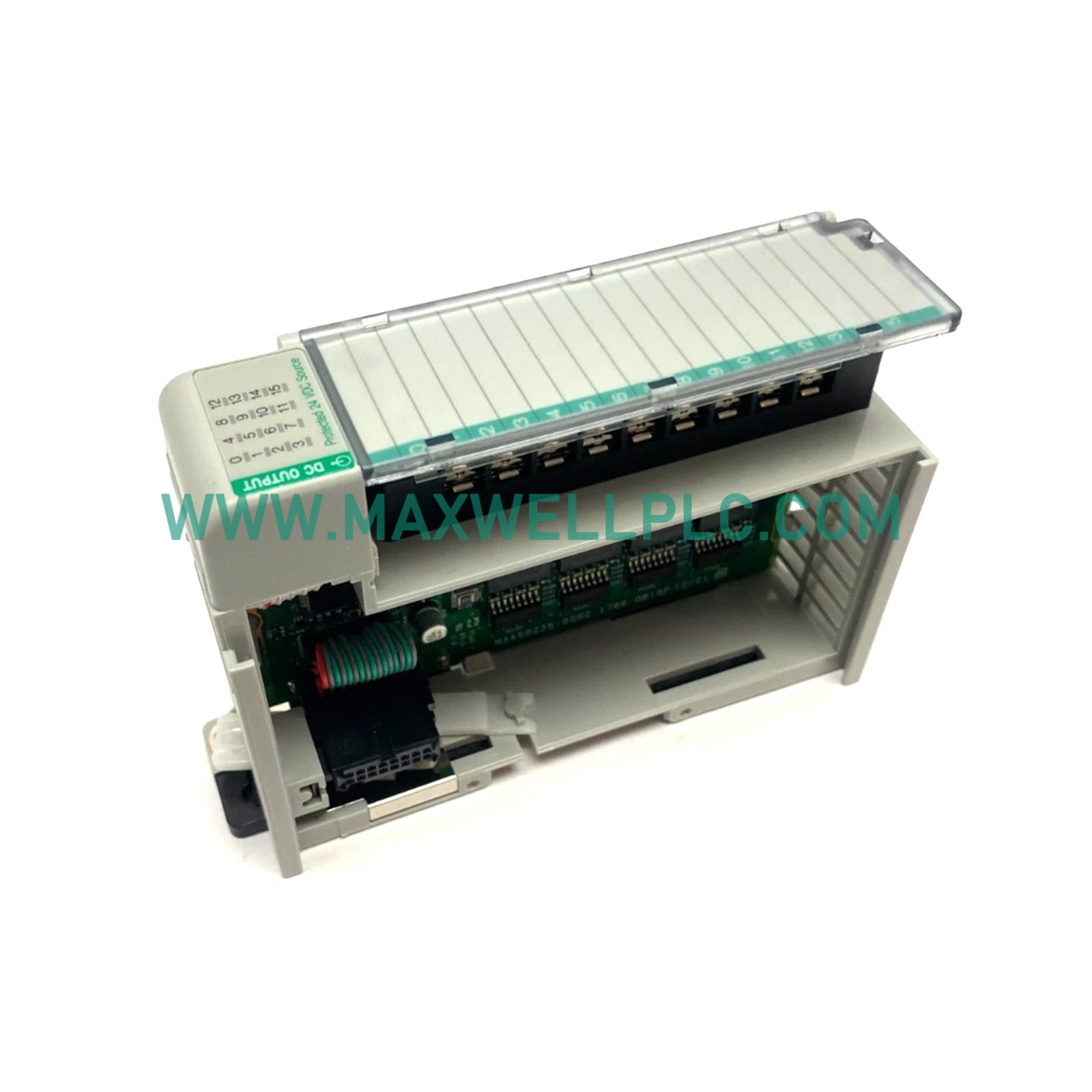

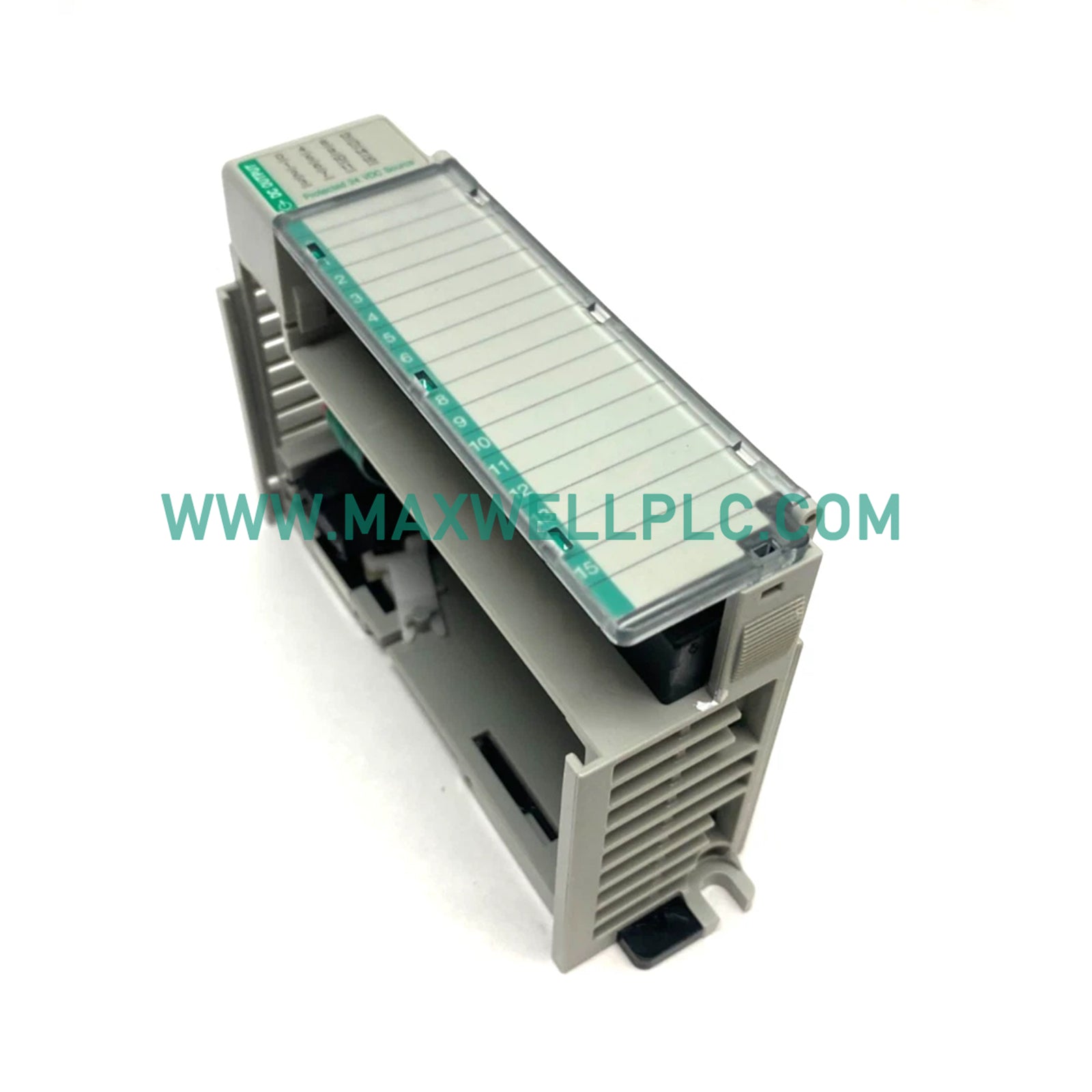

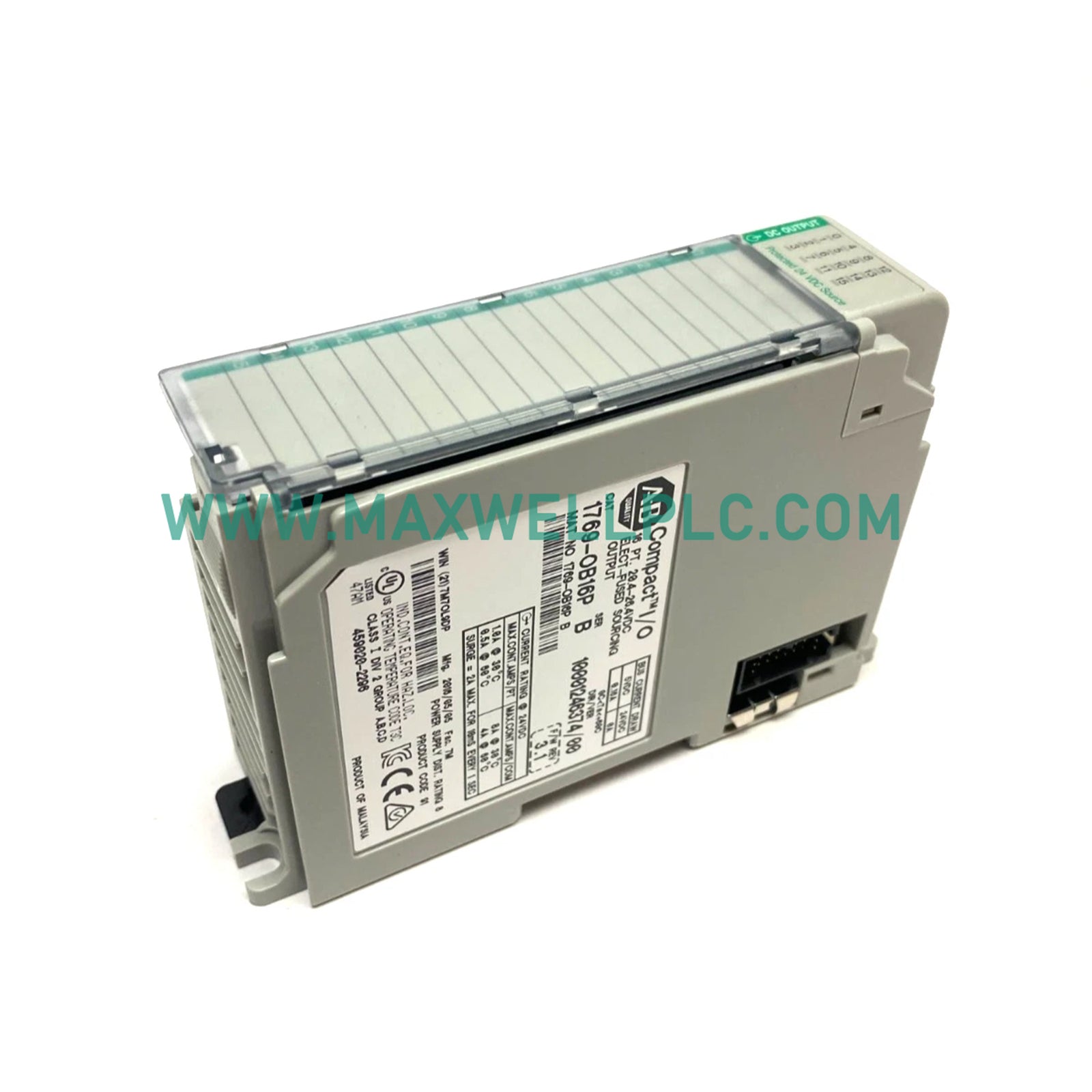

The Allen-Bradley 1769-OB16P is a CompactLogix digital output module designed for high-performance industrial automation applications requiring reliable DC output control. As part of the Compact I/O family used with CompactLogix and MicroLogix platforms, the module provides sixteen (16) protected 24VDC sourcing outputs in a compact form factor suitable for machine control, process automation, OEM equipment, and distributed I/O architectures.

Engineered for demanding industrial environments, the 1769-OB16P incorporates integrated electronic protection to safeguard output channels against overload conditions while maintaining stable operation. The module supports a wide operating voltage range and offers fast output response times, making it suitable for applications involving motor starters, relays, contactors, indicator lamps, solenoid valves, and other field devices.

The CompactLogix architecture is widely recognized throughout manufacturing, energy, water treatment, automotive, food processing, pharmaceutical, mining, and petrochemical industries. The 1769-OB16P seamlessly integrates into existing Allen-Bradley control systems, enabling flexible machine designs and simplified maintenance.

For engineers and procurement specialists seeking a dependable 24VDC digital output solution, the 1769-OB16P delivers proven performance, compact installation, and long-term platform support.

Technical Specifications

Model Configuration Explanation

Understanding the Allen-Bradley catalog number helps users identify the module's functionality:

1769

• Compact I/O product family designed for CompactLogix and MicroLogix platforms.

OB

• Output module designation.

16

• Sixteen digital output channels.

P

• Protected outputs with integrated electronic protection circuitry.

This configuration provides enhanced protection compared to standard output modules, helping reduce downtime caused by wiring faults and field device failures.

Typical Applications

The 1769-OB16P Digital Output Module is commonly deployed in:

• Packaging machinery

• Material handling systems

• Conveyor automation

• Automotive assembly lines

• Water and wastewater treatment plants

• Food and beverage production facilities

• Pharmaceutical manufacturing systems

• Oil and gas processing units

• Power generation facilities

• Mining automation systems

• HVAC control systems

• Industrial robotics

• Machine tool control

• OEM equipment integration

Typical field devices controlled by the module include:

• Solenoid valves

• Pilot lights

• Relays

• Contactors

• Motor starters

• Alarm annunciators

• Pneumatic actuators

• Industrial indicators

System Compatibility

The Allen-Bradley 1769-OB16P is compatible with numerous Rockwell Automation platforms, including:

• CompactLogix controllers

• Compact I/O expansion systems

• Select MicroLogix systems supporting 1769 I/O

• Distributed Compact I/O architectures

• Rockwell Automation integrated control systems

Frequently paired controllers include:

• 1769-L23 Series

• 1769-L24 Series

• 1769-L32E Series

• 1769-L35E Series

• 1768 CompactLogix systems

• Selected Compact GuardLogix platforms

Its seamless integration with Studio 5000 and RSLogix programming environments simplifies system commissioning and maintenance.

Installation Recommendations

Mechanical Installation

• Mount securely on a DIN rail or approved panel.

• Maintain adequate clearance for ventilation.

• Avoid installation near excessive heat sources.

• Follow manufacturer grounding recommendations.

Electrical Wiring

• Verify power supply voltage before wiring.

• Use appropriate wire gauges according to local electrical codes.

• Ensure correct polarity on DC power connections.

• Tighten terminal connections to specified torque values.

Startup Verification

• Confirm LED status indicators operate correctly.

• Verify output channel functionality before production startup.

• Test overload protection features where applicable.

• Document wiring and I/O assignments for future maintenance.

Product Advantages

High-Density Output Design

Sixteen digital outputs within a compact footprint maximize cabinet space utilization while reducing overall system costs.

Integrated Electronic Protection

Built-in protection helps prevent damage from overloads and wiring faults, reducing maintenance expenses and improving system availability.

Fast Switching Performance

The 2 ms output response time supports demanding machine control applications requiring rapid signal transitions.

CompactLogix Integration

Native compatibility with CompactLogix architectures simplifies engineering, programming, diagnostics, and spare parts management.

Industrial Reliability

Designed for continuous operation in industrial environments where reliability and uptime are critical.

Simplified Maintenance

LED diagnostics and standardized Compact I/O architecture reduce troubleshooting time and improve service efficiency.

Ordering Information

When requesting a quotation or placing an order, provide the following information:

Recommended ordering details:

• Required quantity

• Preferred shipping method

• Destination country

• Certificate requirements

• Test report requirements

• Project reference information

Logistics and Shipping

Maxwell PLC understands the importance of safe transportation for industrial automation equipment.

Every 1769-OB16P module is carefully packaged using professional anti-static industrial packaging procedures, including:

• Anti-static ESD protection materials

• Shock-resistant cushioning

• Industrial-grade protective cartons

• Moisture-resistant packaging

• Product identification labeling

• Secure export packaging for international shipments

Before shipment, products undergo visual inspection and verification procedures to help ensure customers receive equipment in excellent condition.

Global shipping options are available through major international logistics providers, allowing rapid delivery to manufacturing facilities, system integrators, EPC contractors, and maintenance teams worldwide.

Why Choose Maxwell PLC

With more than 30 years of experience in industrial automation equipment supply, testing, repair support, and component sourcing, Maxwell PLC serves customers across manufacturing, energy, oil & gas, power generation, transportation, and process industries.

Advantages of working with Maxwell PLC include:

• Over 30 years of automation industry experience

• Extensive inventory of PLC, DCS, TSI, SIS, and vibration monitoring components

• Strong relationships with major automation manufacturers

• Rapid sourcing capabilities for difficult-to-find parts

• Comprehensive pre-shipment testing procedures

• Available test reports upon request

• Professional technical support

• Global export experience

• Competitive lead times

• Quality-focused inspection process

Our team understands the operational requirements of critical industrial systems and works closely with customers to provide suitable replacement and spare parts solutions.

Frequently Asked Questions

• What is the primary function of the 1769-OB16P?

The module provides sixteen protected 24VDC digital outputs for controlling field devices within CompactLogix automation systems.

• How many outputs are available?

The module provides 16 sourcing outputs.

• What output voltage does the module support?

The nominal output voltage is 24VDC.

• Is electronic protection included?

Yes, integrated electronic protection is built into the module.

• What is the output current rating?

Each output supports up to 0.5 A.

• Can the module be used with CompactLogix controllers?

Yes, it is specifically designed for CompactLogix and Compact I/O systems.

• What is the output response time?

The ON-to-OFF response time is approximately 2 milliseconds.

• Is the module suitable for controlling solenoid valves?

Yes, it is commonly used for solenoid valve control applications.

• Does the module provide diagnostic indicators?

Yes, integrated LED indicators assist with status monitoring and troubleshooting.

• What industries commonly use this module?

Manufacturing, automotive, food processing, water treatment, energy, oil & gas, mining, and packaging industries.

• What is the module weight?

The shipping weight is approximately 0.18 kg.

• Does Maxwell PLC perform testing before shipment?

Yes, inspection and testing procedures are performed before dispatch whenever applicable.
