Product Overview

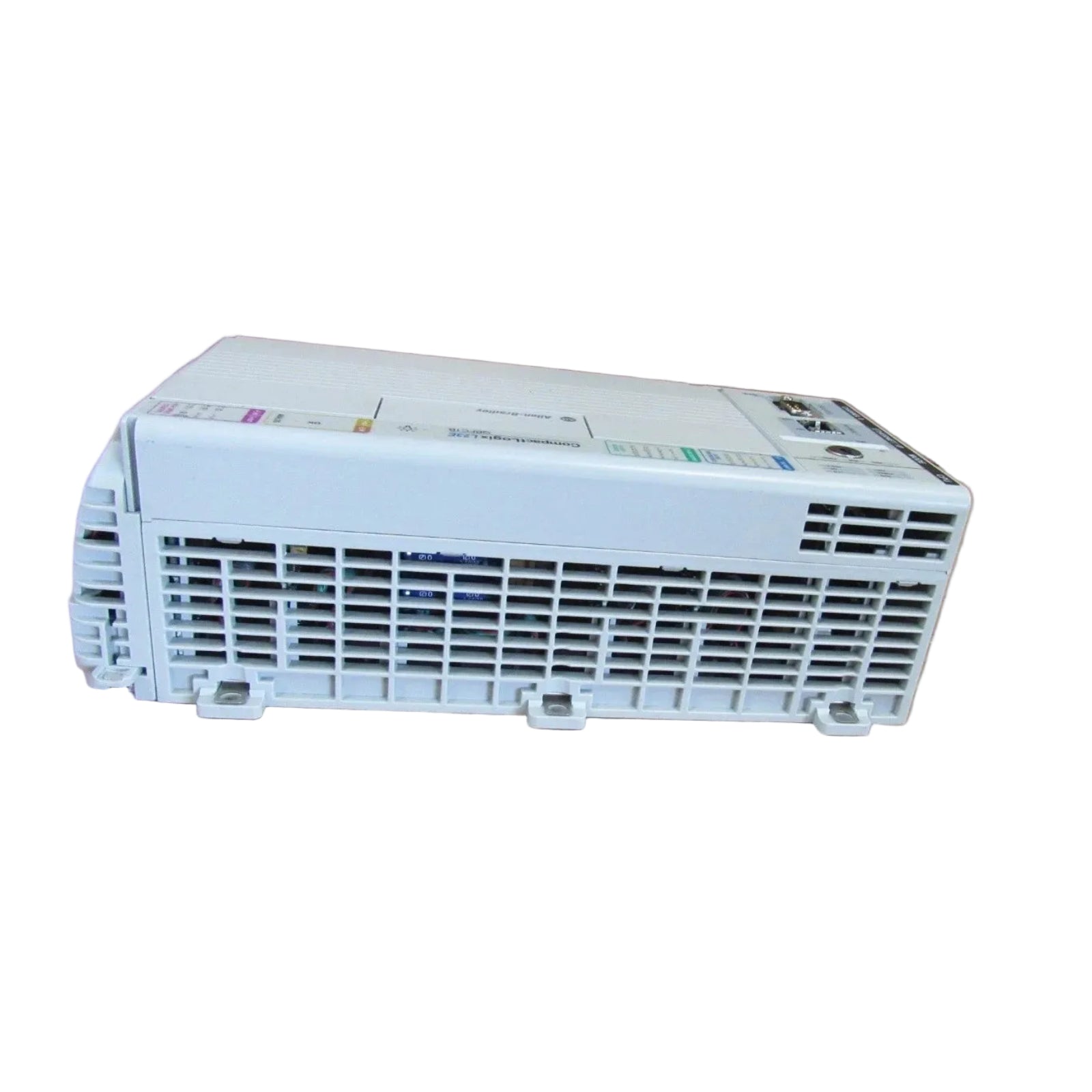

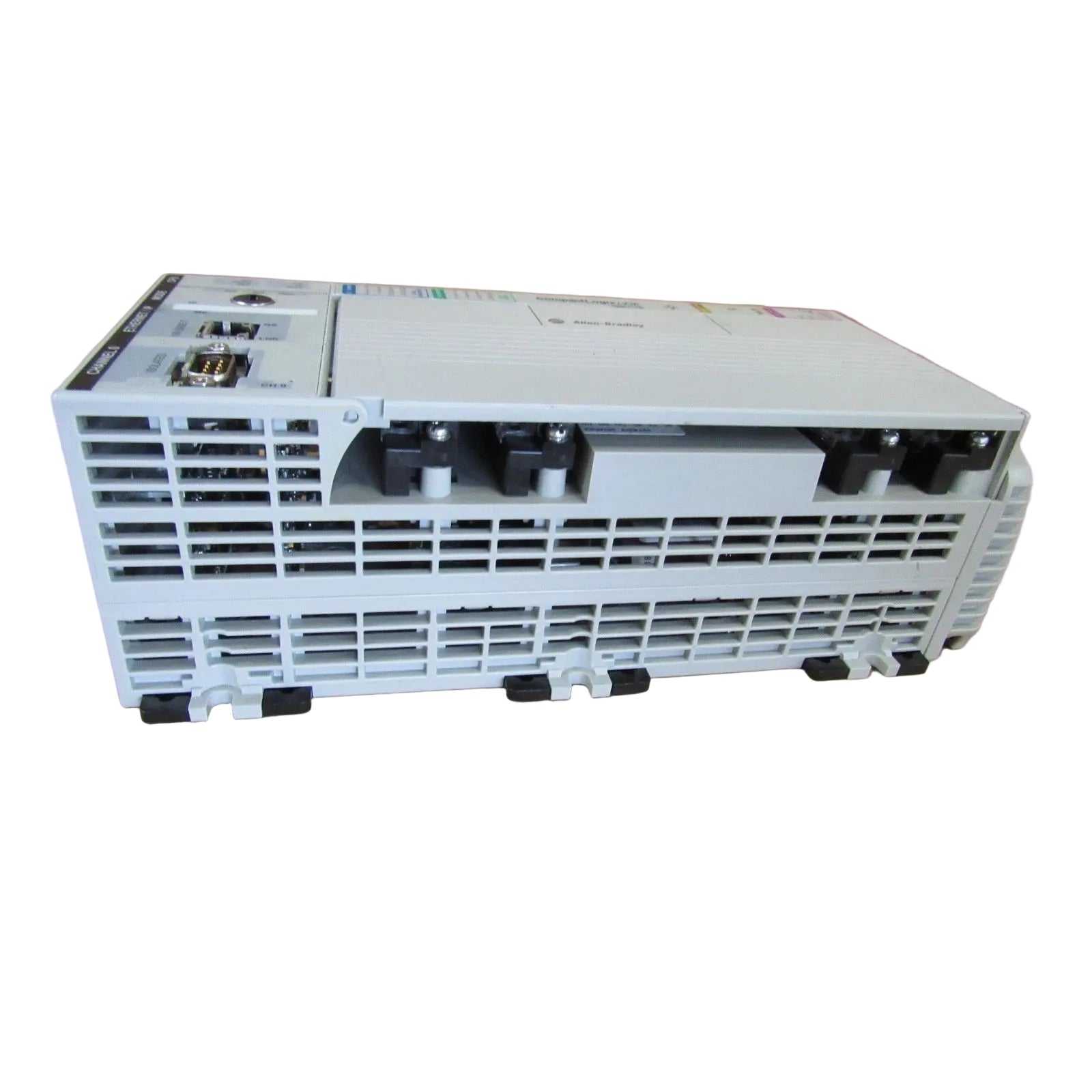

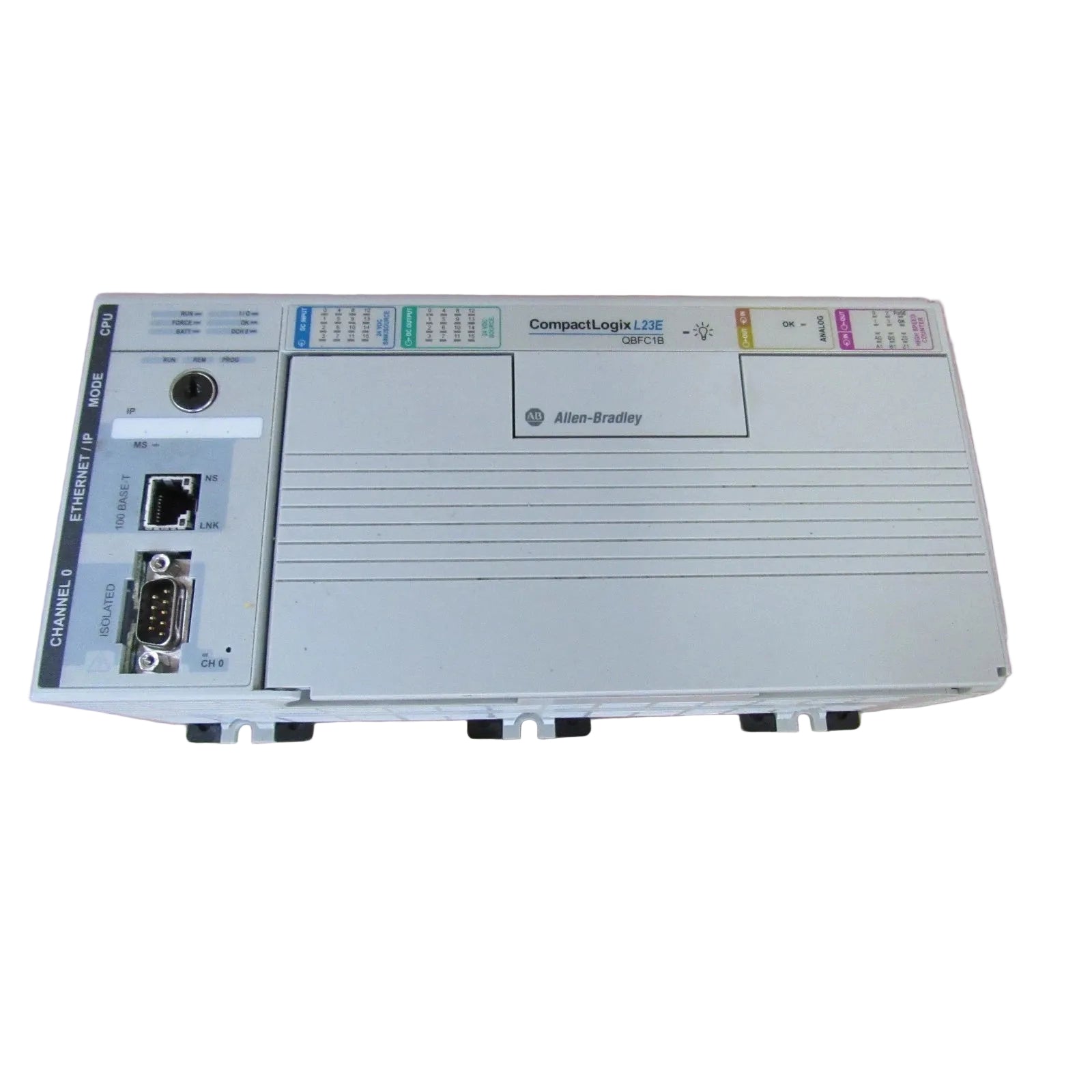

The Allen-Bradley 1769-L23E-QBFC1B is a classic, highly integrated "packaged" controller from the CompactLogix L23 series. Designed for efficient, high-performance control in space-constrained industrial environments, this Programmable Automation Controller (PAC) consolidates processing, communication, and multi-mode I/O into one compact chassis. Despite its status as a legacy component—officially discontinued by the manufacturer in late 2015—the 1769-L23E-QBFC1B remains a vital asset for maintenance, repair, and operations (MRO) in existing production facilities worldwide.

This model is celebrated for its all-in-one architecture, which features 512 KB of memory, integrated Ethernet/IP and RS-232 communication ports, and a robust onboard I/O complement. By including 16 digital inputs, 16 digital outputs, and a suite of analog I/O and high-speed counter channels, it drastically reduces the physical footprint of control cabinets in machines like assembly conveyors, small process skids, and packaging lines. For engineers tasked with keeping legacy machines running, finding a reliable, tested, and genuine 1769-L23E-QBFC1B unit is essential to minimizing unplanned downtime.

Technical Specifications

Model Configuration Explanation

The 1769-L23E-QBFC1B model number describes a sophisticated, pre-configured I/O and CPU package:

• 1769: Designates the Compact I/O hardware family.

• L23E: Specifies the processor family with integrated Ethernet (E).

• QBFC1B: The "Packaged" suffix (QBFC) identifies the specific onboard mix: Q (24V DC), B (Digital outputs), F (Analog signals), and C (High-speed counters). This allows the controller to function as a standalone system for medium-complexity automation tasks without needing multiple separate modules.

Typical Applications

• Legacy Production Lines: Serving as the direct replacement for failing controllers in established manufacturing cells.

• Material Handling: Managing sortation, diverters, and simple conveyor speed control with high-speed counter inputs.

• Process Instrumentation: Monitoring and controlling small-scale temperature and pressure loops using onboard analog I/O.

• OEM Machinery: Supporting standardized machine designs where the I/O count is predictable and space is at a premium.

• Research and Pilot Plants: Providing a robust, localized control platform for small, non-complex experimental processes.

System Compatibility

As a member of the CompactLogix 1769 family, the 1769-L23E-QBFC1B is compatible with standard RSLogix 5000 / Studio 5000 programming environments. It integrates seamlessly into networks using the Ethernet/IP protocol, making it compatible with modern industrial switches and HMI panels. For facilities currently running this controller, it maintains full backward compatibility with existing 1769 expansion modules, should you need to extend your I/O capacity.

Installation Guidelines

• Enclosure Placement: Mount the unit in a clean, dry, and ventilated cabinet to maintain optimal operating temperatures.

• DIN Rail or Panel Mounting: The unit is designed for secure mounting; ensure all screws are tightened to meet vibration resistance standards.

• Wiring Best Practices: Utilize high-quality, shielded twisted-pair cables for analog signals to prevent ground loops and EMI interference.

• Terminal Identification: Carefully map your field wiring to the designated digital/analog terminal blocks to prevent damage during power-up.

• Grounding: Establish a dedicated earth ground connection to the chassis to protect against transient voltage spikes.

Product Advantages

• Integrated Versatility: Eliminates the need for separate analog, digital, and counter modules in smaller applications.

• Proven Reliability: With thousands of units deployed over the last two decades, its performance in field conditions is well-documented and predictable.

• Cost-Effective MRO: An ideal solution for extending the life of capital equipment without the high cost of a complete system migration.

• Compact Design: Significantly reduces panel wiring complexity, leading to faster troubleshooting and easier maintenance.

Ordering Information

When you look to Buy 1769-L23E-QBFC1B controllers, it is crucial to source from a reputable supplier who can guarantee the quality and condition of discontinued hardware. We maintain a reliable stock of these units to support your MRO needs. For the current 1769-L23E-QBFC1B Price and availability, please contact our support team. We pride ourselves on being a dependable 1769-L23E-QBFC1B Supplier for engineers globally.

Logistics and Shipping

We understand the pressure of industrial breakdowns. To ensure your hardware arrives in the same condition it left our facility, we utilize premium anti-static industrial packaging. This includes anti-static wraps and high-density impact-resistant boxing, specifically designed to protect sensitive electronics from static discharge and physical damage during international transit.

Why Choose Maxwell PLC

With 30 years of experience, Maxwell PLC is more than just a distributor; we are your technical partner in industrial automation. We recognize that discontinued parts are the heartbeat of many legacy systems. Our team rigorously tests every 1769-L23E-QBFC1B before it ships, ensuring it is "ready to run." We provide detailed test reports and offer professional advice to ensure the part you buy is the perfect fit for your specific machine.

Frequently Asked Questions

• Is the 1769-L23E-QBFC1B still manufactured?

  No, this model was discontinued in 2015. We provide tested, high-quality spare parts from our verified inventory.

• Is this controller compatible with Studio 5000?

  Yes, it is fully supported within the Studio 5000 / RSLogix 5000 environment.

• Do you provide a warranty for this discontinued part?

  Yes, we stand behind our products with a comprehensive warranty on all genuine parts sold.

• Can I replace a 1769-L23E with a newer model?

  While migration is possible, it usually requires code conversion and hardware changes. Replacing it with an identical unit is often the most cost-effective path for repair.

• What does the "E" in the model name stand for?

  The "E" indicates that the model is equipped with an integrated Ethernet port for network communication.

• How do I test the analog inputs?

  You can verify the analog inputs through the controller's I/O configuration tree in your programming software.

• Is it possible to add more I/O to this controller?

  Yes, you can attach additional 1769 Compact I/O expansion modules to the side of the controller.

• What if I need a firmware update?

  We can help guide you to the correct firmware version to match your existing project files.

• Does it support non-Rockwell HMI panels?

  Yes, through its Ethernet/IP or serial ports, it can communicate with a wide variety of third-party HMI devices.

• Why is shipping size important?

  Precise dimensions allow us to calculate the safest and most efficient shipping method to ensure your controller arrives without damage.

Related Models

• 1769-L23E-QB1B: CompactLogix controller with digital I/O only.

• 1769-L23-QBFC1B: CompactLogix controller (no integrated Ethernet).

• 1769-IQ16: 16-point 24V DC Digital Input Module.

• 1769-OB16: 16-point 24V DC Digital Output Module.

• 1769-PA2: Compact I/O 120/240V AC Power Supply.

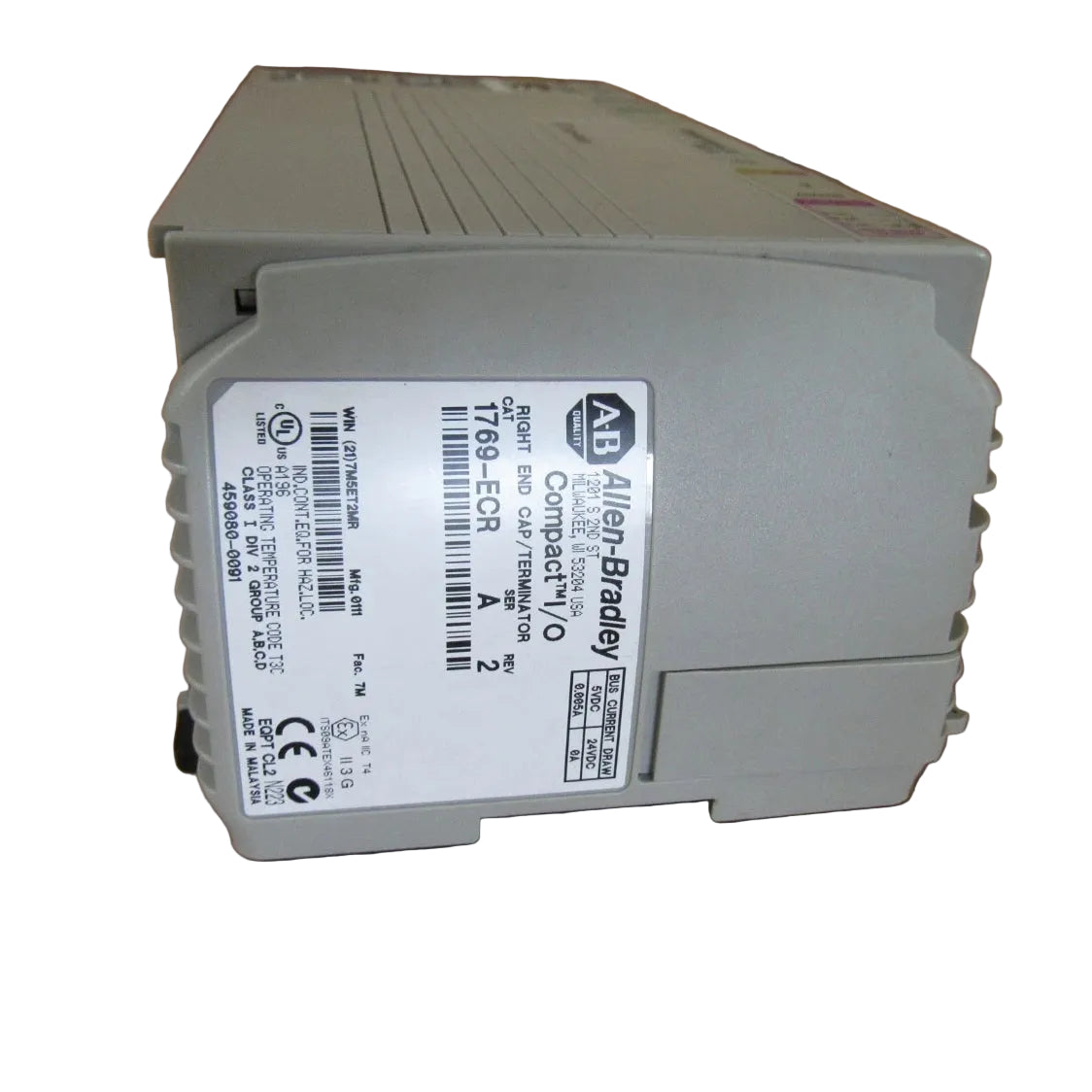

• 1769-ECR: Compact I/O End Cap (Right).

• 1769-IF4I: 4-Channel Isolated Analog Input Module.
