Product Overview

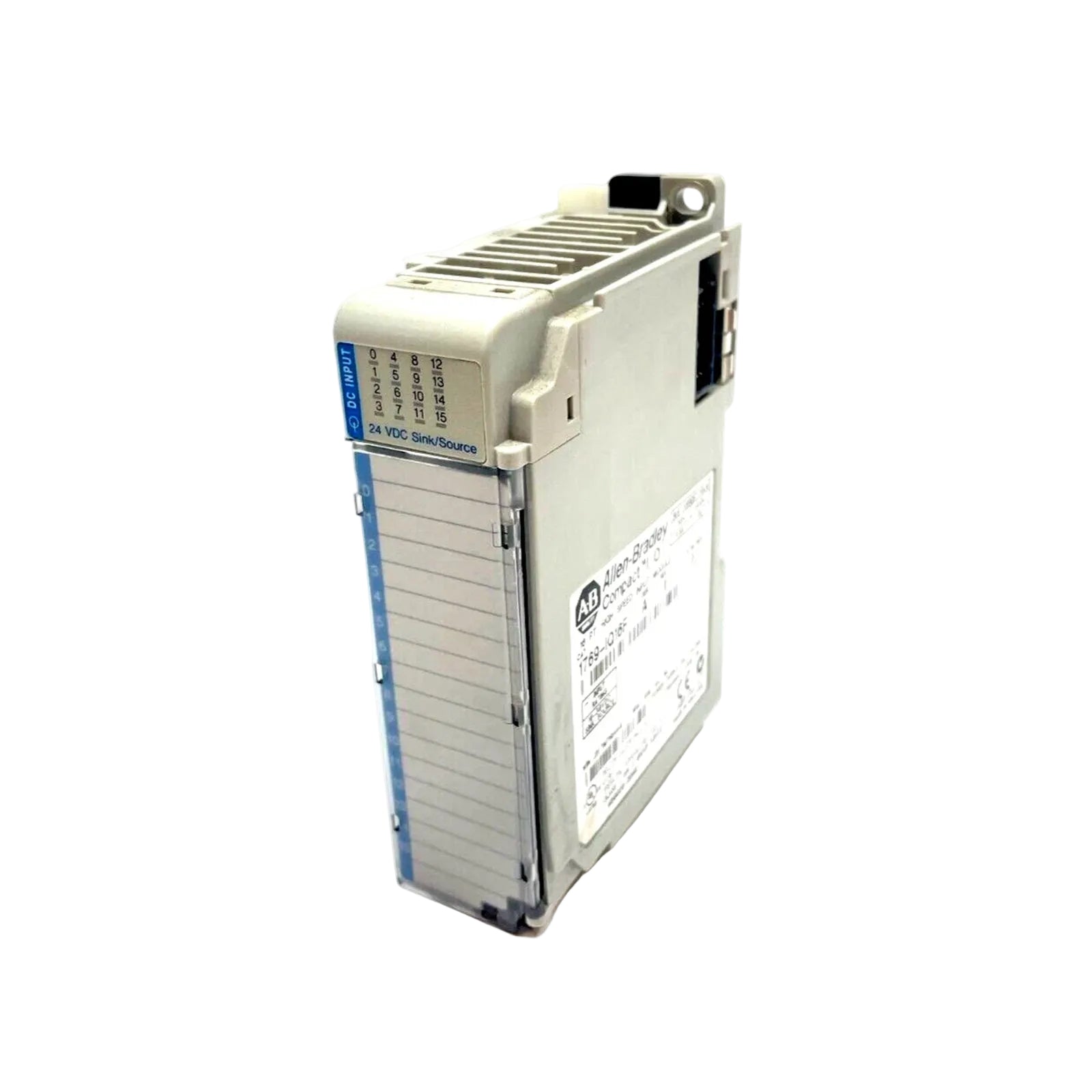

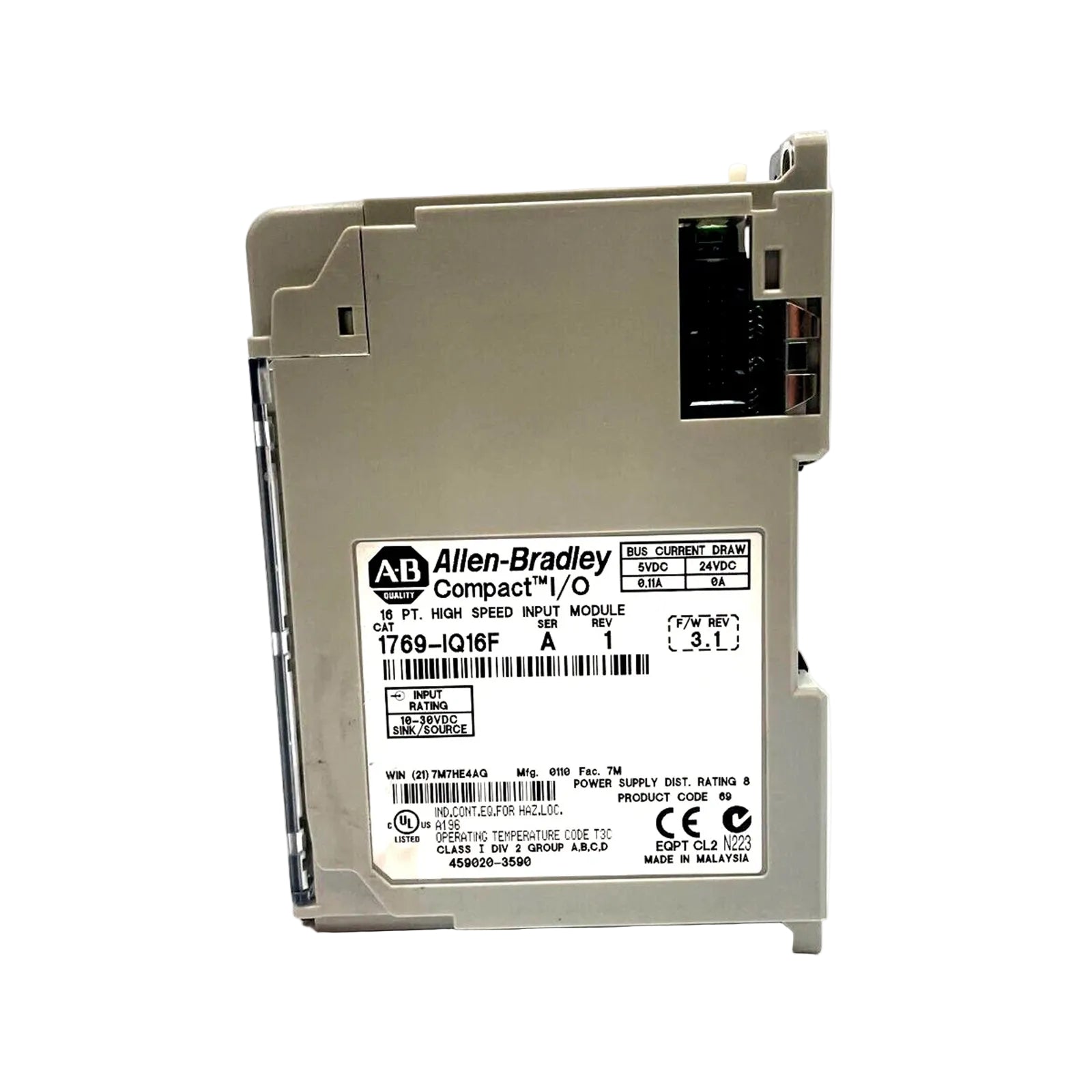

The Allen-Bradley 1769-IQ16F is a high-speed, 16-point digital input module designed specifically for the CompactLogix control platform. In industrial environments where millisecond-level precision is required for signal detection, standard I/O modules often fall short due to filter delays. The "F" suffix in the 1769-IQ16F indicates its "Fast" capability, making it the preferred choice for applications involving rapid sensor state changes, high-speed counting, and precision timing sequences.

This module operates on a 24V DC signal range, providing reliable sensing for proximity switches, photo-eyes, and limit switches that require rapid response times. As a member of the 1769 I/O family, it offers a compact, modular design that integrates seamlessly with CompactLogix and MicroLogix 1500 controllers. Its ability to provide fast, deterministic data throughput makes it an essential component for high-speed manufacturing lines, packaging machinery, and assembly robotics where synchronization is paramount to operational throughput.

Technical Specifications

Model Configuration Explanation

The 1769-IQ16F nomenclature provides immediate technical context to the systems engineer:

• 1769: Defines the Compact I/O form factor, compatible with CompactLogix backplanes.

• IQ: Designates the module as a digital input card.

• 16: Indicates the total number of discrete input points available.

• F: Signifies the "Fast" response capability, which distinguishes this unit from the standard 1769-IQ16 module by utilizing specialized filtering circuitry for reduced input signal latency.

Typical Applications

The 1769-IQ16F excels in scenarios where traditional input modules lack the required refresh rates:

• High-Speed Packaging: Detecting items on a conveyor moving at high velocity to trigger precise reject mechanisms or labeling applications.

• Metal Stamping & Pressing: Monitoring fast-acting cam switches that provide position feedback for machine cycles.

• Motion Synchronization: Capturing trigger signals from high-speed sensors to initiate capture commands in motion control axes.

• Flow Measurement: Receiving pulses from flow meters that require high frequency sensing beyond standard scan rates.

• Quality Assurance: Detecting missing components on assembly lines through high-speed proximity sensing.

System Compatibility

The 1769-IQ16F module is built for broad integration within the Rockwell Automation ecosystem. It is fully compatible with:

• CompactLogix Controllers: Supports L3x and L2x series processors.

• MicroLogix 1500: Easily integrated as an expansion I/O for standalone small-scale control tasks.

• Studio 5000 / RSLogix 5000: The module configuration is natively supported, allowing users to define input filter times via the software interface, which is vital for customizing the "Fast" response behavior to specific environmental noise conditions.

Installation Guidelines

• Backplane Mounting: Align the module with the tongue-and-groove slots on the side of the controller or preceding I/O module. Push firmly until the latch snaps into position, ensuring a solid connection to the backplane bus.

• Wiring Requirements: Use only copper wire rated for 90 deg C. For high-speed applications, use shielded twisted-pair cabling to prevent induced noise from distorting the fast-acting signals.

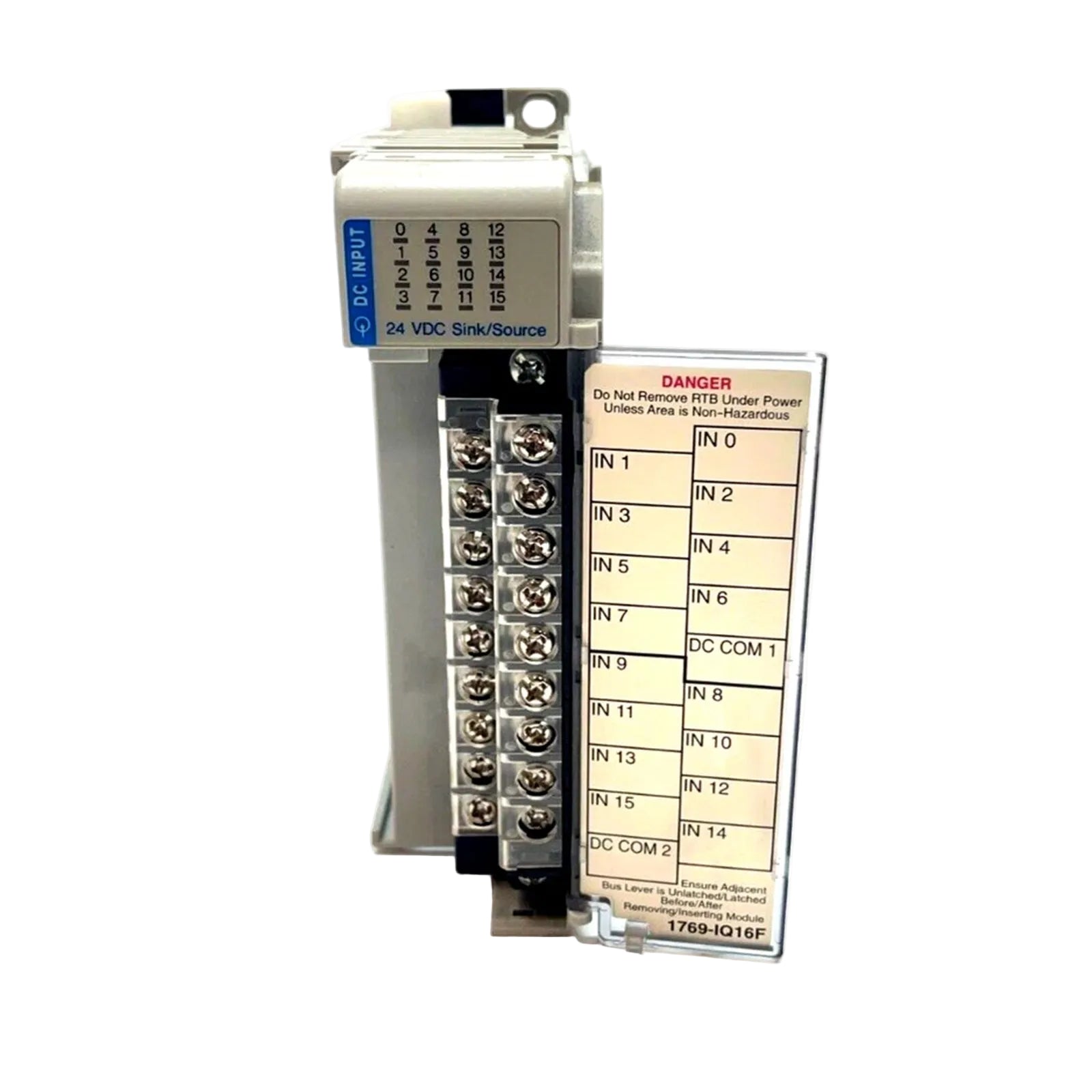

• Terminal Block Attachment: The 1769-RTBN18 terminal block should be securely attached. Ensure wires are stripped to the appropriate length to prevent exposed conductor shorts.

• Filtering Adjustment: Upon installation, access the module properties in your software to configure the input filter time. Lower filter times improve responsiveness but increase sensitivity to electrical noise.

Product Advantages

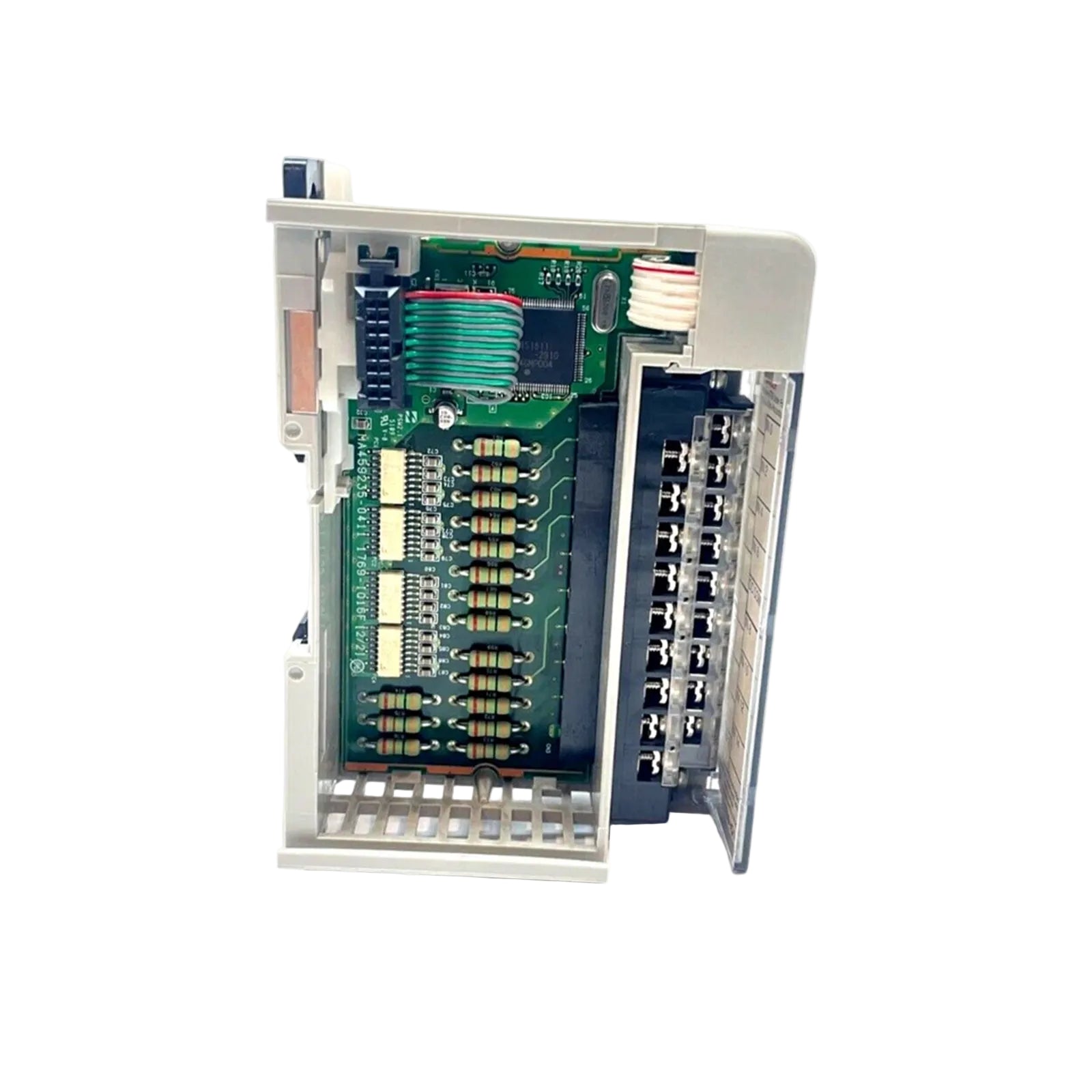

• Optimized Response: Specialized circuitry minimizes input delay, ensuring data is captured and processed near-instantaneously.

• Space-Efficient: The compact 1769 form factor allows for high-density I/O configurations in space-constrained control cabinets.

• Proven Durability: Built to withstand the rigors of industrial environments, including vibration and temperature fluctuations common in machine-side installations.

• Easy Replacement: The removable terminal block (1769-RTBN18) allows for module swaps without the need to disconnect field wiring, significantly reducing Mean Time to Repair (MTTR).

Ordering Information

• 1769-IQ16F Fast Digital Input Module (16-Point, 24V DC).

• Requires a 1769-RTBN18 terminal block (often included but available as a spare).

• For complete system builds, ensure the power supply calculation accounts for the backplane current consumption of the 16-point input configuration.

Frequently Asked Questions

• What is the primary difference between the 1769-IQ16 and the 1769-IQ16F?

  The "F" version (1769-IQ16F) is designed with faster input filtering circuitry, allowing it to capture high-frequency signals that a standard module would miss due to inherent input delay.

• Can I use the 1769-IQ16F in a non-fast application?

  Yes. It is fully backward compatible with standard applications. Using the "Fast" module in a standard application simply provides the added benefit of potentially lower latency.

• How do I determine the correct input filter time for my process?

  Start with a filter time that balances responsiveness against noise. If you experience "ghost" triggers (falsely detected inputs), increase the filter time incrementally in the software settings.

• Is this module compatible with AC input voltages?

  No, the module is rated for 24V DC. While it can withstand up to 30V AC/DC, it is specifically designed to function as a DC input card for modern PLC logic.

• Can I hot-swap this module?

  No, the 1769 Compact I/O system does not support hot-swapping. You must power down the chassis backplane before removing or inserting any I/O module to prevent damage to the backplane pins.

• What wire gauge should I use?

  The terminal blocks are designed to accept 22 to 14 AWG wire. For high-speed applications, 16 or 18 AWG copper is typically recommended for better mechanical stability.

• Does the module require an external power supply?

  The module receives its logic power from the backplane. Field input power (24V DC) must be supplied to the terminal block to power the input devices (sensors).

• Is the module suitable for outdoor environments?

  The module is designed for an IP20 environment. It must be installed within a NEMA-rated enclosure to prevent exposure to moisture, dust, or direct sunlight.

• How many of these modules can I use in a single system?

  You can use up to 8 modules on a single CompactLogix bank before requiring an expansion cable and a secondary power supply to maintain signal integrity.
