Product Overview

The Allen-Bradley 1766-L32BWA stands as a cornerstone in the MicroLogix 1400 series, a versatile and high-performance programmable logic controller (PLC) designed to bridge the gap between small-scale logic execution and sophisticated process control. Engineered to handle a wide range of industrial tasks, this controller integrates 32 embedded digital I/O points, including 12 fast 24V DC inputs capable of 100 kHz frequency, making it ideal for high-speed counter applications and precision timing.

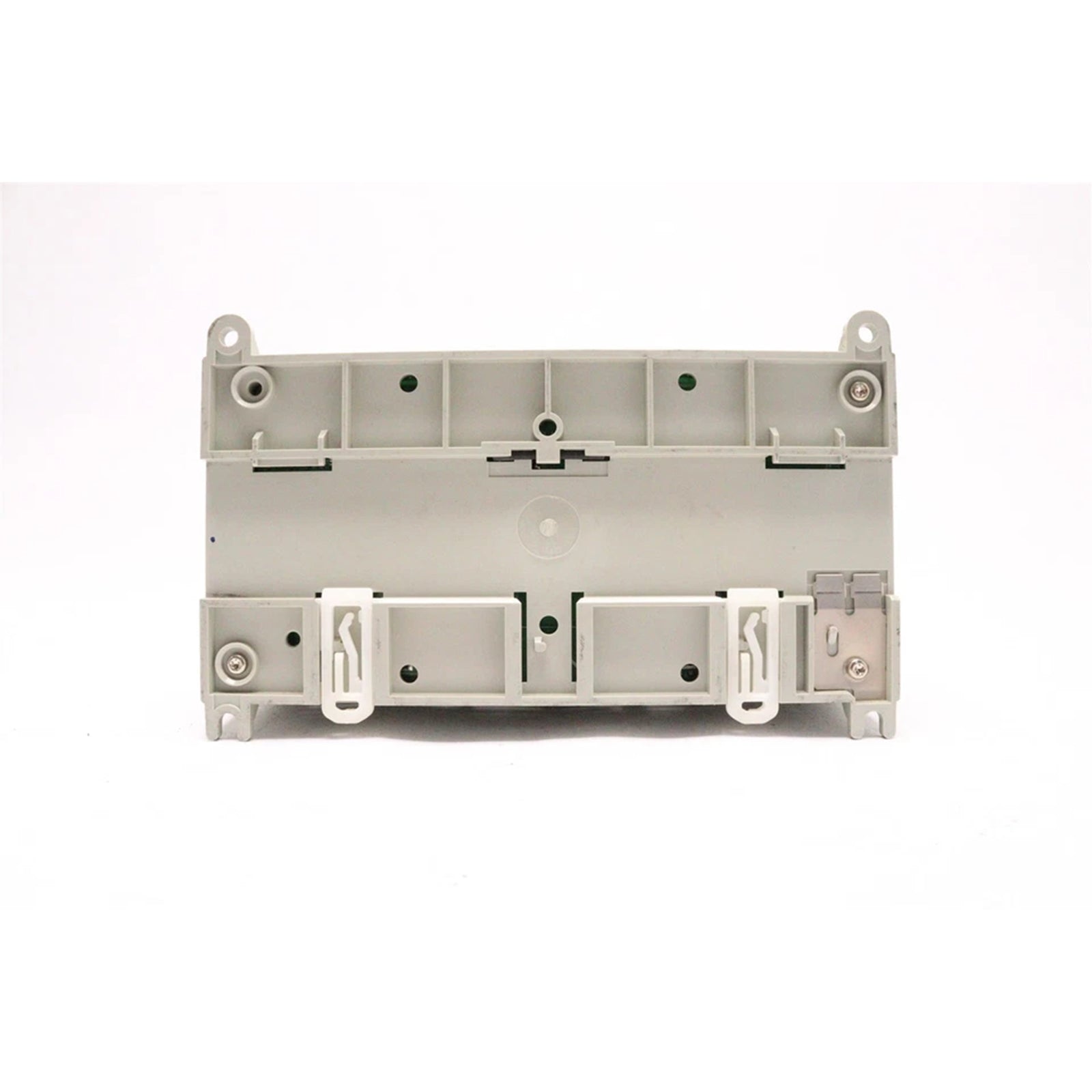

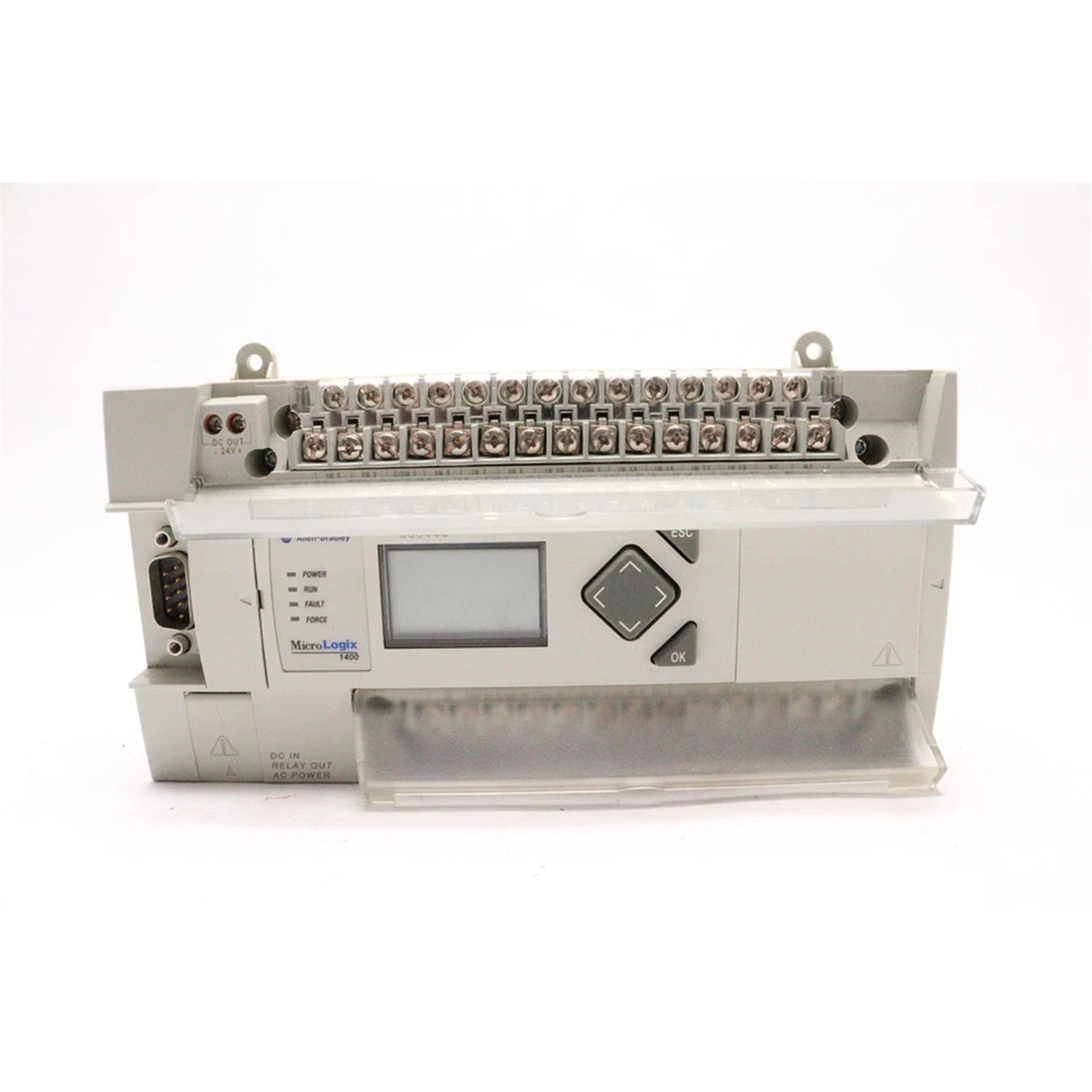

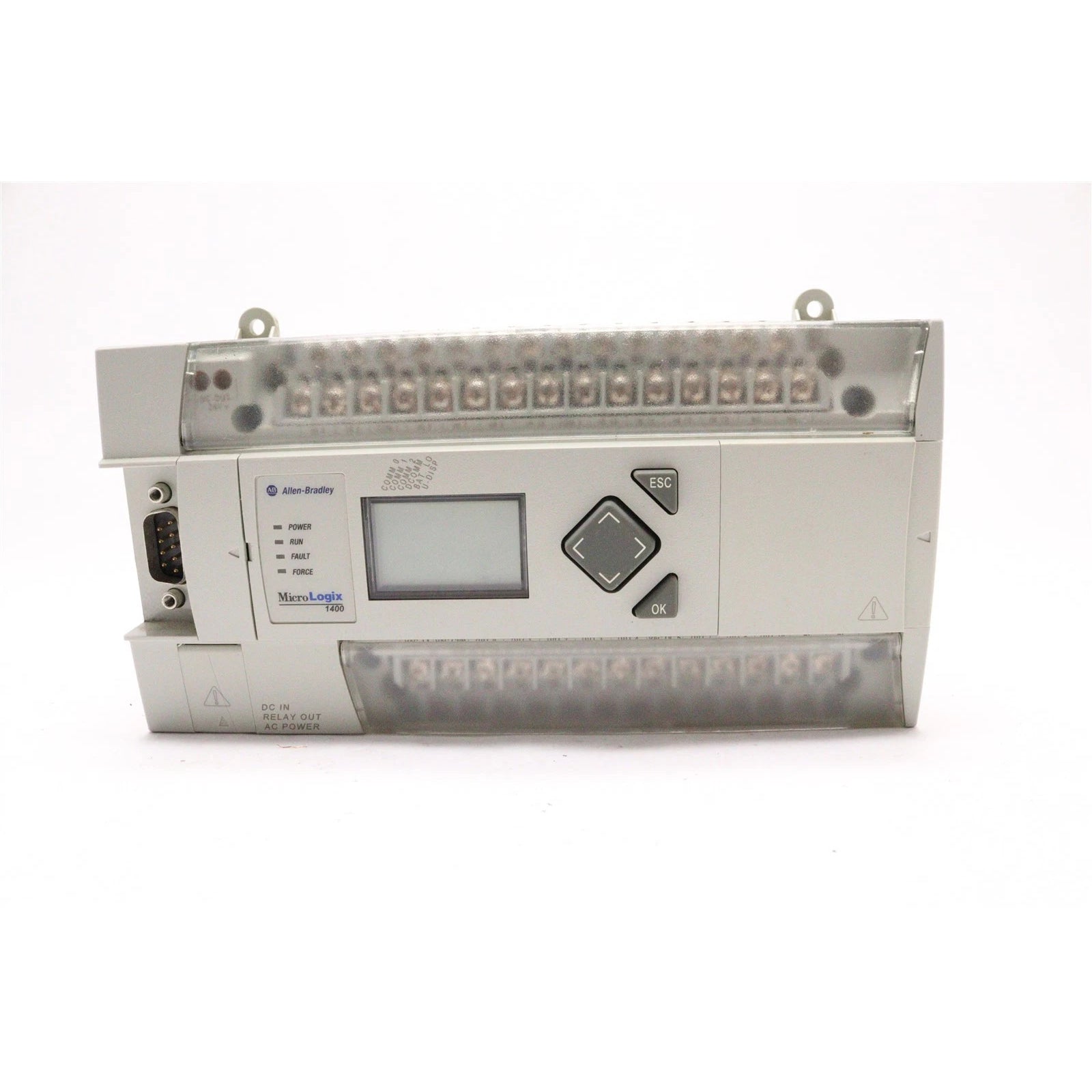

Beyond its physical I/O capabilities, the 1766-L32BWA distinguishes itself with a comprehensive suite of communication protocols. Featuring an embedded Ethernet port, isolated RS-232/485 combo port, and an additional RS-232 serial port, it offers unmatched connectivity for SCADA systems, HMI integration, and remote data logging. The inclusion of a backlit LCD interface on the front panel allows for real-time monitoring of I/O status, fault codes, and network IP configurations, providing engineers with immediate visibility into machine performance without requiring a connected workstation. Its support for DNP3, Modbus RTU, and EtherNet/IP makes it a robust solution for diverse industrial environments.

Technical Specifications

Model Configuration Explanation

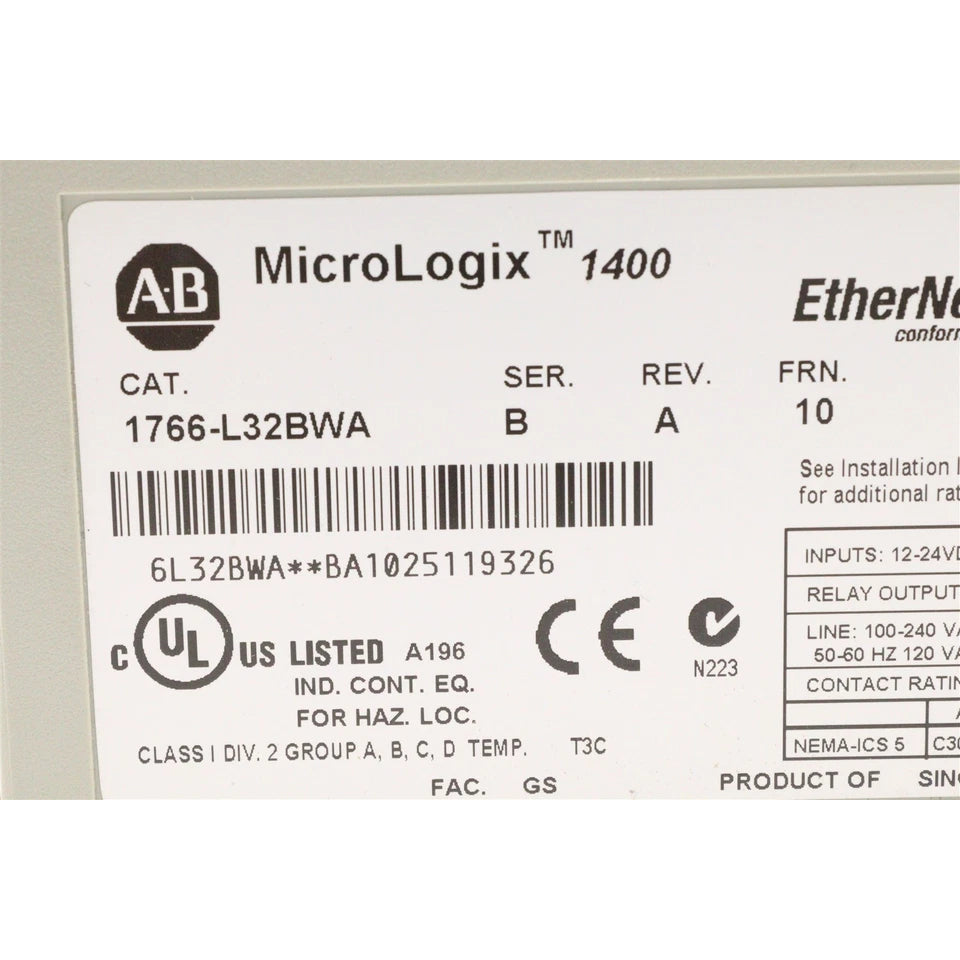

The 1766-L32BWA model number is coded for specific hardware capabilities:

• 1766: Identifies the MicroLogix 1400 hardware family.

• L: Designates the unit as a controller/processor.

• 32: Indicates the number of embedded discrete I/O points (20 inputs + 12 outputs).

• B: Specifies the input type (24V DC inputs).

• W: Signifies the relay-type outputs for versatile voltage switching.

• A: Confirms the power input requirement is AC (100-240V).

Typical Applications

• Material Handling: Ideal for controlling conveyor sorting systems, palletizing machines, and automated assembly line sequencing.

• Water & Wastewater: Deployed for remote pump station control, chemical dosing management, and SCADA-based utility monitoring.

• Packaging Machinery: Highly effective for high-speed labeling, form-fill-seal equipment, and precision food-grade packaging.

• HVAC & Building Automation: Manages environmental control systems, lighting schedules, and energy management utility modules.

• OEM Commercial Equipment: Utilized as the primary controller in industrial laundry machinery, vending systems, and specialized food processing gear.

System Compatibility

The 1766-L32BWA is fully compatible with the broader Rockwell Automation ecosystem. It supports the 1762 I/O expansion series, allowing users to scale the system by adding up to seven expansion modules for increased analog or digital I/O density. For programming and maintenance, it is compatible with RSLogix 500 and Studio 5000 Logix Designer software. Its Ethernet port supports standard networking infrastructure, enabling seamless data integration with FactoryTalk View HMIs and various third-party devices using DNP3 or Modbus protocols.

Installation & Deployment Guidelines

• Mounting Orientation: The unit must be installed horizontally to ensure effective convection-based cooling. Vertical mounting is not recommended and may void thermal performance guarantees.

• Grounding Protocols: Adhere to all electrostatic discharge (ESD) precautions during installation. Use a dedicated ground connection to the chassis to ensure protection against electrical surges and noise.

• Wiring Requirements: Use appropriate terminal block diagrams for the 120/240V AC power input. Isolate high-voltage relay output wiring from sensitive low-voltage DC sensor inputs to prevent interference.

• LCD Configuration: Utilize the front-panel keypad for initial IP address setup and real-time clock calibration, which simplifies commissioning in the field without needing a PC.

Product Advantages

• Hybrid Communication: Combines traditional serial support with modern Ethernet/IP, ensuring compatibility with both legacy systems and current smart-factory infrastructure.

• High-Speed Processing: Equipped with fast DC inputs capable of 100 kHz, it provides hardware-level support for high-speed counters and precision motor indexing.

• Scalability: The ability to add 7 expansion modules ensures the system can grow alongside process requirements, protecting the initial capital investment.

• On-Board Diagnostics: The backlit LCD display significantly reduces troubleshooting time by providing fault codes and status updates locally at the machine.

Ordering Information

• 1766-L32BWA MicroLogix 1400 Controller unit.

• Mounting hardware (integrated into chassis for DIN/Panel).

• Note: Programming cables (RS-232), expansion cables (1762-ECR), and software licenses are sold separately. Consult with your local distributor for bundled kits if necessary.

Frequently Asked Questions

• Can I expand the I/O capacity of the 1766-L32BWA?

  Yes, you can connect up to seven 1762-series I/O expansion modules to the side of the controller, significantly increasing your system's digital and analog point count.

• Does the Ethernet port support email notifications?

  Yes, the MicroLogix 1400 Ethernet port supports web server capabilities and can be configured to send email alerts regarding controller status or fault conditions.

• What protocol support is available on the serial ports?

  The serial ports support DH485, DF1, Modbus RTU, DNP3, and ASCII protocols, providing maximum flexibility for integration with third-party instruments.

• Is the battery user-replaceable?

  Yes, the controller uses a battery-backed RAM system. The battery is accessible for replacement, ensuring program retention during prolonged power outages.

• What is the max frequency for the fast inputs?

  The 12 fast DC inputs are rated for a switching frequency of up to 100 kHz, making them suitable for high-speed encoder feedback and pulse-train applications.

• Is this controller suitable for safety-rated applications?

  The MicroLogix 1400 is not a safety-rated PLC. It should not be used as the primary controller for safety-critical circuits; use a dedicated GuardLogix or safety relay for such tasks.

• Can I perform online editing with this controller?

  Yes, the MicroLogix 1400 supports online editing, allowing you to modify your ladder logic while the machine is in operation, which minimizes costly downtime.

• How do I configure the IP address?

  You can set the IP address directly through the built-in LCD interface on the front of the unit or via the BOOTP-DHCP tool provided in the RSLinx software.

• What type of environmental protection is required?

  The unit is intended for clean, dry, industrial environments (Overvoltage Category II). It does not have an IP rating and must be housed in a protective cabinet.
