Product Overview

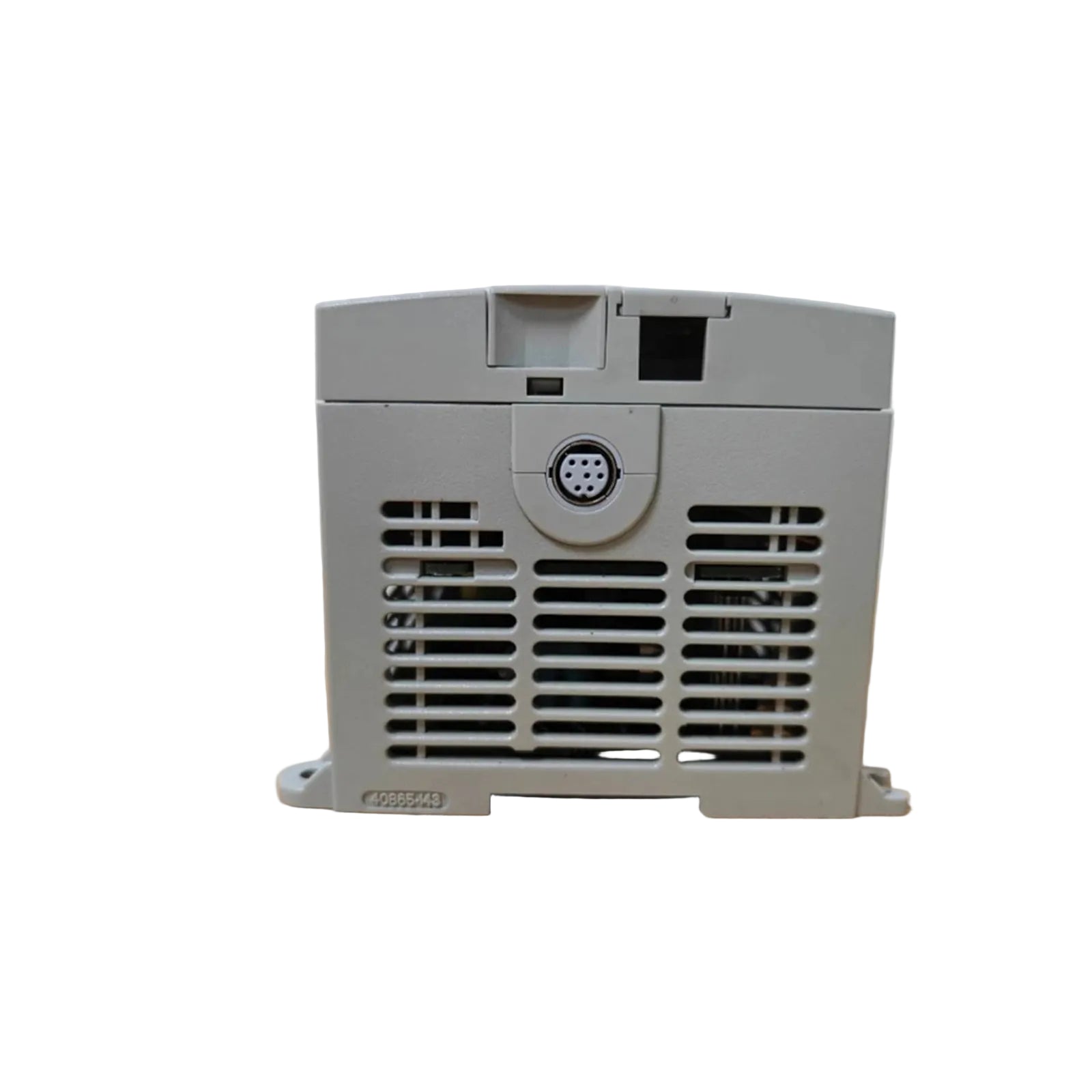

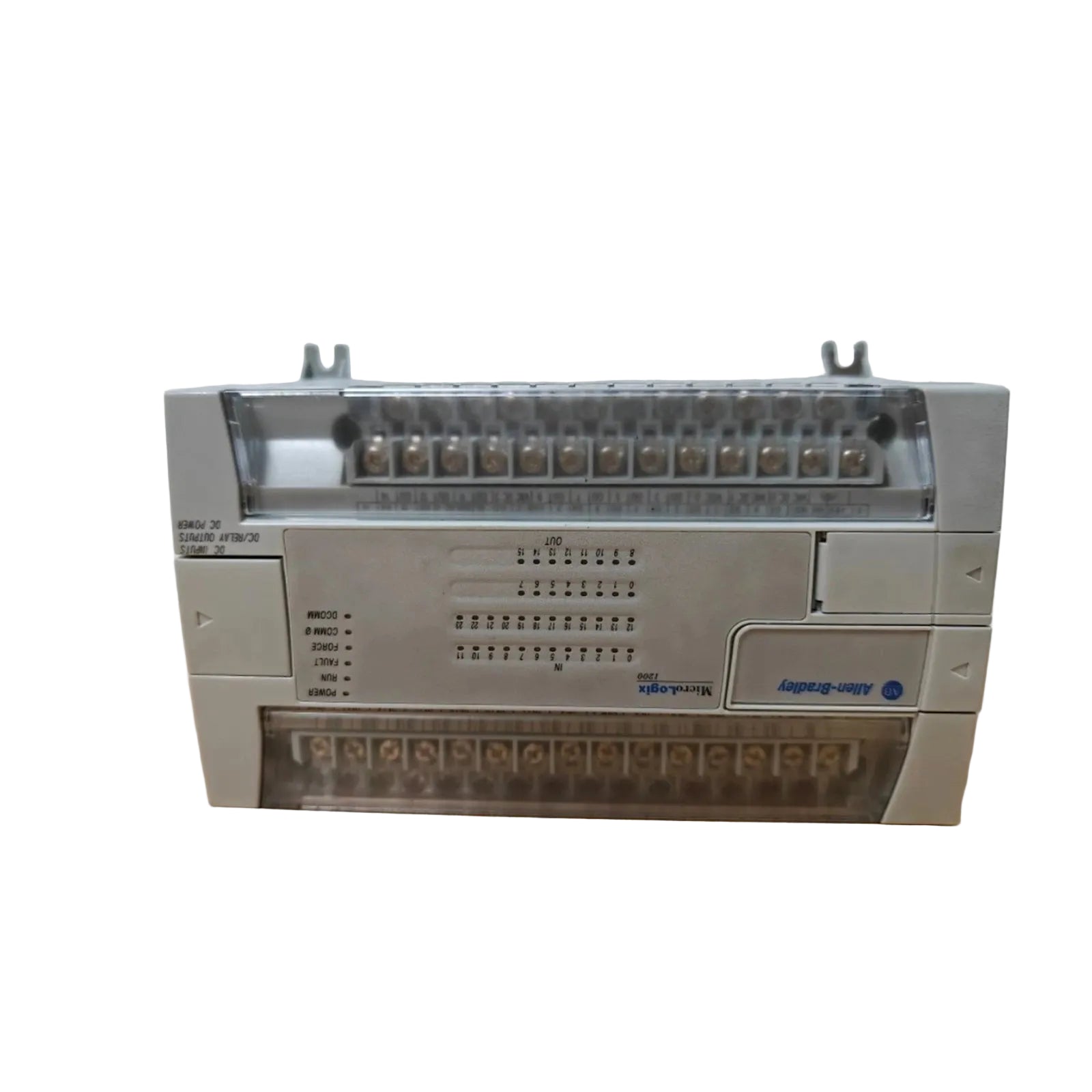

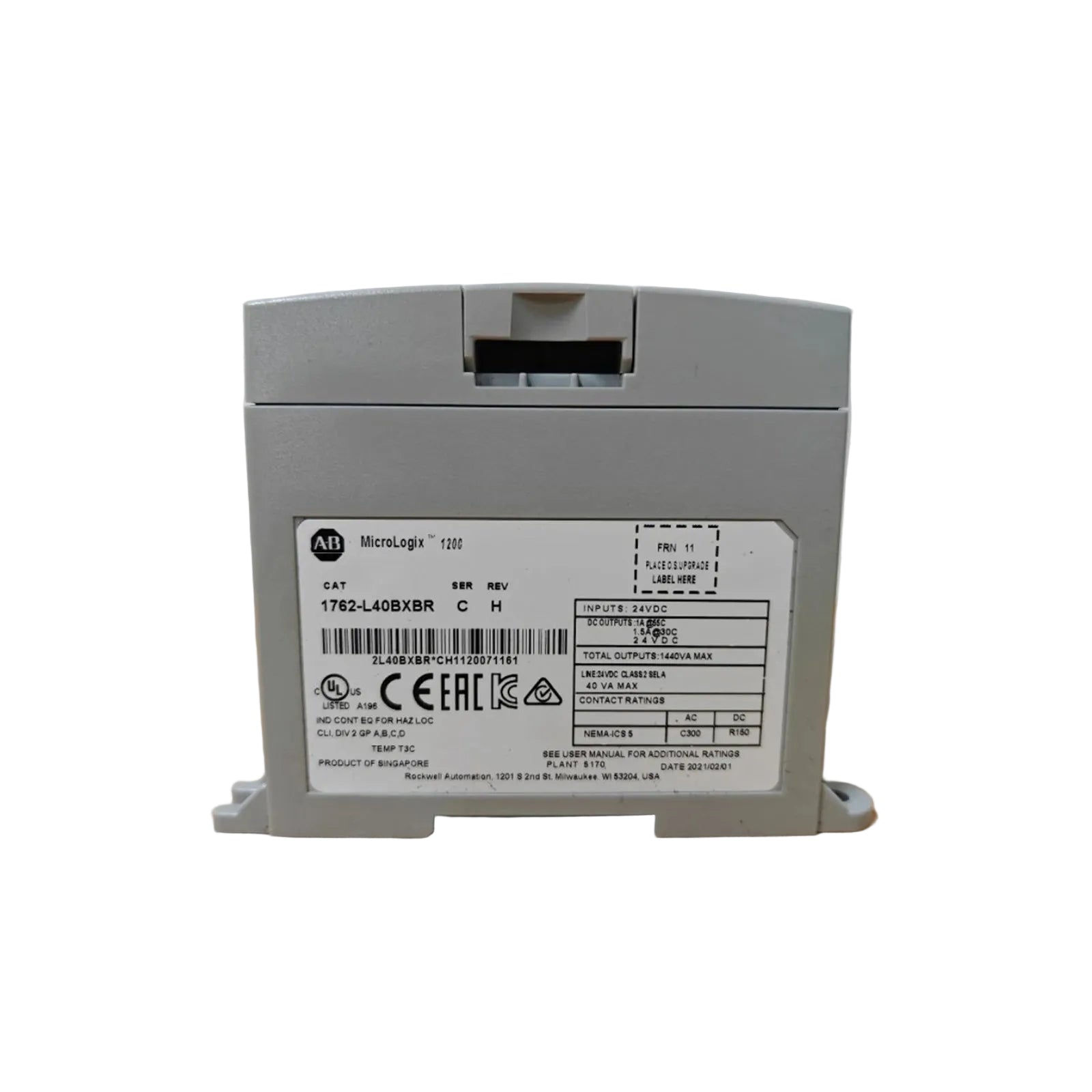

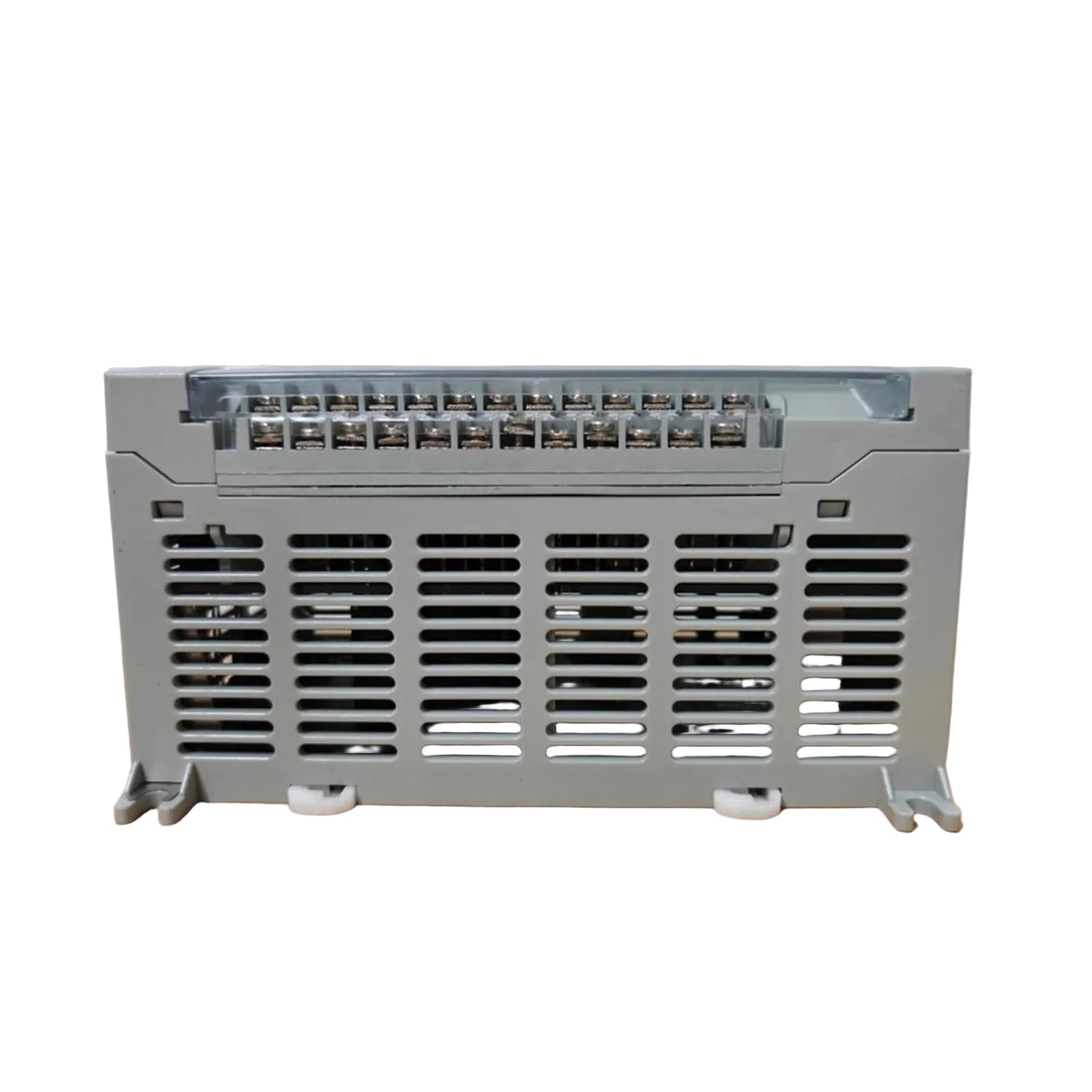

The Allen-Bradley 1762-L40BXBR is a powerhouse within the MicroLogix 1200 series, specifically designed for small-to-mid-range automation tasks that require a precise balance of discrete control and high-speed input/output capability. As a 40-point programmable logic controller (PLC), it provides an efficient and robust solution for machine builders and systems integrators who need reliable performance in a compact form factor.

This controller is particularly noted for its sophisticated I/O configuration. It features 24 total digital inputs—comprising 20 standard 24V DC inputs and 4 high-speed (fast) 24V DC inputs—enabling seamless integration with high-speed sensors, encoders, and precision timing devices. On the output side, it offers a versatile hybrid architecture consisting of 8 relay outputs and 8 FET (Field Effect Transistor) outputs (7 standard and 1 high-speed fast FET output), which allow for both heavy-duty load switching and fast-pulsed motion control or PWM operations. Powered by a 24V DC source, the 1762-L40BXBR is a highly adaptable unit, capable of handling everything from simple interlock logic to complex automated sequences, making it a staple in the modern industrial automation landscape.

Technical Specifications

Model Configuration Explanation

The 1762-L40BXBR nomenclature identifies the specific capabilities inherent in this controller:

• 1762: The MicroLogix expansion and controller platform identifier.

• L40: Represents the 40-point I/O configuration.

• B: Indicates the input type (24V DC).

• X: Denotes the mixed output capability (FET and Relay).

• B: Specifies the power supply input (24V DC).

• R: Highlights the inclusion of Relay-type output support.

Typical Applications

• Precision Machine Tooling: Managing multi-axis positioning and state-based logic in drill presses and grinders.

• Material Handling Systems: Controlling conveyor speed, sorting gate actuators, and palletizing sensors.

• Packaging and Bottling: Utilizing the fast FET output for precise timing in labeling and filling cycles.

• Automated Assembly Cells: Coordinating pneumatic actuators and solenoid valves via relay outputs, coupled with high-speed sensor feedback.

• HVAC and Utilities: Monitoring environmental sensors and controlling pump/fan motors in building management applications.

System Compatibility

The 1762-L40BXBR is designed for seamless integration within the Rockwell Automation ecosystem. It supports the full range of 1762 expansion I/O modules, allowing users to scale the system for larger automation tasks. For configuration and programming, it is fully compatible with RSLogix 500 and the broader MicroLogix support suite. Its isolated RS-232/C port ensures stable communication with standard HMIs, operator interfaces, and third-party monitoring devices, making it a flexible component in any existing control architecture.

Installation Guidelines

• Environmental Seating: Ensure the controller is housed within a NEMA-rated enclosure to protect against dust, moisture, and extreme temperature fluctuations.

• Mounting Protocol: The controller can be mounted either on a 35mm DIN rail or directly to a backplane using panel-mount holes. Horizontal mounting is recommended to optimize thermal convection.

• Grounding Requirements: Always connect the chassis ground terminal to a common grounding bus. Proper grounding is essential to minimize electrical noise interference on the 24V DC input circuits.

• Wiring Practices: Use appropriate ferrules for terminal block connections. Separate high-voltage relay output wiring from sensitive low-voltage FET signal traces to ensure signal integrity.

• Power-Up: Before applying 24V DC power, double-check the terminal assignments. Ensure that all FET outputs are correctly mapped to their corresponding field loads to avoid accidental energization.

Product Advantages

• Hybrid Output Flexibility: The combination of relay and FET outputs allows a single controller to manage both high-power contactors and high-speed pulse applications.

• Compact Scalability: With 40 embedded I/O points and support for expansion modules, it covers the most common requirements for standalone machine control in a small, economical footprint.

• Rugged Reliability: Built to the high standards of the Allen-Bradley brand, this unit is engineered for longevity in harsh, real-world industrial settings.

• High-Speed Processing: The 4 dedicated fast inputs and the fast FET output provide the performance headroom required for modern high-speed manufacturing tasks.

Ordering Information

• 1762-L40BXBR MicroLogix 1200 Controller.

• Included: Standard terminal blocks and installation hardware.

• Note: Programming cable (1761-CBL-PM02 or similar) and communication adapters are not included and should be ordered based on your specific HMI/Laptop interface needs.

Frequently Asked Questions

• Can I replace a relay output with a FET output?

  No, the physical output hardware is fixed within the controller. You must plan your machine loads carefully during the design phase to match your requirements to the available output types.

• Is the FET output suitable for driving heavy coils?

  The FET outputs are designed for small-to-medium DC loads. For heavy-duty contactors, always use the relay outputs or interposing relays to protect the controller's internal circuitry.

• How many expansion modules can I add to the 1762-L40BXBR?

  The MicroLogix 1200 platform generally supports up to 6 expansion modules. Always verify your total power budget before adding additional I/O to the system.

• Does this controller support PID control?

  Yes, the MicroLogix 1200 series supports basic PID loop instruction sets, making it suitable for simple temperature or pressure control tasks.

• How is the real-time clock maintained?

  The controller features a built-in real-time clock. Program data is typically kept in battery-backed RAM; ensure the battery is replaced according to the maintenance schedule.

• Can I use this for safety-rated applications?

  No, this is a standard controller. For SIL-rated safety circuits, please refer to the Allen-Bradley GuardLogix or specific safety-rated relay controllers.

• Is the controller programmable with Studio 5000?

  The MicroLogix 1200 series is primarily supported by RSLogix 500 software. It is generally not compatible with the Studio 5000 environment used for newer Logix platforms.

• What is the max switching frequency of the fast FET output?

  The fast FET output is designed to handle high-frequency pulse trains, typically up to 20 kHz, suitable for PWM applications or stepping motor drivers.

• How do I backup the program?

  You can upload the program to a computer via the RS-232 port using RSLogix 500, or save it to a Data Access Tool (DAT) if you have one integrated into your setup.
