Product Overview

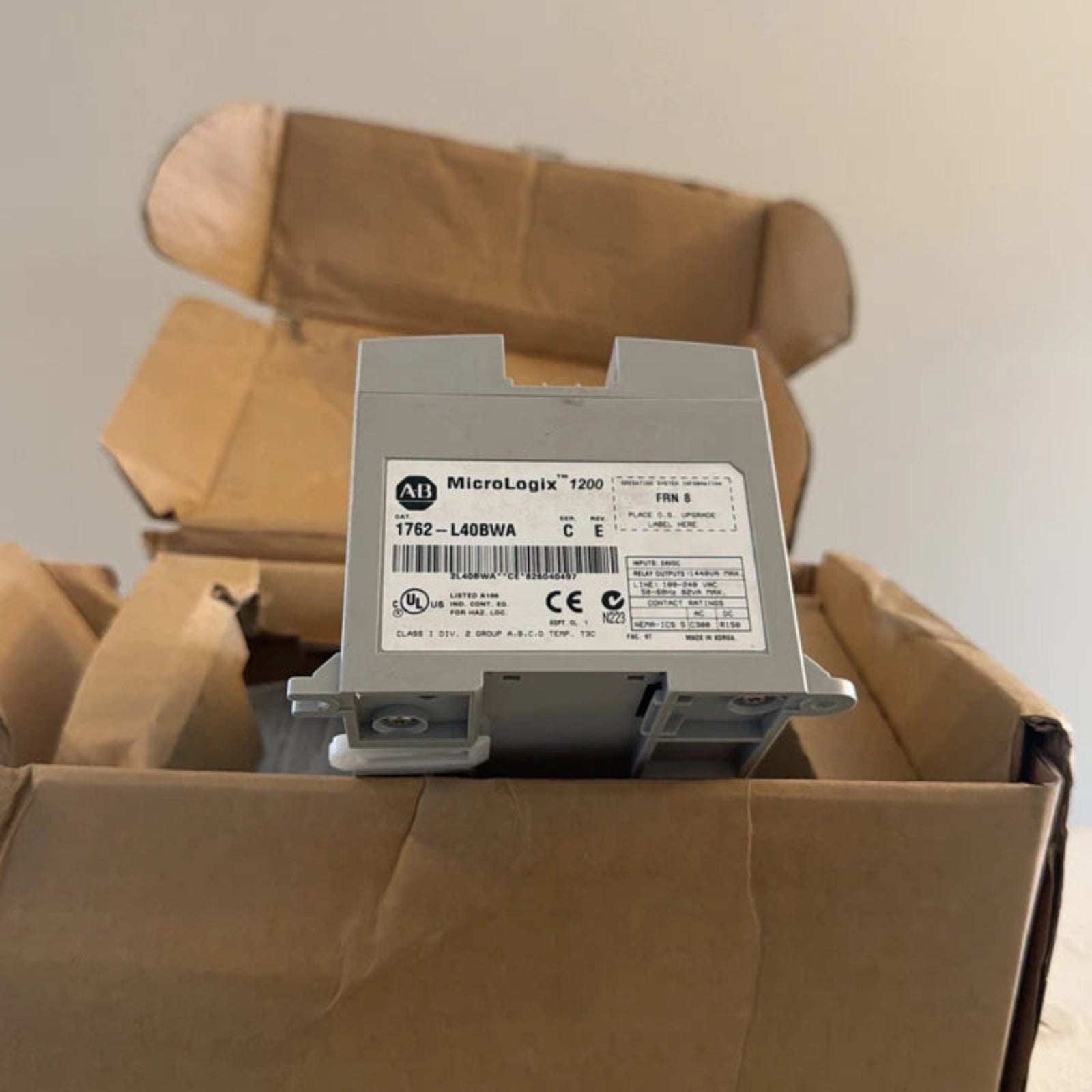

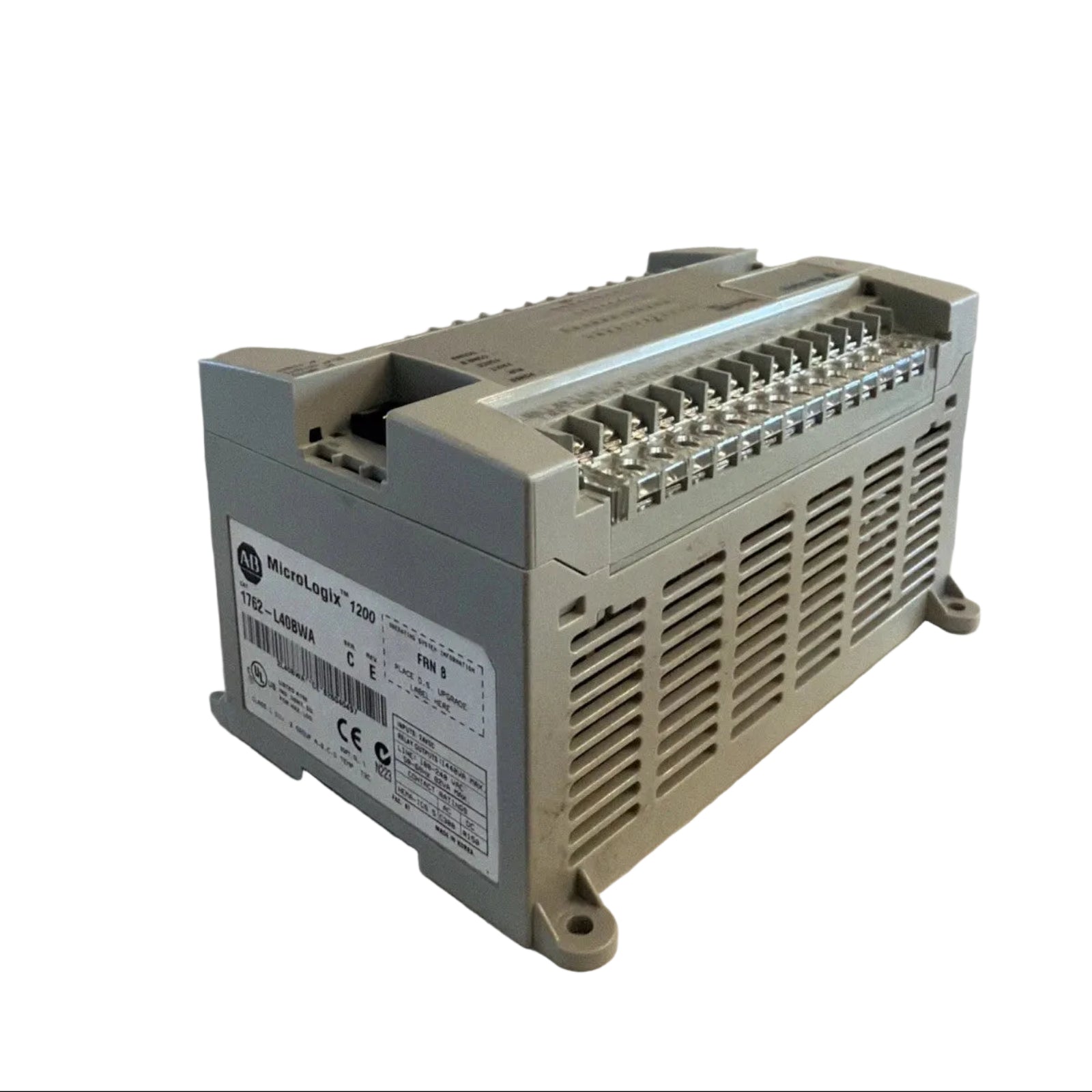

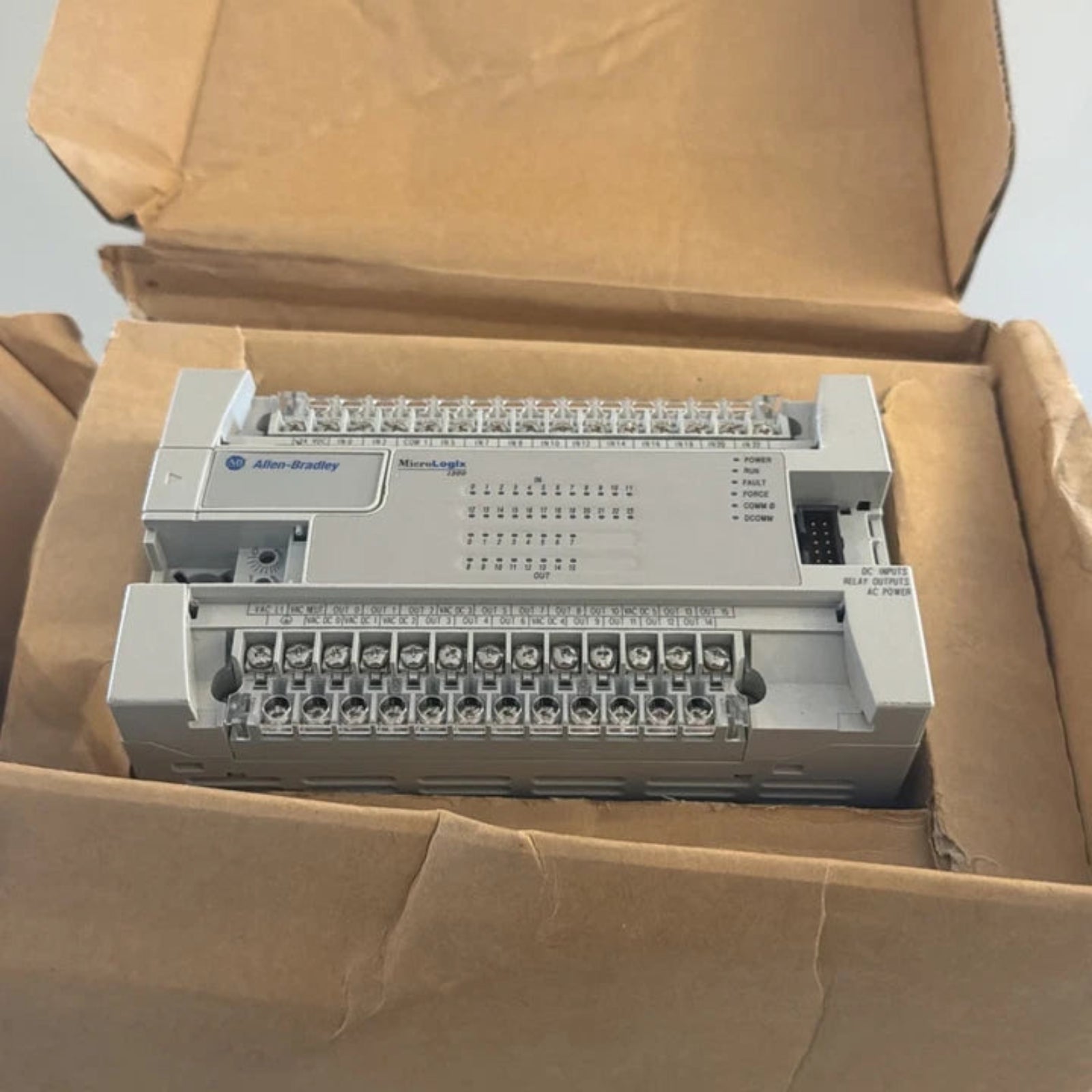

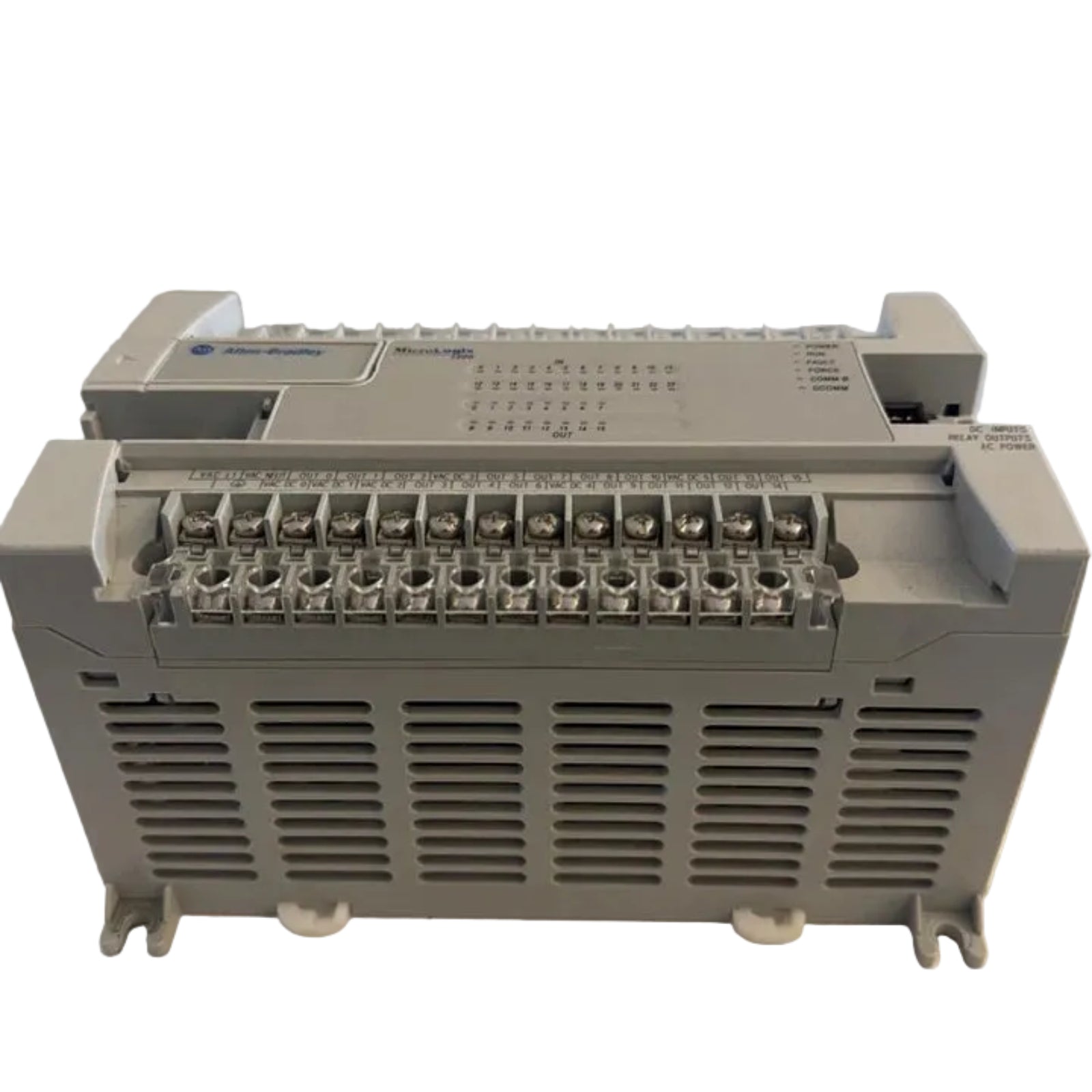

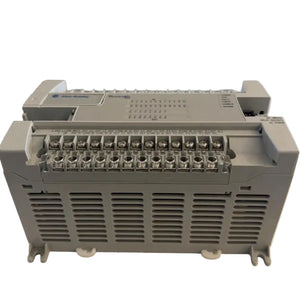

The Allen-Bradley 1762-L40BWA is a highly capable programmable logic controller (PLC) within the MicroLogix 1200 series, engineered to deliver robust automation control for small to medium-sized manufacturing operations. This 40-point controller module provides a balanced I/O architecture, featuring 24 discrete inputs and 16 discrete relay outputs, making it an ideal choice for machine control, process monitoring, and localized automation tasks where space and reliability are critical.

Engineered with versatility in mind, the 1762-L40BWA accepts an AC input power range of 100-240V AC, allowing it to function in diverse global power environments. Its input section supports both sinking and sourcing wiring configurations, providing engineers with the flexibility needed to interface with various sensor types, including those requiring 24V DC. The output section is equally adaptable, featuring mechanical relay contacts that support a wide range of switching voltages—from 5V up to 265V AC or 125V DC—ensuring compatibility with standard contactors, motor starters, and solenoid valves. With an integrated RS-232 communication port supporting multiple industrial protocols like DF1, Modbus, and DH-485, the 1762-L40BWA excels as a standalone controller or as part of a broader, networked industrial control system.

Technical Specifications

Model Configuration Explanation

The 1762-L40BWA catalog number is a descriptive identifier for system architects:

• 1762: The hardware family identifier for MicroLogix expansion and controller units.

• L40: Designates the 40-point I/O physical footprint.

• B: Specifies the input voltage type (24V DC).

• W: Indicates the relay-based output architecture for high-load versatility.

• A: Confirms the primary power input source as 100-240V AC.

Typical Applications

The 1762-L40BWA is widely deployed in industrial environments requiring precise, repeatable control sequences:

• Material Handling: Orchestrating conveyor belts, sorting gates, and palletizing equipment.

• Packaging Machinery: Managing high-speed cycle timing for filling, capping, and labeling equipment.

• Building Automation: Overseeing localized climate control systems, timed lighting, and motorized ventilation dampers.

• Process Skids: Implementing small-scale control for pump sequencing, fluid level monitoring, and solenoid actuation.

• OEM Commercial Machinery: Providing an affordable and robust control solution for industrial vending machines, commercial dryers, and processing equipment.

System Compatibility

Designed to scale, the 1762-L40BWA is fully compatible with the 1762 I/O expansion module family. Users can expand the system’s capacity by adding analog or digital modules to the right side of the controller. For network connectivity, the controller’s 8-pin Mini-DIN RS-232 port is highly adaptable. When coupled with external converters such as the 1761-NET-AIC, it integrates seamlessly into DH-485 networks, or it can be bridged to Ethernet via standard serial-to-Ethernet gateways, allowing for integration with modern SCADA and FactoryTalk software platforms.

Installation & Deployment Guidelines

• Mounting Requirements: Always mount the unit horizontally. Vertical mounting is not supported and can lead to premature component failure due to insufficient thermal dissipation.

• Clearance: Maintain a minimum of 50 mm (2 inches) of clearance on all sides (excluding the right expansion side) to ensure airflow through the ventilation channels.

• Debris Protection: Retain the protective debris strip on the top of the unit during installation and wiring to prevent metal shavings from entering the module; remove it only after the site is cleaned.

• Grounding: Secure a solid earth ground connection. Proper grounding is imperative for noise immunity and the safety of the AC-powered electronics.

• Wiring Compliance: Ensure all field wiring is performed in accordance with local regulations, such as the National Electrical Code (NEC). Always verify that power is disconnected before connecting or disconnecting expansion modules.

Product Advantages

• Hybrid Versatility: The combination of sinking/sourcing inputs and relay outputs makes it a one-size-fits-all controller for heterogeneous machine loads.

• AC Power Flexibility: With a 100-240V AC universal power supply, this unit is ready for deployment in any global market without the need for additional step-down transformers.

• Rugged Longevity: The mechanical relay outputs are rated for 20 million cycles, providing proven reliability in high-cycle-count industrial applications.

• Ease of Communication: Native support for Modbus and DF1 protocols allows it to "talk" to a vast array of HMI panels and third-party peripherals without complex custom code.

Frequently Asked Questions

• Can I expand the I/O capacity of this controller?

  Yes, you can add up to six 1762 expansion modules to the side of the 1762-L40BWA, allowing you to tailor the I/O count to your specific project needs.

• Is the RS-232 port compatible with Ethernet?

  The port is natively serial. To interface with Ethernet, you must use a serial-to-Ethernet gateway or converter, as the controller itself does not feature an RJ45 Ethernet port.

• What is the heat dissipation rate of the unit?

  The controller has a heat dissipation rating of 22.0 Watts. Ensure your control cabinet has adequate fan-forced ventilation if the ambient temperature approaches 55 deg C.

• Are the relay outputs individually fused?

  No, the module does not have internal fuses per channel. Always install external fusing appropriate for your specific load and wiring gauges to protect the relay contacts.

• Can the 24V DC output power my external sensors?

  Yes, the controller features a 400 mA sensor power supply. Ensure your total sensor load does not exceed this rating, as overloading it can lead to controller instability.

• What software do I need to program this controller?

  The MicroLogix 1200 is configured using RSLogix 500. Ensure you have the correct communication driver (RSLinx) installed to establish the initial connection.

• Can this unit handle high-speed pulse outputs?

  The 1762-L40BWA uses relay outputs, which have a 10 ms delay and are not suited for pulse-train output (PTO) tasks. Use a different controller model if you need high-speed motion control.

• What happens if the internal battery fails?

  The controller uses the battery for memory retention. If the battery voltage drops, the status indicator will flag a fault; replace it immediately to avoid losing your PLC logic.

• Is this controller suitable for use in explosive atmospheres?

  No, unless it is specifically housed in an explosion-proof, NEMA-rated enclosure suitable for the classified environment. Always follow local electrical codes for hazardous locations.

• How long will Amikon support this after EOL?

  While Allen-Bradley has moved to EOL for certain MicroLogix products, third-party suppliers like Amikon often carry refurbished, original, or surplus stock to support legacy systems.
