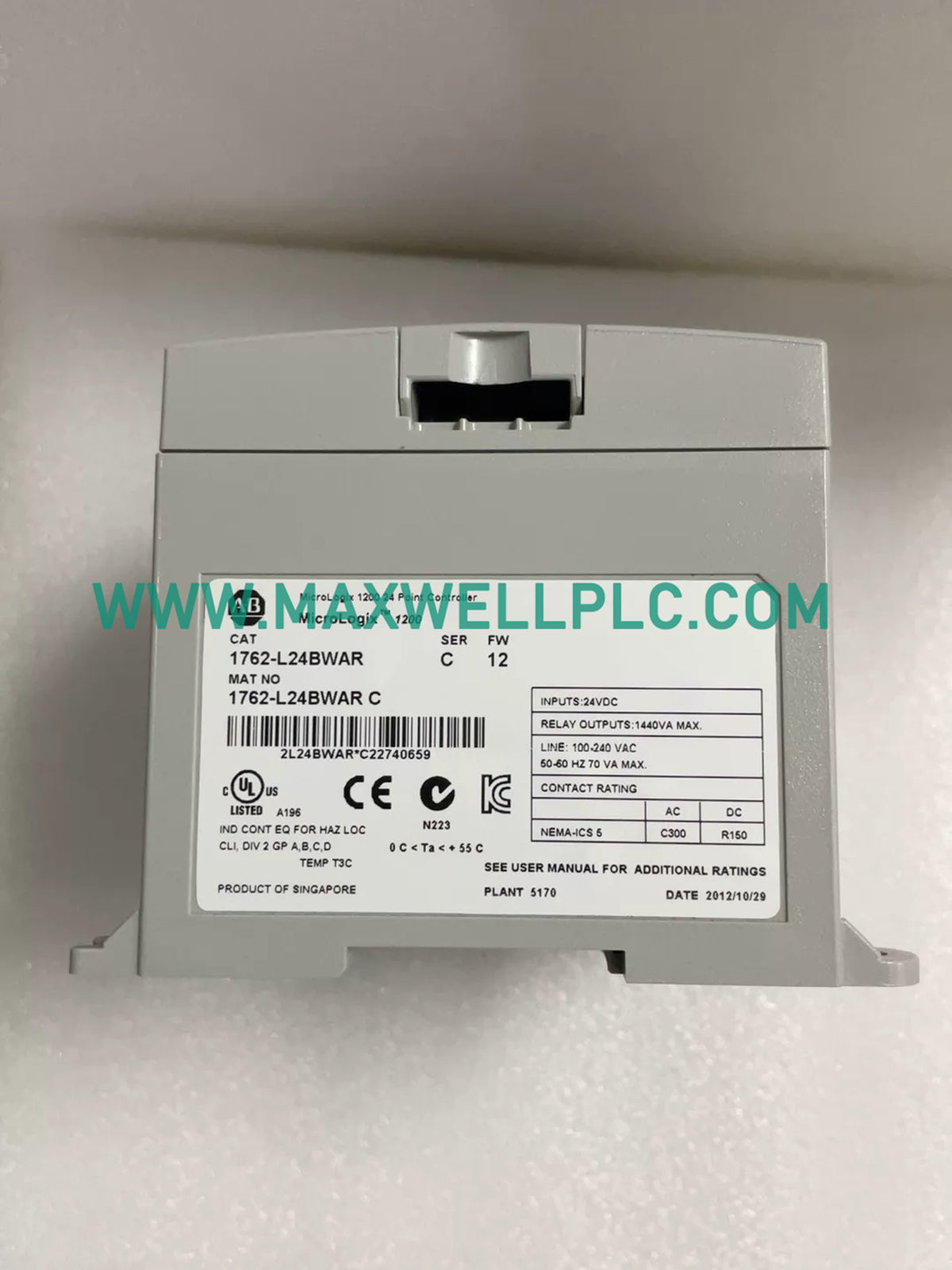

Configured for discrete and relay logic control execution in industrial systems, the Allen-Bradley 1762-L24BWAR, also cataloged as the 1762-L24BWAR Input Power Controller, provides direct physical signal processing and power switching capabilities.

Catalog Designation and Model Matrix

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Catalog Number: 1762-L24BWAR
• Controller Architecture: MicroLogix 1200 / ControlLogix compatible I/O framework

Hardware Specifications

Network Communication and Backplane Integration

The controller manages deterministic networks through backplane bus communication velocity licenses and supports Profinet or EtherNet/IP deterministic networks. I/O density scaling allows seamless expansion across modular racks, while firmware flash compatibility ensures uniform revision control throughout operational lifecycles.

Package Contents and Ordering Deliverables

• 1 x Allen-Bradley 1762-L24BWAR Input Power Controller unit
• 1 x Removable terminal block connector set
• 1 x Installation safety and regulatory compliance insert

Physical Installation and Wiring Guidelines

• DIN-Rail Mounting: Secure the controller housing onto a grounded metal DIN-rail inside an appropriate electrical enclosure to maintain mechanical stability.
• Signal Segregation: Route 24 VDC input wiring and relay output lines separately from high-voltage 120 to 240 VAC power input cables to reduce electromagnetic interference.
• Terminal Torque: Tighten all screw terminal connections to recommended manufacturer torque limits to prevent intermittent contact and high-resistance joints.

Frequently Asked Questions

• What is the primary input power rating for this controller?

  The unit operates on an AC input power supply ranging from 120 to 240 VAC.

• How many total discrete inputs are available on the hardware?

  It features a total of 14 discrete inputs, consisting of 10 standard 24 VDC inputs and 4 fast 24 VDC inputs.

• What type of outputs does the controller utilize?

  The unit is equipped with 10 relay outputs for load switching.

• What is the net weight of the controller?

  The physical weight of the hardware module is 0.65 kg.

• What are the outer dimensions for shipping preparation?

  The estimated shipping dimensions measure 14.5 x 12.5 x 9.5 cm.

• Where is the manufacturing origin of this controller?

  The product is manufactured in the USA, with shipping processed from Xiamen, China.

• Can firmware be updated on this processor?

  Yes, the platform supports firmware flash compatibility for system upgrades and maintenance.

• Does the controller support fast high-speed counter inputs?

  Yes, it incorporates 4 fast 24 VDC inputs designed for high-speed pulse processing applications.
