Product Overview

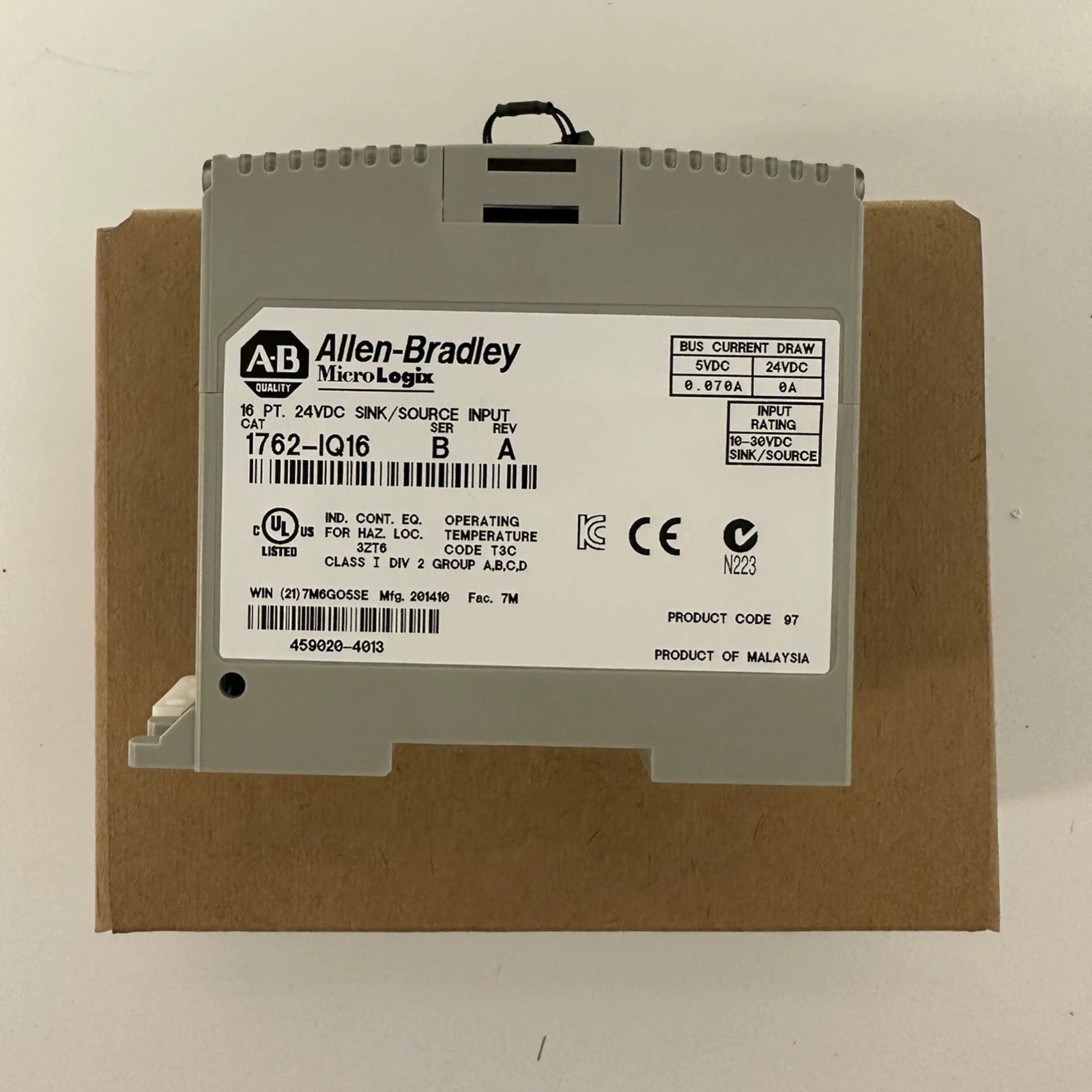

The Allen-Bradley 1762-IQ16 is a high-performance 16-point digital input module, specifically engineered to expand the sensing capabilities of the MicroLogix 1100, 1200, and 1400 programmable logic controller (PLC) families. In industrial environments where precise state detection of field devices is required, the 1762-IQ16 provides a reliable, robust interface for 24V DC signals. Its design supports both sinking and sourcing wiring configurations, offering engineers the flexibility to integrate a wide variety of PNP and NPN field devices into their control architecture.

This module is built for demanding industrial environments, featuring high-quality optical isolation that effectively decouples field-side 24V DC transients from the controller’s sensitive 5V logic backplane. With a nominal input impedance of 3K ohm and an operating voltage range of 10 to 30V DC, it ensures stability in the presence of varying signal levels. The 1762-IQ16’s compact footprint (90 x 87 x 40 mm) makes it an excellent solution for space-constrained control cabinets, allowing for dense I/O configurations that do not sacrifice signal integrity. Whether monitoring proximity sensors, limit switches, or push-button interfaces, this module delivers the precision and long-term durability expected from the Allen-Bradley MicroLogix platform.

Technical Specifications

Model Configuration Explanation

The 1762-IQ16 model naming convention is designed for clear identification in complex system architectures:

• 1762: Denotes the MicroLogix expansion I/O product line, which shares a common bus interface for seamless integration.

• I: Identifies the module as a digital input card.

• Q: Specifies the DC input voltage type, optimized for 24V DC systems.

• 16: Indicates the module provides 16 discrete input channels for high-density field sensing.

Typical Applications

The 1762-IQ16 is essential in diverse automated industries:

• Automotive Manufacturing: Monitoring robot welding line sequences, station interlocking, and final assembly conveyor tracking.

• Food & Beverage Processing: Detecting bottle counts, labeling verification, and high-speed filling line state synchronization.

• Water & Wastewater Utilities: Remote monitoring of pump stations, valve positions, and filter status in municipal treatment plants.

• Logistics & Warehousing: Interfacing with barcode readers, pallet sensors, and automated sorting conveyor diverters.

• General OEM Machinery: Serving as the primary digital interface for small-to-mid-sized machine controllers requiring high-density sensing.

System Compatibility

The 1762-IQ16 is optimized for compatibility with the MicroLogix 1100, 1200, and 1400 PLC series. It connects directly to the controller’s expansion bus, receiving logic power and communicating bit-status data through the 1762 bus interface. When expanding your system, ensure that the controller’s total I/O capacity and power budget are checked. The module is natively supported in RSLogix 500 and Studio 5000 Logix Designer software, making it straightforward to map inputs to the controller’s memory address map.

Deployment Guidelines

• Mounting Protocol: The module is designed for horizontal mounting on a 35mm DIN rail or direct panel mounting using the provided slots. Ensure the module is securely fastened to withstand operational vibrations.

• Wiring Standards: Ensure all input wiring complies with local codes (e.g., NEC). The 1762-IQ16 includes a finger-safe cover; always use this cover to prevent accidental contact with energized terminals.

• Grounding & Isolation: The module provides internal optical isolation, but proper earth grounding of the control cabinet is critical to maintaining high signal integrity.

• Static Protection: Like all electronic modules, the 1762-IQ16 is sensitive to electrostatic discharge (ESD). Always ground yourself before handling the module to prevent damage to the internal optical couplers.

• Maintenance: Ensure all power is removed before adding or removing the module from the bus to prevent electrical arcing or data corruption on the backplane.

Product Advantages

• High-Density Sensing: With 16 inputs in a single module, it maximizes your control cabinet’s efficiency and reduces the total footprint of the PLC system.

• Sinking/Sourcing Flexibility: The ability to handle both wiring configurations makes it adaptable to various regional and application-specific sensor standards.

• Transient Protection: Built-in surge and reverse polarity protection keep the module operational even in electrically noisy factory environments.

• Enhanced Diagnostics: An integrated status LED provides immediate feedback on module health, drastically reducing downtime during troubleshooting operations.

Ordering Information

• 1762-IQ16 16-Point 24V DC Digital Input Module.

• Ships with protective terminal block cover and basic installation hardware.

• Note: Verify your controller’s backplane current availability before adding multiple expansion modules to avoid under-powering the system.

Frequently Asked Questions

• Can I mix sinking and sourcing sensors on the same module?

  Yes, the 1762-IQ16 is designed to handle both, but you must ensure that your common wiring schemes for each group are correctly applied to prevent short circuits.

• What is the response time of this input module?

  The module features a signal delay of 8 ms at signal exchange, which is adequate for most industrial sensors and limit switch applications.

• Is this module suitable for safety-rated circuits?

  No, the 1762-IQ16 is a standard digital input module. It is not SIL-rated and should not be used as the primary input for safety-critical machine stops.

• Does it require an external 24V DC power supply?

  Yes, you must supply 24V DC to the field terminals of the module to power the sensors connected to the inputs.

• Can I use this with an AC input signal?

  No, this is a DC-only module. Attempting to connect AC voltages will likely damage the input circuitry and is not supported by the manufacturer.

• What happens if I exceed the 30V DC input range?

  Exceeding the voltage range can cause component failure or damage to the optical isolation circuit. Always ensure your sensor power supplies are regulated.

• How do I configure the inputs in the PLC program?

  Once installed, the module appears in your I/O configuration tree in RSLogix 500. You simply assign the I/O addresses (Bit 0-15 of the assigned word) to your ladder logic tags.

• Can the module be hot-swapped?

  No. You must power down the controller backplane completely before installing or removing any 1762 expansion module to avoid damaging the communication pins.

• What does the status LED indicate?

  A solid LED typically indicates the module is powered and the backplane communication is healthy. If it is blinking or off, check your power wiring and bus connections.

• Is this module susceptible to electrical noise?

  The 1762-IQ16 includes high-quality optical isolation to prevent electrical transients from affecting the controller, making it robust against typical factory floor noise.
