Product Overview

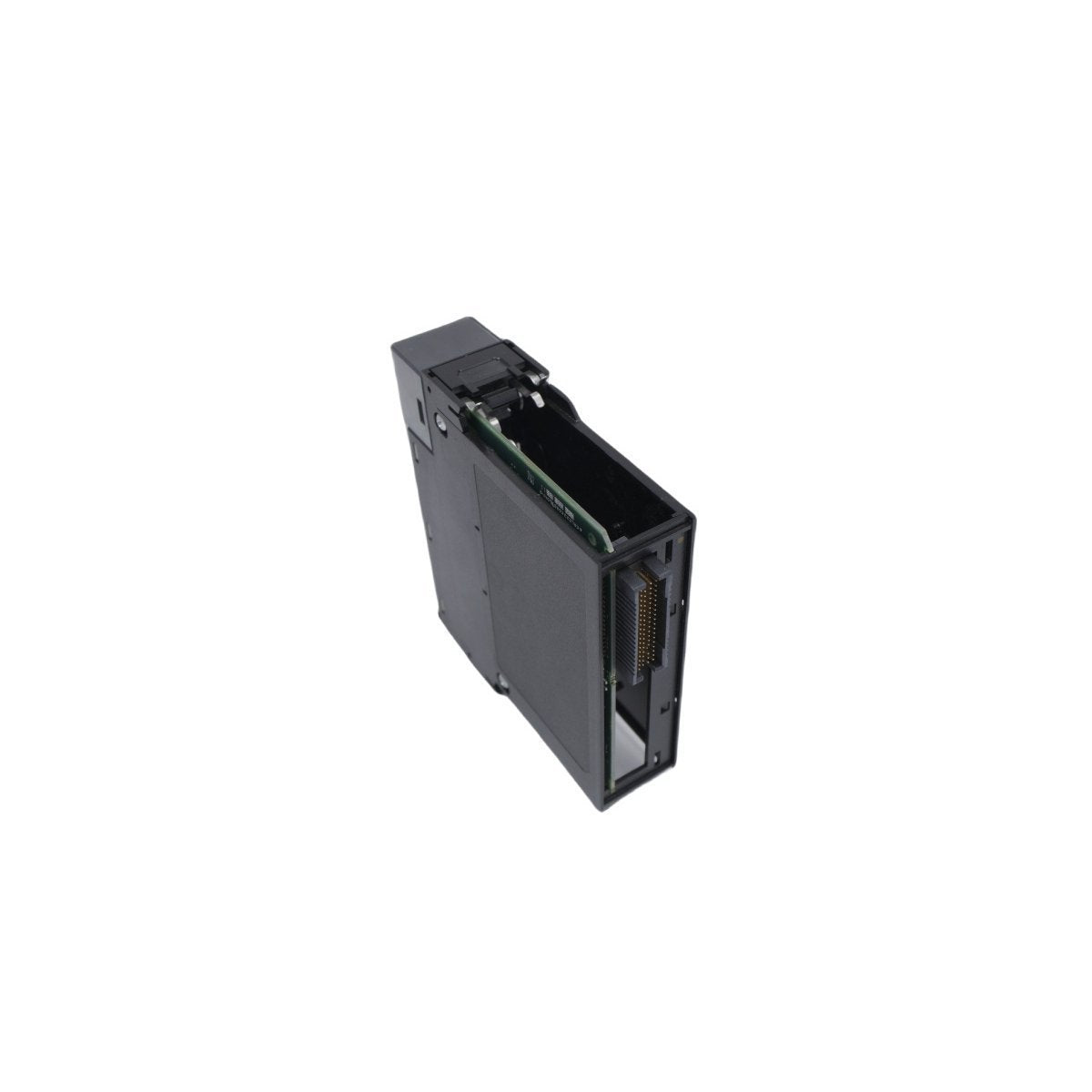

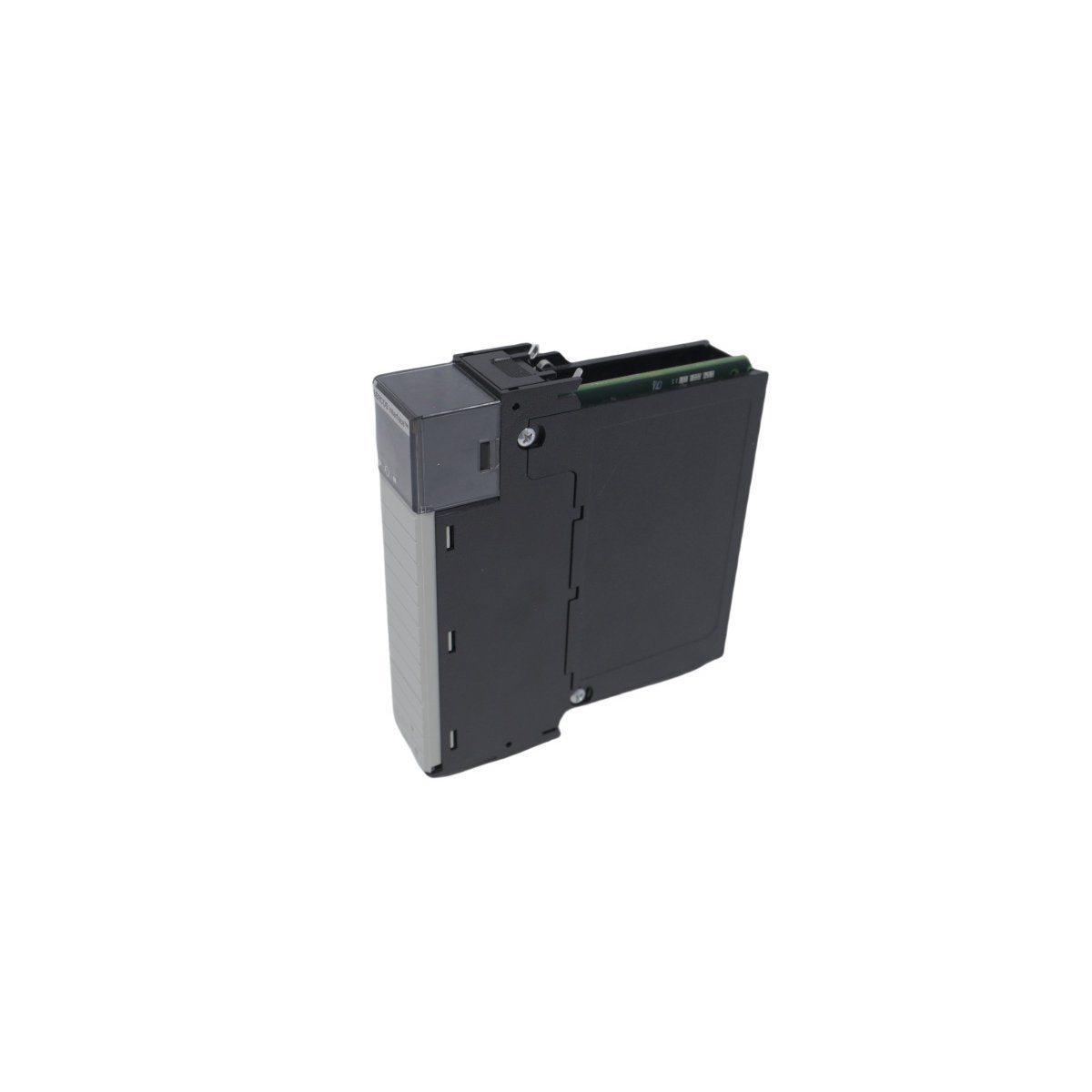

The Allen-Bradley 1756-M03SE is a high-performance motion control module designed for the ControlLogix® platform, serving as a specialized interface for SERCOS (Serial Real-time Communication System) fiber-optic networks. This module allows a ControlLogix processor to execute complex, high-speed motion synchronized across up to three independent axes. By utilizing a fiber-optic ring topology, the 1756-M03SE eliminates traditional copper-wiring interference and provides a deterministic digital link to servo drives, ensuring precise positioning and velocity control.

Unlike standard analog motion modules, the 1756-M03SE offloads intensive motion calculations from the CPU, allowing for faster loop closure and smoother movement profiles. It is an essential component for industrial applications that demand synchronized multi-axis coordination, such as high-speed labeling, rotary knives, and robotic assembly cells.

Fiber-Optic Motion Control and Performance

The 1756-M03SE leverages digital communication to provide a high degree of immunity to electromagnetic interference (EMI), which is critical in heavy industrial environments near large motors and drives.

• Digital SERCOS Interface: Supports a 3-axis fiber-optic ring, providing a high-speed, noise-immune digital command path to Kinetix® or other SERCOS-compliant drives.

• Unified Software Environment: Fully integrated into the Studio 5000 Logix Designer® environment, allowing motion and standard logic to be programmed using the same tag-based structure.

• Complex Kinematics: Supports advanced motion instructions including electronic gearing, camming, and multi-axis coordinated linear or circular interpolation.

• High-Speed Synchronization: Maintains a precise 1ms to 32ms update rate (configurable), ensuring that all axes on the SERCOS ring remain perfectly synchronized without signal jitter.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 1756-M03SE

• Module Type: Motion Control SERCOS Interface

• Number of Axes: 3 Axes

• Communication Interface: SERCOS II (Fiber-Optic)

• Data Rate: 4 Mbps or 8 Mbps

• Backplane Current: 760 mA @ 5.1V DC; 2.5 mA @ 24V DC

• Power Dissipation: 4.0 Watts

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Dimensions: 14.5 x 3.5 x 14.0 cm

• Module Width: Single-slot

• Weight: 0.32 kg (Shipping weight approx. 0.8 kg)

Application and Integration

The 1756-M03SE is frequently deployed in distributed control architectures where high-speed precision is the primary requirement. It is compatible with all 1756 ControlLogix chassis and works seamlessly with 1756-L6x and 1756-L7x controllers.

• Packaging Machinery: Coordinating synchronized film feed and cutting head movements for continuous motion flow.

• Automotive Assembly: Driving multi-axis robotic arms for high-precision welding and component placement.

• Material Handling: Controlling high-speed sorters and pick-and-place systems requiring rapid acceleration and deceleration.

• Converting Equipment: Managing tension control and web registration using high-speed digital feedback from servo drives.
