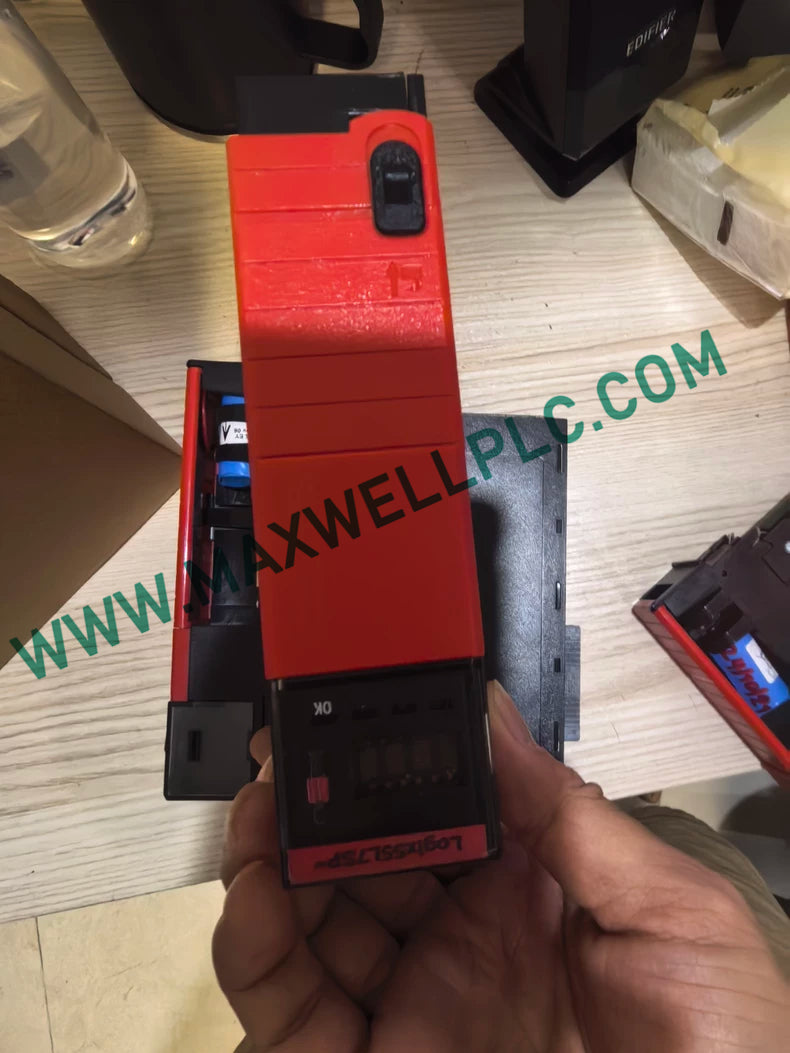

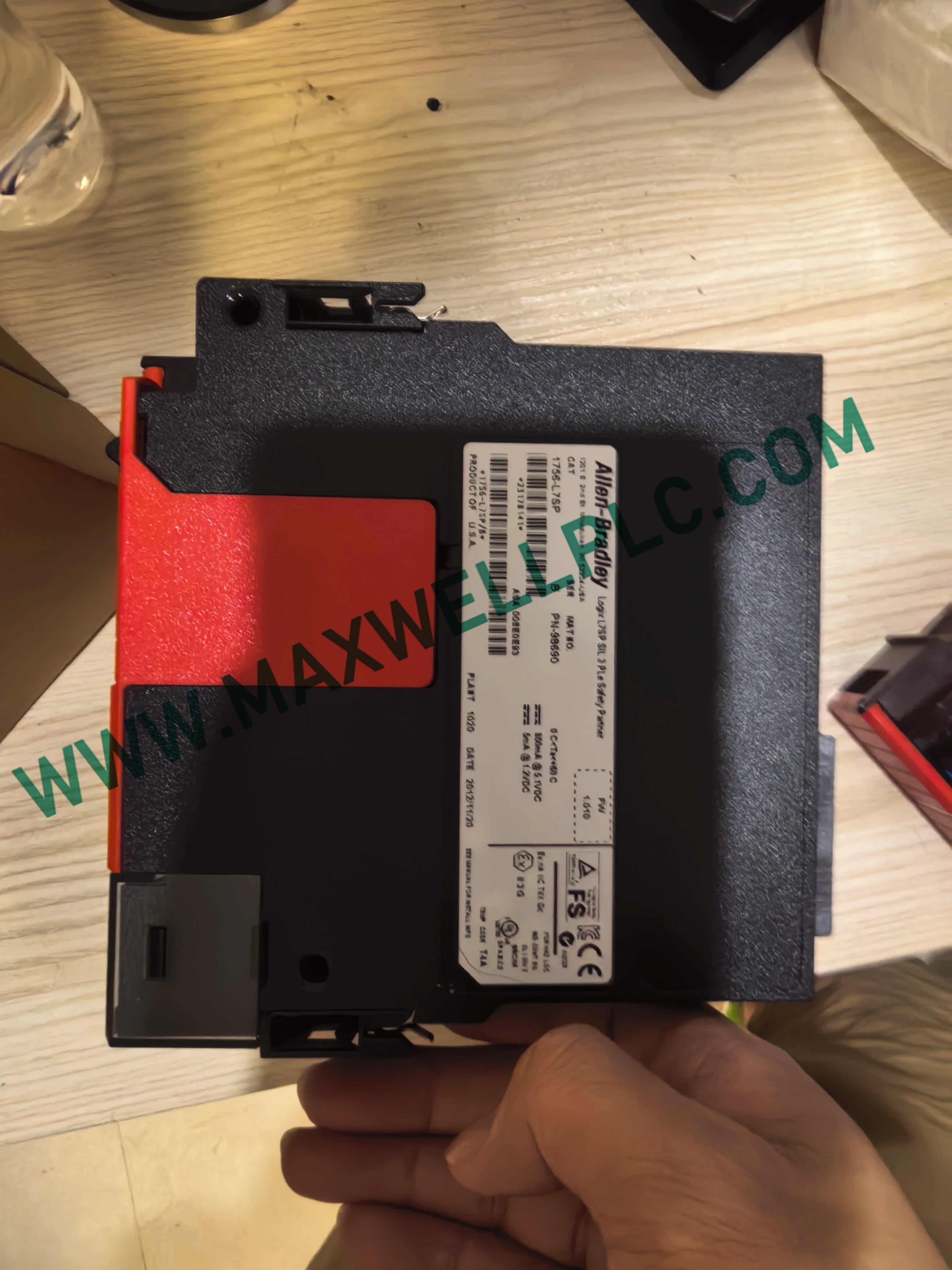

The Allen-Bradley 1756-L7SPXT, also cataloged as the 1756-L7SPXT Safety Partner Module, operates as a dedicated hardware component for dual-processor safety redundancy and cross-checking execution within GuardLogix control systems. Placed adjacent to a primary GuardLogix controller, it provides functional safety verification to achieve SIL 3 and ISO 13849-1 PLe standards in extended-temperature environments.

Catalog Designation & Subsystem Breakdown

• 1756: Chassis-based ControlLogix platform component.
• L7: Series 7 architecture processor co-processing unit.
• SP: Safety Partner co-processor providing 1oo2 redundant safety logic evaluation.
• XT: Extreme Environment variant rated for extended temperature operation from -25 to 70 deg C.

Physical Parameters & Operating Limits

Deterministic Safety Execution & Firmware Synchronization

The module maintains synchronous data exchange with the primary GuardLogix processor across the local backplane bus communication velocity. Deterministic EtherNet/IP CIP Safety protocols route safety I/O data through the primary controller while the safety partner validates execution thread results. Precise firmware flash compatibility between the safety processor and safety partner is required to maintain 1oo2 logic cross-checking without inducing diagnostic fault trips.

Factory Package Components

• 1 x Allen-Bradley 1756-L7SPXT GuardLogix Safety Partner module
• 1 x Factory installation and safety instruction manual

Mechanical Chassis & Enclosure Installation Guidelines

• Install the module in the slot immediately adjacent to the primary GuardLogix L7 series controller on the same chassis backplane.
• Maintain strict clearance distances around cabinet ventilation paths to operate within the -25 to 70 deg C thermal window.
• Verify proper chassis frame grounding to a central earth ground bus using low-impedance copper conductors.
• Use conformal-coated backplanes when deploying in harsh atmospheric conditions to complement XT-grade environmental protection.

Hardware Technical Reference FAQ

• Must the 1756-L7SPXT be installed in a specific slot relative to the primary safety controller?

  Yes, the safety partner must be installed directly adjacent to the primary GuardLogix L7 controller in the same physical chassis.

• How much current does the unit draw from the 5.1 VDC backplane rail?

  The module consumes 800 mA from the 5.1 VDC backplane supply rail during normal operation.

• Does the safety partner execute its own independent application user logic?

  No, it executes redundant validation algorithms on safety logic tasks processed simultaneously by the main safety controller.

• What is the required operating temperature range for this XT variant?

  The XT rating allows continuous operation across extreme ambient temperatures ranging from -25 to 70 deg C.

• Can the module be inserted or removed while backplane power is applied?

  Removal and Insertion Under Power (RIUP) is supported, but removing the unit while operational will trip safety outputs to a safe state.

• What memory allocation is integrated into the 1756-L7SPXT?

  The hardware contains 0.98 MB of dedicated I/O memory used for internal diagnostic buffering and safety execution cross-checking.

• How are firmware versions managed between the primary controller and safety partner?

  Both modules must run identical major and minor firmware revisions to pass startup validation and enter safety task execution mode.

• What is the total maximum I/O capacity supported through the combined safety system?

  The safety controller pair manages up to 128,000 total digital points and up to 4,000 analog points over configured field networks.
