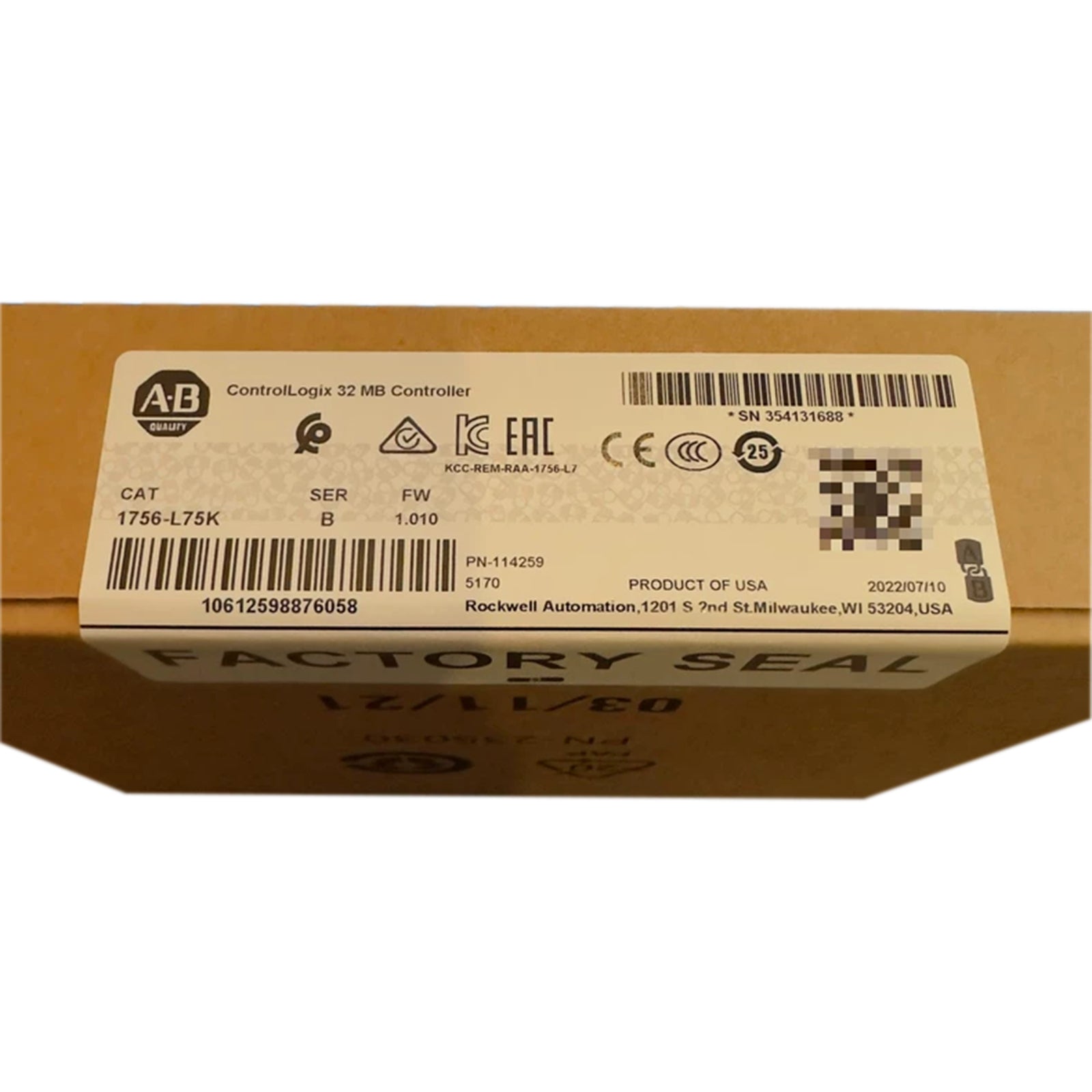

The Allen-Bradley 1756-L75K, also cataloged as the 1756-L75K Processor Module, operates as a dedicated hardware component for high-speed logic execution and system coordination within ControlLogix platforms.

Hardware Specifications

Deterministic Network and Backplane Integration

The ControlLogix architecture utilizes high-speed backplane bus communication to ensure deterministic data transfer between the processor and local I/O modules. The 1756-L75K supports I/O density scaling, allowing for configuration of up to 128,000 digital I/O points. Firmware flash compatibility is supported, permitting version updates that align with existing control logic and safety-rated network configurations, such as EtherNet/IP deterministic networks.

Ordering Info

• 1 unit 1756-L75K ControlLogix Processor Module

• 1 set of protective end-cap covers

Field Installation Guidelines

• Insertion: Align the module with the chassis guide rails and push firmly until the top and bottom latches are fully engaged to ensure secure backplane contact.

• Power: Ensure the chassis power supply is sized correctly to accommodate the 800 mA current draw at 5.1 VDC and 5 mA at 1.2 VDC.

• Environment: Install in an enclosure providing sufficient airflow to prevent heat accumulation, as the module dissipates 8.5 BTU per hour.

• Maintenance: Keep the front-panel USB and communication ports free of debris; use only validated communication cables for programming.

Frequently Asked Questions

• Is this module hot-swappable?

  The ControlLogix processor is generally not removed while the chassis is powered; it is designed to be installed in a powered-down state to ensure data integrity.

• How is the memory managed?

  The 32 MB of user memory is non-volatile when used with an appropriately configured Energy Storage Module (ESM), which must be installed.

• Can it handle 4,000 analog I/O?

  Yes, the processor supports a maximum configuration of 4,000 analog I/O points within the total I/O limit of 128,000.

• What is the role of the 1.2 VDC current draw?

  The 1.2 VDC current draw supports the internal processing logic and core circuitry of the high-performance processor.

• Are firmware updates required?

  Firmware updates are optional but recommended to maintain compatibility with updated communication modules and software design tools.

• What is the isolation voltage rating?

  The module is rated for 30 V continuous isolation, providing basic insulation between the backplane and external communication ports.

• How is the real-time clock battery replaced?

  The processor uses a dedicated battery or energy storage module to maintain the real-time clock during power loss; follow the specific product manual for replacement.

• Is this processor compatible with older ControlLogix chassis?

  It is generally backward compatible with standard ControlLogix chassis, but verify specific chassis backplane version requirements.
