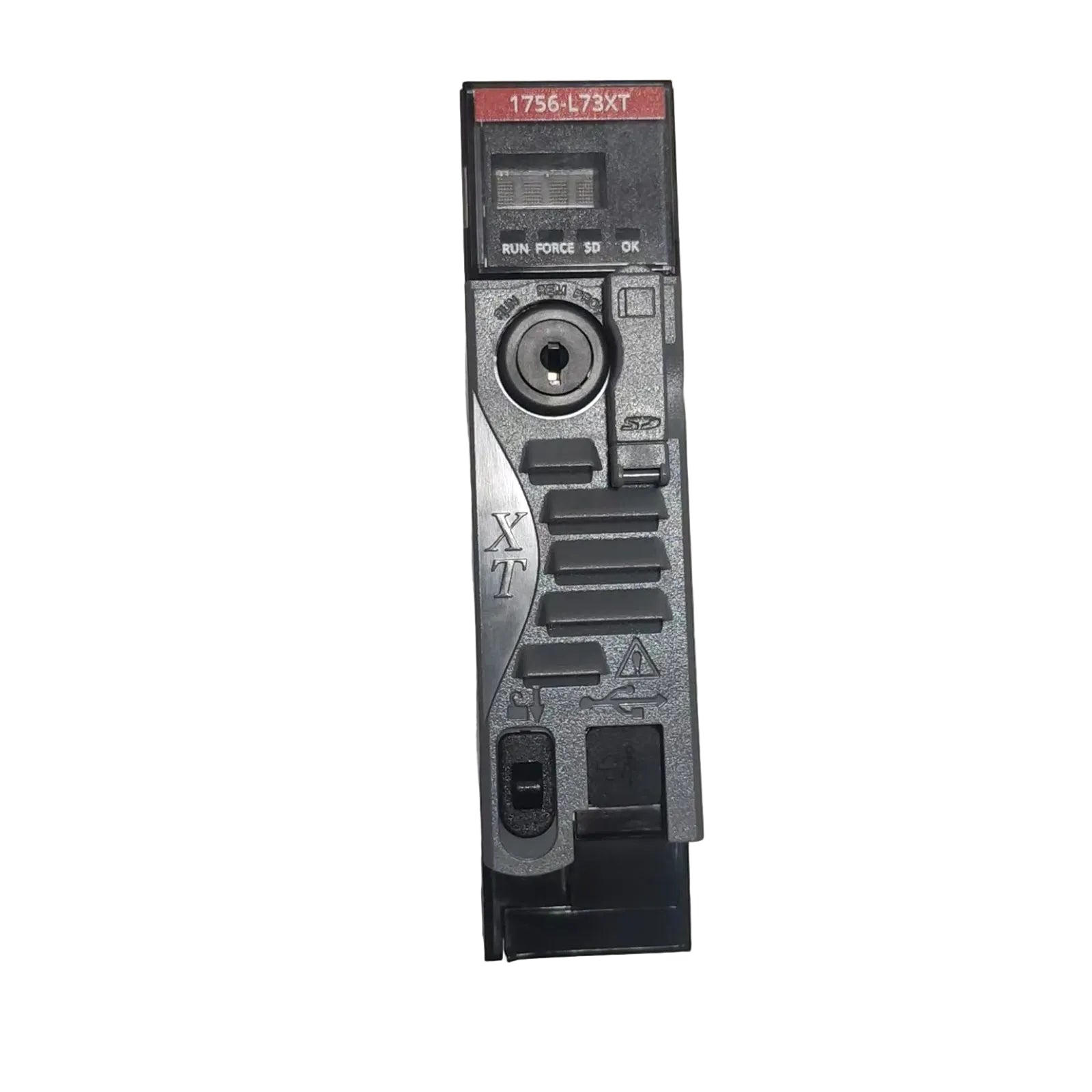

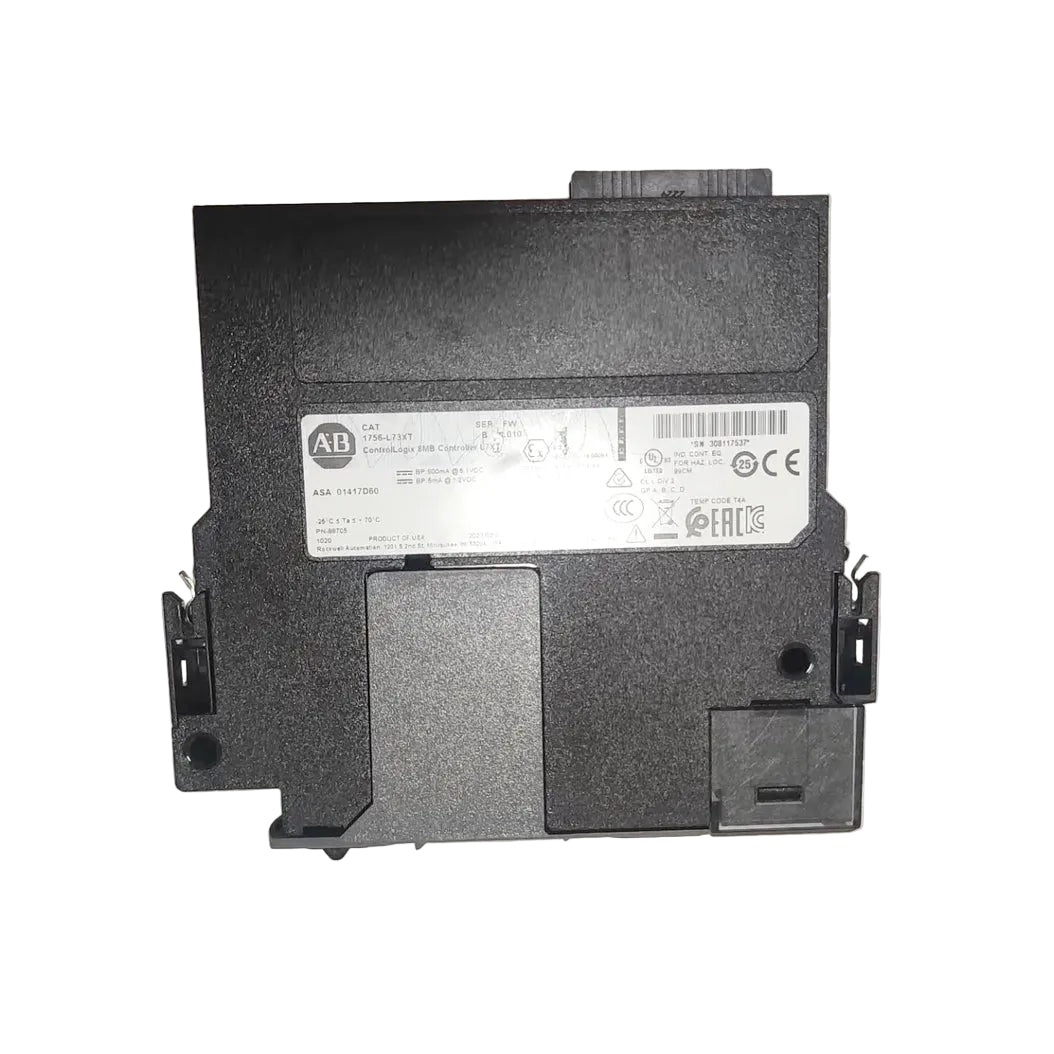

The Allen-Bradley 1756-L73SXT, also cataloged as the 1756-L73SXT GuardLogix Controller, operates as a dedicated hardware component for safety-rated logic execution and sequence control within EtherNet/IP distributed I/O networks.

Catalog Designation and Series Architecture

The 1756-L73SXT is a specialized GuardLogix controller designed for extreme environment applications within the ControlLogix platform. It integrates safety task management with standard control functions, utilizing a dual-processor architecture to ensure high-speed processing of safety-critical inputs and outputs while maintaining deterministic communication across the backplane.

Technical Performance Matrix

Deterministic Network and I/O Scaling

The 1756-L73SXT utilizes the ControlLogix backplane to achieve high-velocity communication between the controller and local I/O modules. The system supports massive I/O scaling, handling up to 128,000 total points. Determinism is maintained through the integration of the EtherNet/IP protocol, allowing the controller to synchronize safety I/O data packets with minimal jitter. Firmware flash compatibility ensures that the controller can interface with updated safety instruction sets without requiring hardware modifications.

Package Contents

1. 1 x 1756-L73SXT GuardLogix Controller module.

2. 1 x Integrated battery assembly for memory backup.

3. 1 x Instruction sheet for terminal alignment and slot insertion.

Site Installation Procedures

• Ensure the chassis is powered down before inserting the 1756-L73SXT into the designated ControlLogix slot to prevent backplane arcing.

• Verify that the chassis backplane connector pins are aligned correctly to prevent mechanical stress during module seating.

• Tighten the top and bottom mounting screws to ensure proper grounding to the chassis frame and to maintain resistance against industrial vibration.

• Route communication cables away from high-voltage AC lines to mitigate electromagnetic interference with the controller's data bus.

Operational Frequently Asked Questions

• Does this controller support hot-swapping?

  The 1756-L73SXT supports Removal and Insertion Under Power (RIUP), allowing for module replacement without shutting down the entire chassis, provided the safety system permits the transient fault.

• What is the maximum current draw on the 5.1 VDC rail?

  The controller consumes 800 mA from the 5.1 VDC backplane rail during standard operation. Ensure the power supply module in the chassis is sized to accommodate this load.

• Can I use this with non-safety I/O modules?

  Yes, the controller supports a mix of standard and safety-rated I/O modules within the same chassis, though safety tasks must be explicitly defined in the project configuration.

• What is the function of the 30 V isolation?

  The 30 V continuous isolation voltage rating prevents electrical noise and ground loops from impacting the internal logic circuits and the backplane communication integrity.

• How do I verify the current firmware version?

  Use the Studio 5000 Logix Designer software to query the controller's property tab while connected via USB or EtherNet/IP to view the active firmware revision.

• Does the controller require a battery?

  Yes, the included battery is necessary to maintain the real-time clock and volatile memory contents during power cycles.

• What is the impact of the 8.5 BTU/hour heat dissipation?

  The thermal output is minimal, but standard cabinet ventilation practices should be followed to keep ambient temperatures within the manufacturer's specified range for the chassis.

• Why is the I/O memory limited to 0.98 MB?

  This memory partition is dedicated specifically to the I/O data image table, ensuring that I/O status updates do not compete with user logic memory for scan cycle time.
