Product Overview

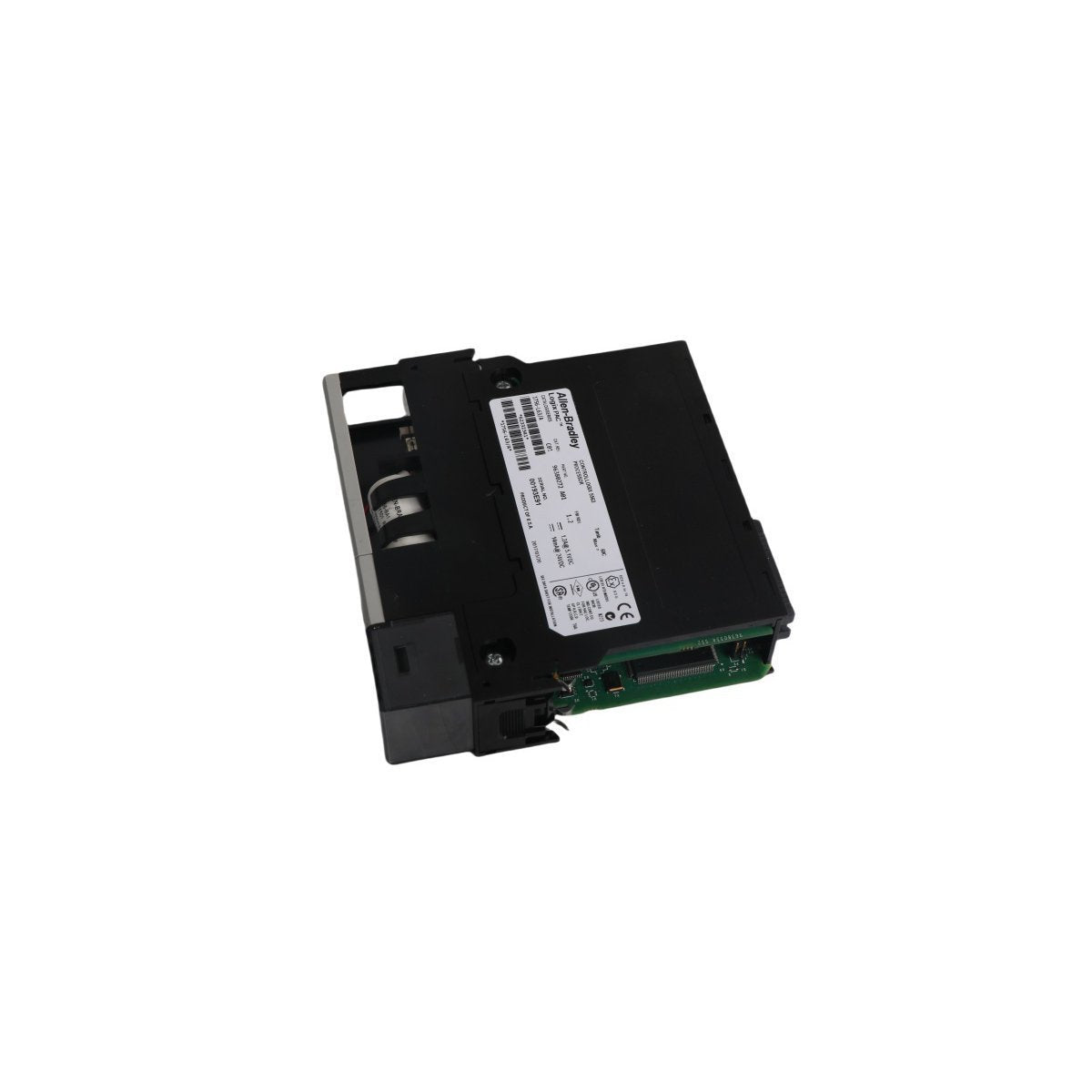

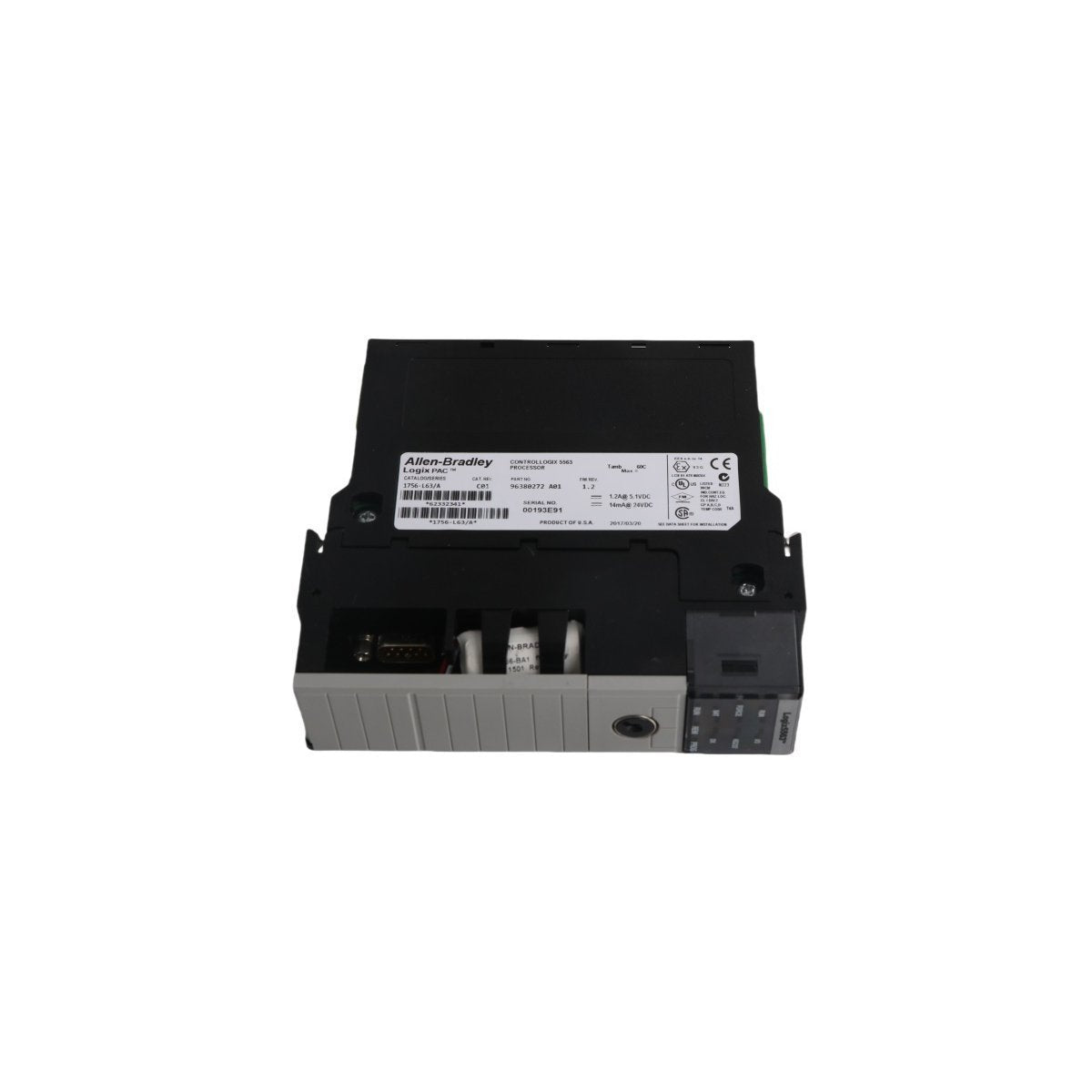

The Allen-Bradley 1756-L63 is a high-capacity Programmable Automation Controller (PAC) within the Logix 5560 family, designed for complex, high-speed industrial applications. As a cornerstone of the ControlLogix platform, this module provides the computational power necessary to manage large-scale discrete I/O, advanced motion control, and multi-network communication. It is engineered for a chassis-based environment, allowing for a scalable and modular approach to factory automation.

The 1756-L63 excels in multitasking environments, supporting the execution of multiple independent tasks with varying priorities. This ensures that time-critical logic—such as safety interlocks or motion axis updates—is prioritized over background communication tasks. With its 8 MB of internal volatile memory and broad protocol support, it remains one of the most versatile processors for medium-to-large automated systems.

Technical Characteristics

• Memory Capacity: 8 Megabytes of user-available RAM and 478 KB of dedicated I/O memory.

• Expansion Storage: Supports the 1784-CF128 Industrial CompactFlash card for non-volatile storage of project files and data logs.

• I/O Support: Capable of managing up to 128,000 digital I/O points and 4,000 analog I/O points.

• Communication Ports: Integrated RS-232 serial port (9-pin D-shell) supporting DF1, DH-485, and ASCII protocols.

• Network Compatibility: Expandable via chassis modules to support EtherNet/IP (including Motion over Ethernet), ControlNet, DeviceNet, DH+, and Remote I/O.

• Motion Control: Supports up to 100 axes of integrated motion via SERCOS or EtherNet/IP interfaces.

• System Redundancy: Fully compatible with 1756-RM redundancy modules for high-availability process applications.

• Battery Backup: Utilizes the 1756-BA1 or 1756-BATA lithium battery assembly to preserve memory during power loss.

• Environmental Durability: Operating temperature range of 0°C to 60°C with a 30g operational shock rating.

• Dimensions: 3.6 x 13.9 x 15.2 cm.

• Weight: 0.32 kg.

Advanced Logic and Industrial Networking

The 1756-L63 serves as a central hub for distributed control. By leveraging the ControlLogix backplane, the processor can communicate with specialized modules for high-speed counting, SIL-rated safety logic, and advanced analog processing. Its ability to bridge different network types allows for seamless data flow from the plant floor to enterprise-level SCADA systems.

For precision motion applications, the 1756-L63 provides deterministic synchronization for servo drives like the Kinetix series. It handles complex kinematic calculations and supports diverse feedback interfaces, including encoders and SSI sensors. Whether deployed in automotive assembly lines, chemical processing plants, or water treatment facilities, the 1756-L63 provides the reliability and processing density required for 24/7 industrial operations.
