Product Overview

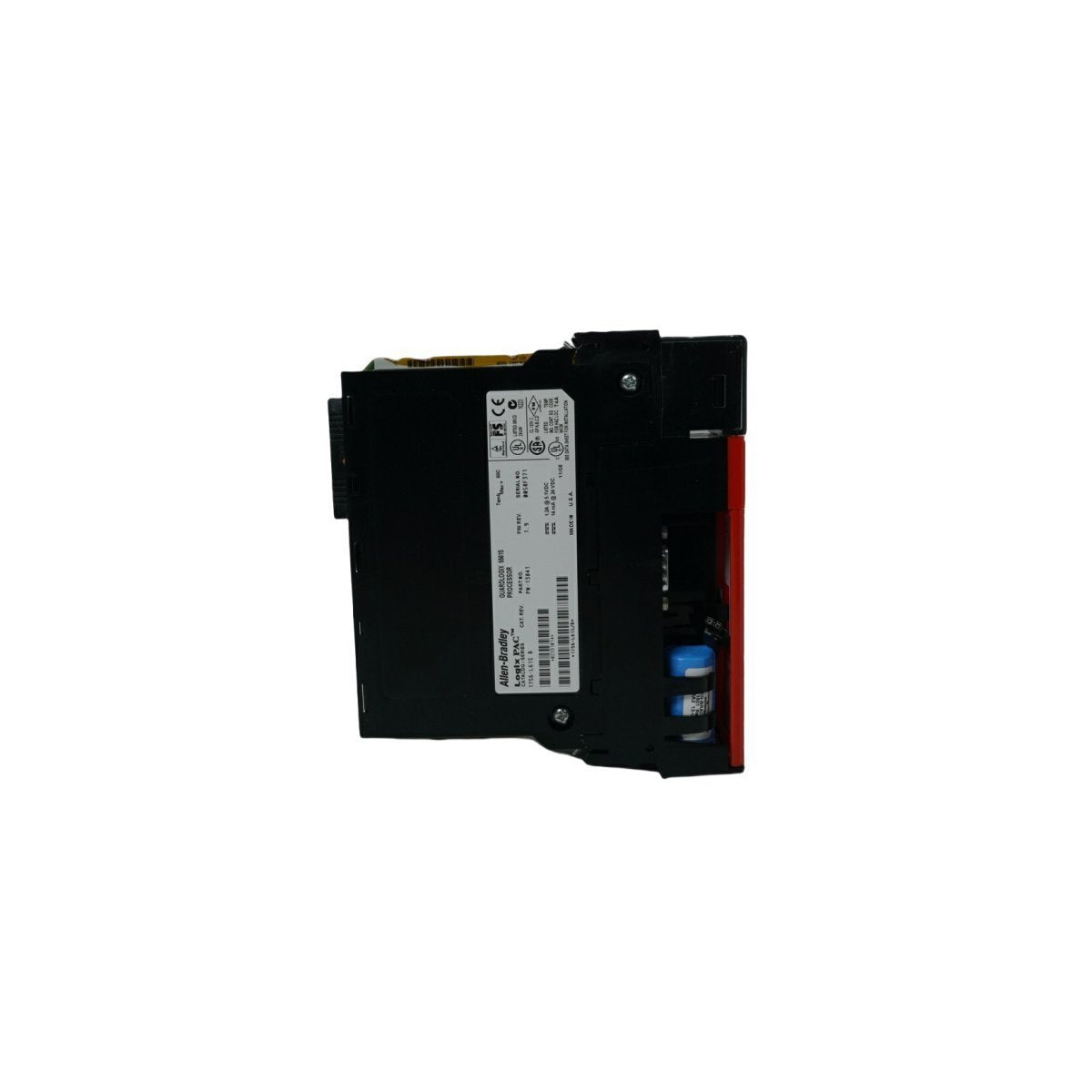

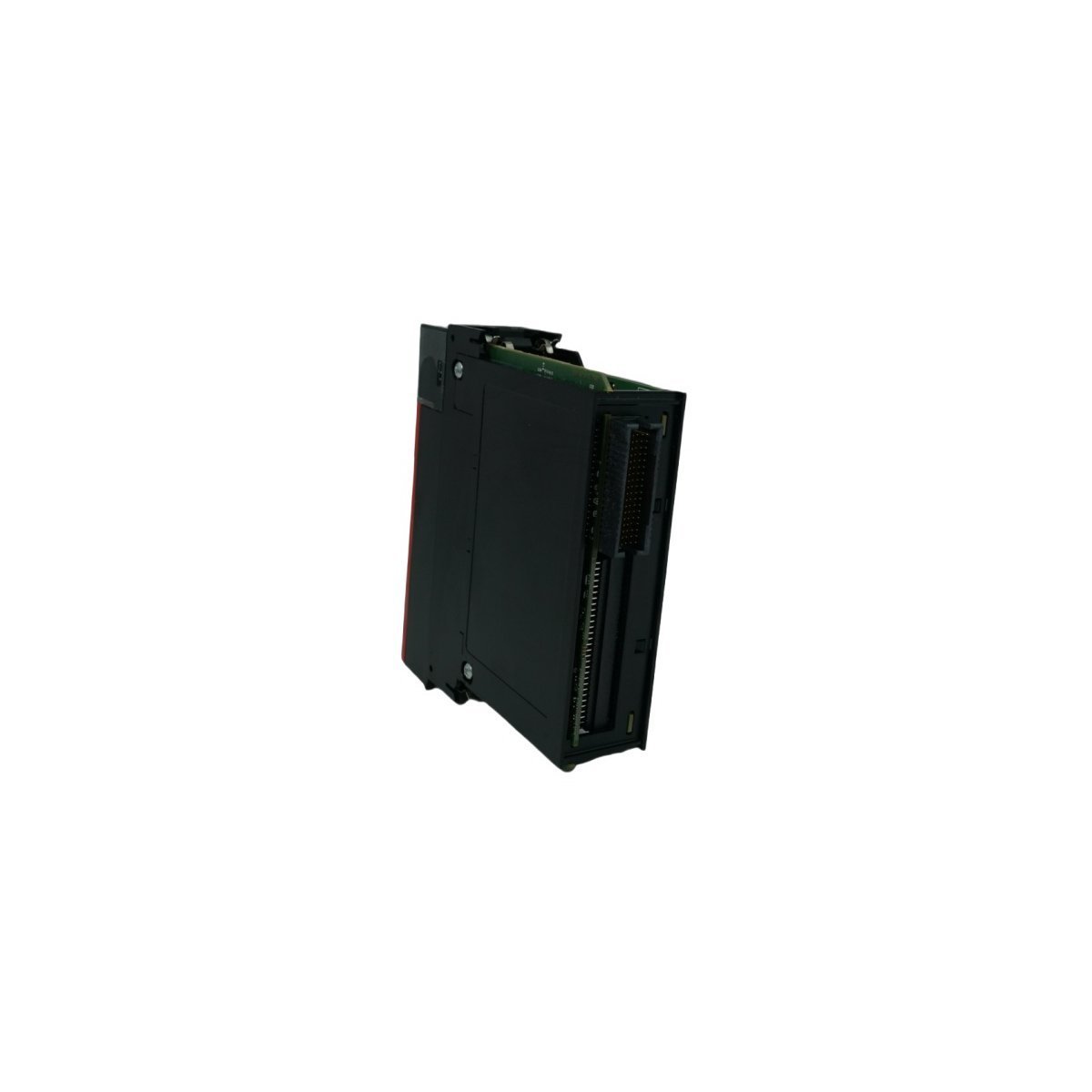

The Allen-Bradley 1756-L61S is a high-performance GuardLogix® safety controller designed to provide integrated safety and standard control within a single ControlLogix® chassis. This dual-processor architecture consists of a primary safety controller and a partner safety task, ensuring high-integrity execution of safety-instrumented functions up to SIL 3 and PLe (Performance Level e) standards. By merging safety and standard logic into one platform, the 1756-L61S reduces hardware footprints and streamlines system-wide communication for complex industrial automation.

This module is engineered for mission-critical applications where personnel safety and equipment protection are non-negotiable. It manages high-density I/O configurations across the local backplane or via remote networks, utilizing EtherNet/IP, ControlNet, or DeviceNet through additional communication bridge modules.

Core Processing and Safety Architecture

The 1756-L61S (5561S) series focuses on fail-safe operation and rapid diagnostic response times to maintain operational uptime while protecting the work environment.

• Dual-Core Safety Logic: Operates using a primary processor for standard tasks and a safety partner to validate safety instructions, providing a "1-out-of-2" architecture with high diagnostic coverage.

• Memory Configuration: Features 2 MB of user memory dedicated to standard tasks and 1 MB specifically for safety-related programming, ensuring isolated and secure safety logic execution.

• Integrated Diagnostics: Supports 478 KB of I/O memory and provides real-time status monitoring through the front-panel alphanumeric display to identify fault codes and network status instantly.

• Harsh Environment Protection: Includes factory-applied conformal coating to resist contaminants, humidity, and pollutants, making it ideal for wastewater treatment, oil and gas, and chemical processing facilities.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 1756-L61S

• Processor Type: GuardLogix 5561S Safety CPU

• User Memory: 2 MB Standard / 1 MB Safety

• I/O Memory: 478 KB

• Safety Rating: SIL 3 (IEC 61508); PLe / Cat. 4 (ISO 13849-1)

• Backplane Current Draw: 1200 mA @ 5.1V DC; 14 mA @ 24V DC

• Power Dissipation: 3.5 Watts

• Thermal Dissipation: 11.9 BTU/hr

• Isolation Voltage: 30V (continuous)

• Weight: 0.38 kg (0.84 lbs)

• Dimensions: 3.5 x 14.0 x 14.5 cm

Advanced Integration and Communication

The 1756-L61S is designed to function as a central node in a distributed safety network. While the controller manages the logic, it relies on high-speed backplane communication to interface with I/O and networking modules.

• Network Versatility: Seamlessly integrates with 1756-EN2T or 1756-EN3TR modules to facilitate CIP Safety over EtherNet/IP, allowing for safety-rated communication between controllers and remote I/O.

• Multi-Controller Support: Multiple 1756-L61S units can be placed in a single 1756 chassis, enabling distributed safety zones or redundant control strategies within the same physical rack.

• Scalable I/O: Supports an unlimited number of I/O points, restricted only by the memory capacity and network bandwidth of the chosen communication infrastructure.

• Programming Environment: Utilizes Studio 5000 Logix Designer® (formerly RSLogix 5000) for unified configuration of both safety and standard routines, simplifying the engineering workflow.
