1756-IF6CIS Allen-Bradley Analog Input Module ControlLogix

SKU: 1756-IF6CIS
Categories : All Products
In Stock
  • Dimensions: 3.2 x 15.2 x 13.3 cm
  • Country of origin: USA
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

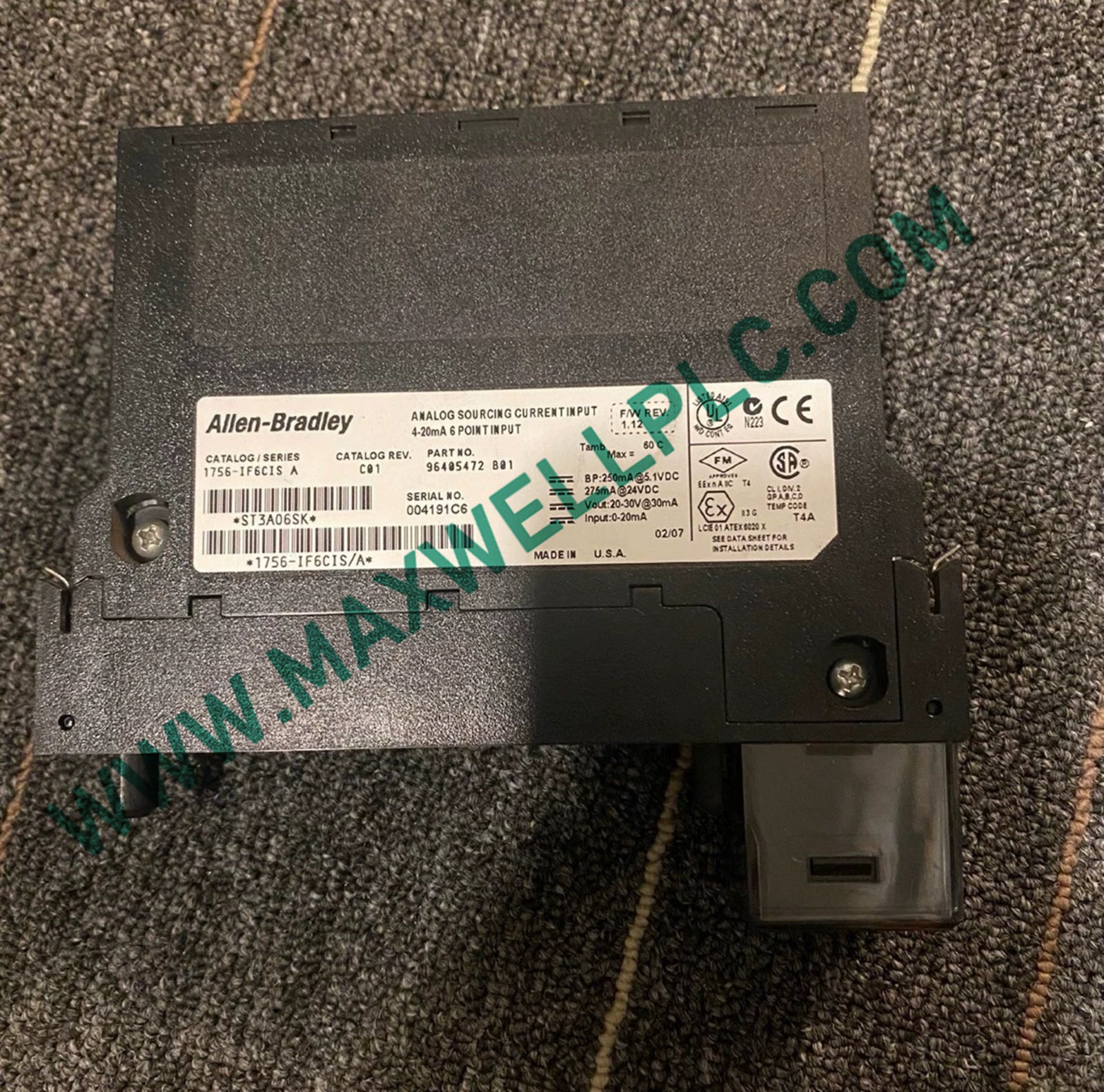

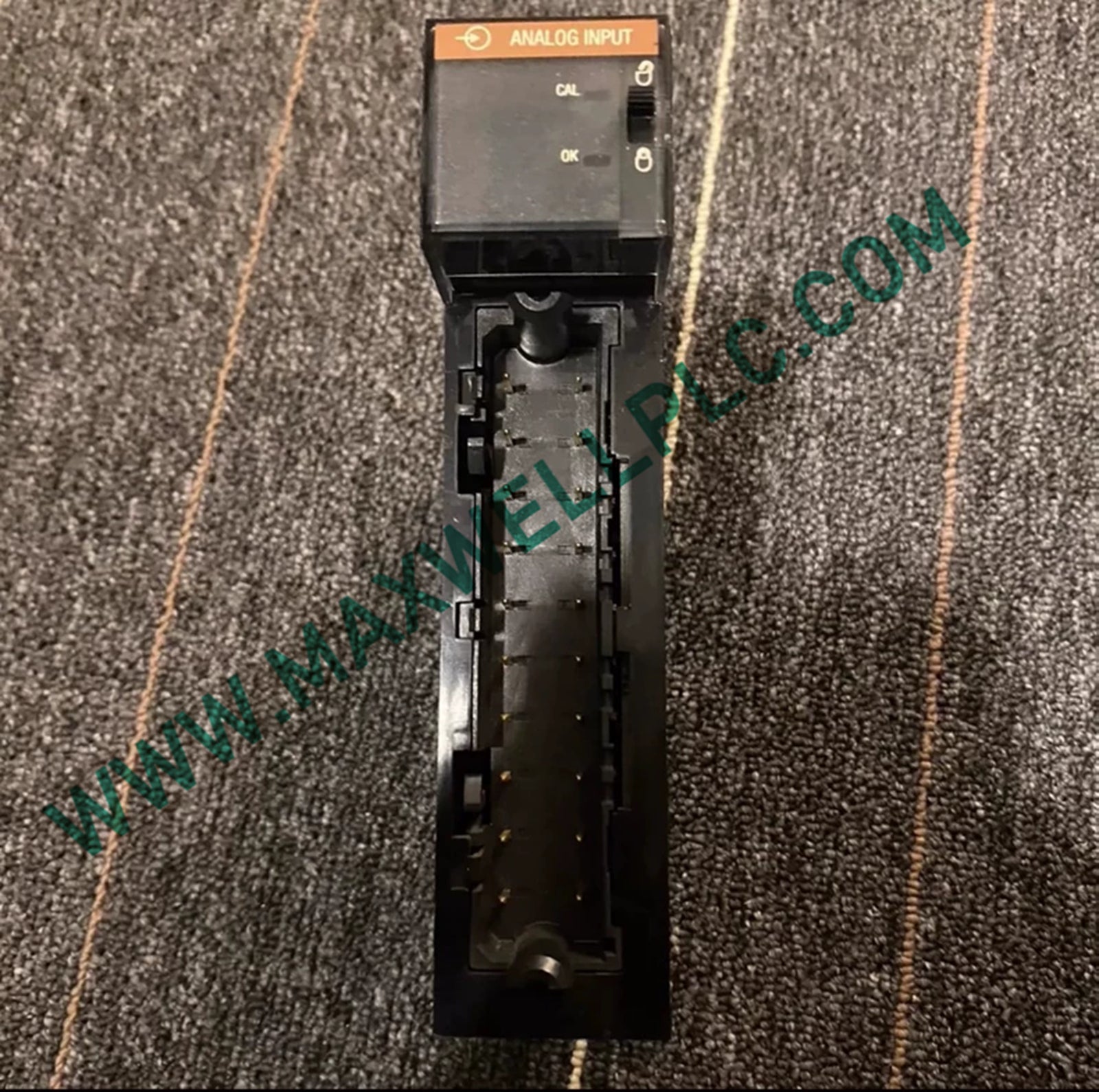

The Allen-Bradley 1756-IF6CIS, also cataloged as the 1756-IF6CIS Analog Input Module, operates as a dedicated hardware component for 6-channel current sourcing signal conversion within ControlLogix chassis environments.

Part Number Breakdown & Architecture

The primary catalog identifier 1756-IF6CIS specifies a 6-point isolated analog current sourcing input hardware platform. Replacement ordering systems utilize the designation 1756IF6CIS, which directly reflects the exact mechanical slot footprint, current sourcing topology, and system backplane interfacing logic.

Technical Data Specifications

Parameter Specification
Model 1756-IF6CIS (Spare: 1756IF6CIS)
Brand Allen-Bradley
Origin USA
Weight 0.3 kg
Shipping Dimensions 3.2 x 15.2 x 13.3 cm
Operating Temp 0 to 60 deg C
Power Consumption 5.1 W max power dissipation at 60 deg C
Input Channels 6-Point Isolated, Current Sourcing
Signal Range 0-21 mA
A/D Conversion Sigma-Delta
Data Formats Integer mode (left justified, 2s complement), IEEE 32-bit floating point
Backplane Current (5V) 250 mA
Backplane Current (24V) 275 mA
Tariff Code 8537101190

Deterministic Network Transfer & Expansion

The module maintains real-time synchronization over EtherNet/IP deterministic networks, offloading analog-to-digital processing overhead from the primary system CPU. Built-in firmware flash compatibility allows runtime field modifications, ensuring optimal I/O density scaling and predictable system timing across the chassis backplane.

Included Package Items

  • 1 x Allen-Bradley 1756-IF6CIS Module Assembly
  • 1 x Factory Sealed Anti-Static Shield Enclosure
  • 1 x Physical Installation Guide

Field Wiring & Physical Mount Standards

  • Grounding Conductors: Connect signal drain wires to standard panel ground buses to avoid measurement errors caused by common-mode noise.
  • Separation Rules: Keep analog transmitter wiring physically separated from high-voltage AC conductors and motor power lines inside cabinet conduits.
  • Chassis Insertion: Fully align the module housing with top and bottom chassis guides until side locking tabs securely latch into position.
  • Terminal Interface: Verify all terminal block screw torque ratings before applying 24 VDC external loop supply power to sourcing input channels.

System Technical FAQs

  • What is the backplane current draw for the 1756-IF6CIS?

    The module consumes 250 mA at 5 VDC and 275 mA at 24 VDC from the backplane power supply during operation.

  • What conversion method is used for processing current signals?

    The module utilizes a Sigma-Delta analog-to-digital conversion method for sampling incoming current signals across all channels.

  • What data formatting options are supported by the module?

    Data can be processed using Integer mode (left-justified 2s complement) or standard IEEE 32-bit floating-point format.

  • What is the operational current measurement range per channel?

    Each channel measures analog input current signals within a range of 0 to 21 mA in current sourcing configuration.

  • Can the module be inserted or removed under backplane power?

    Removal and insertion under power (RIUP) is supported, provided field wiring circuits are safely de-energized or non-hazardous.

  • What thermal dissipation must be factored into cabinet layout?

    Enclosure heat calculations must account for a maximum power dissipation of 5.1 W at 60 deg C operating limits.

  • Are the input channels electrically isolated from each other?

    Yes, the module provides complete channel-to-channel isolation for all six current-sourcing analog inputs.

  • How is field signal noise mitigated at the input stage?

    Noise interference is filtered via internal Sigma-Delta conversion algorithms and recommended external shielded twisted-pair cables.
