Product Overview

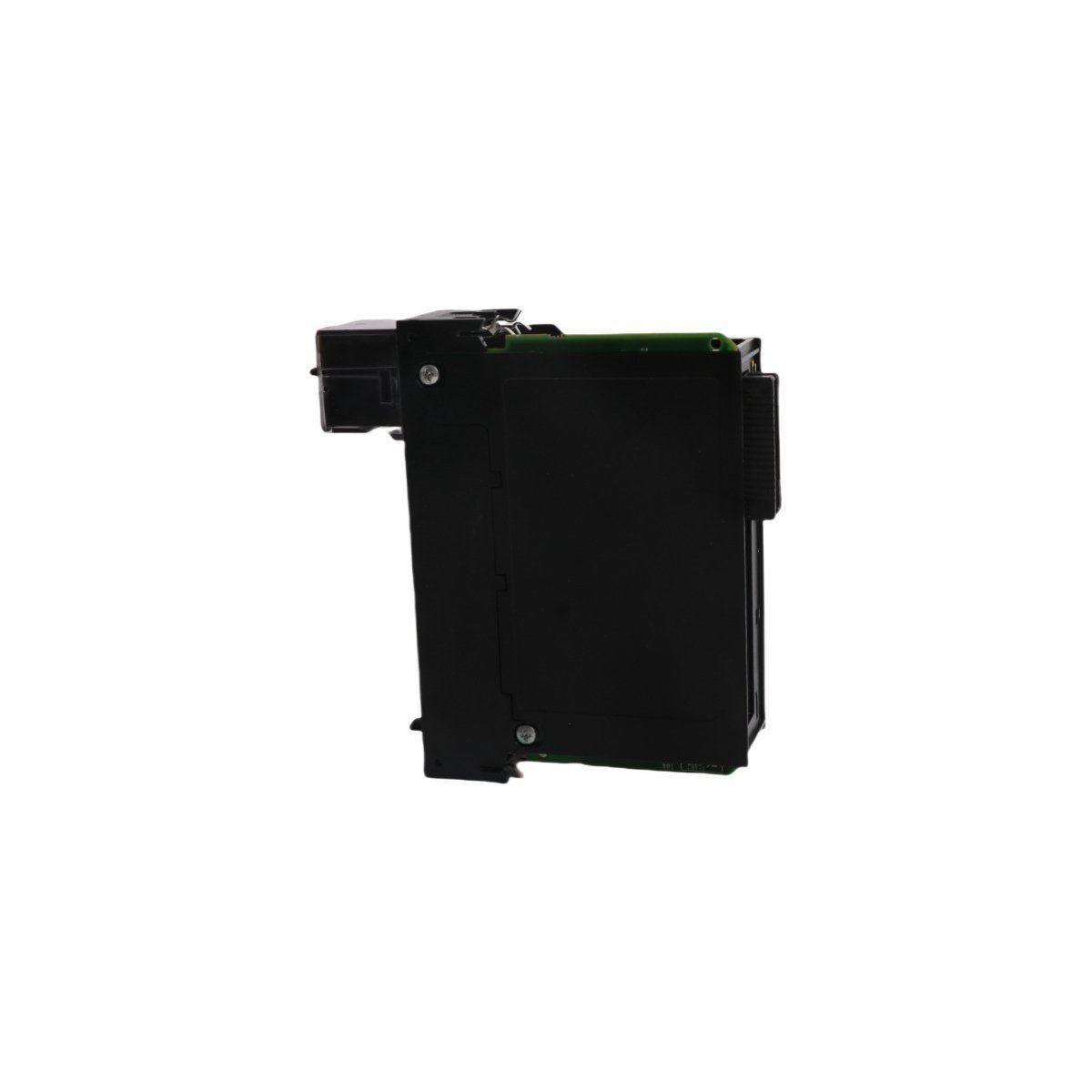

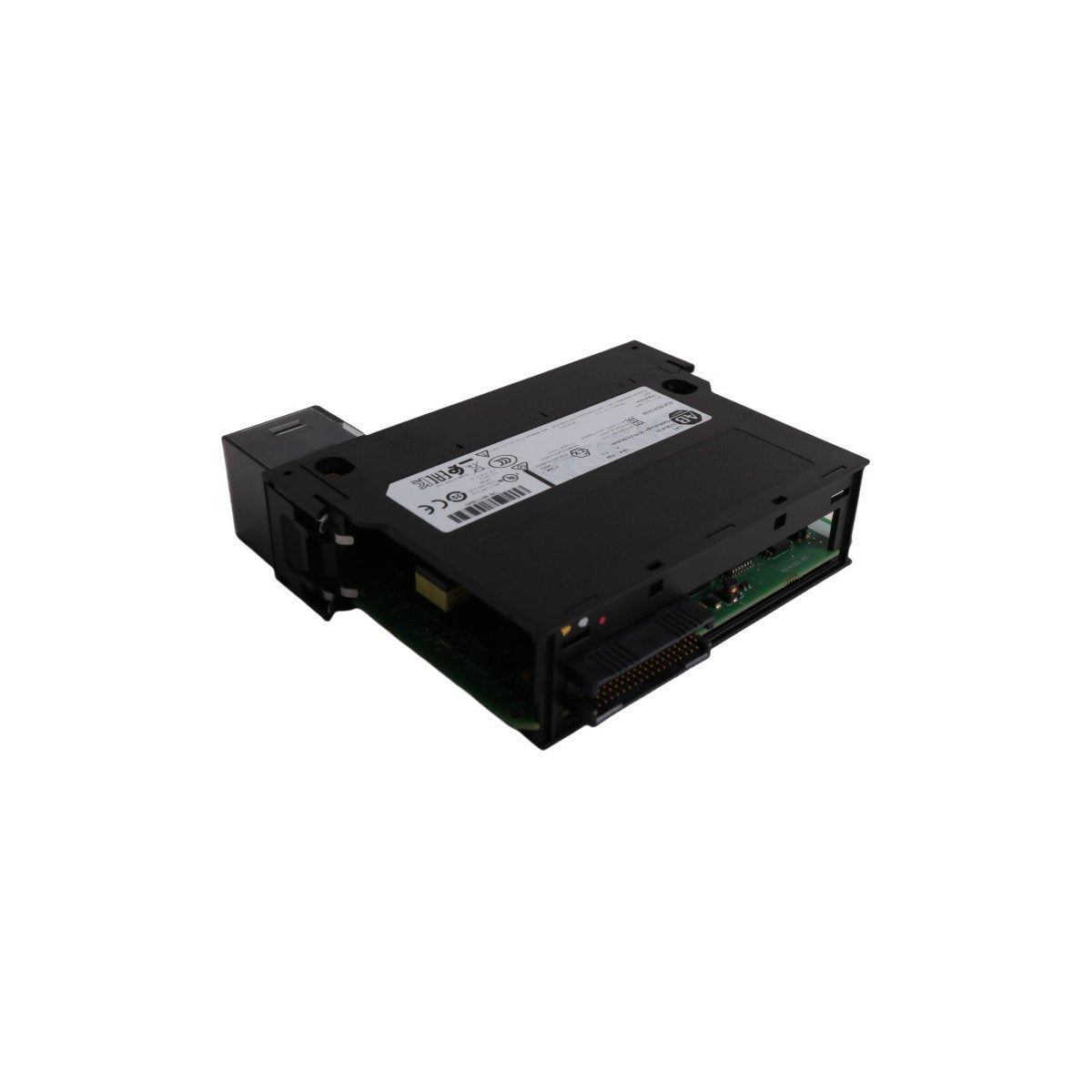

The Allen-Bradley 1756-IF16K is a high-density analog interface designed for the ControlLogix® platform, engineered to convert multi-range analog signals into precise digital data for PLC processing. This "K" version module features specialized conformal coating, providing an extra layer of protection against corrosive environments, moisture, and airborne contaminants typically found in heavy industrial settings.

Supporting up to 16 single-ended or 8 differential channels, the 1756-IF16K offers the flexibility to interface with a wide array of transmitters and sensors. It utilizes a 16-bit Sigma-Delta converter to ensure granular data capture, making it a critical component for process control applications that require meticulous monitoring of pressure, temperature, flow, and level variables.

Key Technical Characteristics

The 1756-IF16K is distinguished by its high-speed signal sampling and robust electrical isolation.

• Conformal Coating: Specifically treated to resist harsh chemical atmospheres (Class G3), extending the lifespan of the electronics in wastewater, mining, and oil and gas applications.

• Selectable Input Modes: User-configurable for 16 single-ended, 8 differential, or 4 high-speed differential inputs, allowing for customized noise rejection and sampling speed.

• Precision Resolution: 16-bit resolution across all voltage and current ranges ensures high-fidelity signal representation.

• On-Board Diagnostics: Features comprehensive real-time monitoring, including over-range/under-range detection and wire-off sensing (4-20mA mode), which triggers immediate controller-level alarms.

• Enhanced Signal Conditioning: Includes software-selectable digital filtering and notch filters to eliminate industrial electrical noise at 50Hz or 60Hz.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 1756-IF16K

• Input Range (Voltage): ±10.25V, 0–5.125V, 0–10.25V

• Input Range (Current): 0–20.5 mA, 4–20 mA

• Backplane Current: 150mA @ 5.1V DC; 65mA @ 24V DC

• Power Dissipation: 2.3W (Voltage) to 3.9W (Current)

• Sampling Rate: 12ms to 488ms (depending on channel configuration)

• Isolation Voltage: 250V (Continuous)

• Terminal Blocks: Compatible with 1756-TBCH or 1756-TBS6H

• Dimensions: 23.3 x 18.3 x 5.3 cm

• Weight: 0.35 kg (0.77 lbs)

Industrial Applications and Integration

The 1756-IF16K serves as a reliable data acquisition hub for various complex systems:

• Chemical Processing: Monitoring highly corrosive environments where standard modules might fail.

• Power Generation: Real-time feedback for turbine monitoring and boiler control.

• Water Treatment: Interfacing with remote flow meters and level transducers.

• Manufacturing: Precise analog feedback for motor torque and velocity monitoring.

The module is hot-swappable, supporting Removal and Insertion Under Power (RIUP), which allows for hardware maintenance or replacement without disrupting the entire ControlLogix chassis operation.
