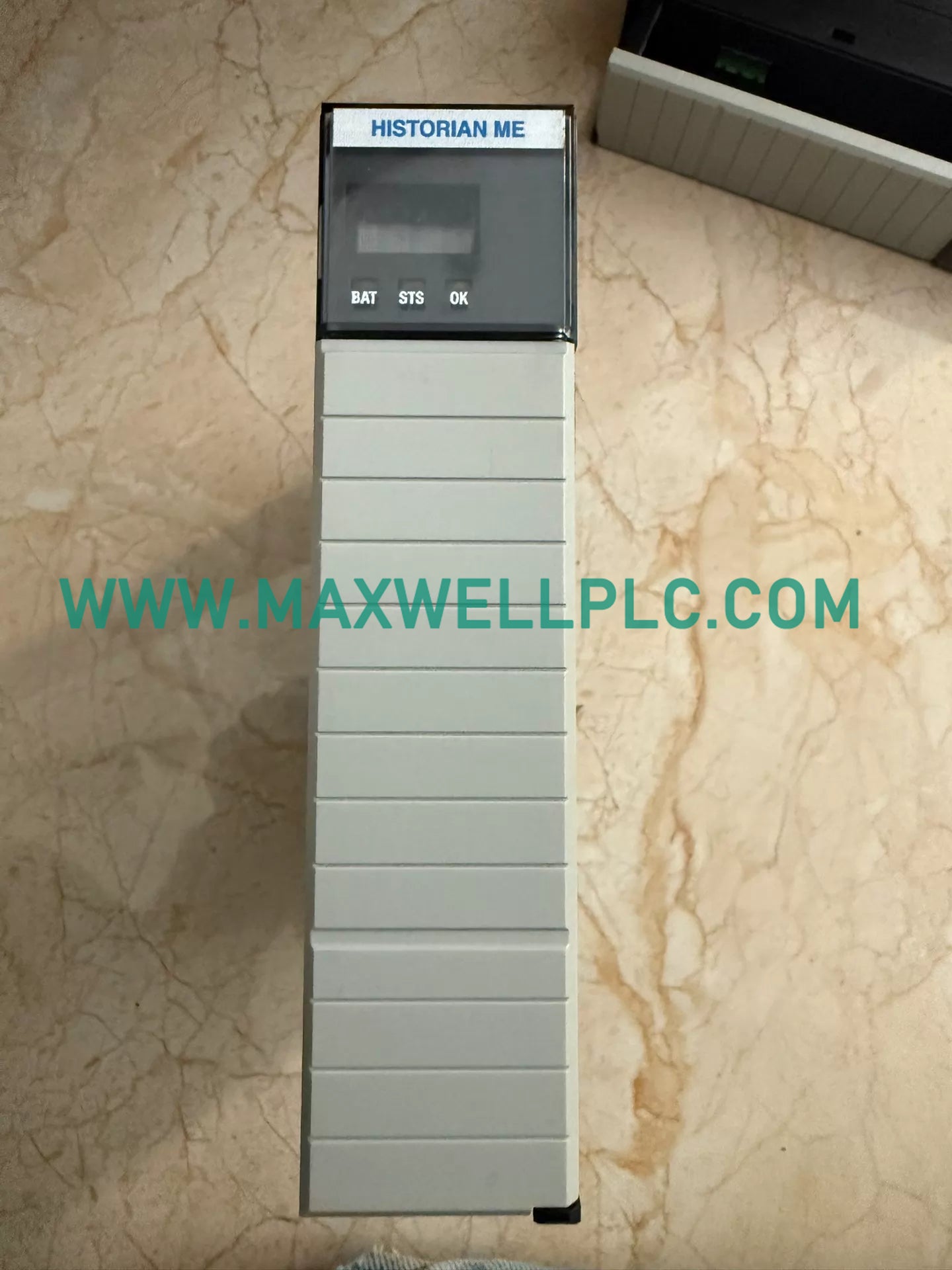

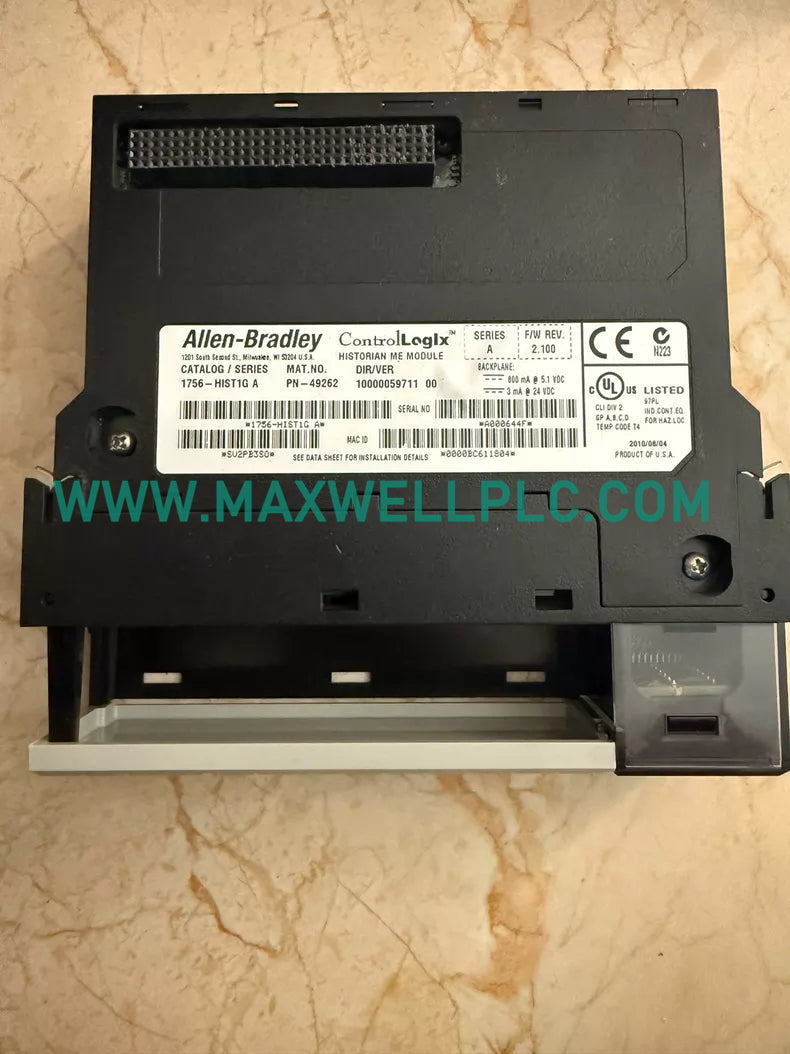

The Allen-Bradley 1756-HIST1G, also cataloged as the 1756-HIST1G Historic Machine Edition Module, operates as a dedicated hardware component for machine data history collection and storage processing within ControlLogix automation platforms.

Model Configuration Details

The 1756-HIST1G is a ControlLogix platform module designed for historical machine data management. It integrates embedded processing resources, Ethernet communication, real-time clock functions, and local storage interfaces for industrial data recording applications.

Hardware Specifications

Parameter Specification
Model 1756-HIST1G
Brand Allen-Bradley
Product Type Historic Machine Edition Module
Series ControlLogix Series
Origin United States
Weight 0.35 kg
Shipping Dimensions 23.3 x 18.2 x 5.3 cm
Operating Temp Not specified in supplied data
Power Consumption 5 Watts typical, 7 Watts maximum
Ethernet Port 1 x Ethernet 10/100T IEEE 802.3
Processor AMD LX800 500 MHz x86
Battery Rechargeable lithium battery, non-removable
System Memory 512 Kbytes battery-backed SRAM
Cache Memory 128 K L1 / 128 K L2
Storage Interface Compact Flash Type 2 with DMA
Display Interface Status LEDs and 4-character alphanumeric display
Clock Function Precision real-time clock

ControlLogix Data Processing Architecture

The ControlLogix platform uses modular backplane communication for interaction between controllers, communication modules, and application-specific modules. The 1756-HIST1G provides dedicated processing resources for historical machine data functions while maintaining integration with the ControlLogix chassis environment.

The module includes Ethernet 10/100T communication capability and local Compact Flash Type 2 storage support. Memory management uses battery-backed SRAM and embedded processing hardware for data retention and execution tasks.

Ordering Information

The package configuration includes:

  • 1 x Allen-Bradley 1756-HIST1G Historic Machine Edition Module

Additional ControlLogix system components are installed separately:

  • ControlLogix chassis
  • ControlLogix power supply
  • ControlLogix processor module
  • Ethernet communication modules

Field Installation Guidelines

Module Mounting

  • Install the module into a compatible ControlLogix chassis slot.
  • Confirm chassis power is removed before module insertion or removal.
  • Verify backplane connector alignment before securing the module.

Communication Connection

  • Connect Ethernet wiring according to IEEE 802.3 installation practices.
  • Keep communication cables separated from high voltage conductors.
  • Verify network configuration before enabling data communication.

Memory and Storage Handling

  • Confirm Compact Flash media compatibility before installation.
  • Do not remove storage media during active write operations.
  • Verify battery status indicators during scheduled maintenance checks.

Frequently Asked Questions

  • What is the main function of the 1756-HIST1G?

The 1756-HIST1G is a ControlLogix module designed for historical machine data processing and storage functions.

  • Does the 1756-HIST1G include Ethernet communication?

Yes. The module provides one Ethernet 10/100T IEEE 802.3 communication port.

  • What type of memory is used for data retention?

The module includes 512 Kbytes of battery-backed SRAM for retained memory storage.

  • What processor architecture is installed in the module?

The module uses an AMD LX800 500 MHz x86 embedded processor.

  • Does the module support Compact Flash storage?

Yes. The module supports Compact Flash Type 2 media with DMA capability.

  • Is the lithium battery replaceable by the user?

No. The supplied specification identifies the battery as rechargeable lithium and non-removable.

  • Can the module operate independently from a ControlLogix chassis?

No. The module is designed for installation within a compatible ControlLogix chassis system.

  • What indicators are available for module status monitoring?

The module provides status LEDs and a 4-character alphanumeric display for local status information.
