1747-BA Allen-Bradley SLC 500 Datasheet & Technical Manual

Allen-Bradley

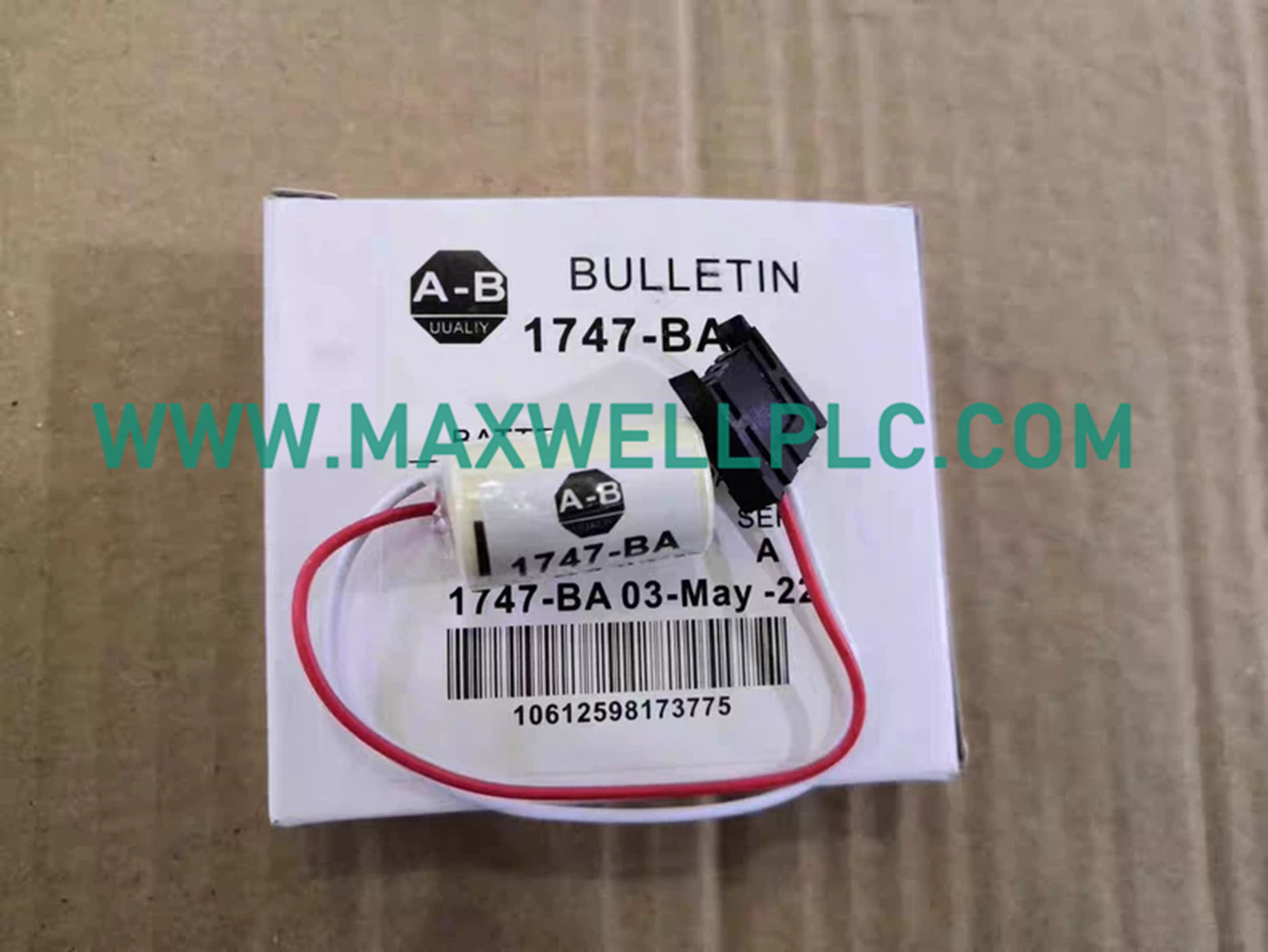

1747-BA Allen-Bradley SLC 500 Series Lithium Battery

SKU: 1747-BA

In Stock

Dimensions: 7.4 x 6.5 x 2.2 cm
Country of origin: USA
Payment: T/T, Western Union
Shipping port: Xiamen

Categories : All Products, Allen-Bradley

Tags : Allen-Bradley SLC 500, Battery Assemblies, Memory Retention Modules, SLC 500 Accessories

1 years warranty

Delivery time: 3-7 business days

Free 30 days return

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Configured for RAM memory retention in SLC 500 controller systems, the Allen-Bradley 1747-BA (1747-BA Lithium Battery Assembly) provides direct electrical backup power for maintaining processor memory data during power interruption conditions.

Model Identification

The 1747-BA is a non-rechargeable lithium battery assembly designed for SLC 500 processor memory retention applications. The battery provides backup voltage to maintain RAM data when the controller chassis power is removed.

Catalog Number: 1747-BA
Battery Type: Lithium
Battery Function: RAM Memory Retention
Battery Design: Non-rechargeable
Rated Voltage: 3 V

Hardware Specifications

Parameter	Specification
Model	1747-BA
Brand	Allen-Bradley
Product Type	Lithium Battery Assemblies
Series	SLC 500
Origin	USA
Weight	0.02 kg
Shipping Dimensions	7.4 x 6.5 x 2.2 cm
Operating Temp	0 - 60 deg C
Power Consumption	Backup battery assembly, 3 V
Battery Chemistry	Lithium
Battery Capacity	850 mAh
Battery Voltage	3 V
Backplane Current Reference	375 mA at 5 VDC

SLC 500 Memory Retention Characteristics

The 1747-BA supports SLC 500 processor RAM memory retention by supplying backup voltage when normal chassis power is unavailable. The battery circuit is designed specifically for maintaining stored processor memory data.

Battery replacement timing depends on controller operating conditions, storage environment, and power cycle frequency. Firmware and processor memory operation remain dependent on the installed SLC 500 CPU configuration.

Ordering Information

1 x Allen-Bradley 1747-BA Lithium Battery Assembly
1 x Protective industrial packaging
Documentation availability depends on supply configuration

Field Installation Guidelines

Remove power from the controller system before replacing the battery.
Verify the battery connector orientation before installation.
Avoid short-circuiting battery terminals during handling.
Install the battery according to the processor module maintenance procedure.
Dispose of used lithium batteries according to local regulations.
Check processor memory status after battery replacement.

Frequently Asked Questions

What is the function of the 1747-BA battery?

The 1747-BA provides backup power for SLC 500 processor RAM memory retention during loss of chassis power.

What battery type is used in the 1747-BA?

The module uses a non-rechargeable lithium battery with a rated voltage of 3 V.

Is the 1747-BA rechargeable?

No. The 1747-BA is designed as a non-rechargeable lithium battery assembly for memory backup applications.

Which Allen-Bradley systems use the 1747-BA?

The 1747-BA is designed for Allen-Bradley SLC 500 controller systems requiring RAM memory retention.

What is the battery capacity specification?

The provided specification lists the 1747-BA battery capacity as 850 mAh.

What operating temperature range is specified?

The specified operating temperature range for the 1747-BA is 0 to 60 deg C.

Does the 1747-BA communicate with the PLC processor?

No. The battery does not provide communication functions; it only supplies backup power for memory retention.

Can the battery be installed while the PLC is powered?

Battery replacement should follow the processor maintenance procedure, and power removal is recommended before installation.
