1746-OW4 Allen-Bradley Relay Output

Allen-Bradley

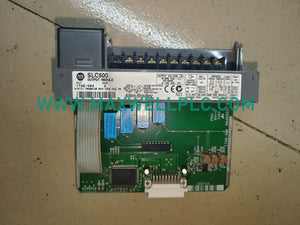

1746-OW4 Allen-Bradley SLC 500 Series Relay Output Module

SKU: 1746-OW4

In Stock

Dimensions: 12.7 x 5.1 x 15.2 cm
Country of origin: USA
Payment: T/T, Western Union
Shipping port: Xiamen

Categories : All Products, Allen-Bradley, Allen-Bradley PLC-5 & SLC 500 Legacy, I/O Modules & Signal Splitters

Tags : Allen-Bradley SLC 500, Digital Output Cards, Industrial Automation Controllers, Programmable Logic Controllers

1 years warranty

Delivery time: 3-7 business days

Free 30 days return

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Allen-Bradley 1746-OW4, also cataloged as the 1746-OW4 Relay Output Module, operates as a dedicated hardware component for electromechanical load switching within SLC 500 rack chassis environments.

Channel Configuration & Part Cross-Reference

Primary Part Number: 1746-OW4
Alternate Catalog Designations: 1746-0W4, 1746-OW4/A
System Platform: SLC 500
Output Channel Count: 4 Points
Contact Configuration: Normally Open (N.O.) Relay Contacts
Operating Signal Voltage: 5-265 VAC or 5-125 VDC

Electrical Ratings & Physical Specifications

Parameter	Specification
Model	1746-OW4
Brand	Allen-Bradley
Origin	USA
Weight	0.3 kg
Shipping Dimensions	12.7 x 5.1 x 15.2 cm
Module Type	Relay Output Module
Operating Voltage	5-265 VAC / 5-125 VDC
Continuous Current / Output	1.5 A at 120 VAC
Operating Temp	0 to 60 deg C
Power Consumption	Determined by Backplane Current Draw & Relay Coil Energization
Tariff Code	8537101190

Deterministic Network Sync & Backplane Velocity

The 1746-OW4 receives binary discrete outputs from the SLC 500 processor across the chassis backplane bus, driving isolated mechanical relay contact sets. High backplane bus communication velocity preserves time-critical task execution across EtherNet/IP deterministic networks, supporting optimized I/O density scaling and maintaining firmware flash compatibility across legacy and current control platforms.

Shipment Package Inventory

1 x Allen-Bradley 1746-OW4 Electromechanical Output Module
1 x Terminal Block & Hardware Wiring Sheet

Cabinet Installation & Terminal Wiring Procedures

Chassis Slot Insertion: Align the circuit board module with upper and lower card guides of the SLC 500 chassis, sliding inward until side latches firmly click.
Terminal Connector Termination: Wire field power and load lines to designated screw terminals, ensuring proper insulation strip length.
Inductive Load Suppression: Install MOV or RC surge suppressors across external inductive AC loads to prevent contact arcing and back-EMF noise.

Frequently Asked Questions

Q: What voltage range is supported by the 1746-OW4 contact outputs?

The relay contacts handle operating voltages from 5 to 265 VAC and 5 to 125 VDC.
Q: What is the maximum continuous current rating per point at 120 VAC?

Each normally open relay output channel is rated for up to 1.5 A continuous current at 120 VAC.
Q: How many output points are available on the 1746-OW4 module?

The hardware provides 4 individually wired, normally open electromechanical relay outputs.
Q: What alternate catalog numbers refer to the 1746-OW4 hardware?

Cross-reference part numbers include 1746-0W4 and revision series 1746-OW4/A.
Q: Can AC and DC loads be switched simultaneously on different channels?

Yes, channels with isolated common terminals can control distinct AC or DC voltage loops.
Q: Does the module require external surge suppression for inductive loads?

External suppression networks (RC snubbers or suppression diodes) are recommended to extend contact life.
Q: Is module insertion allowed while the SLC 500 chassis is powered?

Power down the SLC 500 chassis backplane power supply before removing or inserting I/O modules.
Q: What is the physical shipping weight of the 1746-OW4 unit?

The net shipping weight of the packaged 1746-OW4 relay output module is 0.3 kg.
