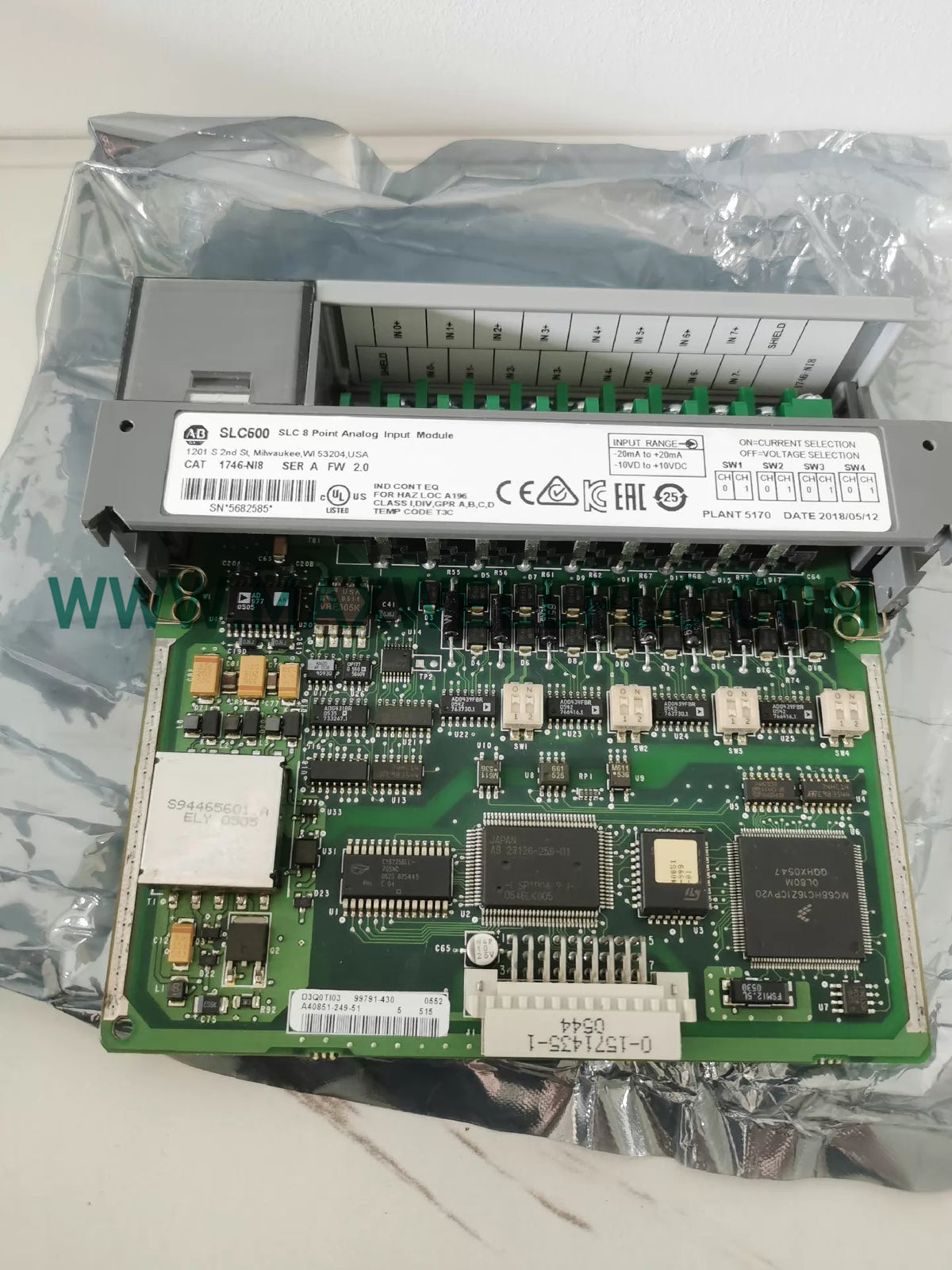

Configured for multi-channel analog signal conversion within Allen-Bradley SLC 500 modular control architectures, the Allen-Bradley 1746-NI8 1746NI8 (1746-NI8/A SLC 8 Point Analog Input Module) provides direct physical and electrical execution for processing eight channels of current and voltage field variables.

Part Number Breakdown & Configuration Matrix

Hardware Specifications

Backplane Bus & Network Communication Parameters

The hardware utilizes backplane bus communication velocity licences to maintain deterministic data updates across analog input channels. I/O density scaling capabilities allow operators to expand measurement loops across backplane slots without violating update intervals or scan time allocations. Firmware flash compatibility ensures that low-level communication protocol stacks remain synchronized with controller processors during active process monitoring.

Package Contents & Ordering Info

• 1 x Allen-Bradley 1746-NI8 Analog Input Module (Part Number: 1746NI8)
• 1 x Removable Terminal Block (RTB) Connector
• 1 x Technical Compliance Documentation Leaflet

Field Installation Guidelines

• Ensure chassis backplane power is completely isolated before inserting or extracting the analog input module.
• Mount the module into any available I/O slot within the SLC 500 chassis, ensuring proper alignment with backplane guide rails.
• Connect field signal wiring to the removable terminal block using twisted-pair cables with overall shielding.
• Terminate shield drain wires to the designated chassis ground bus to minimize electromagnetic interference on voltage and current inputs.

Frequently Asked Questions

• Q: What is the primary operational function of this module within the control system?
• A: It receives multi-channel analog current and voltage signals from field transmitters and converts them into digital values for the controller.
• Q: How many input channels does the module support simultaneously?
• A: The hardware accommodates up to eight independent differential analog input channels.
• Q: What signal ranges can be processed by the input circuitry?
• A: It supports standard industrial ranges including 4-20 mA, 0-20 mA, and -10 to +10 VDC.
• Q: Does the module require an external power supply for signal loops?
• A: Depending on loop configuration, external power may be required to drive active field transmitters connected to the input channels.
• Q: What is the specified operating temperature range for the hardware?
• A: The module functions reliably within an ambient operating temperature range of 0 deg C to +60 deg C.
• Q: Does this module support live insertion and removal (hot-swapping)?
• A: No, power to the chassis must be turned off prior to installing or removing the unit from the backplane.
• Q: Why is proper shielding critical for analog field wiring?
• A: Shielding prevents high-frequency electrical noise from distorting low-level current and voltage measurements.
• Q: What maintenance procedures are recommended for this hardware?
• A: Regularly inspect terminal block connection torque and verify that cabinet ventilation paths remain clear of obstructions.
