Product Overview

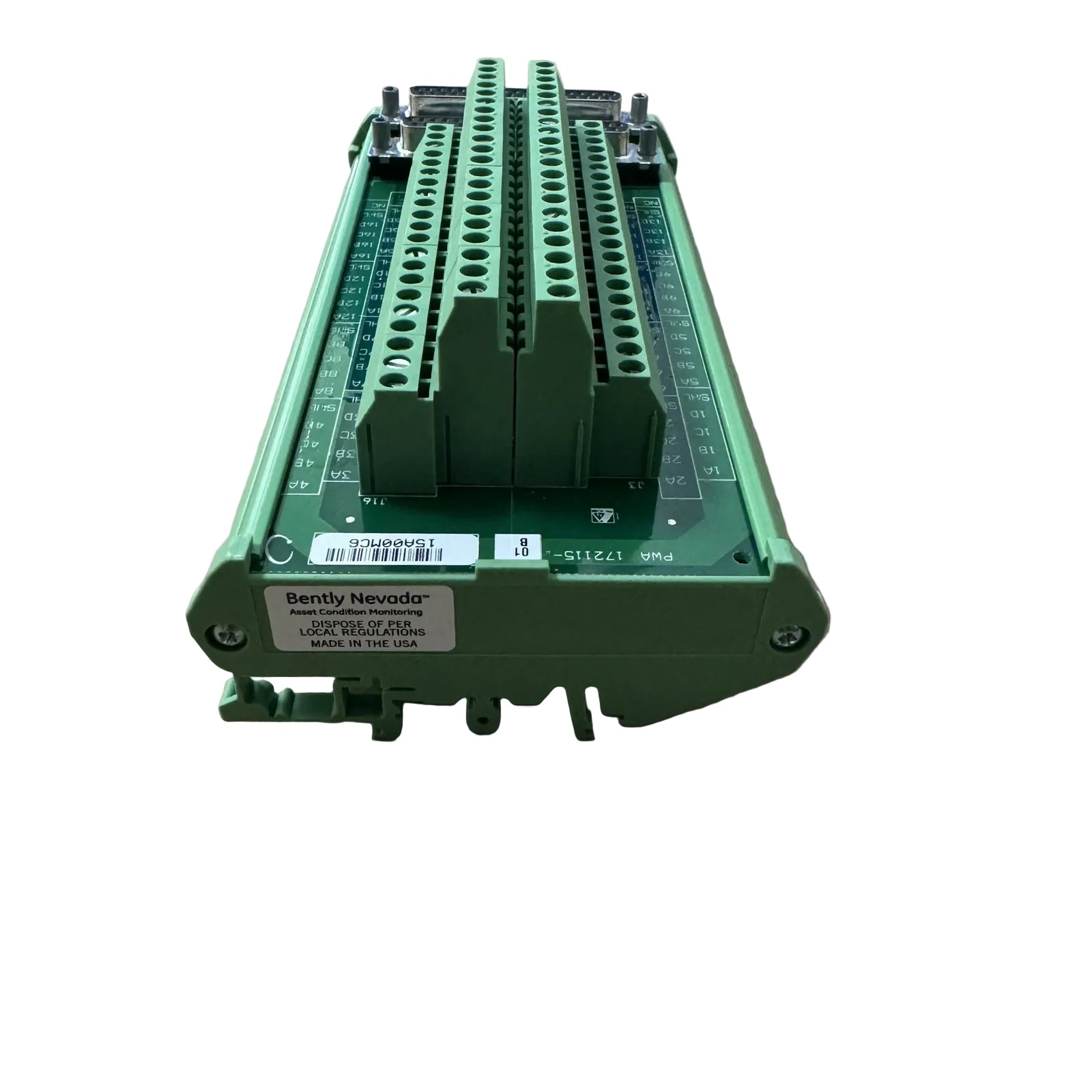

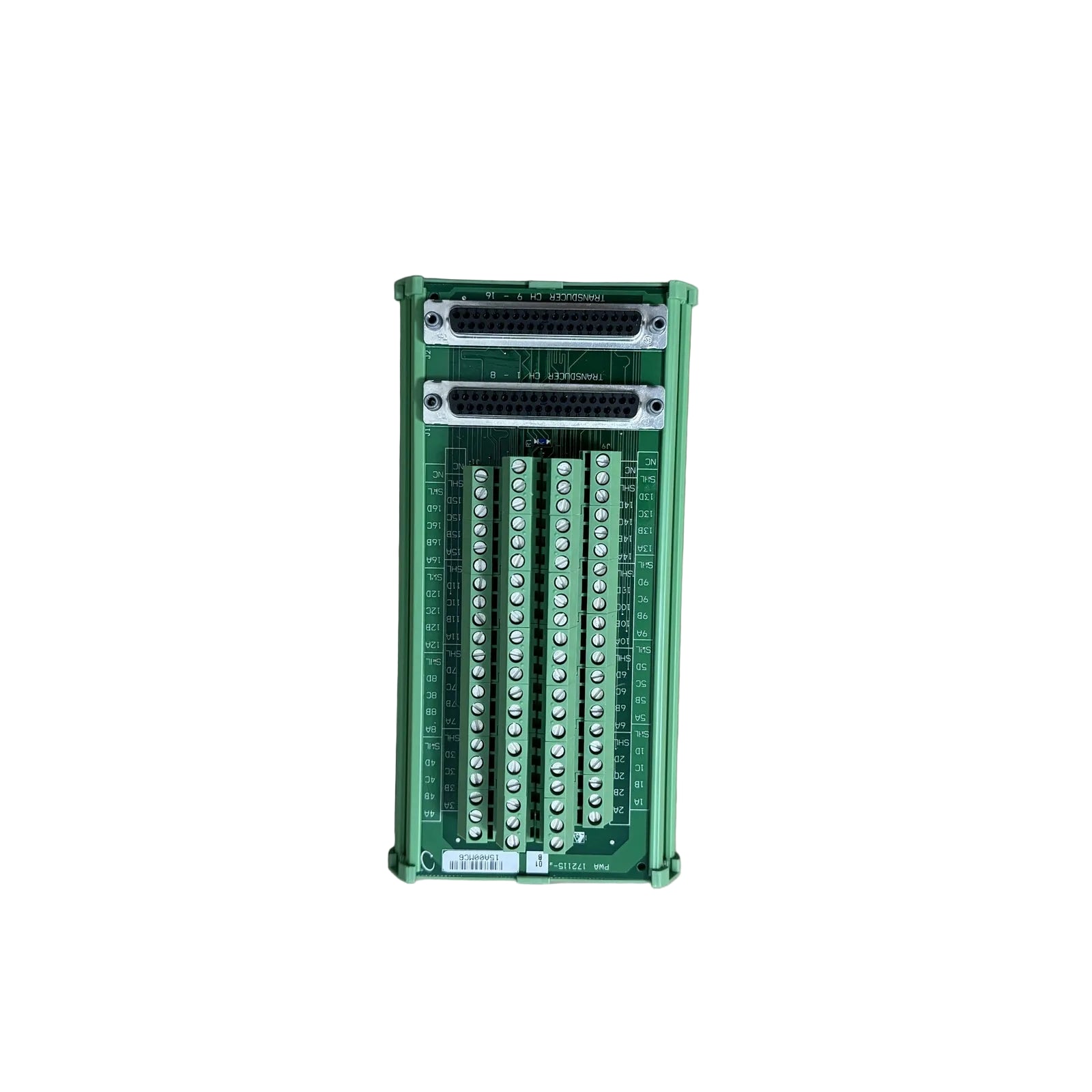

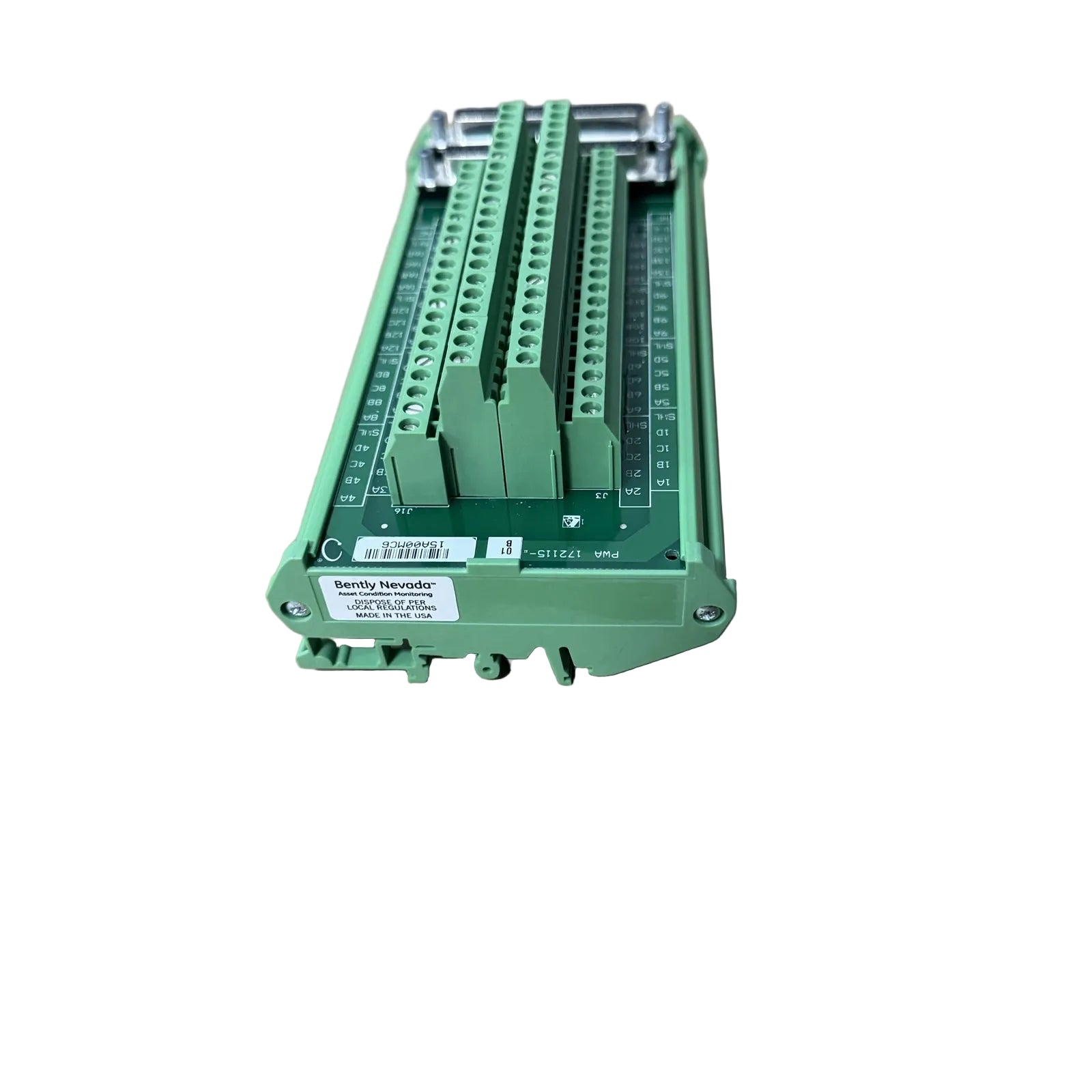

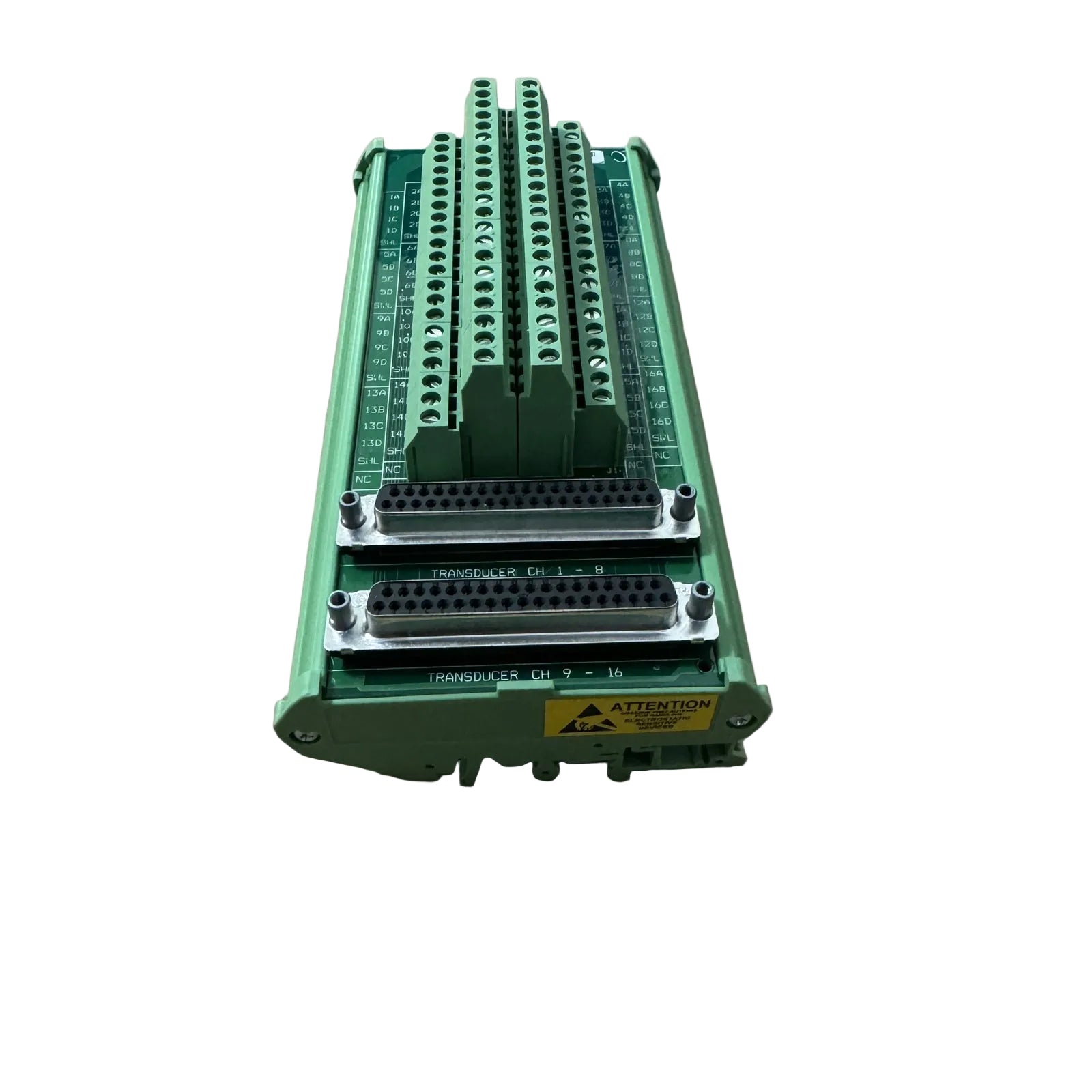

The Bently Nevada 172115-01 is a high-density External Termination Block (ETB) engineered to facilitate the physical connection of temperature sensors to the 3500/65 monitor system. This component serves as the remote wiring interface, allowing field personnel to land up to 16 channels of RTD or Isolated Tip Thermocouple wiring away from the high-density rear of the 3500 rack. By centralizing field connections on a DIN-rail mountable block, the 172115-01 significantly improves cabinet organization and simplifies maintenance. It is designed to maintain high signal integrity while providing robust electrical protection, ensuring that precision temperature data from rotating machinery is transmitted accurately to the processing modules for real-time analysis and machinery protection.

Hardware Performance and Technical Metrics

• Capacity 16 independent monitoring channels

• Sensor Compatibility RTD (Resistance Temperature Detector) and Isolated Tip TC (Thermocouple)

• Input Impedance > 1 MΩ per channel to prevent signal loading

• Common Mode Isolation 250V RMS for superior noise rejection

• Built-in Safety Integrated circuitry for overvoltage, short circuit, and reverse polarity protection

• Thermal Endurance -40°C to +85°C (-40°F to +185°F) operational range

• Physical Proportions 210 mm x 120 mm x 65 mm (Standard footprint for cabinet mounting)

• Approximate Weight 0.72 kg

• Country of Origin USA

• Compliance Designed for high-availability industrial environments

Industrial Deployment and Site Applications

In heavy-duty industrial sectors such as oil and gas or power generation, the 172115-01 is essential for managing the complex wiring of large turbine-generator sets. It is primarily used to aggregate temperature readings from motor windings, bearing housings, and lubricant reservoirs. By moving the termination point to an accessible location within the control panel, it reduces the risk of mechanical stress on the 3500 rack backplane. This block is a cornerstone of proactive asset health strategies, providing the reliable connectivity needed to monitor thermal trends. When abnormal temperatures are detected, the high-fidelity signal path provided by the 172115-01 ensures that the 3500 system can trigger rapid-response alarms or automated trips to prevent catastrophic equipment failure and minimize unplanned downtime.

FAQ

Q: Why should I choose an external termination block instead of internal terminations?

A: The 172115-01 external block is ideal for high-density installations. It allows you to complete all field wiring at a more accessible terminal strip, using a single interface cable to connect the block to the rack, which drastically reduces clutter and installation time.

Q: Can this block be used with non-isolated thermocouples?

A: The 172115-01 is optimized for RTDs and Isolated Tip Thermocouples. Using non-isolated TCs may introduce ground loops or interference that could compromise the accuracy of your machinery protection system.

Q: Does the termination block require its own power source?

A: No, the 172115-01 is a passive termination interface. It receives its necessary signal conditioning and sensor power through the interface cable connected to the 3500/65 I/O module.

Q: Is this module compatible with DIN-rail mounting?

A: Yes, the 172115-01 is designed with standard mounting hardware compatible with industrial DIN rails, making it easy to integrate into existing control cabinets and junction boxes.

Q: What happens if a channel is accidentally short-circuited during maintenance?

A: The module features integrated short-circuit protection. A fault on one channel will not damage the termination block or affect the monitoring performance of the other 15 channels.
