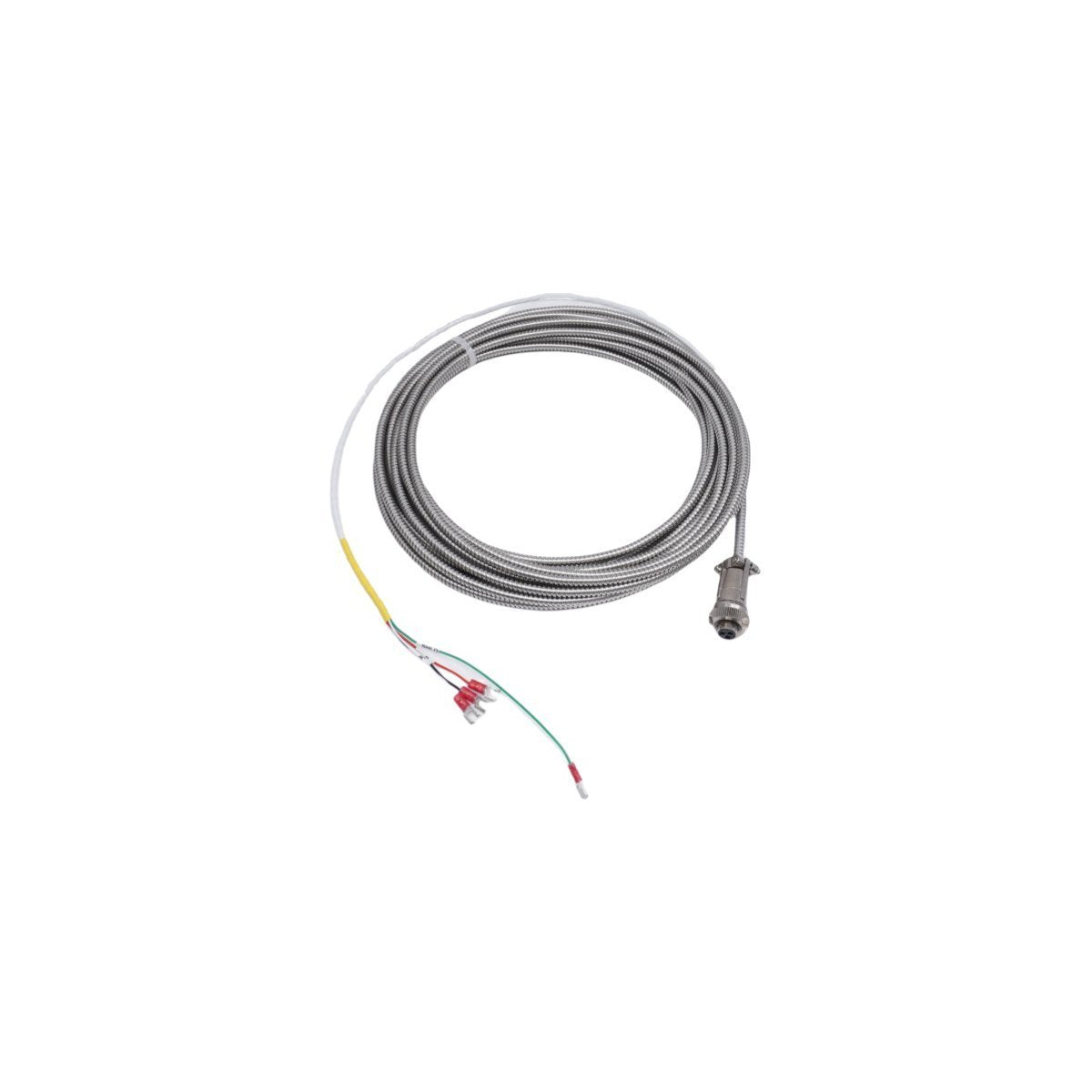

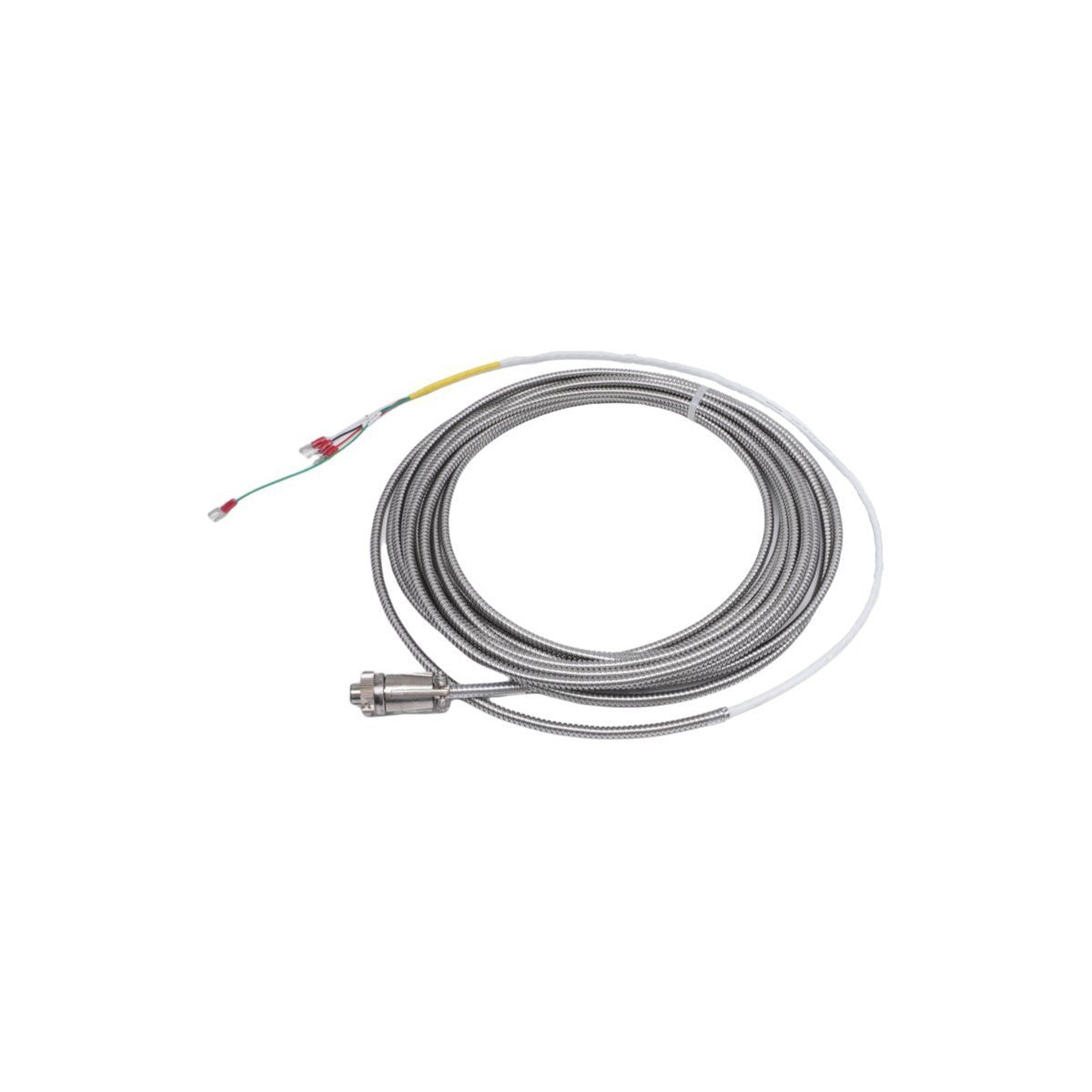

Configured for high-frequency RF signal propagation in Machinery Protection Systems, the Bently Nevada 16710-40 (16710-40 Interconnect Cable) provides direct physical/electrical execution. This passive coaxial cable serves as the pre-calibrated intermediate transmission link that routes analog displacement data between an eddy-current proximity probe head and a remote Proximitor sensor conditioning driver without inducing phase shift or impedance degradation across the circuit pathway.

Loop Interface Technical Metrics

Eddy-Current Probe Scaling and Rotor Dynamics Tracking

The physical cross-section and 40.0-meter mechanical length of this 95-\Omega coaxial extension are engineered to match strict system capacitance constants. Maintaining this electrical configuration ensures linear eddy-current probe scaling values remain unchanged during dynamic machine cycles. Precise transmission integrity allows correct gap voltage validation hitting standard -10 VDC targets at the monitoring driver stage, providing noise-free tracking of rotor dynamics and executing maximum cross-talk suppression between close-proximity radial vibration channels.

Transducer Hardware Interface Diagnostics

Q: What precise electrical data modifications result if the 16710-40 cable is shortened during field installation?

A: Cutting the cable alters the total loop capacitance and circuit resistance. This shift modifies the operational tuning frequency of the primary driver oscillator, invalidating the factory-calibrated eddy-current probe scaling and rendering the displacement measurements inaccurate.

Q: How does a leakage path to the machine frame affect the raw vibration channel?

A: If the outer shield compromises its insulation layer and contacts the metallic machine housing, it forms a parasitic ground loop. This electrical path introduces stray industrial noise, corrupting the static gap voltage validation and inserting false spikes into the dynamic signal output.

Q: Can this interconnect line be uncoupled while the monitor rack channel is fully energized?

A: Yes. Uncoupling the physical coaxial connection causes no electrical hardware damage. However, breaking the transmission loop forces the Proximitor voltage output to instantly saturate to its maximum negative limit, which trips active machine trip interlocks unless the channel bypass state is active.

Mechanical Routing and Installation Layout

• Physical Bend Constraints: Maintain a minimum physical bend radius of 25.4 mm along the entire installation path. Kinking or pulling the cable past this limit compresses the internal dielectric core, permanently distorting the 95-\Omega characteristic impedance.

• Connection Environmental Shielding: Torque the miniature coaxial connections to factory specifications using a connector wrench. Slide a dedicated connector protector sleeve over the mated joint or wrap the terminal link in clear self-fusing insulation tape to isolate it from the junction box frame.

• Conduit Segregation Protocol: Route the extension cable inside dedicated rigid or flexible liquid-tight steel conduits. Do not pull this high-frequency signal line through wireways or trays that contain high-voltage AC motor lines or variable frequency drive switching circuits.
