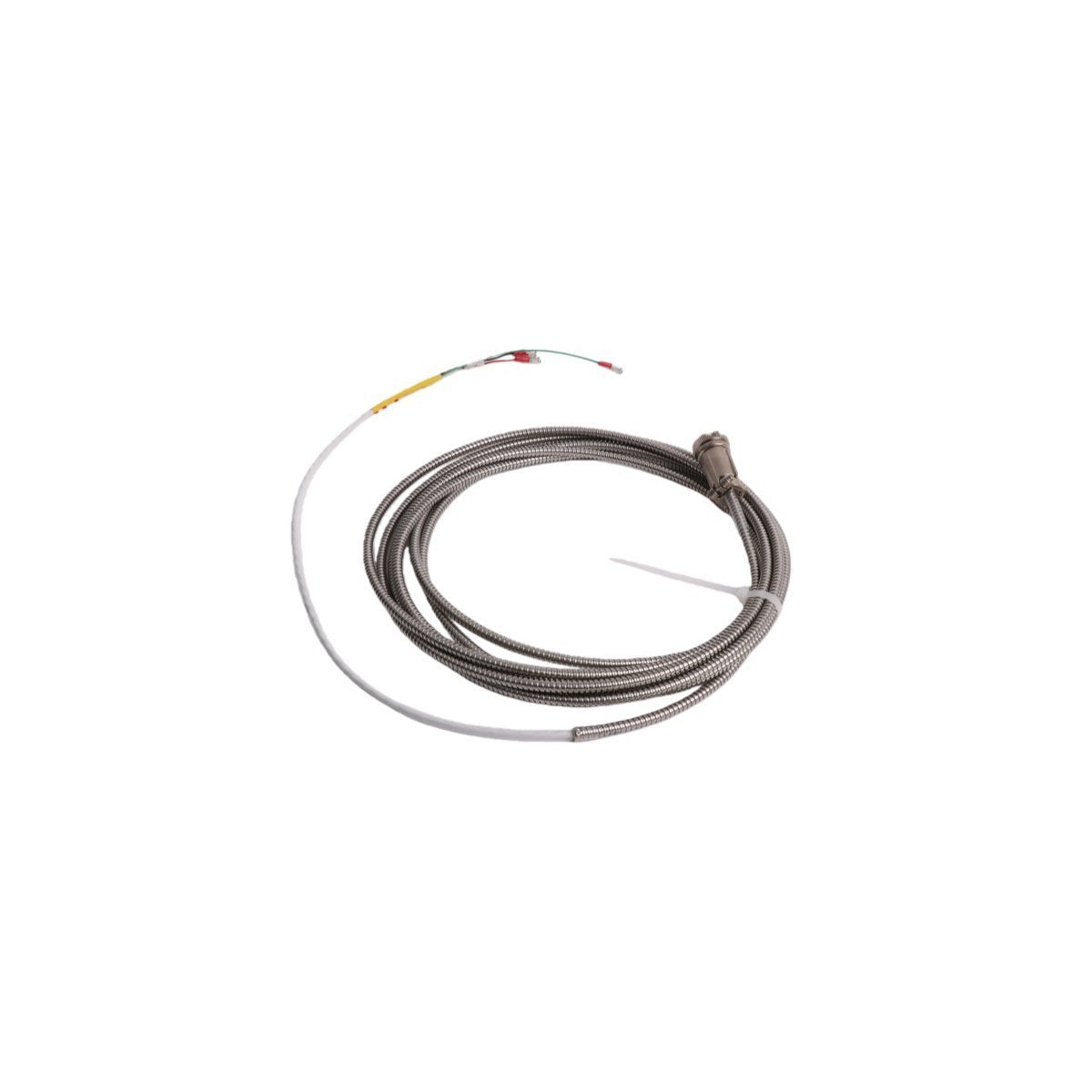

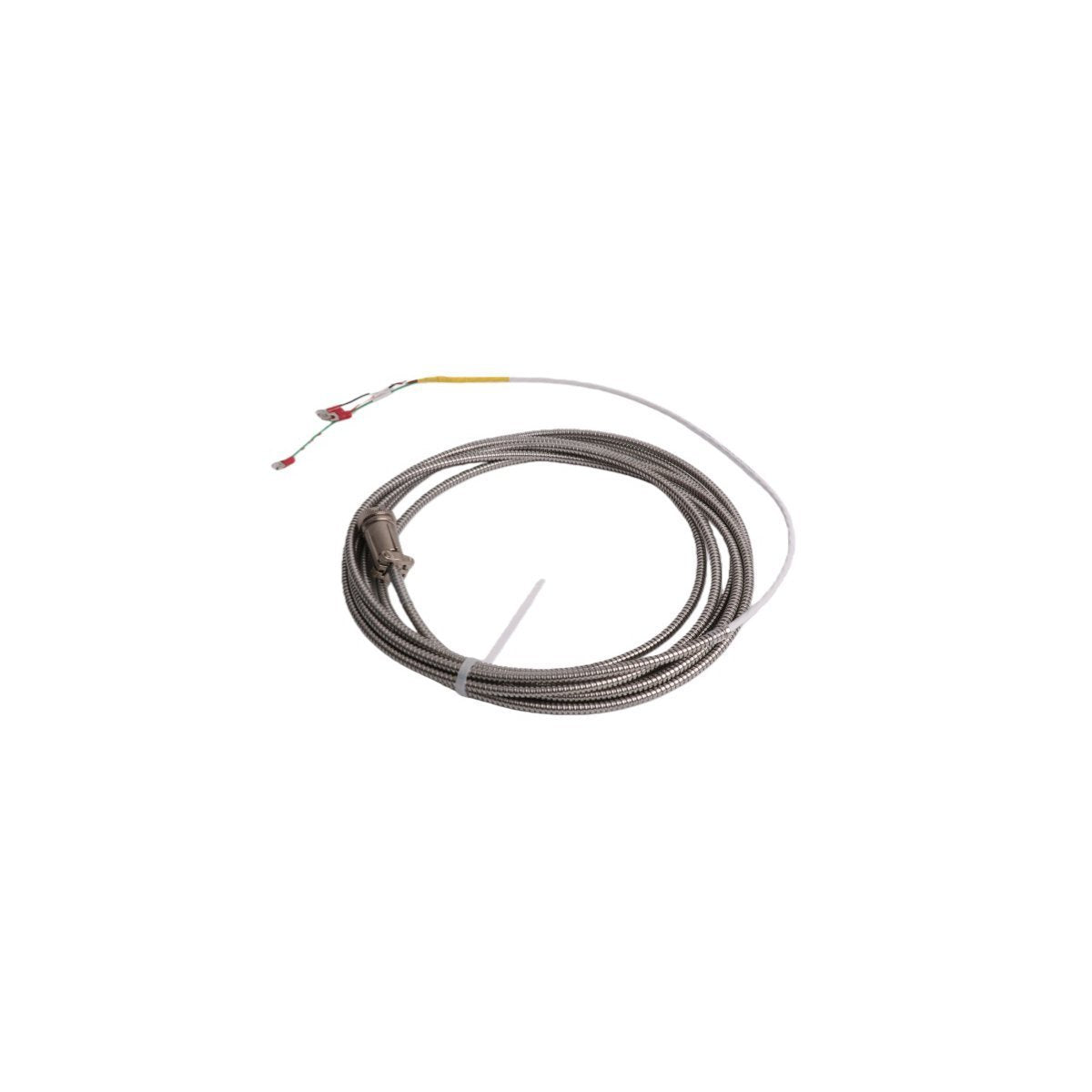

The Bently Nevada 16710-13 serves as the primary 16710-13 Interconnect Cable utilized to execute high-frequency RF signal propagation across Machinery Protection System platforms. This passive coaxial component provides the exact physical and electrical impedance matching necessary to link an eddy-current proximity probe tip assembly to a remote Proximitor sensor conditioning unit without introducing signal attenuation.

Physical and Electrical Specifications

Rotor Dynamics tracking & Eddy-Current Probe Scaling

The physical cross-section and mechanical lengths of this 95-\Omega coaxial cable assembly are engineered to maintain constant capacitive and inductive parameters per unit length. Adherence to these strict geometric tolerances ensures that the factory eddy-current probe scaling remains linear during continuous machine cycles. Precise transmission integrity allows correct gap voltage validation hitting standard -10 VDC targets at the monitoring driver stage, providing noise-free tracking of rotor dynamics and executing maximum cross-talk suppression between close-proximity radial vibration channels.

Transducer Interface Diagnostics

Q: What specific data changes occur if the 16710-13 cable length is mechanically shortened in the field?

A: Altering the physical length changes the overall circuit capacitance and line impedance. This modification shifts the tuned frequency of the oscillator loop, invalidating the calibrated eddy-current probe scaling and causing linear voltage tracking errors at the monitor module.

Q: How does moisture entering the coaxial connector junction alter the sensor output?

A: Moisture ingress lowers the insulation resistance between the center conductor and the outer shield. This drop in resistance dampens the RF signal amplitude, resulting in false shifts during gap voltage validation and introducing noise into the dynamic tracking loop.

Q: Can this interconnect line be disconnected while the active monitor channel is live?

A: Yes. Disconnecting the coaxial joint is safe for the hardware components. However, interrupting the loop causes the Proximitor output to instantly saturate to its maximum negative voltage limit, which will trip active safety interlocks unless the channel bypass mode is engaged.

Mechanical Routing and Installation Layout

• Minimum Bend Management: Maintain a strict physical bend radius limit of 25.4 mm throughout the cable routing path. Sharp kinks compress the internal dielectric spacing layer, permanently changing the 95-\Omega characteristic impedance profile.

• Connector Insulation Shielding: Torque the miniature coaxial connections to factory specifications using a connector wrench. Enclose the finished metal joint inside a dedicated connector protector sleeve or apply thick layers of self-fusing silicone tape to prevent mechanical grounding against terminal box frames.

• Separation from Power Circuits: Route the transducer cable inside dedicated rigid or flexible liquid-tight steel conduits. Do not pull this high-frequency signal line through the same trays or wireways housing heavy AC motor leads or variable frequency drive switching lines.

Procurement Package Content

• 1 x Bently Nevada 16710-13 Coaxial Interconnect Cable

• 1 x Engineering Terminal Schematic Sheet

• Note: Proximity sensor tips, active Proximitor drivers, and flexible bulkhead seals must be specified and purchased as separate items.

Logistics Dispatch Framework

Delivery time: 2-7 days when payment finish verification is logged in the processing database. Dispatches route directly from the Xiamen, China transit node via express international transport handlers including DHL, FEDEX, or UPS. The hardware items travel protected inside heavy-duty anti-static industrial packaging enclosures layered inside rigid shock-insulated cartons with moisture desiccant packets to prevent physical deformation or electrostatic degradation during transit.
