Product Overview

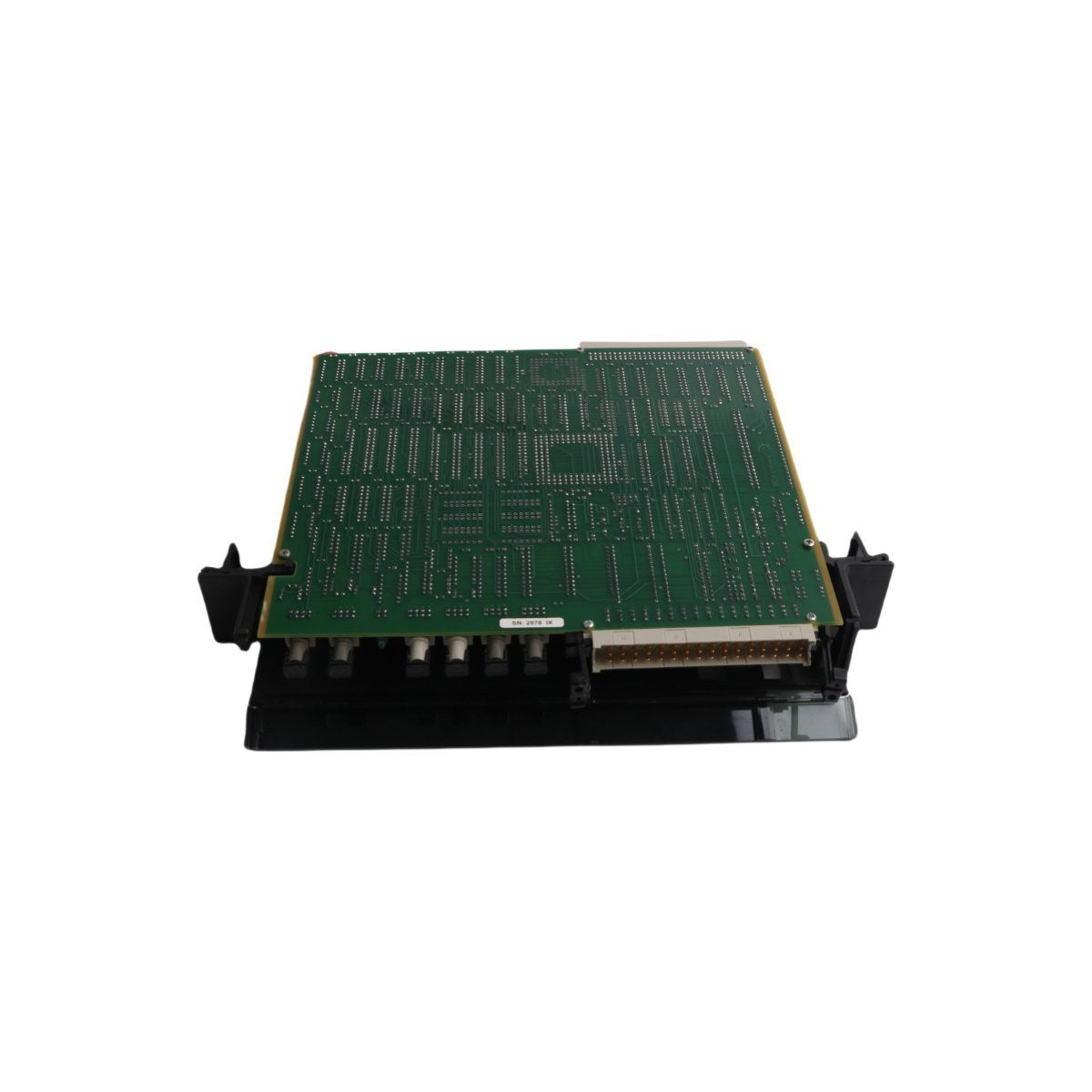

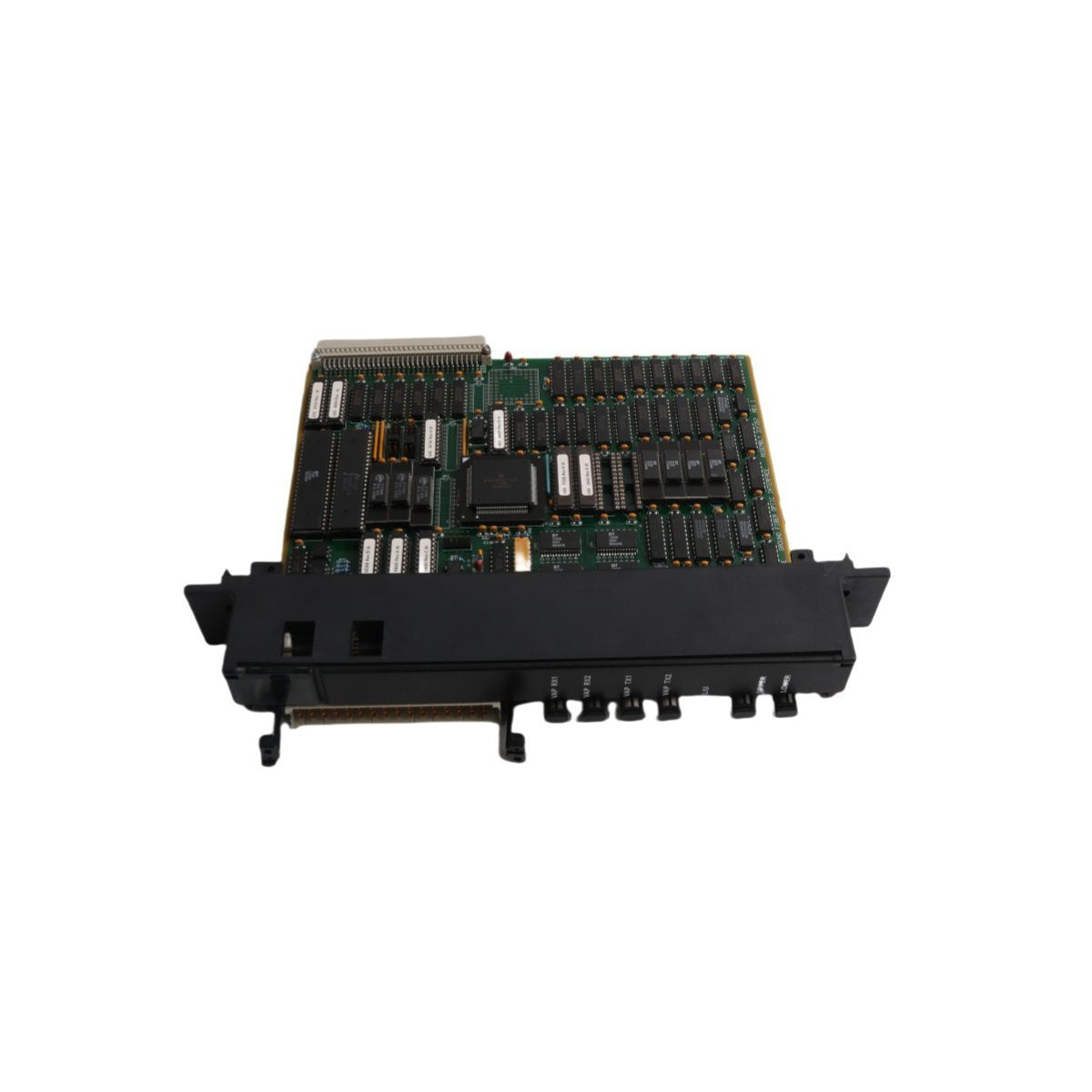

The General Electric 151X1225DF01PC03RA is a heavy-duty power conversion unit engineered specifically for the Mark VIE control architecture and broader GE Energy automation platforms. This module is designed to transform standard DC inputs into stabilized, low-noise voltage rails required for high-precision turbine control and industrial drive electronics. With a focus on power density and thermal stability, the 151X1225DF01PC03RA ensures that sensitive control logic receives consistent power even under fluctuating load conditions. Its ruggedized mechanical chassis is built to withstand the electromagnetic interference and vibration levels typically found in utility-scale power generation environments.

Technical Hardware Parameters and Physical Specifications

• Continuous Output Capacity: 4.2 kW (Rated for industrial-scale loads)

• Logic Power Rating: 120–150 W for auxiliary control circuits

• Input Voltage: 24 V DC

• Secondary Voltage Outputs: ±15 V DC and +5 V DC

• Current Handling: Up to 10 A

• Conversion Efficiency: ≥85%

• Signal Integrity: Ripple and noise suppression <1% of output voltage

• Voltage Regulation: ±1% across line and load variations

• Net Weight: 16.02 kg

• Shipping Dimensions: 27 x 36 x 40 cm

• Thermal Range: 0°C to 60°C (Operating); -40°C to 85°C (Storage)

• Humidity Tolerance: 5% to 95% RH (Non-condensing)

Industrial Deployment and Application Scenarios

The 151X1225DF01PC03RA is a vital component in mission-critical systems where power failure can lead to significant downtime. Its primary applications include:

• Gas Turbine Control Systems: Serving as a primary power source for Mark VIE controllers and I/O packs in gas and steam power plants.

• Advanced Motor Drives: Providing the stabilized DC voltage required for the firing circuits and control logic of large-scale industrial drives.

• Distributed Control Systems (DCS): Acting as a high-reliability power node within complex automation networks to ensure uninterrupted data processing.

• Grid Management Hardware: Integrated into electrical substation control panels where precise voltage regulation is mandatory for grid stability and protection.
