Product Overview

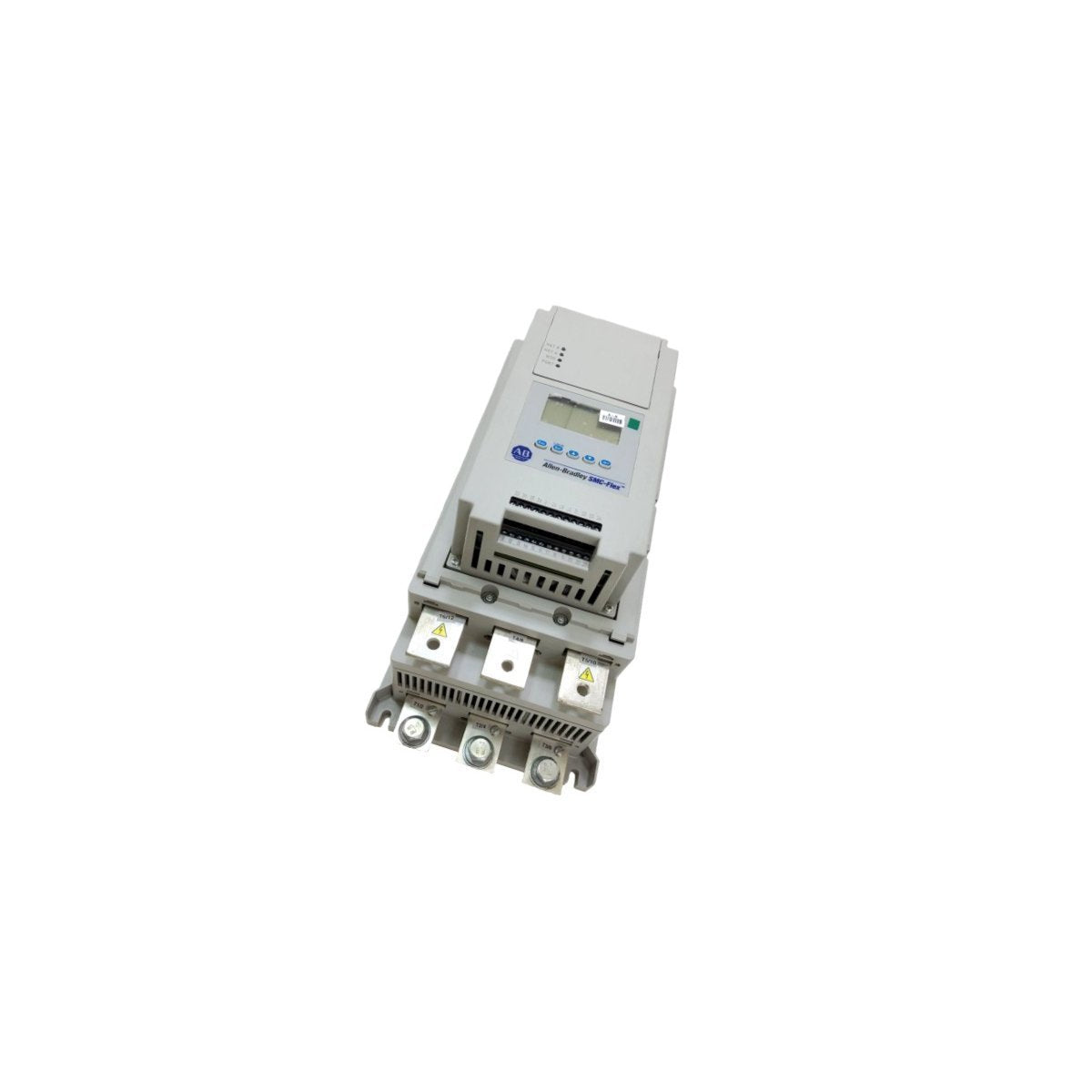

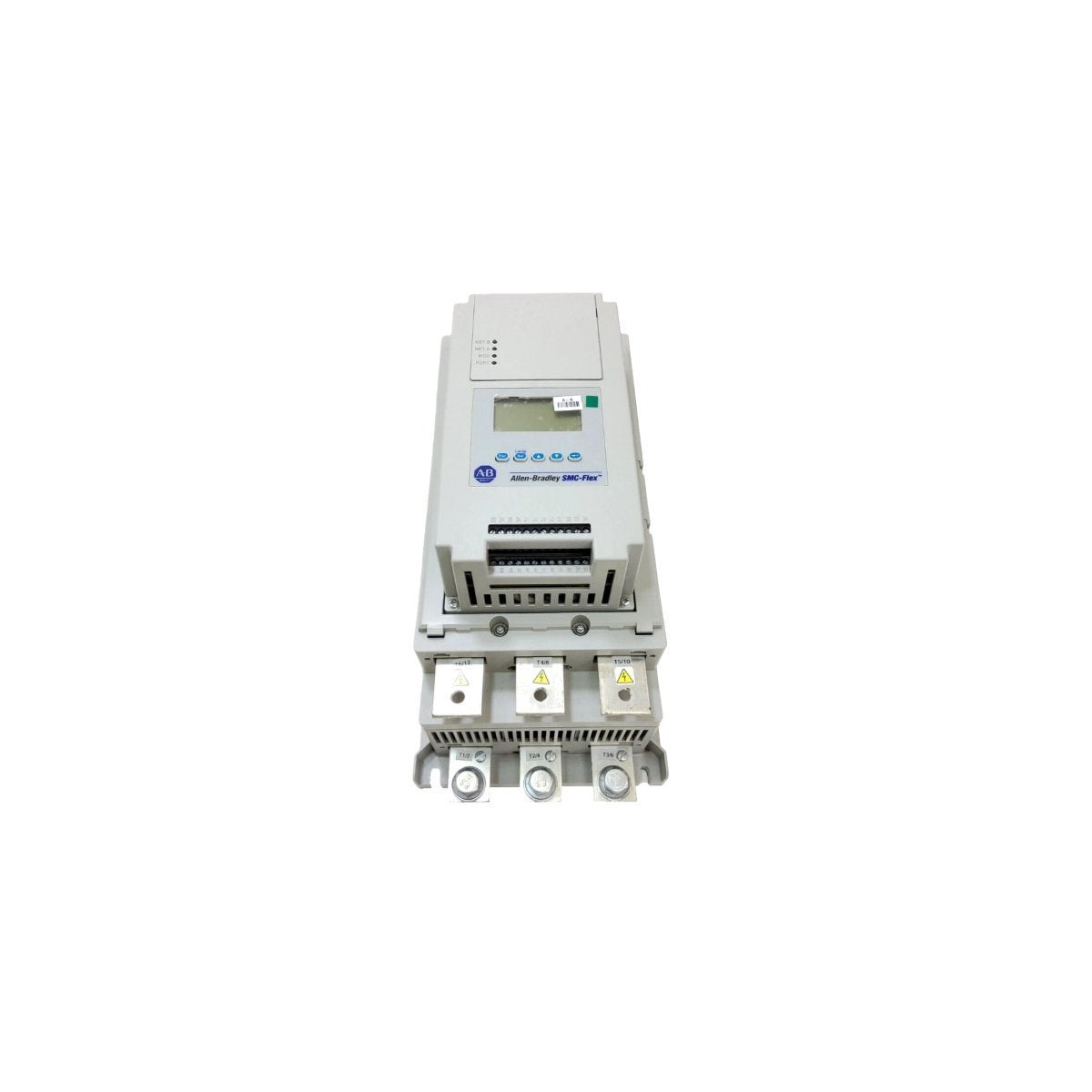

The Allen-Bradley 150-F135NBDB is a high-performance SMC™ Flex Solid State Smart Motor Controller designed for the precise regulation of three-phase industrial motors. Rated for a 135A current capacity, this advanced controller provides a modular and scalable solution for motor starting, reducing mechanical stress on equipment and limiting inrush current. As part of the Bulletin 150 family, the 150-F135NBDB integrates sophisticated power electronics with intelligent diagnostics to ensure smooth acceleration and deceleration across various load types, from simple fans to high-inertia pumps.

The unit features an integrated bypass contactor, which significantly reduces heat dissipation during normal operation by shunting the SCRs (Silicon Controlled Rectifiers) once the motor reaches full speed. This design extends component life and improves overall system efficiency. With a built-in LCD display and keypad, the 150-F135NBDB allows for intuitive parameter configuration and real-time monitoring of motor performance metrics.

Advanced Control and Protective Modes

The 150-F135NBDB is engineered to provide superior protection and flexible operation through various specialized control algorithms.

• Flexible Starting Profiles: Supports multiple starting methods including Soft Start, Current Limit Start, Selectable Kickstart, and Full Voltage Start to match specific application torque requirements.

• Sophisticated Stop Control: Features Soft Stop and specialized Pump Control to eliminate "water hammer" effects in fluid piping systems by managing the deceleration curve.

• Comprehensive Motor Protection: Integrated electronic overload protection utilizing $I^2t$ algorithms, along with detection for phase loss, phase reversal, undervoltage, and overvoltage conditions.

• Braking and Slow Speed: Supports SMB™ Smart Motor Braking for rapid stopping of high-inertia loads and Accu-Stop™ for precise positioning.

• Network Integration: Features DPI™ (Drive Protocol Interface) for seamless communication with EtherNet/IP, ControlNet, and DeviceNet networks via optional communication modules.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 150-F135NBDB

• Controller Type: SMC Flex Solid State Smart Motor Controller

• Current Rating: 135 Amperes

• Input Voltage: 200–460V AC (3-Phase)

• Control Voltage: 100–240V AC

• Enclosure Type: Open Type (IP00)

• Backplane/Logic Interface: LCD Display with programming keypad

• Bypass Contactor: Internal (Integrated)

• Operating Temperature: -5°C to 50°C (23°F to 122°F)

• Dimensions: 13.0 x 14.5 x 3.5 cm (Logic Module components)

• Weight: 0.9 kg (Logic Control component weight)

Applications and Industrial Reliability

The 150-F135NBDB is a critical component for optimizing the lifecycle of heavy industrial equipment:

• Pumping Systems: Advanced pump control logic prevents pressure surges and pipe stress.

• Conveyor Management: Smooth acceleration prevents belt slippage and mechanical jarring of transported materials.

• Compressors and Fans: Reduces electrical demand peaks during startup in HVAC and industrial cooling systems.

• Crushers and Grinders: Provides high-torque kickstarts to overcome significant breakaway friction in heavy processing.

By utilizing solid-state switching rather than traditional across-the-line contactors, the 150-F135NBDB minimizes electrical noise and mechanical wear, ensuring a reliable human-machine interface point within complex automated architectures.
