Product Overview

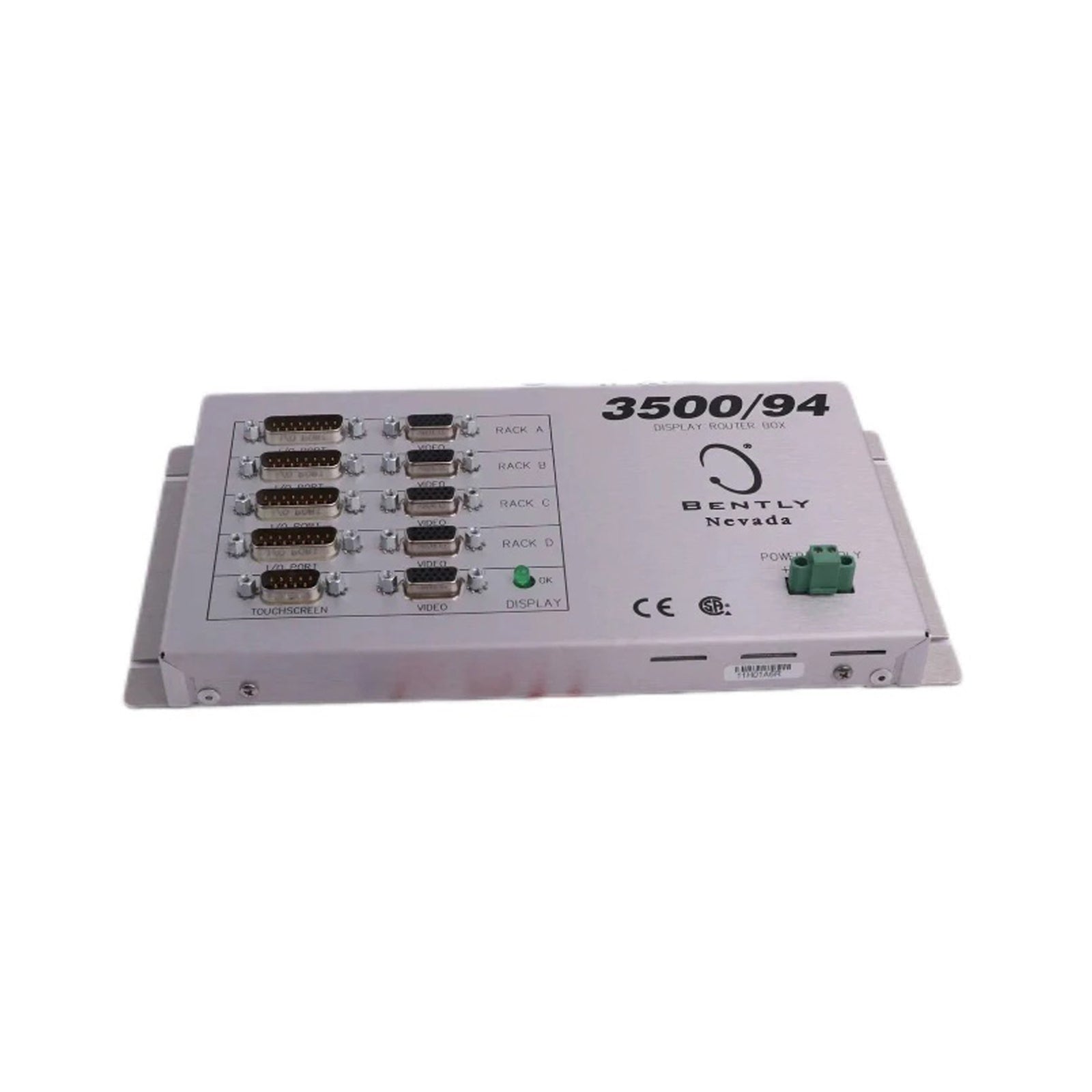

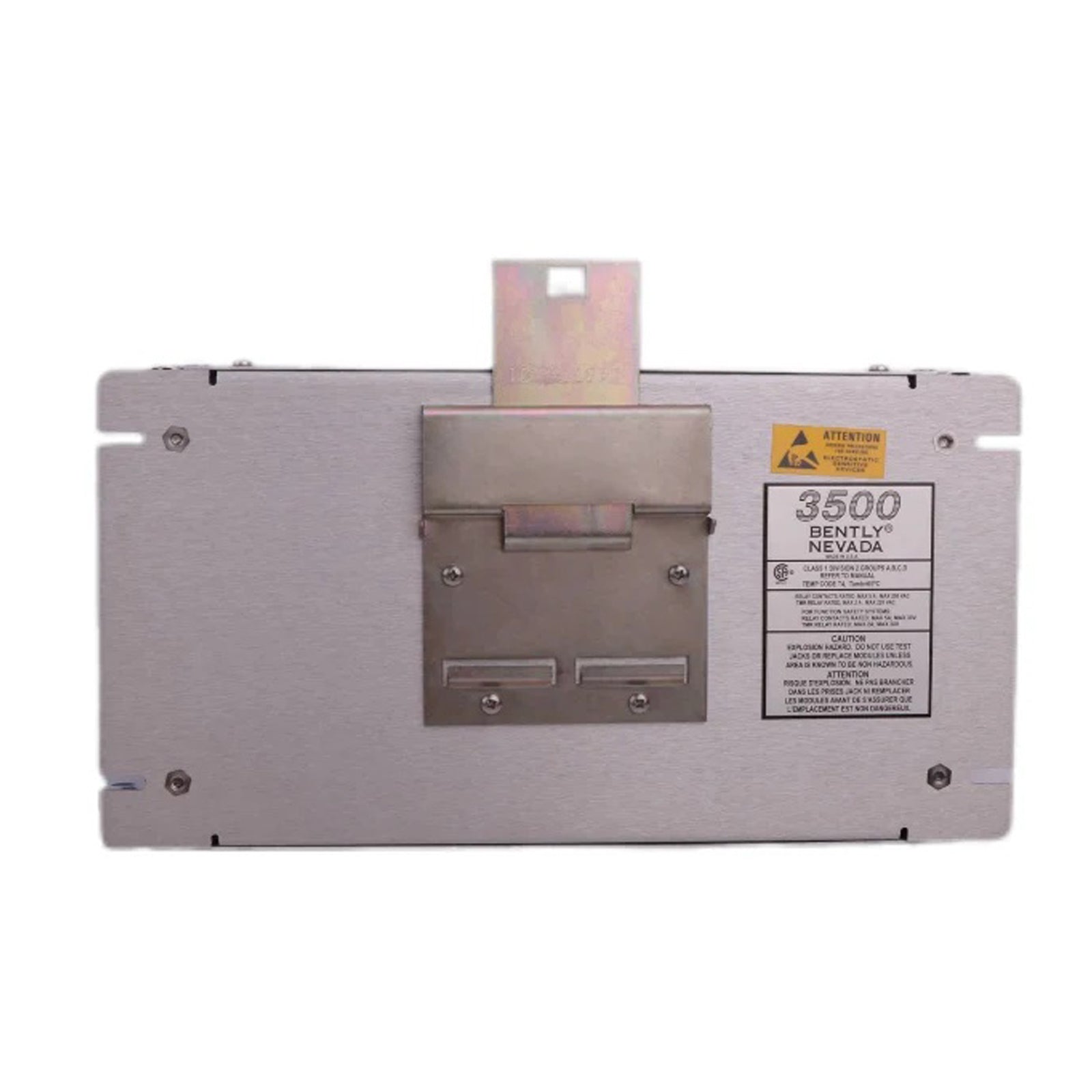

The Bently Nevada 149356-01 is a specialized Display Router Box designed for the 3500/94 VGA Display System. This hardware serves as the essential processing link between the 3500 machinery protection rack and an external color VGA monitor. By utilizing integrated touch-screen technology, the 149356-01 allows operators to interact directly with real-time vibration, position, and temperature data without needing a separate computer workstation. The system is engineered to provide local visualization of critical asset health, offering nine distinct display configurations that adhere to API-670 standards. This router box ensures that high-speed data from the rack backplane is accurately rendered for immediate human interpretation, facilitating rapid decision-making on the plant floor.

Performance Architecture and System Hardware

The 149356-01 is built to industrial standards to ensure low-latency data routing and robust signal integrity.

• Standard Power Usage: 3.2 Watts (Typical)

• Module Signal Compatibility: Supports both Isolated (+5 V to -11 V) and Non-Isolated (+0.8 V to -21.0 V) I/O modules

• Signal Processing Range: 1 to 1,200,000 cpm (0.017 Hz to 20 kHz)

• Input Impedance: 21.8 kΩ (Minimum)

• Visual Indicators: Dedicated front-panel LEDs for OK and Bypass status

• Connectivity Limit: Supports remote mounting up to 8 meters (26 feet) from the primary rack

• Net Weight: 0.65 kg

• Unit Dimensions: 12.5 x 10.2 x 5.1 cm

• Origin: Manufactured in the USA

Field Deployment and Industrial Integration

This display router is a staple in modern Turbine Supervisory Instrumentation (TSI) setups, particularly in the following scenarios:

• Local Operator Interface: Providing a "cabinet-door" touch interface for technicians to view bar graphs, alarm lists, and event logs directly at the machine train.

• API-670 Compliance: Ensuring that machinery protection systems meet the rigorous display requirements for critical rotating assets in oil and gas refineries.

• Remote Rack Visualization: Extending the visual interface of a 3500 rack to a more accessible location up to 8 meters away, bypassing the need for complex network infrastructure.

• Diagnostic Overlays: Utilizing the nine custom display options to toggle between high-level status overviews and detailed channel-specific diagnostics during machine startup or testing.




FAQ

Q: Does the 149356-01 include the VGA monitor?

A: No, the 149356-01 is the Display Router Box component of the system. A complete 3500/94 setup requires this router box, the 3500/94 VGA module, and a compatible touch-screen VGA monitor.

Q: Is the touch-screen functionality compatible with any standard VGA monitor?

A: The router box is designed to work with industrial touch-screen monitors specifically calibrated for the Bently Nevada 3500/94 system to ensure driver compatibility and touch accuracy.

Q: What do the OK and Bypass LEDs signify on the router box?

A: The OK LED indicates that the router box and its communication link to the rack are functioning correctly. The Bypass LED illuminates when the display or certain alarm functions have been intentionally suppressed for maintenance.

Q: Can I mount this router box further than 8 meters from the 3500 rack?

A: The current engineering specification limits the distance to 8 meters to maintain signal integrity and prevent data latency. Exceeding this distance may result in display flickering or touch-input lag.

Q: Is this unit compatible with the newer 3500/92 Communication Gateway?

A: The 3500/94 (149356-01) is a standalone display solution. While it can exist in the same rack as a 3500/92, it operates independently to provide local visualization regardless of the plant's network status.
