Product Overview

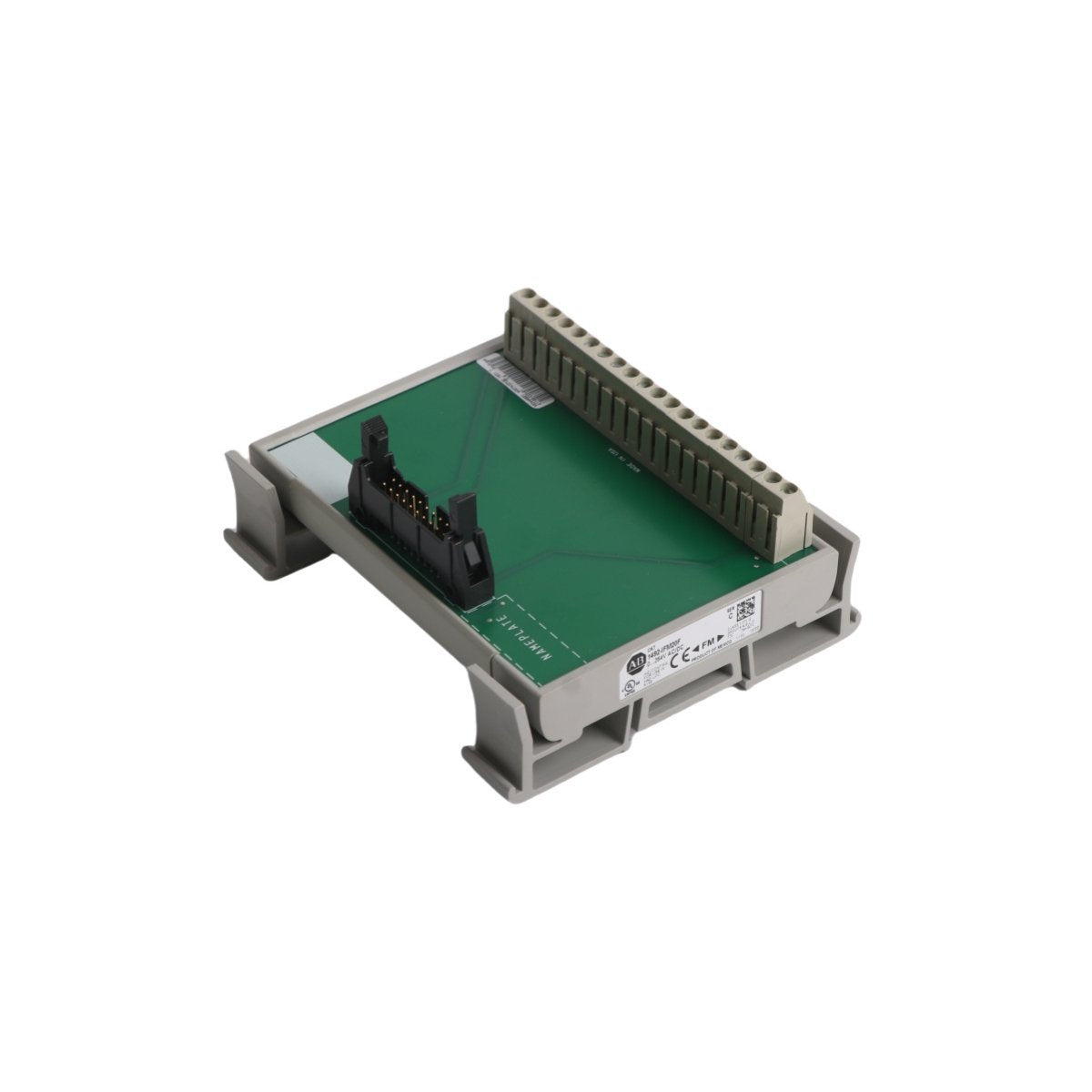

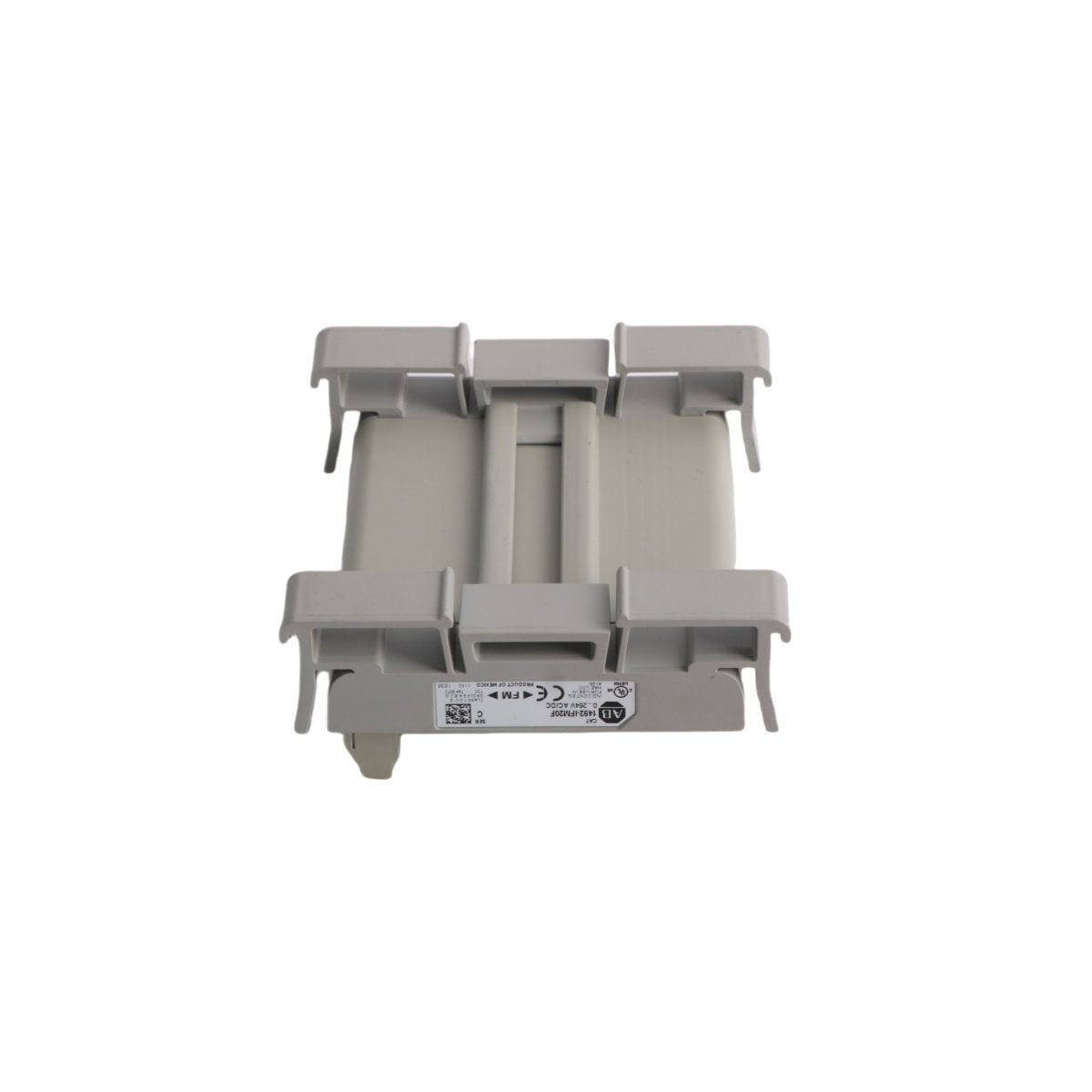

The Allen-Bradley 1492-IFM20F-F120A-2 is a specialized 20-point digital termination module designed to streamline the wiring between field devices and I/O modules. Part of the Bulletin 1492 Interface Management (IFM) system, this unit features integrated circuit protection via 5x20mm fuse clips. It is engineered for industrial control panels where high-density wiring and individual point protection are paramount.

This module serves as a critical interface for 120V AC/DC signals, providing immediate visual diagnostics through blown fuse indicators (BFI). By utilizing pre-wired cables to connect this module to a PLC, users can significantly reduce wiring time and potential errors compared to traditional point-to-point terminal block assemblies. Its group-isolated architecture allows for the flexible use of different power sources within a single interface, making it highly adaptable for complex automation logic.

Key Technical Characteristics

The 1492-IFM20F-F120A-2 is defined by its ability to combine termination, signal distribution, and circuit safeguarding in a singular, compact footprint.

• Fusing and Protection: Supports 20 individual circuits with 120mA fast-acting fuses, safeguarding both the PLC I/O and the connected field sensors or actuators.

• Visual Diagnostics: Integrated LED indicators light up when a fuse has blown, facilitating rapid troubleshooting and reducing system downtime.

• Isolated Power Grouping: The 20 points are divided into two isolated groups of 10, allowing the system to reference multiple power supplies or distinct electrical phases.

• Safety Design: Features a finger-safe IP20-rated enclosure, providing a high level of operational safety during maintenance and inspection.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 1492-IFM20F-F120A-2

• Component Type: Fusible Interface Module (IFM)

• Terminal Points: 20 Points (Feed-through)

• Operating Voltage: 120V AC/DC Nominal

• Input Current per Point: 3mA @ 24V DC

• Isolation Voltage: 250V AC (Logic to Field side)

• Fuse Compatibility: 5x20mm (120mA fast-acting recommended)

• Mounting: Standard DIN Rail (35mm)

• Housing Style: Open-style, finger-safe

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Dimensions: 7.6 x 7.6 x 12.7 cm

• Weight: 0.2 kg (0.44 lbs)

Industrial Applications and Integration

• Discrete I/O Management: Ideal for managing large banks of digital inputs or outputs in automotive, food and beverage, and water treatment facilities.

• Power Distribution: Acts as a centralized hub for distributing power to field-mounted switches, solenoids, and indicators.

• Retrofitting and Upgrades: Simplifies the migration of legacy control systems to modern ControlLogix or CompactLogix platforms by providing a clean, modular termination point.

• Space Optimization: The narrow profile of the 1492-IFM20F-F120A-2 allows for higher I/O density within standard electrical enclosures.
