Product Overview

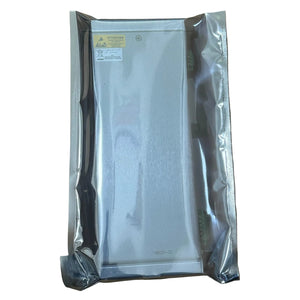

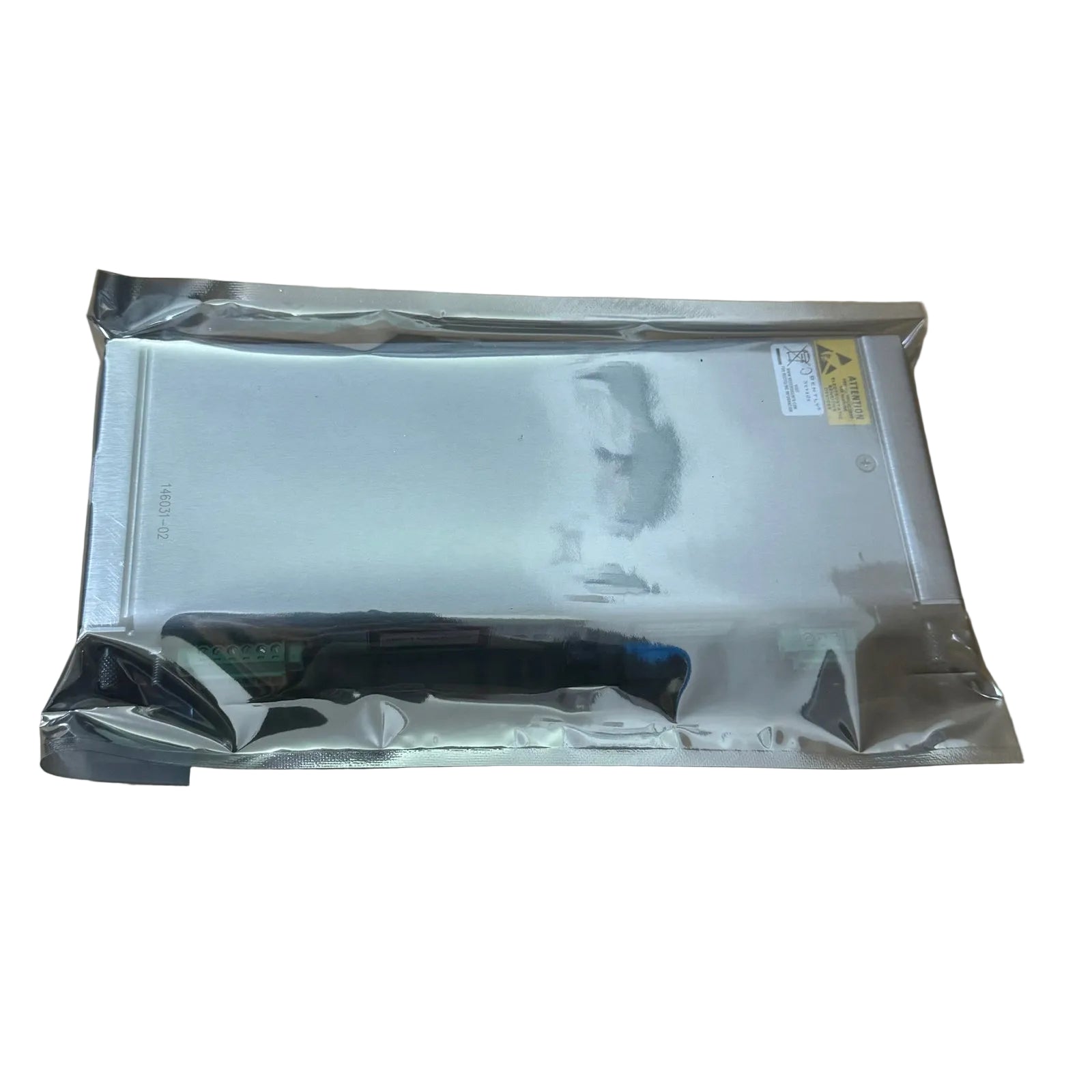

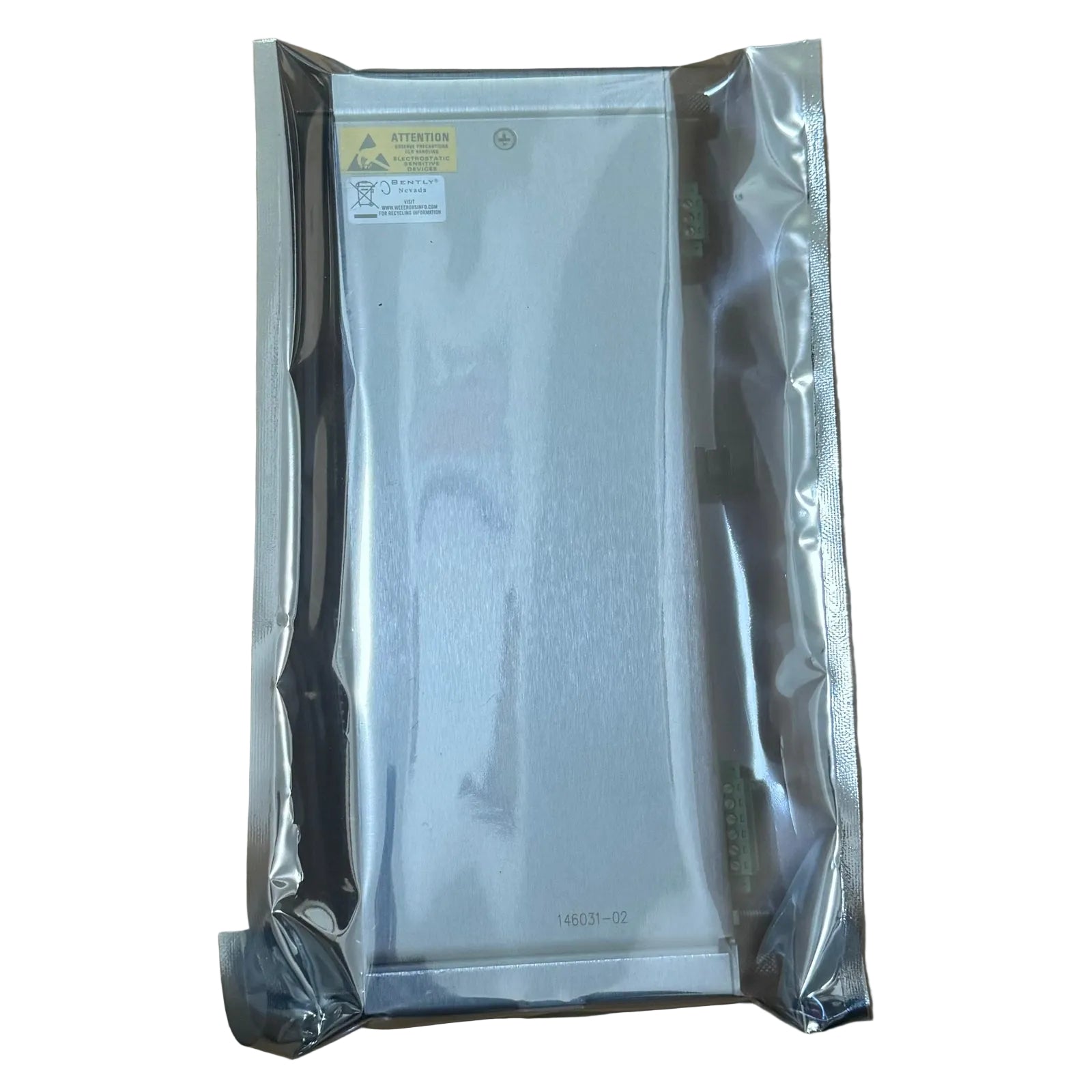

The Bently Nevada 146031-02 is a high-speed Fiber Optic I/O Module designed specifically for the 3500/22M Transient Data Interface (TDI). This module acts as the primary physical bridge between the machinery protection rack and advanced condition monitoring platforms such as System 1. By integrating the core functions of a standard rack interface with the high-bandwidth data processing of a communication processor, the 146031-02 enables the seamless capture and transmission of both static and transient vibration data. The use of 100Base-FX fiber optic technology ensures that critical seismic and machinery health information is delivered with total immunity to electromagnetic interference, making it an essential component for high-reliability industrial networks.

Hardware Architecture and Performance Metrics

• Interface Type 100Base-FX (Fiber-Optic)

• Part Number 146031-02

• Input Signal Range -10 Vdc to +10 Vdc

• Local Access USB-B port on front panel for onsite configuration

• Power Demand 10.5 Watts (Typical)

• Thermal Range -30°C to +65°C

• Net Weight 0.82 kg (1.8 lbm)

• Physical Proportions 24.18 cm x 2.44 cm x 24.13 cm

• Manufacturing Origin USA

• System Family 3500/22M

Operational Use Cases and Industrial Deployment

The 146031-02 is predominantly utilized in large-scale power generation, petrochemical facilities, and offshore oil platforms where monitoring racks are often located far from the central control server. Because fiber optic cables are immune to ground loops and lightning-induced surges, this module is the industry standard for high-voltage environments and outdoor installations. It allows maintenance teams to perform advanced diagnostic waveform analysis during turbine startup and coast-down phases, providing the high throughput necessary for real-time transient data streaming. By replacing traditional copper Ethernet I/O, the 146031-02 ensures that mission-critical machinery protection data remains clear and uncorrupted, even in the most electrically noisy plant environments.

FAQ

Q: Is the 146031-02 compatible with the older 3500/20 RIM?

A: No, the 146031-02 is designed exclusively for the 3500/22M Transient Data Interface (TDI). It leverages the TDI's enhanced processing power to handle the higher bandwidth required for fiber optic transmission.

Q: What is the primary advantage of the 100Base-FX interface?

A: The 100Base-FX fiber optic interface provides complete galvanic isolation and immunity to EMI/RFI, allowing for much longer cable runs between the machinery rack and the network switch without signal degradation.

Q: Can I use the front panel USB-B port for data collection?

A: The USB-B port is primarily intended for local configuration and troubleshooting using the 3500 System Configuration software. For continuous data collection and System 1 integration, the fiber optic Ethernet port should be used.

Q: Does this module support monitoring of seismic sensors?

A: Yes, the 146031-02 facilitates the communication interface for all sensors processed by the TDI, including seismic, proximity, and acceleration probes used in condition monitoring.

Q: Is this module suitable for extreme temperature environments?

A: The 146031-02 is rated for operation from -30°C to +65°C, making it robust enough for installation in most unconditioned industrial cabinets or remote instrument enclosures.
