Product Overview

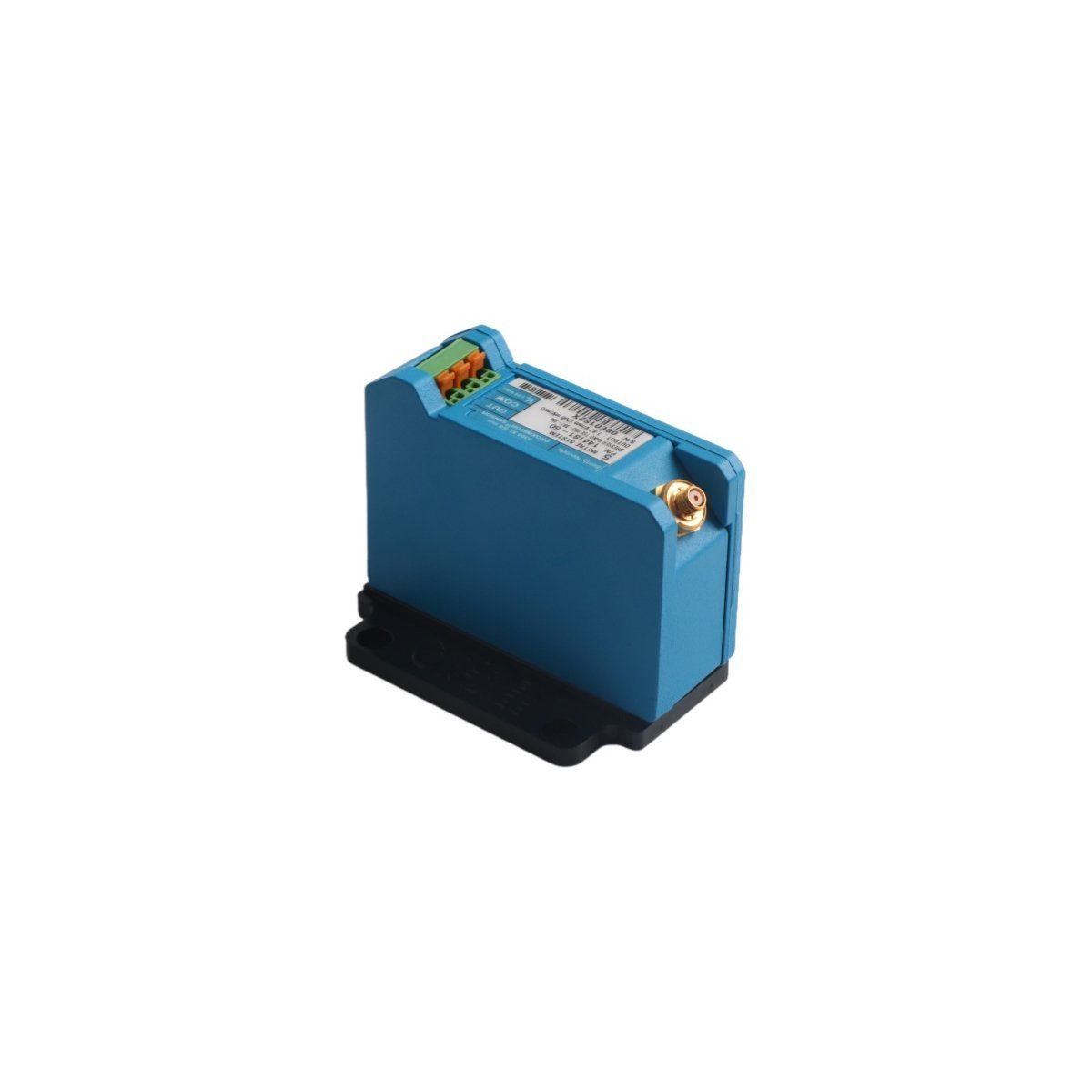

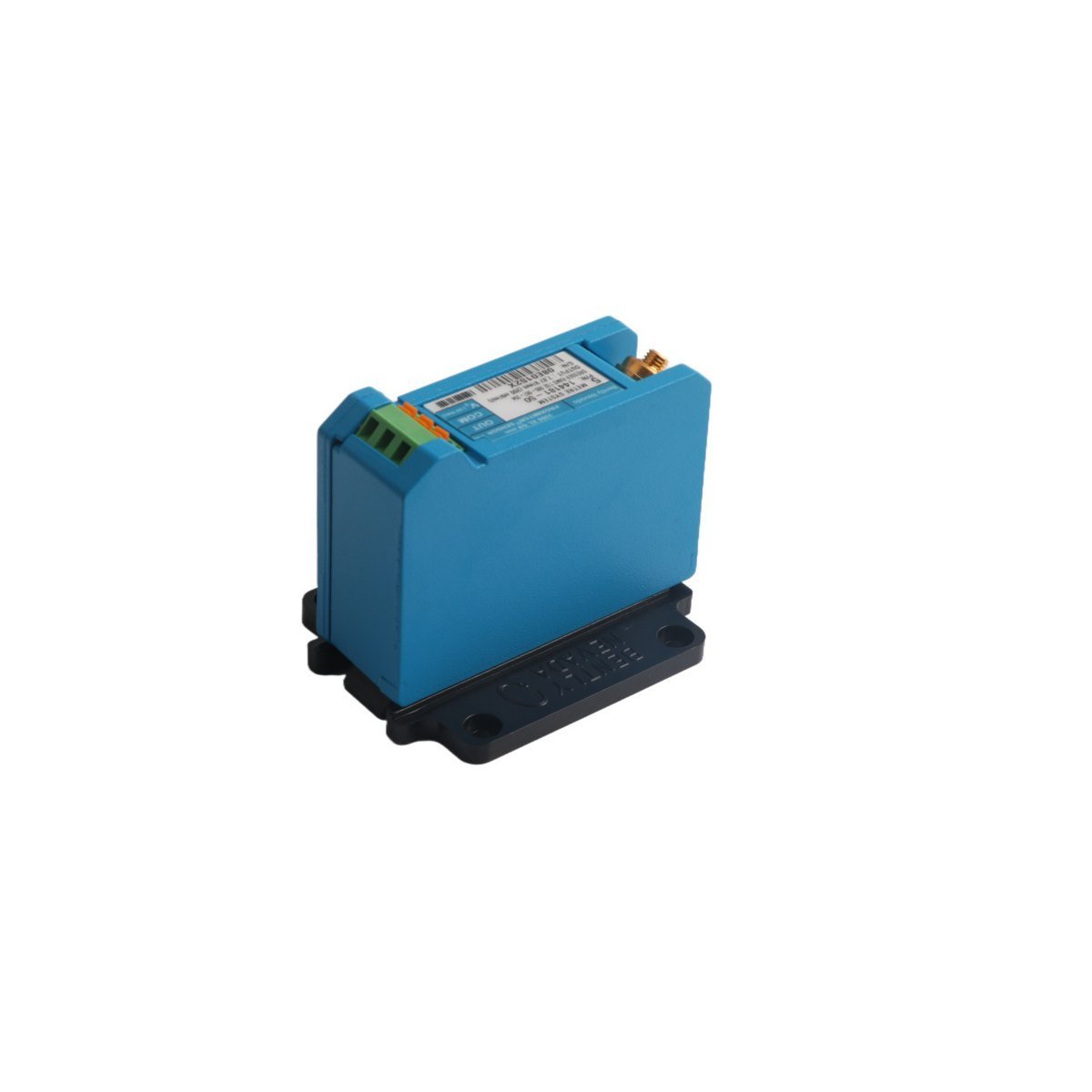

The Bently Nevada 144181-50-05 is a high-precision 3300 XL Proximitor Sensor, serving as a cornerstone for non-contacting displacement and vibration monitoring systems. This eddy current sensor is specifically calibrated for use with 5mm and 8mm probe tips, converting the electromagnetic interaction between the probe and the observed target into a linear DC voltage signal. By providing a continuous 4-20 mA output proportional to the gap distance, it allows for real-time machinery protection and diagnostic data acquisition. This model is engineered to maintain signal integrity in high-interference environments, facilitating the early detection of mechanical anomalies in critical rotating assets.

Key Technical Characteristics

• Model Number 144181-50-05

• System Series 3300 XL Proximity Transducer System

• Cable Length 5.0 Meters (Integrated)

• Probe Compatibility 5mm and 8mm diameter tips

• Signal Output 4-20 mA DC (proportional to distance/vibration)

• Power Requirement +24 VDC nominal

• Ingress Protection IP67 rated against moisture and particulates

• Temperature Tolerance -40°C to +260°C (Sensor head capability)

• Mounting DIN rail compatible or bulkhead installation

• Frequency Response 0 Hz (DC) to 10 kHz

Industrial Applications

The 144181-50-05 Proximitor is a vital component in Turbine Supervisory Instrumentation (TSI) for the oil and gas, petrochemical, and power generation industries. Its primary use cases include the measurement of radial vibration, axial thrust position, and eccentricity in high-speed turbomachinery such as centrifugal compressors, steam turbines, and large-scale industrial pumps. Because of its robust IP67 construction and wide thermal range, it is frequently deployed in hazardous locations and extreme outdoor environments where precision and uptime are essential for preventing catastrophic equipment failure and unplanned outages.
