Product Overview

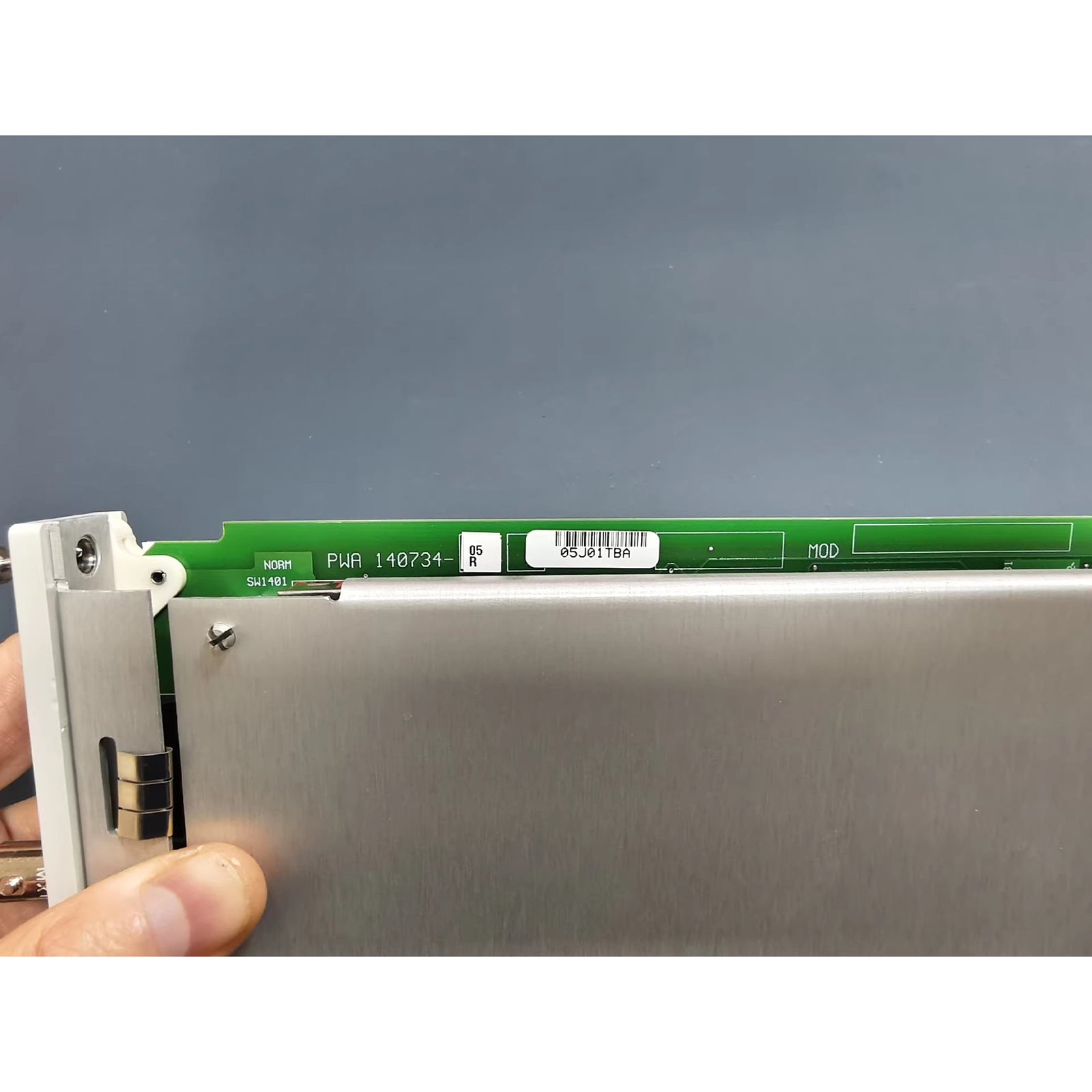

The Bently Nevada 140734-05 is a specialized four-channel monitoring module engineered for the 3500 Series machinery protection system. This high-precision component is specifically designed to track dynamic pressure pulsations in industrial turbomachinery. By processing signals from high-temperature pressure transducers, the 140734-05 identifies aerodynamic instabilities and combustion anomalies that can lead to mechanical fatigue or catastrophic failure. It functions as a critical early-warning system, converting rapid pressure fluctuations into proportional bandpass values. These values are used to trigger automated protective actions or streamed to diagnostic software, ensuring that high-value assets operate within safe thermodynamic and mechanical limits.

Core Hardware Specs and Signal Parameters

• Monitoring Capacity Four independent channels for simultaneous pressure surveillance

• Ordering Number 140734-05

• Signal Input Compatibility High-temperature dynamic pressure transducers (Charge or Voltage)

• Measurement Type Bandpass dynamic pressure (proportional values)

• Status Indicators Front-panel LEDs for OK, TX/RX (comms), and Bypass status

• Data Integration Integrated recorder outputs for direct interface with control systems

• Alarm Logic User-configurable Alert and Danger setpoints per channel

• Physical Proportions 241 mm x 24.4 mm x 242 mm

• Unit Mass 0.82 kg

• Origin of Manufacture USA

Industrial Operational Utility

In the power generation and aerospace sectors, the 140734-05 is primarily deployed to monitor combustion instability (humming) in gas turbines. Uncontrolled dynamic pressure pulsations in the combustion chamber can cause severe damage to transition pieces and turbine blades. This module provides the high-bandwidth frequency analysis required to detect these pulses in real-time. Beyond combustion, it is used in large-scale centrifugal compressors to monitor for surge conditions and stall. By providing a continuous 4-20mA recorder output, the 140734-05 allows plant operators to trend pressure data within a DCS or SCADA system, facilitating predictive maintenance strategies. The module's robust design ensures it can withstand the electrical noise and harsh environments typical of turbine enclosures and industrial engine rooms.

FAQ

Q: What is the significance of the Bypass LED on the front of the 140734-05?

A: The Bypass LED illuminates when the module's alarm functions have been intentionally suppressed. This is typically done during maintenance or specific testing phases to prevent accidental machine trips.

Q: Can this module interface with standard vibration probes?

A: No, the 3500/64M 140734-05 is specifically tuned for dynamic pressure transducers. For standard vibration or position monitoring, you would typically use a 3500/42M or 3500/45 module.

Q: Does the 140734-05 provide a raw signal output for external analysis?

A: Yes, the module provides buffered outputs, allowing maintenance teams to connect external oscilloscopes or FFT analyzers to view the raw pressure waveforms without disturbing the primary monitoring loop.

Q: How does the "Bandpass" measurement function?

A: The module filters the incoming raw signal to focus on a specific frequency range where pressure pulsations are most critical, providing a single proportional value that represents the energy within that specific band.

Q: Is the 0.82 kg weight inclusive of the rear I/O module?

A: This weight refers to the main 140734-05 monitor module. When paired with a rear I/O module, the total assembly weight will increase slightly depending on the termination type used.
